Product Description

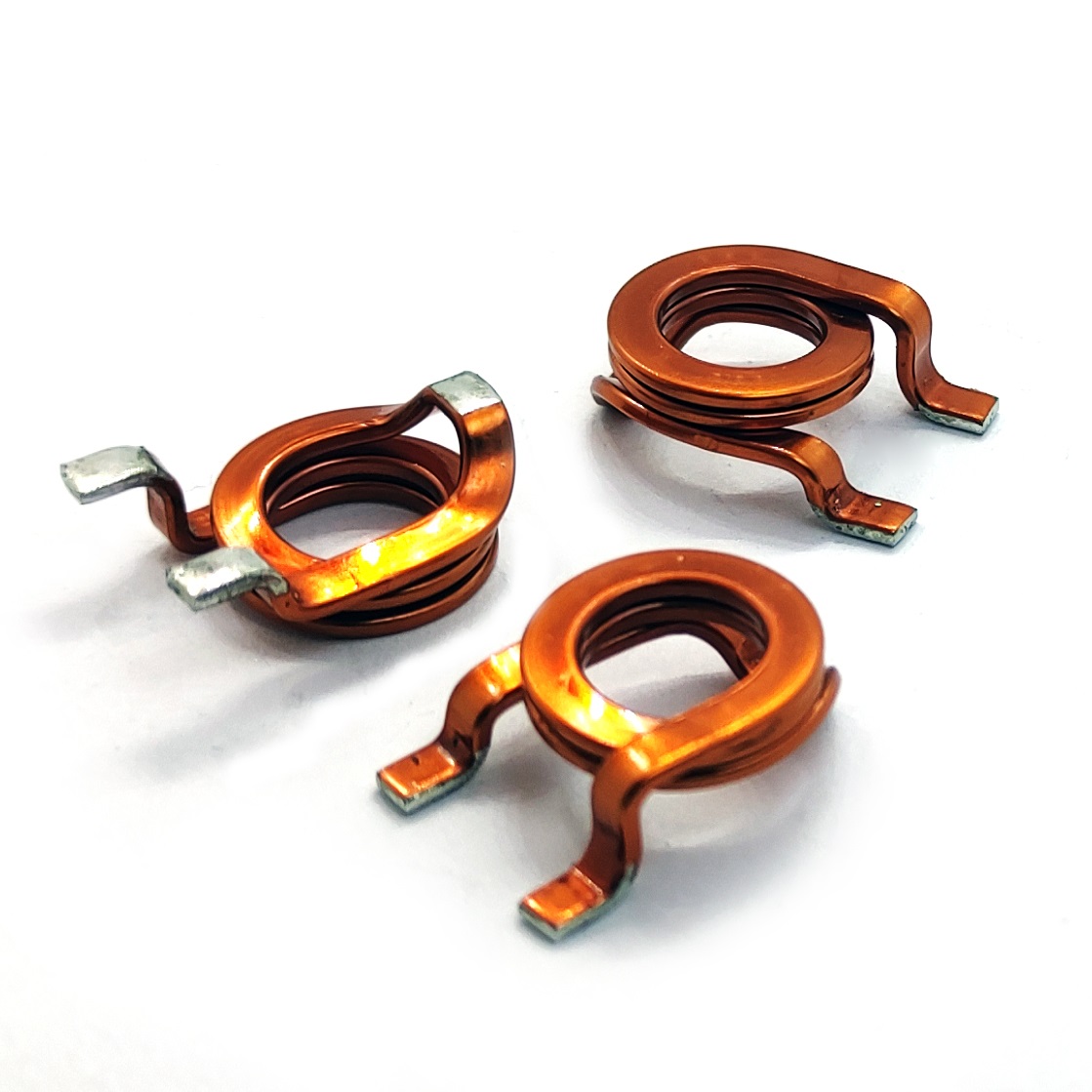

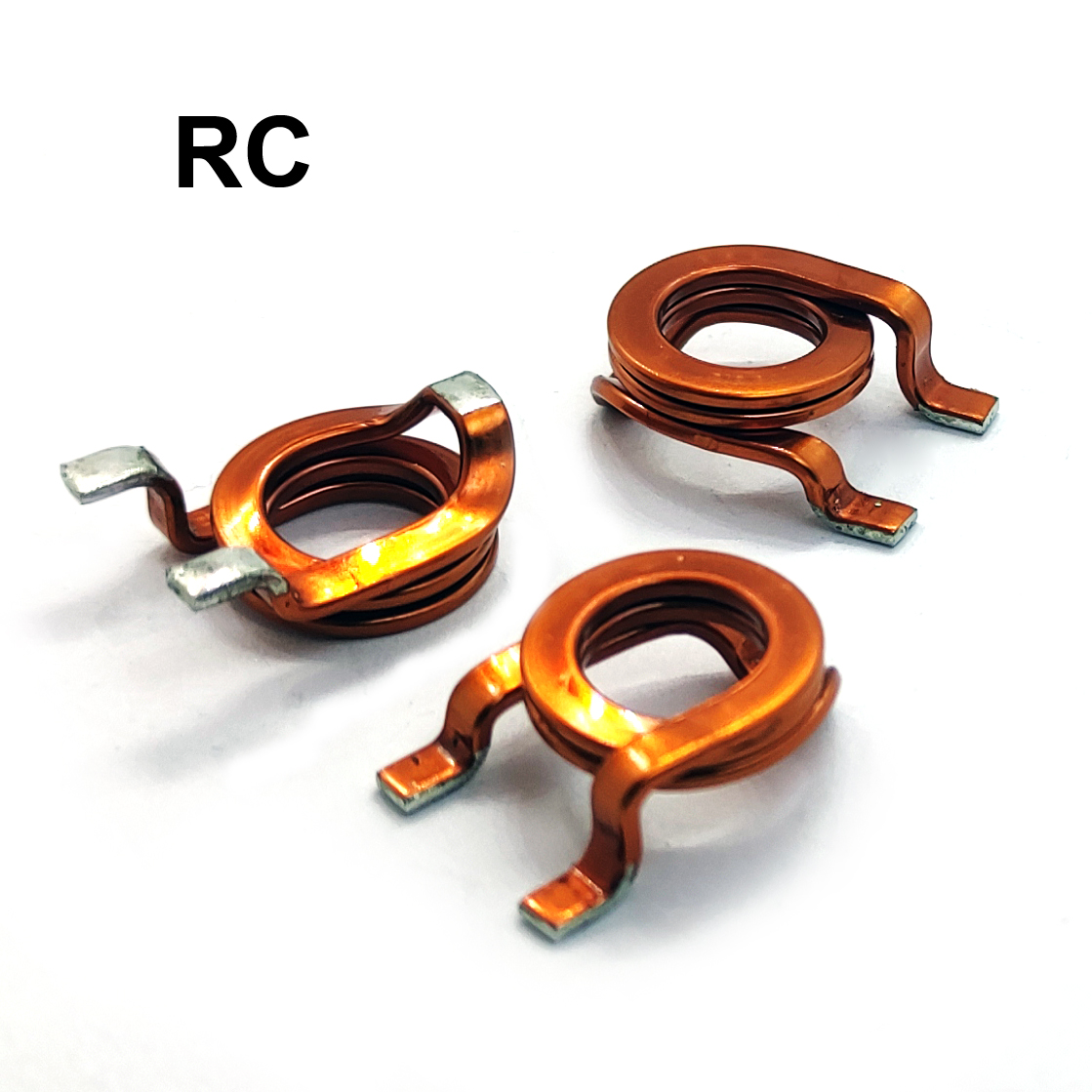

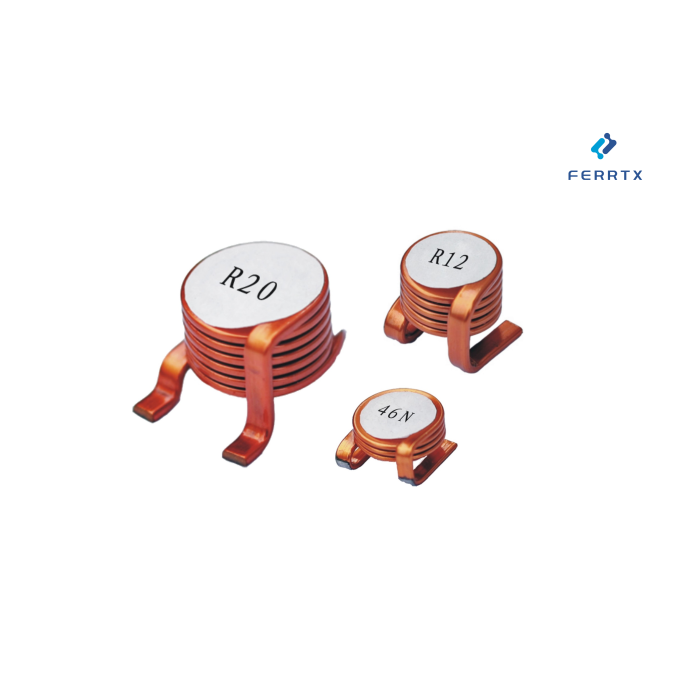

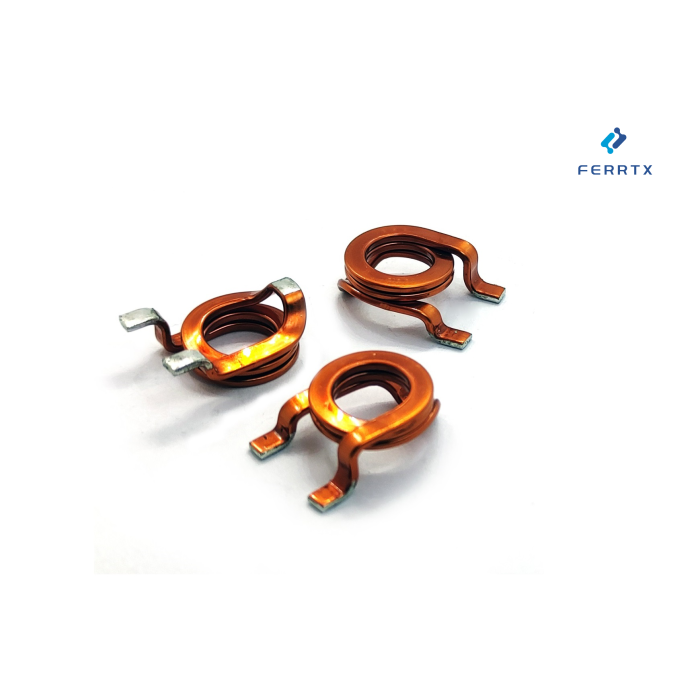

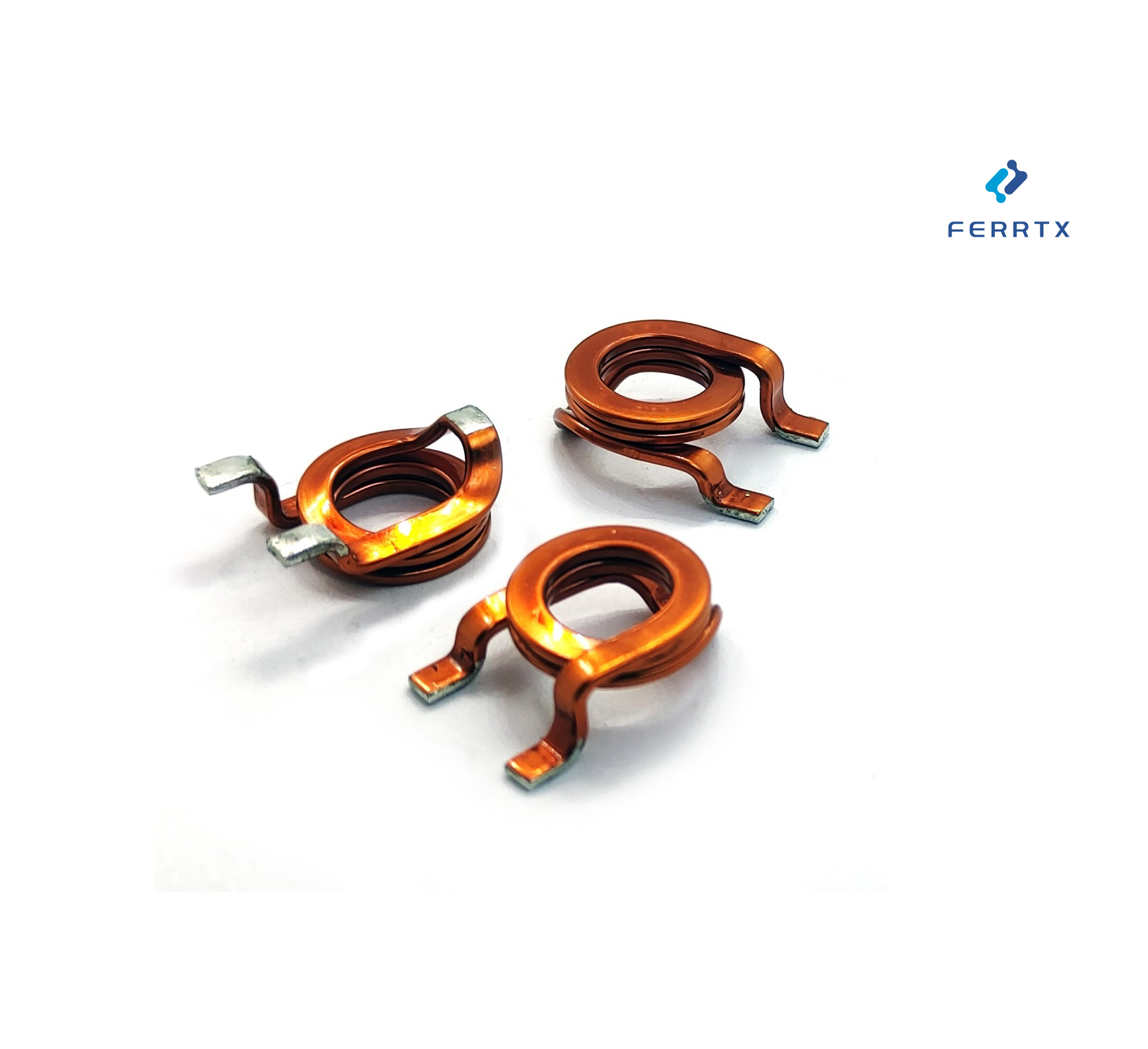

air core coil,high Current Power Inductor

Our RC series ‌air coil inductor‌ delivers unmatched performance as a ‌High Frequency Inductor‌, capable of handling up to 57 Amps with zero risk of ‌Air Core Inductor saturation‌. Designed for high-power systems, these compact flat-wire inductors achieve Q factors up to 230 at 400 MHz, making them ideal for ‌air core inductor applications‌ in military, aerospace, and RF circuits. With inductance values from 22 nH to 257 nH (±20%), they outperform traditional ‌High Frequency Inductor‌ designs in reliability-critical scenarios.

‌Key Features‌

‌Compact Flat-Wire Design‌: The ‌Air Coil Inductor‌’s space-saving structure eliminates core loss, avoiding ‌air core inductor saturation‌ even at extreme currents.
‌High Frequency Stability‌: Optimized for ‌High Frequency Inductor‌ performance in power amplifiers and radar systems.
‌57A Current Handling‌: Resists ‌air core inductor saturation‌ while maintaining efficiency in DC/DC converters and RF filters.
‌Ultra-High Q Factor‌: Achieves up to 230 at 400 MHz for precision ‌air core inductor applications‌ like satellite transceivers.
‌RoHS Compliance‌: Ensures eco-friendly integration into ‌High Frequency Inductor‌ architectures.

Series in this family

Product Series	L(µH)	DCR Max(mΩ)	SRF(MHz)
RC1010	23.5-146	1.2-3.3	382-923
RC1212	22-117	0.55-1.43	399-918
RE2014	33-257	0.74-2.15	230-620

Ferrtx is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Air Coil Inductor RC products.
