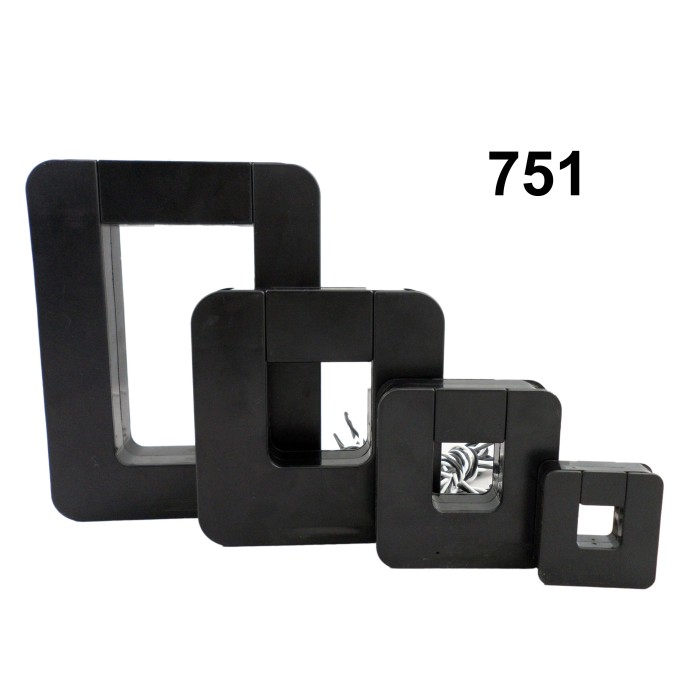

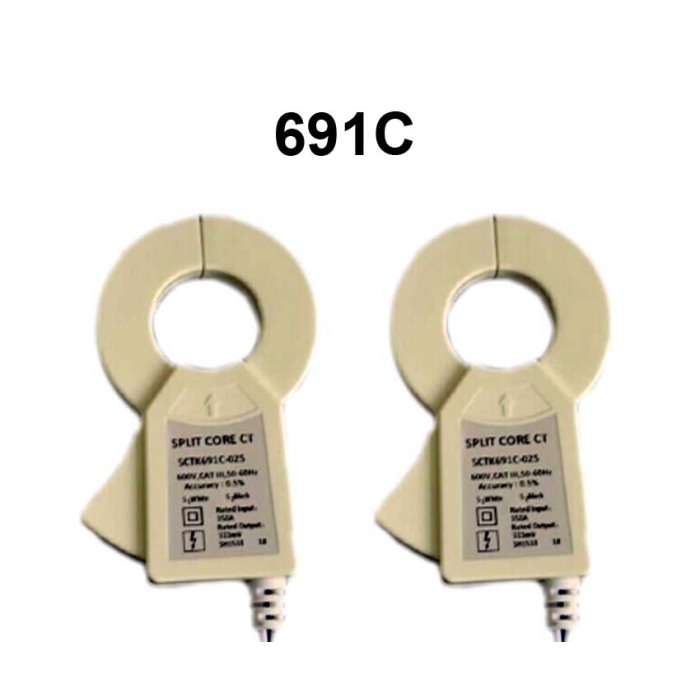

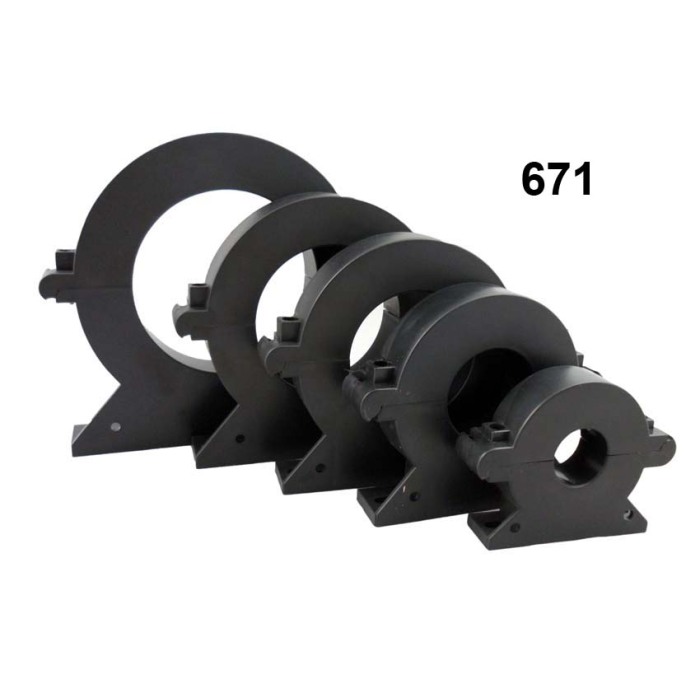

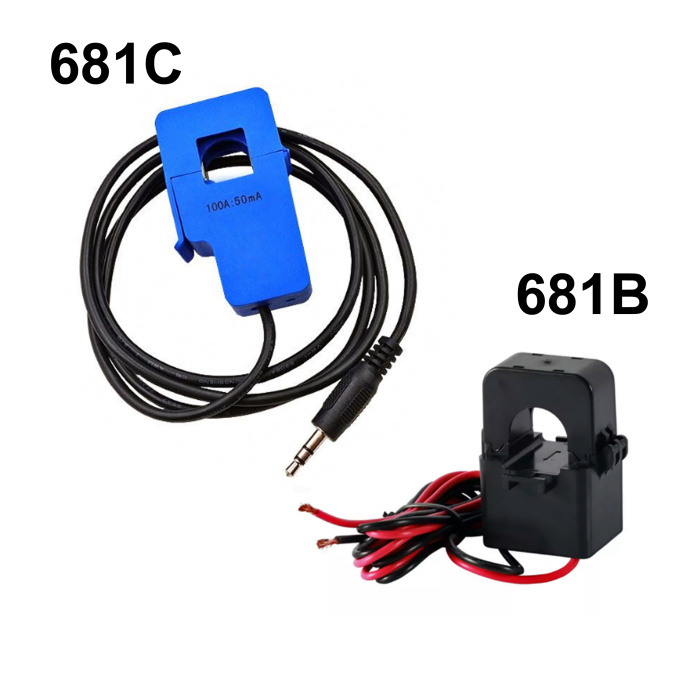

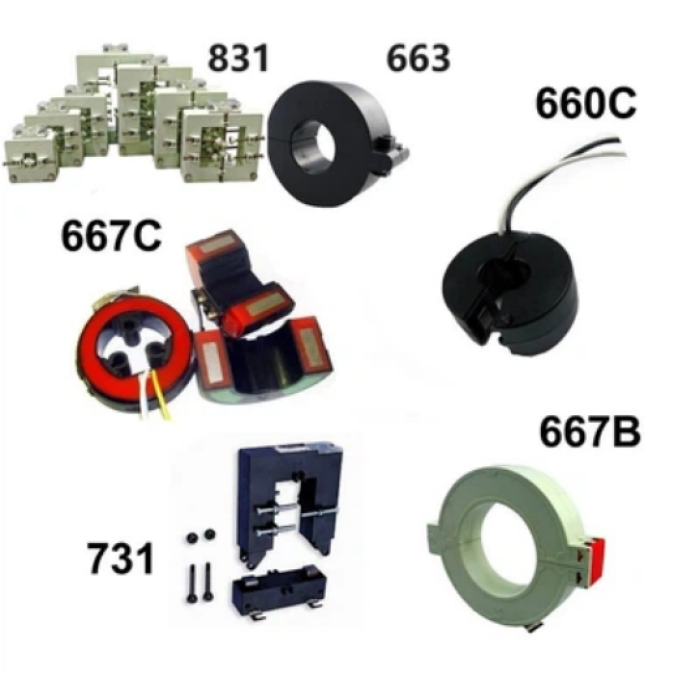

Current Sensor Magnetics Split Core Family

split core current transformer

Split Core current transformer hall effect Current Sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size,

lightweight and low power consumption and are especially advantageous when measuring high currents. This Sensor can be clamped on to the existing cable without interruption of the primary circuit.

FEATURES:

Small size, low cost
Secure locking hinge

Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG
CE ,UL recognized, and RoHS compliant
Output and leads can be customized

APPLICATIONS:

PV Inverters,PV monitoring,Energy storage solutions
Smart energy
Digital Fault Recorders
Smart Grid Application Features ,Load Center
Three Phase Balance Control
In-Factory Display ,In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC
