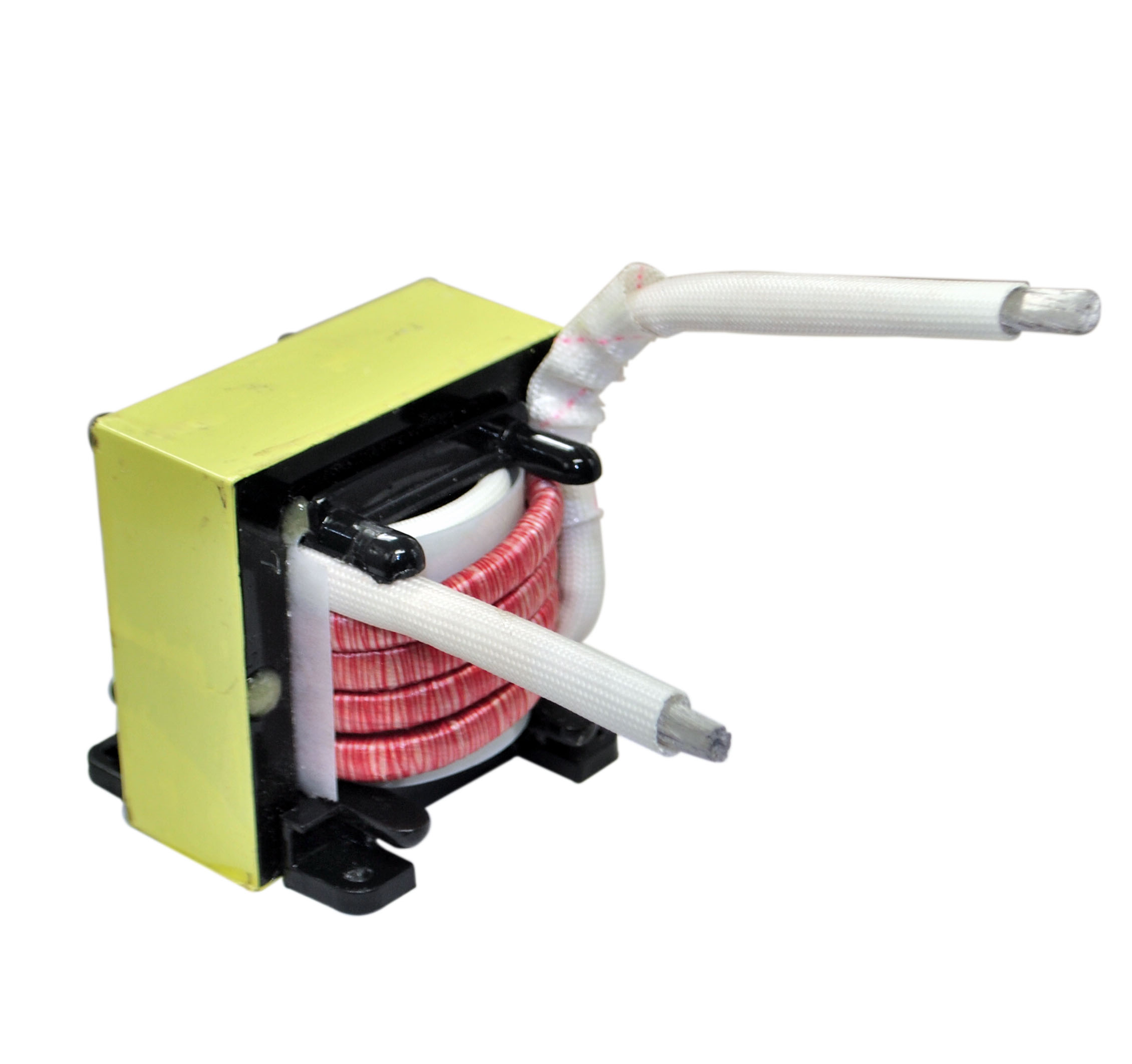

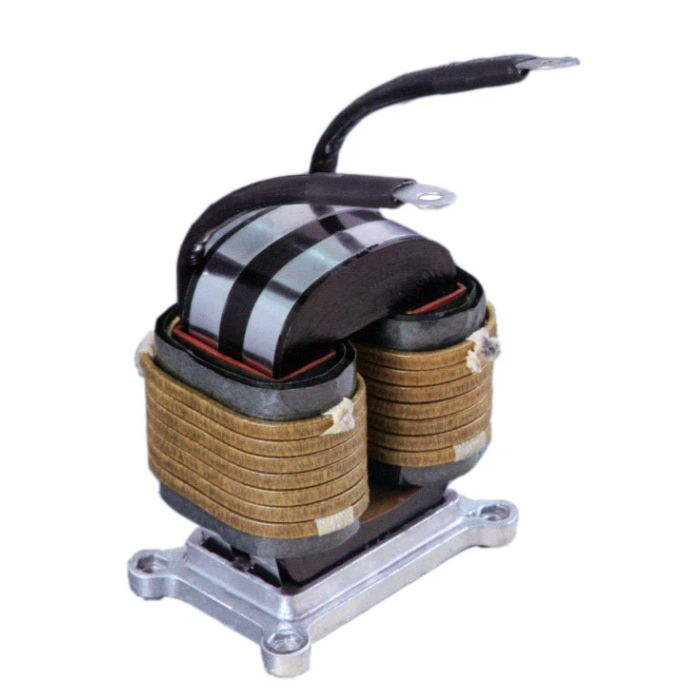

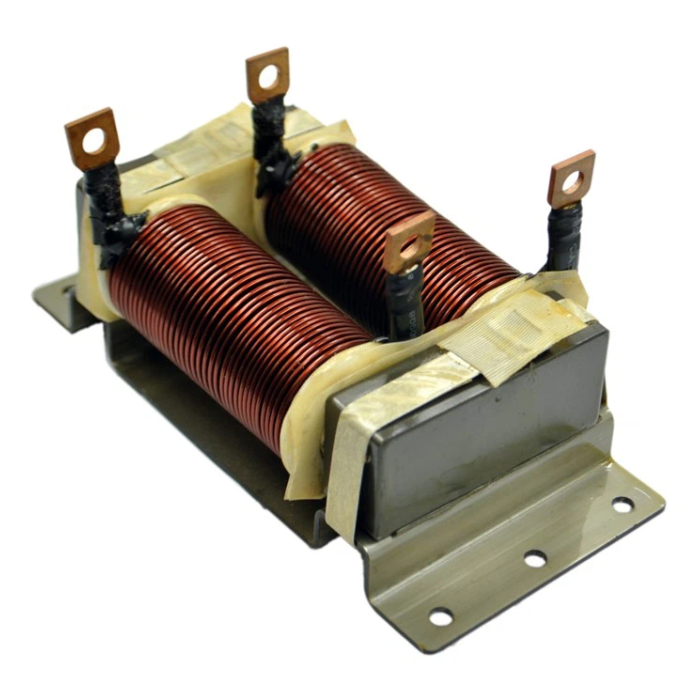

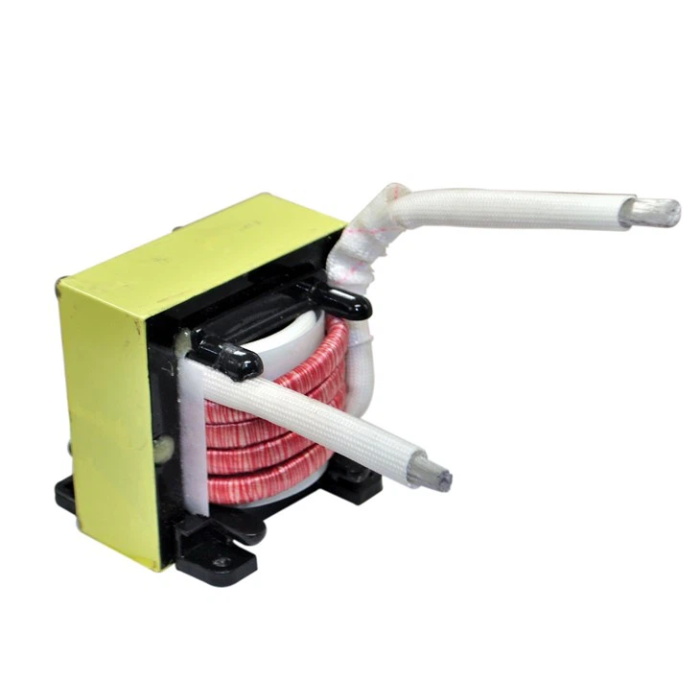

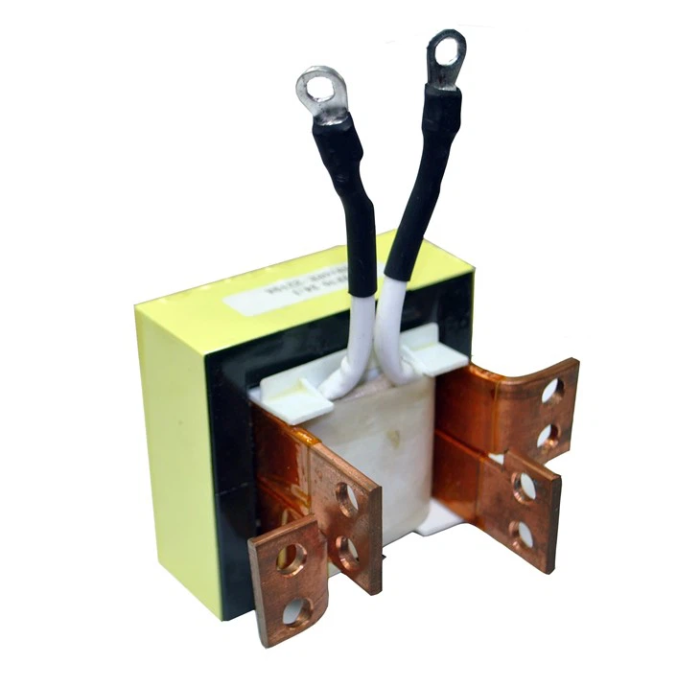

Model No.: DC Reactors
Brand: FERRTX
Species: Inductor Leaded
Supply Type: Original Manufacturer
Place Of Origin: China
Features: Not Applicable
Installation Method: Through Hole
Current Rating: 15A-1500A
Inductance Range: 0.1mH-150mH
Voltage: 380V-1500V
Insulation Class: F(155°C)/H(180°C)
Core Material: Silicon Steel
Waterproof Rating: IP67
Harmonic Suppression: <5% THD
Applications: VFD Drives, Solar Inverters
Customization: OEM Supported
| Selling Units: | Piece/Pieces |
|---|---|
| Download: |
|
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 2~8weeks
Certificate: RoHS/ ISO/UL/CE/IATF 16949/CNAS
Port: Xi'an,Shanghai
Payment Type: L/C,T/T
Reduces THD to <5% (EN 61800-3 certified)
Prevents capacitor overheating in 1500V systems
Extends Transformer lifespan by 3X
Withstands 1000V/μs voltage spikes
60% lower inrush current vs standard reactors
Built-in saturable core for Schneider ATV320 compatibility
| Parameter | DCR-300 Series | DCR-1500 Heavy Duty |
|---|---|---|
| Current | 15A-300A | 500A-1500A |
| Inductance | 0.1mH-20mH | 5mH-150mH |
| Voltage | 380V~690V | 690V~1500V |
| Insulation | Class F (155°C) | Class H (180°C) |
What does a DC reactor do? → Stabilizes DC bus voltage and protects capacitors
Can DC run on AC systems? → Yes, by filtering harmonics during AC/DC conversion
Prevents arc faults in photovoltaic arrays:
Compatible with SMA/Sungrow inverters
Withstands desert sandstorms (IP67 validated)
Captures 18% regenerative energy
Shields ABB ACS880 drives from:
Motor start current spikes
EMI Filter overload
DC bus voltage fluctuations
| Competitor Model | FERRTX Equivalent | Upgrade Benefit |
| ABB 2CDC106050 | Danfoss VLT | +20% current margin |
| Siemens 4EU55 | DCR-800-120mH | IP67 vs IP54 |
| Danfoss VLT | DCR-1500-80mH | 180°C vs 155°C rating |
CE | RoHS | ISO 9001:2015 Certified
100% HIPOT Tested: 3.5kV AC for 60 seconds
20-Year Design Life: Core gap technology prevents saturation
Global Compliance: IEC 60076, EN 61800-3, MIL-STD-202G
✓ 72-Hour Prototyping: Custom windings for OEMs
✓ Technical Support: Engineering team standby at
Where 1500A current stability meets IP67 waterproof defense – your grid resilience redefined. Precision Power Engineering, Engineered by FERRTX.
