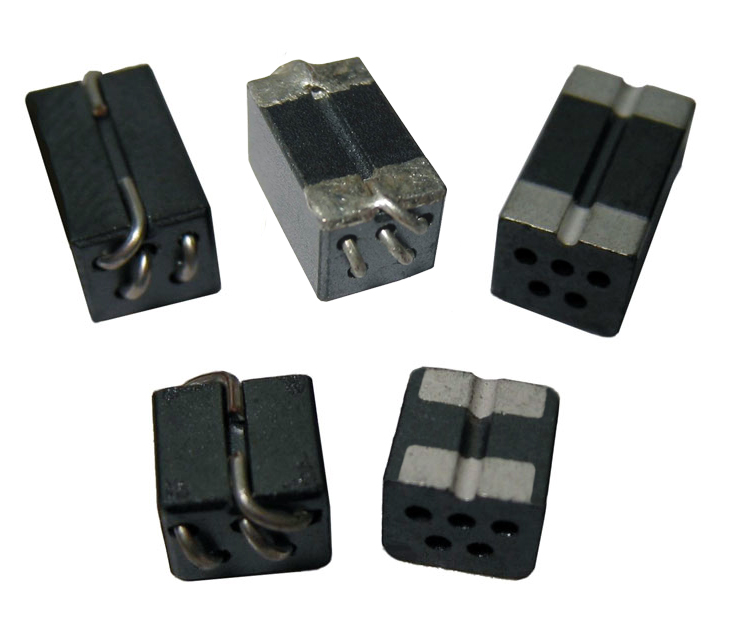

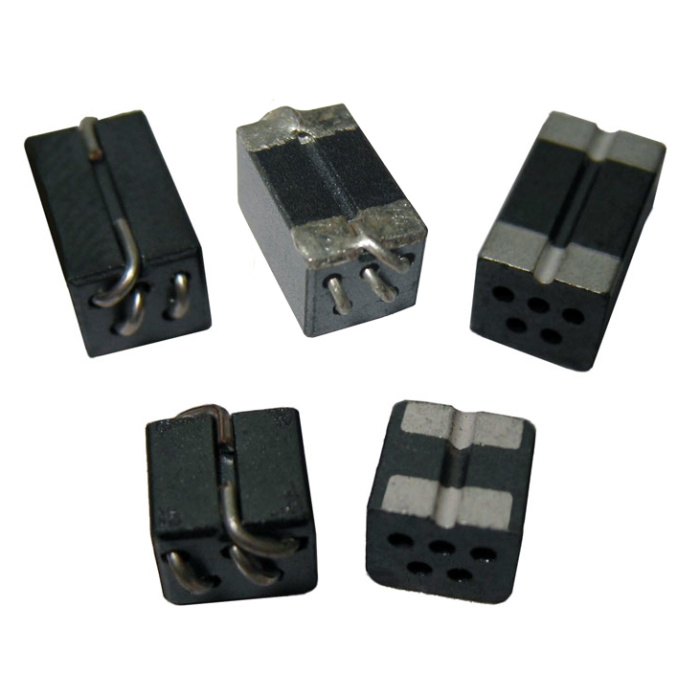

SMB5H Series 5-Hole Ferrite Bead: Superior EMI Suppression for High-Frequency Circuits

In today’s rapidly advancing electronic landscape, effective EMI suppression is non-negotiable. The SMB5H Series 5-Hole Ferrite Bead from our product line stands out as a premium solution for designers seeking reliability, high performance, and ease of integration. With its unique multi-aperture design, optimized impedance characteristics, and robust construction, this ferrite bead inductor ensures exceptional noise suppression across a broad frequency range—making it an ideal choice for demanding applications in power management, RF systems, and sensitive Sensor circuits.

Curious how our five-hole structure enhances performance? Read on.

Key Features and Technical Specifications

The SMB5H Series is engineered to deliver high impedance at targeted frequencies while maintaining low DC resistance (DCR). This makes it particularly effective in suppressing electromagnetic interference without compromising signal integrity or power efficiency.

Electrical Characteristics:

• High Impedance Range: Up to 1000Ω @ 100MHz (model-dependent)
• Low DCR: Minimizes power loss and heat generation
• Rated Current: Supports high-current applications without saturation
• Operating Temperature: -55°C to +125°C
• Frequency Response: Optimized for 10MHz–1GHz range

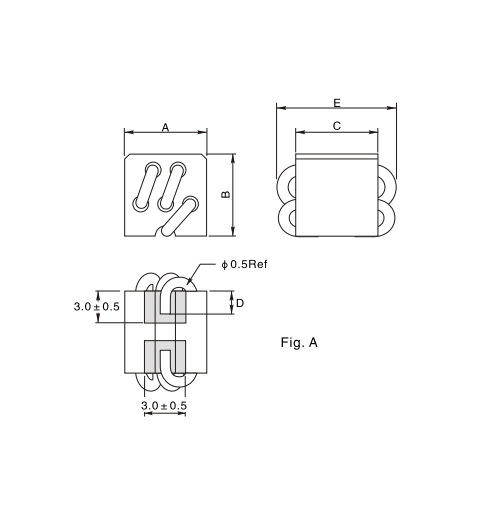

Structural Advantages:

• 5-Hole Design: Increases effective permeability and impedance by maximizing surface area and magnetic path control.
• Compact SMD Package: Easy to place automatically, suitable for high-density PCB designs.
• RoHS Compliant: Ensures environmental and safety standards are met.

Fun Fact: The five-hole configuration isn’t just for show—it significantly reduces EMI noise by distributing magnetic flux more effectively than conventional beads.

Applications of the SMB5H Ferrite Bead

This versatile component is indispensable in a wide range of industries:

• Power Supplies: Used as a Power Inductor or noise filter in DC-DC converters and voltage regulators.
• RF and Communication Systems: Provides clean signal transmission in RF Inductor networks and antenna matching circuits.
• Sensor Interfaces: Protects low-voltage sensor signals from high-frequency noise in IoT and industrial monitoring systems.
• Consumer Electronics: Integrated into EMI Filter arrays for HDMI, USB, and other high-speed data lines.
• Automotive and Industrial Systems: Enhances reliability in motor drives, Transformer couplings, and ECU communications.

Why Choose Our SMB5H Series Ferrite Bead?

• Proven Performance: Based on ferrite material science, our beads offer stable impedance curves and minimal loss at high frequencies8.

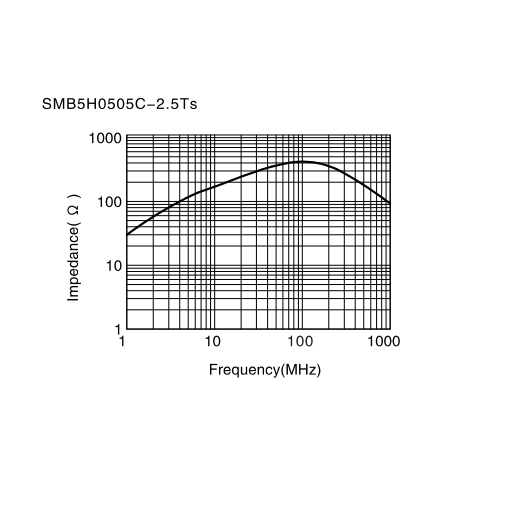

• Design Flexibility: Multiple models (e.g., SMB5H0505C, SMB5H0508A) allow precise selection based on your circuit’s frequency and current needs.
• Expert Support: We provide detailed datasheets, impedance-frequency curves, and application notes to help you integrate with confidence.

Conclusion

Whether you’re designing a high-speed digital board, a sensitive analog sensor, or a robust power supply, the SMB5H Series 5-Hole Ferrite Bead offers a reliable, high-performance solution for EMI challenges. Its unique design and electrical characteristics make it a go-to component for engineers who value precision and quality.

Ready to see how the SMB5H can elevate your design? [Contact us for samples and technical documentation today!]
