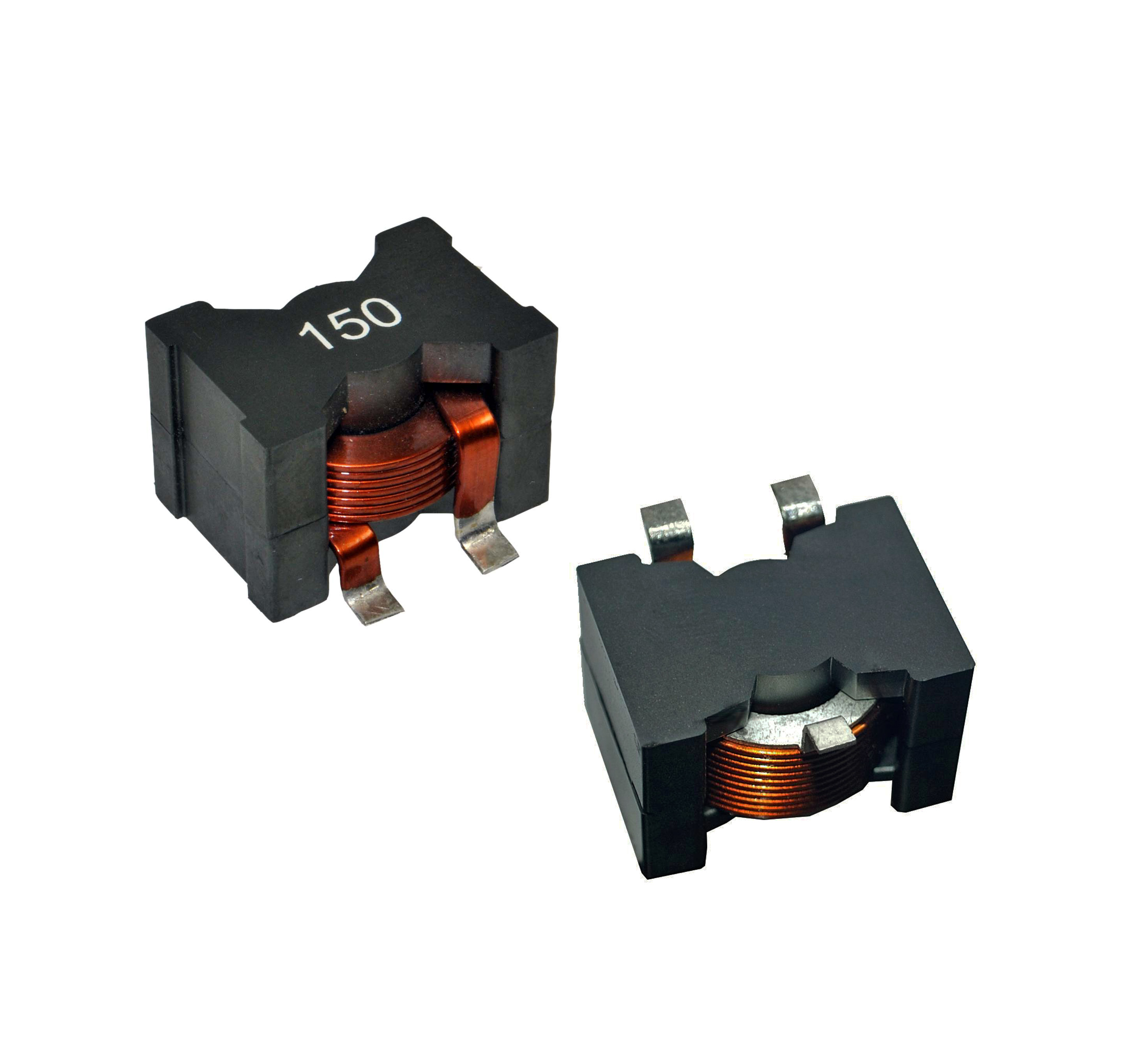

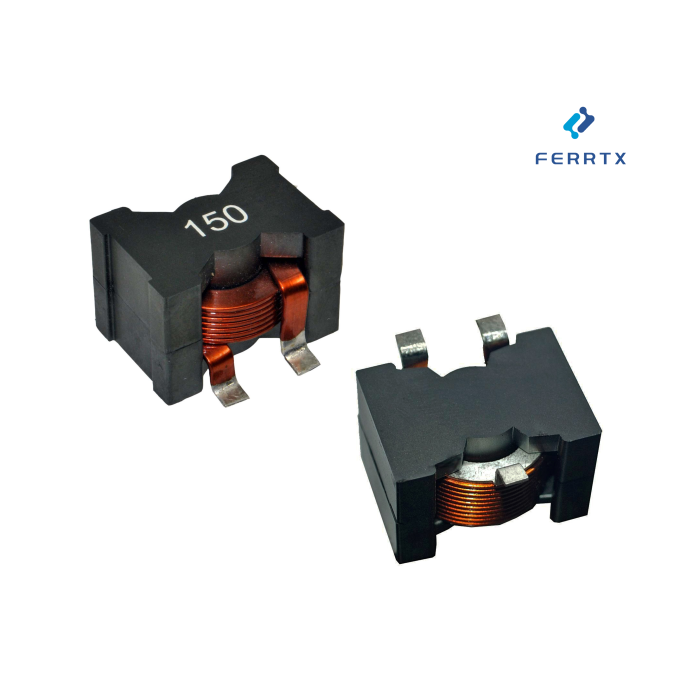

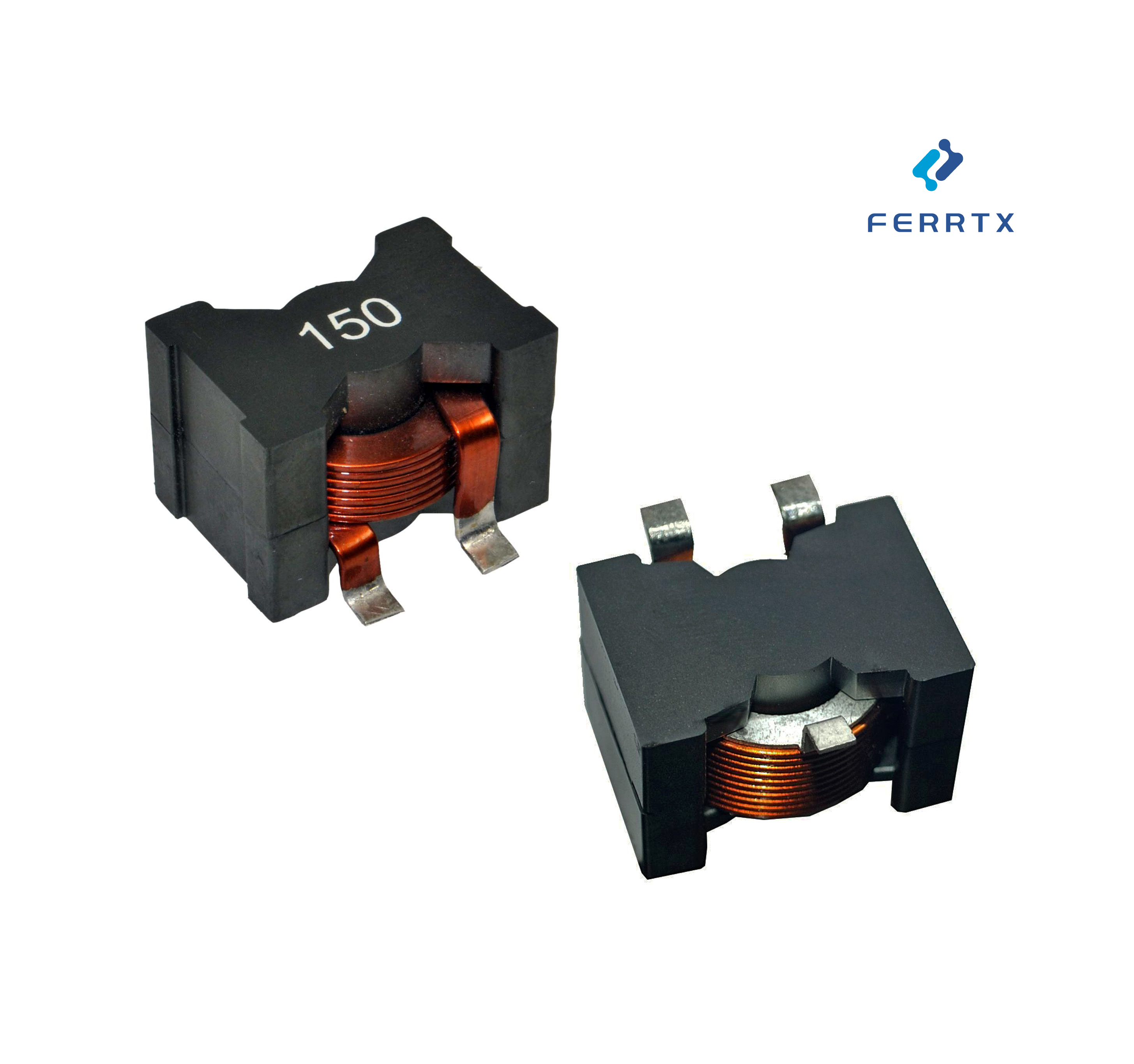

Flat Wire Inductor SPQ

Our High Current Flat Wire Inductors are engineered for applications that demand excellent current handling, low copper loss, and maximum power density. With optimized winding geometry and premium magnetic materials, these inductors deliver superior performance in modern high-efficiency power electronics.

Compared to traditional round-wire designs, flat-wire structures significantly reduce AC resistance and temperature rise, making them ideal for high-power DC-DC converters, automotive electronics, industrial drives, and fast-charging systems.

Whether you need a standard model or a Custom Flat Wire Inductor, FERRTX provides flexible design options tailored to your electrical and mechanical requirements — from inductance range to core structure, thermal limits, footprint, and SPQ packaging.

Why Choose FERRTX SPQ Power Inductors?

✔ High Current Capability

The enlarged surface area of flat copper windings minimizes skin effect, allowing the inductor to operate at higher RMS and peak currents with exceptional stability.

✔ Low DCR & Reduced Power Loss

Optimized winding paths greatly reduce resistance, lowering conduction loss and improving overall converter efficiency — especially in high-frequency applications.

✔ Compact, High-Density Structure

Flat-wire windings enable tighter assembly and better magnetic utilization, delivering high inductance in smaller form factors.

✔ Excellent Thermal Performance

Uniform heat distribution, minimal hot-spots, and strong thermal dissipation support long-term reliability under continuous high-load conditions.

✔ Full Custom Support

We offer custom SPQ packaging, inductance tuning, core combinations, reinforced insulation, and mechanical modifications according to your system design.

Typical Applications

• Automotive on-board chargers (OBC) & DC-DC converters

• Fast-charging modules & battery management systems

• Industrial servo drives & motor control

• Energy storage and power conditioning systems

• High-power telecom power units

• Inverters, UPS, and renewable energy applications

To build a complete filtering or power-conversion module, engineers often combine our flat-wire designs with other products such as:

• toroidal choke for additional common-mode suppression

• High Voltage Inductor modules used in high-energy switching circuits

• Multilayer Chip Inductors for signal-level noise filtering

Key Product Advantages

• Wide inductance range supporting various switching frequencies

• High saturation current, suitable for peak-load environments

• Strong vibration resistance & stable mechanical structure

• Low EMI emission due to optimized magnetic field distribution

• RoHS & REACH compliant materials

• SPQ-friendly packaging, supporting automated production lines

Product Series & Electrical Characteristics

Series in this family

Why Flat Wire Inductors Matter in Modern Power Electronics

As power modules become smaller and more efficient, traditional round-wire inductors often hit physical limitations in current density and temperature. Flat-wire technology solves this pain point by:

• Providing significantly lower AC losses at high frequencies

• Allowing higher saturation current with improved cooling

• Enabling more compact high-value inductors

• Enhancing mechanical robustness for automotive/industrial reliability

This makes flat-wire structures a must-have component in next-generation power architectures.

Partner with FERRTX for Custom Flat Wire Inductor Development

We support full custom engineering including:

• Core shape/material selection

• Inductance & current tuning

• Thermal and structural optimization

• Mechanical mounting options

• SPQ optimization for automated SMT + THT lines

Whether you’re designing a high-efficiency converter or a high-current industrial supply, our engineering team can help you achieve the best performance–size balance.
