High Quality Drop In Circulators

Get Latest Price

Contact Now

Features:

Min. Order: 1 Piece/Pieces

Products

Send Inquiry

Error

* Please fill in the information

* Please fill in your e-mail

* Please fill in the content



Products



Description

Product Attributes

Brand: FERRITES

Packaging & Delivery

Selling Units:	Piece/Pieces
Download:

Product Description

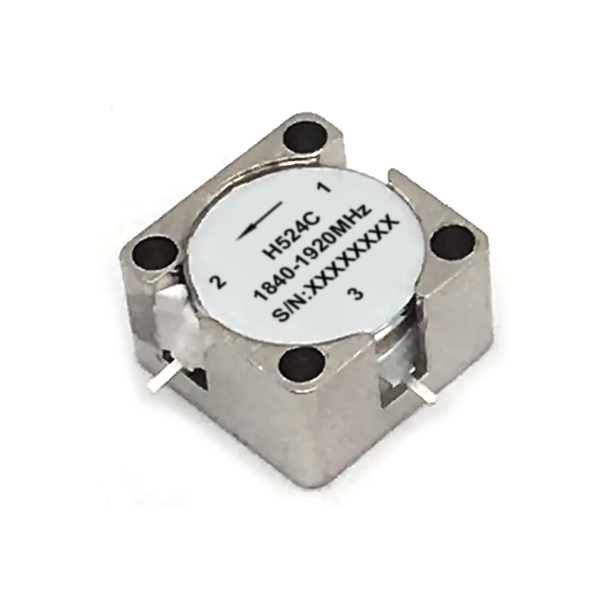

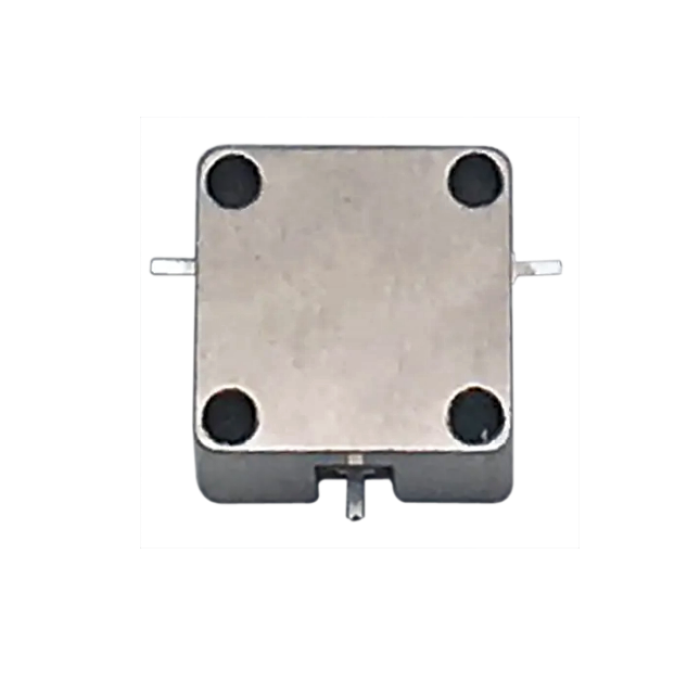

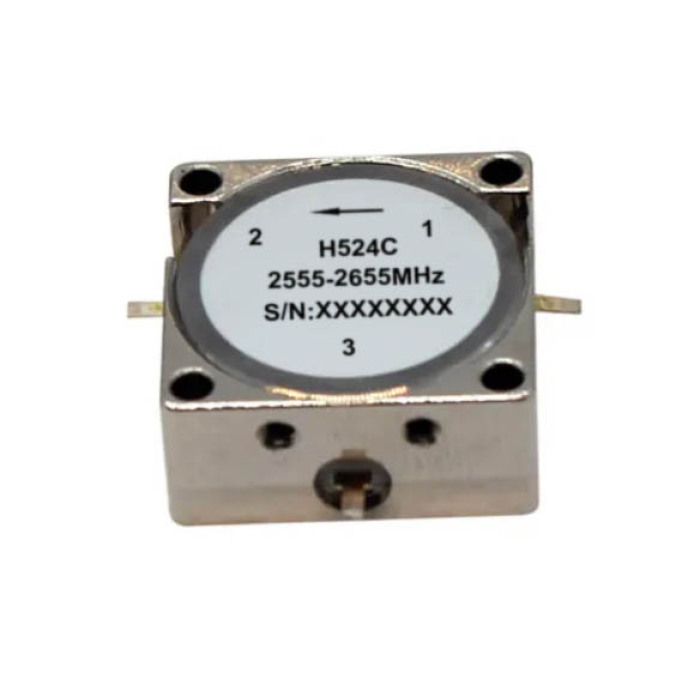

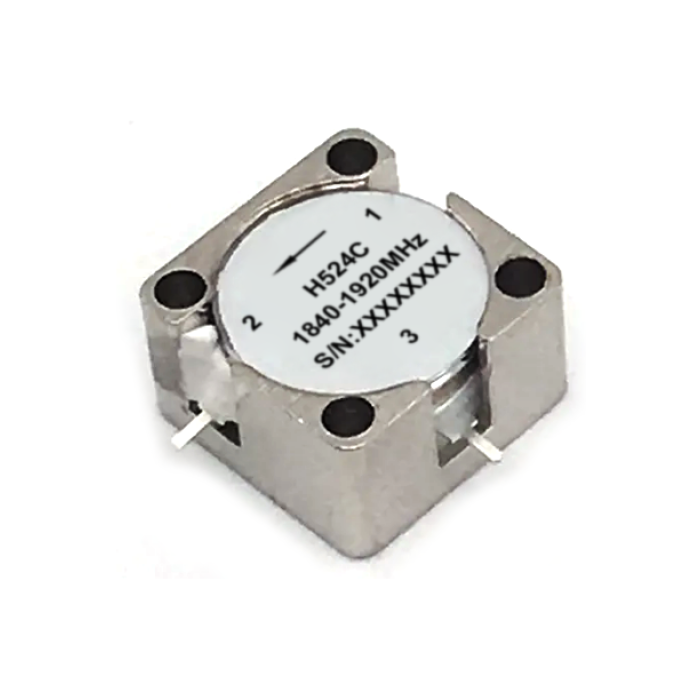

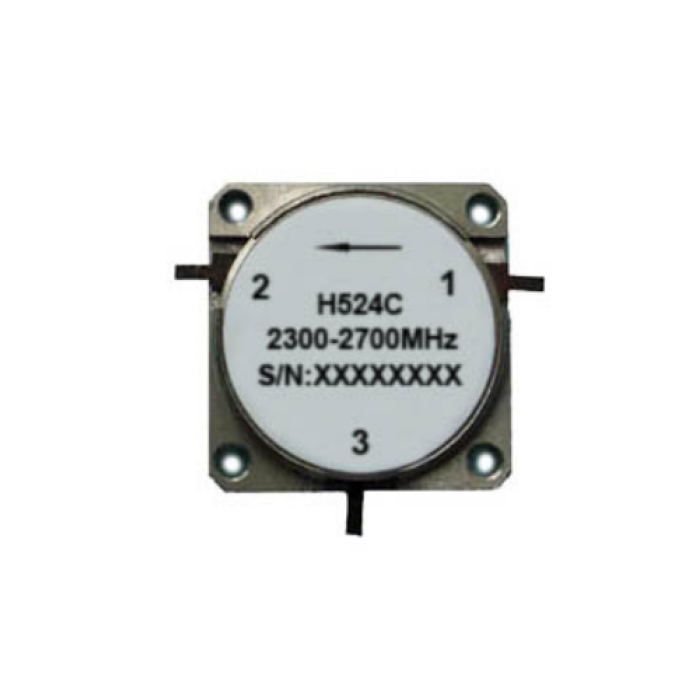

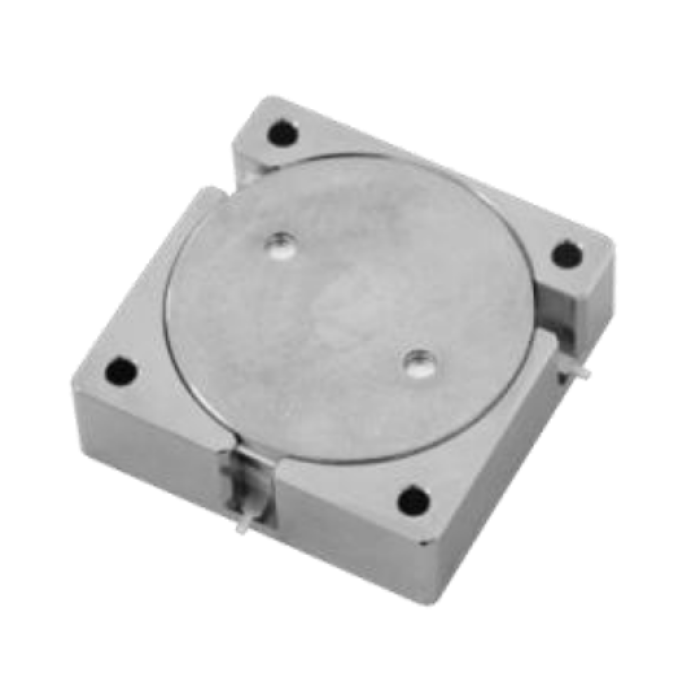

Drop-In Circulators

The ‌Drop-In Circulator‌ is a specialized ‌Isolator And Circulator‌ device that directs RF/microwave signals between ports with precision. As a leading provider of ‌RF Components‌, our embedded circulators support diverse frequency bands and compact packaging, ideal for ‌Surface Mount Isolators‌-compatible designs in 5G, military systems, and IoT infrastructure.

These rugged ‌Mount Isolator‌ solutions excel in high-vibration environments while maintaining ultra-low insertion loss and high power integrity.

‌Technical Advantages‌

‌Broad Compatibility‌: Designed for seamless integration with ‌Surface Mount Isolators‌ and ‌Mount Isolator‌ assemblies, our circulators meet stringent requirements for commercial, aerospace, and defense ‌RF Components‌.
‌Enhanced Reliability‌: Engineered for ‌Isolator and Circulator‌ systems demanding high aseismic performance and thermal stability, even in extreme operating conditions.
‌Customizable Solutions‌: Tailored ‌Surface Mount Isolators‌ and circulators optimize space-constrained ‌Mount Isolator‌ deployments in phased arrays and satellite communications.

‌Applications‌

‌Military Radar‌: Deploy ‌Isolator and Circulator‌ modules to ensure signal isolation in mission-critical ‌RF Components‌.
‌Wireless Base Stations‌: Integrate ‌Surface Mount Isolators‌ for compact, high-efficiency ‌Mount Isolator‌ configurations.
‌Satellite Systems‌: Leverage low-IMD ‌RF Components‌ to minimize interference in ‌Isolator and Circulator‌-driven payloads.

‌Features‌

‌Frequency Flexibility‌: 20MHz to 18GHz coverage for versatile ‌RF Components‌ integration.
‌RoHS Compliance‌: Aligns with eco-friendly standards for ‌Surface Mount Isolators‌ and ‌Mount Isolator‌ production.
‌Scalable Power Handling‌: Supports high-power ‌Isolator and Circulator‌ systems without compromising signal fidelity.

Series in this family

Product families	Center Frequency(GHz)	Isolation(dB)	VSWR	Power(W)
H504B	0.875-2.14	25	1.12	250
H524A	0.8425-2.45	20-22	1.17-1.2	100-150
H524C	1.45-4.925	20-25	1.15-2.3	10-150
H531A	1.8425-2.6	18-23	1.15-1.28	75-100
H531B	0.8585-2.6	18-23	1.15-1.28	50-100
H531C	3.33-5.85	21-23	1.17-1.2	20-100
H531K	3.9-10.35	20-22	1.2-1.25	10-60
H532B	0.415-2.14	18-25	0.25-1.28	100-300
H535A	0.83-2.6	20-23	1.15-1.2	100-150
H542A	0.42-2.14	16-25	1.12-1.38	100-400
H543E	0.34-0.819	18-22	1.17-1.22	100-200
H547A	0.365-0.622	19-23	1.15-1.25	150-200
H	0.02-18	15-20	1.25-1.45	30-400

Ferrites is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Drop-in circulator products.
