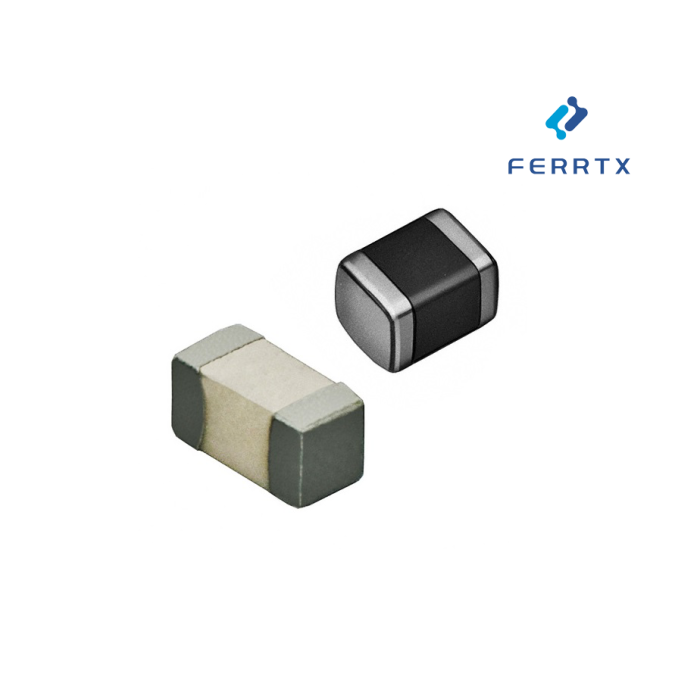

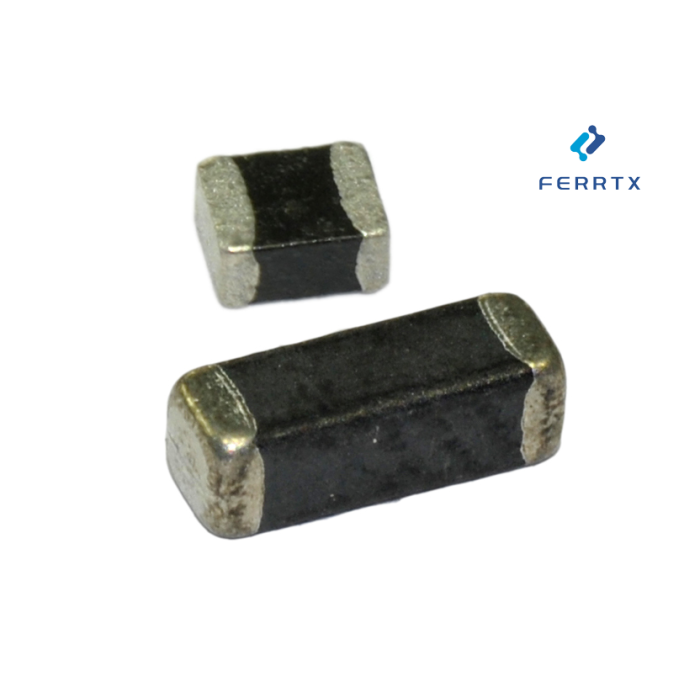

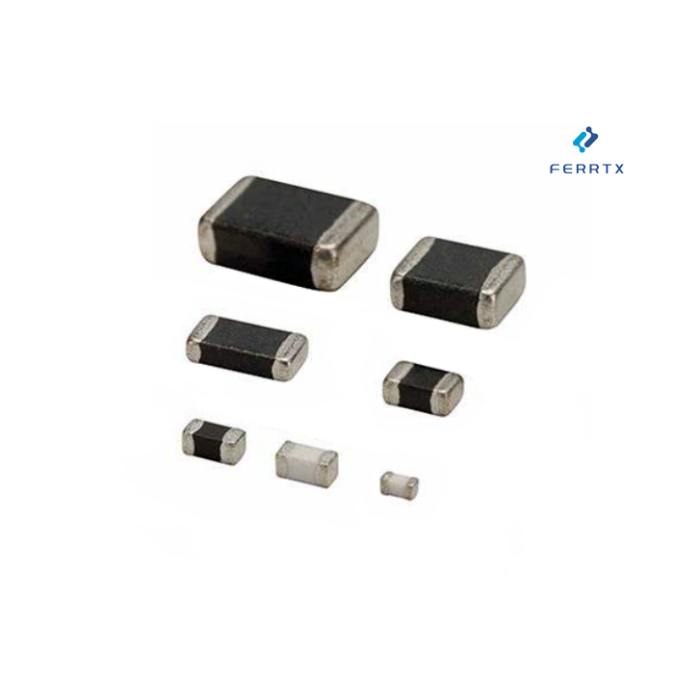

Advanced 0603 Shielded Power Inductor for Superior EMI Suppression in Modern Electronics

Advanced 0603 Shielded Power Inductor for Superior EMI Suppression in Modern Electronics

Get Latest Price

Contact Now

Features:

Min. Order: 1 Piece/Pieces
Transportation: Ocean,Land,Air,Express
Port: Xi'an,Shanghai

Products

Send Inquiry

Error

* Please fill in the information

* Please fill in your e-mail

* Please fill in the content



Products



Description

Product Attributes

Model No.: AIML

Brand: FERRTX

Species: Inductor Surface Mount

Supply Type: Original Manufacturer

Place Of Origin: China

Features: Not Applicable

Installation Method: Surface Mount

Inductance Range: 0.047µH to 120µH

Q Factor: Up to 40 (varies by model)

SRF Range: 5MHz to 320MHz

Operating Temperature: -25℃ to +85℃

DC Resistance: From 0.15Ω to 3.0Ω (model dependent)

Supply Ability & Additional Information

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 2~4weeks

Certificate: RoHS/ISO/UL/CE/IATF 16949/CNAS

Port: Xi'an,Shanghai

Product Description

In the relentless pursuit of higher power density and minimal electromagnetic interference (EMI) in today's compact electronic devices, selecting the right inductive component is paramount. Our cutting-edge 0603 shielded power inductor is engineered to meet these exacting demands head-on. We specialize in delivering advanced magnetic solutions that empower your designs with exceptional reliability, superior performance, and unparalleled efficiency. This particular Power Inductor boasts a compact footprint, integrated magnetic shielding, and significantly reduced EMI radiation, ensuring your system operates flawlessly even in the most space-constrained and noise-sensitive environments. Discover how our innovation can elevate your product's performance and streamline your compliance journey.

Curious about how our inductor maintains stability under high current? Keep reading to explore its robust construction and key specifications.

FEATURES:

High Current in Miniature Size: Supports high saturation currents up to 1.5A within a compact 0603 footprint, enabling powerful performance in space-constrained designs.
Ultra-Low DCR: Features exceptionally low DC resistance (as low as 0.08Ω), minimizing I²R power losses and maximizing overall system efficiency.
Effective EMI Suppression: The integrated magnetic shielding acts as a built-in EMI Filter, containing flux and drastically reducing noise, making it ideal for use as an RF Choke.
Automation-Ready: As a robust SMD Inductor, it offers excellent solderability and reliability for high-speed automated PCB assembly.

Key Specifications Table

Parameter	Value	Notes
Inductance (L)	1.0 µH to 10 µH	Tolerance ±20%
Max Saturation Current (Isat)	Up to 1.5A	Dependent on inductance value
DC Resistance (DCR)	As low as 0.08Ω	Typical @ 10µH
Operating Temperature	-40°C to +125°C
Shielding	Full Magnetic Shield	Effective EMI containment
Package	0603 (1608 Metric)	Ideal for high-density PCBs

Application

This component is critical for noise-sensitive and space-limited applications, including:

Power Management: DC-DC converters, VRMs, and SMPS loads in portable devices.
RF & Telecom: Noise filtering in RF modules and communication infrastructure.
Automotive Electronics: ADAS, infotainment, and control modules.
Consumer & IoT: Wearables, digital cameras, and Sensor nodes.

Ready to integrate superior performance and reliability into your next design? Our detailed datasheets and sample selection are just a click away. Contact our engineering support team today for personalized assistance and to request samples.

The file is encrypted. Please fill in the following information to continue accessing it

Enter your inquiry details, We will reply you in 24 hours.

* Please fill in the information

* Please fill in your e-mail

* Please fill in the content

People who viewed this item also viewed

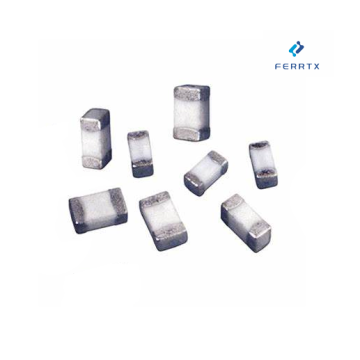

Multilayer Chip Inductor AIML-C
