Ground EMI Filters: 90% Noise Reduction When Properly Applied

‌5 Key Questions: Do Ground EMI Filters Solve 90% of Noise Issues?

In modern electronic systems, electromagnetic interference (EMI) remains a critical challenge. Among various solutions, ‌Ground EMI Filters‌ have emerged as a popular choice. But do they truly address 90% of noise-related problems? Let’s explore five key questions to understand their effectiveness.

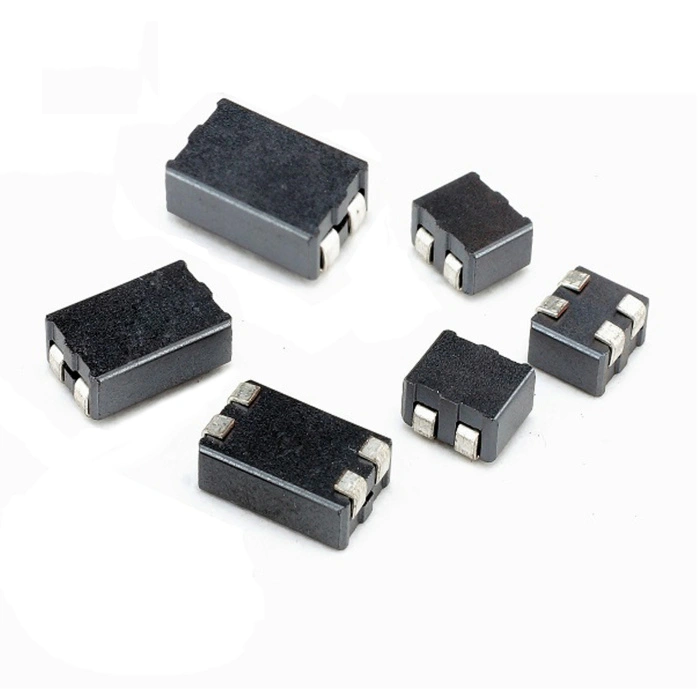

What Exactly Are Ground EMI Filters?

.Electrical noise getting under your skin? Ground EMI Filters are your quiet assassins. These specialized components tackle high-frequency interference by giving it an easy escape route – straight to ground. You’ll find them standing guard in power supplies, communication gear, and industrial machinery, where they protect signal clarity and keep your designs sailing through EMI regulations.

How Ground Filters Silence the Buzz:

Think of them as noise bouncers with a trapdoor. When unwanted high-frequency currents try to invade your sensitive circuits, the filter intercepts them and shunts them down a low-resistance path to the ground plane. This redirects the interference harmlessly away from where it can cause damage.

Where Are They Most Effective?

‌Ground EMI Filters‌ excel in applications involving:

Switch-mode power supplies
Motor drives
RF and wireless systems
Medical electronics
Their performance is particularly notable in environments with dense circuitry or high-speed signals.

What Are Their Limitations?‌

While powerful, these filters aren’t a universal fix. Challenges include:

Dependency on proper PCB layout
Limited effectiveness against very low-frequency noise
Potential ground loop issues if not installed correctly

Are They Really 90% Effective?‌

The claim depends on application specifics. In well-designed systems, ‌Ground EMI Filters‌ can indeed resolve the majority of EMI problems. However, achieving this requires careful engineering and testing.

Conclusion

‌Ground EMI Filters‌ are a robust solution for EMI suppression, often delivering significant noise reduction when applied correctly. For optimal results, consult experts to tailor the solution to your system’s needs.
