How Does a 1553 Data Bus Transformer Work in 1553B Systems, and Why Is Transformer Coupling So Critical?

In MIL-STD-1553B communication systems, reliability is not optional—it is mandatory. Whether the application is aerospace, defense, or other mission-critical platforms, the integrity of the data bus directly affects system safety and performance.
At the heart of this reliability lies a component that is often underestimated: the 1553 data bus Transformer.

Many engineers encounter it during schematic design, but fewer fully explore how a 1553 data bus transformer works, or why 1553 bus magnetic coupling plays such a decisive role in signal quality and fault tolerance.

Let’s break it down.

Why Transformer Coupling Is Used in 1553B Bus Architectures

Unlike simple point-to-point communication, the 1553B bus is a multi-drop differential network. Direct electrical connections would expose terminals to ground loops, noise coupling, and potentially catastrophic failures.

This is where transformer coupling comes in.

A 1553B bus transformer provides:

• Galvanic isolation between terminals and the main bus

• Controlled impedance matching to maintain signal integrity

• Magnetic coupling that allows data transfer without DC continuity

Through this magnetic isolation, faults in one terminal are prevented from propagating across the entire bus—one of the reasons 1553 remains trusted decades after its introduction.

How Does a 1553 Data Bus Transformer Work?

At a functional level, a 1553 data bus transformer converts the differential electrical signal on the bus into a magnetically coupled signal and then back again at the receiver.

Here’s what happens internally:

1. The transmit signal induces a magnetic field in the transformer core

2. The signal is transferred across the isolation barrier

3. The secondary winding reproduces the signal with controlled amplitude and phase

This process ensures:

• Proper voltage levels at the receiver

• High common-mode noise rejection

• Compliance with MIL-STD-1553 waveform requirements

Because of this, transformer characteristics such as turns ratio, leakage inductance, and bandwidth directly affect system performance.

1553 Transformer Impedance Matching: Why It Matters More Than You Think

One of the most common design issues in 1553 systems is improper impedance matching.

A well-designed 1553 transformer impedance matching solution ensures:

• Minimal signal reflection on long bus lines

• Stable waveform shape across multiple terminals

• Reduced bit error rates under harsh EMI conditions

When impedance is mismatched, engineers may see:

• Overshoot or ringing on the waveform

• Increased susceptibility to noise

• Marginal compliance during system qualification testing

This is why transformer specifications—such as primary inductance, insertion loss, and coupling coefficient—should never be treated as interchangeable across different suppliers.

Layout Tips for Reliable 1553 Bus Magnetic Coupling

Even with the right transformer, poor PCB layout can undermine performance. Based on common field issues, a few practical guidelines stand out:

• Keep transformer traces as short and symmetrical as possible

• Minimize loop area to reduce magnetic interference

• Place termination and coupling components close to the transformer

• Avoid routing high-speed or high-current signals near the 1553 bus path

These layout decisions directly impact how effectively 1553 bus magnetic coupling performs in real-world conditions.

Where Component Selection Makes the Difference

Not all 1553 data bus Transformers are created equal. Variations in core material, winding structure, and manufacturing consistency can lead to noticeable differences in system behavior—especially over temperature and time.

For engineers working on long-life or high-reliability platforms, choosing a transformer designed specifically for MIL-STD-1553 requirements is a strategic decision, not just a procurement one.

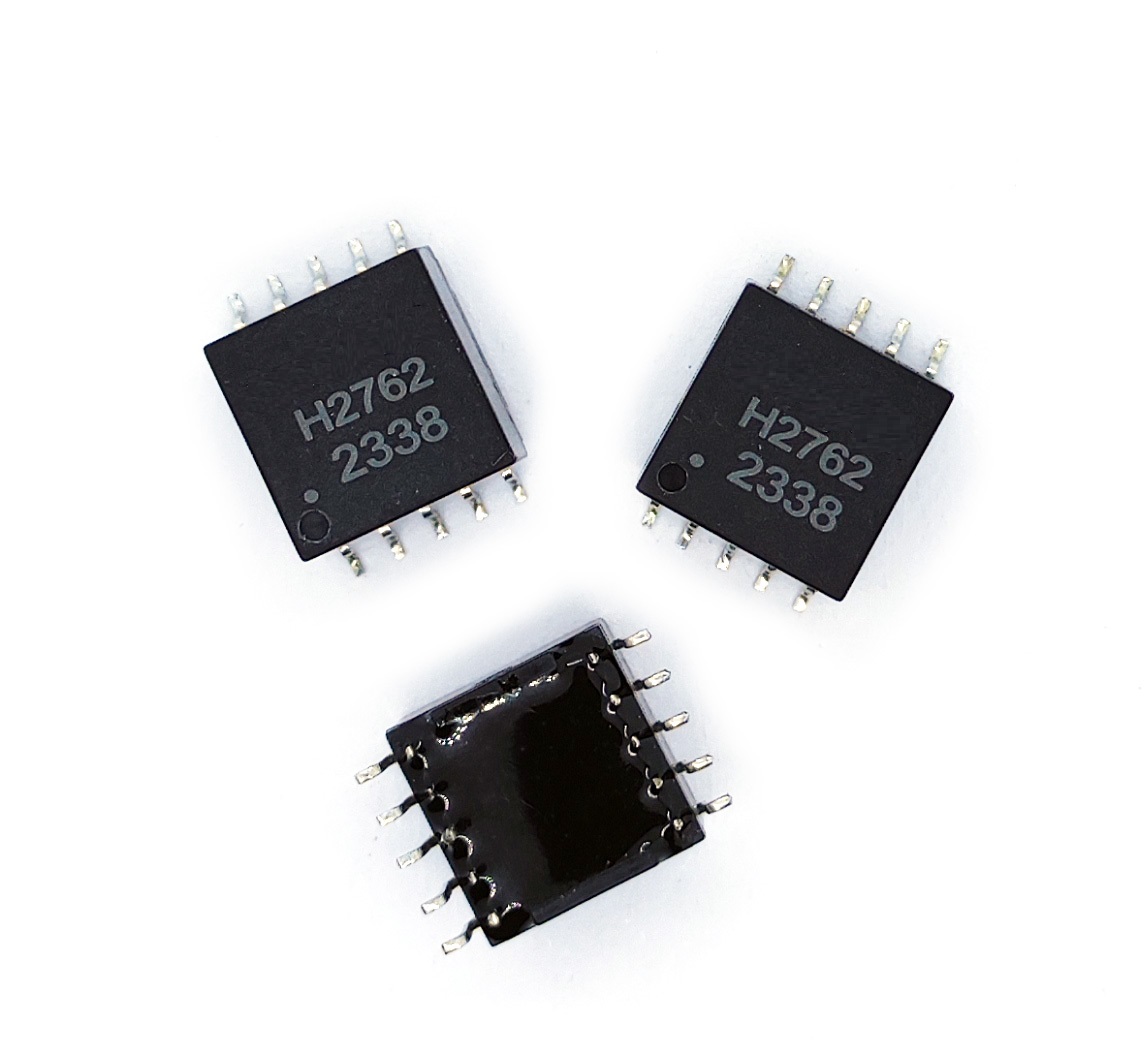

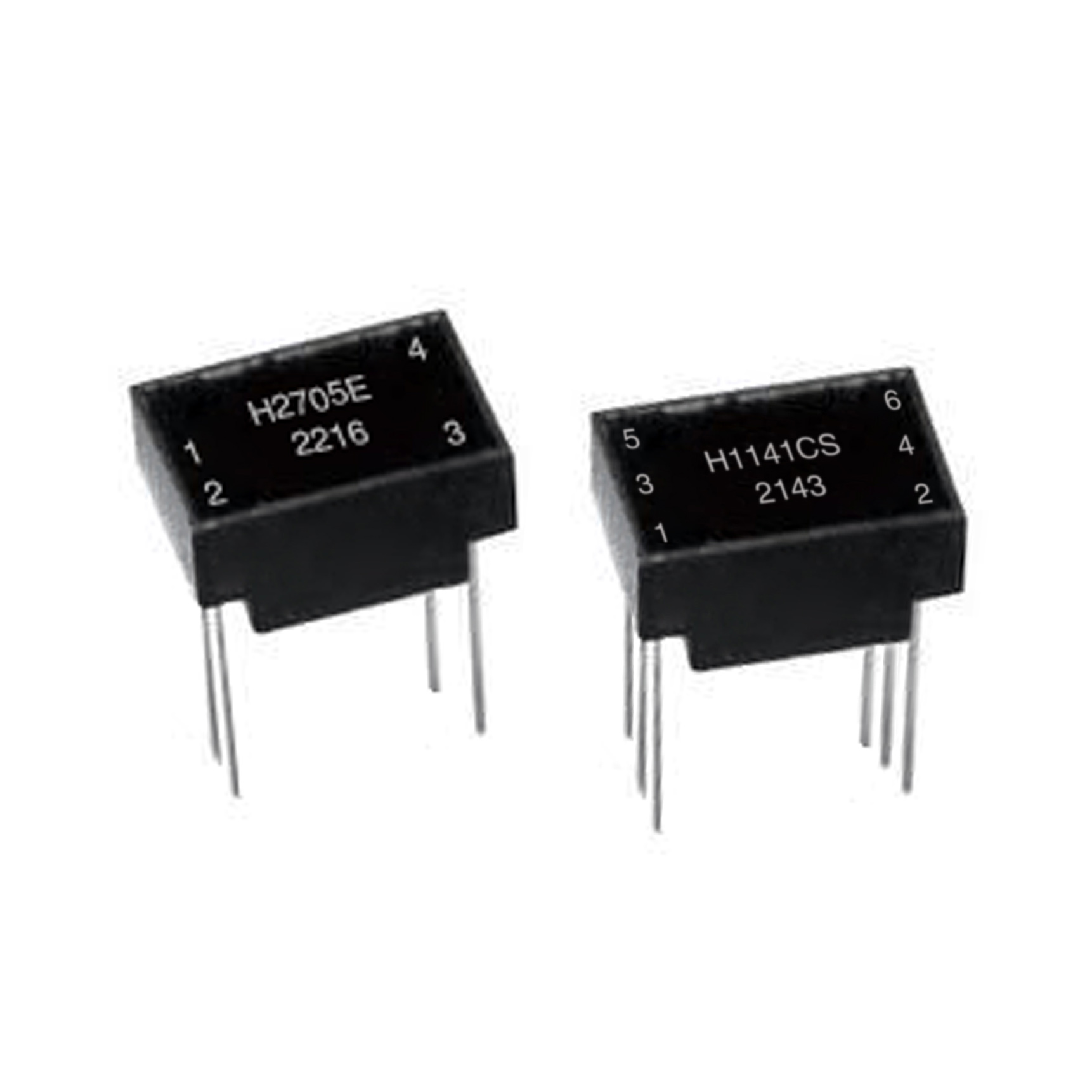

At FERRTX, we develop 1553B bus transformers with controlled electrical characteristics, stable magnetic performance, and designs optimized for transformer-coupled 1553 systems. If you’re evaluating transformer options or facing signal integrity challenges in an existing design, our team is happy to discuss application-specific requirements.
