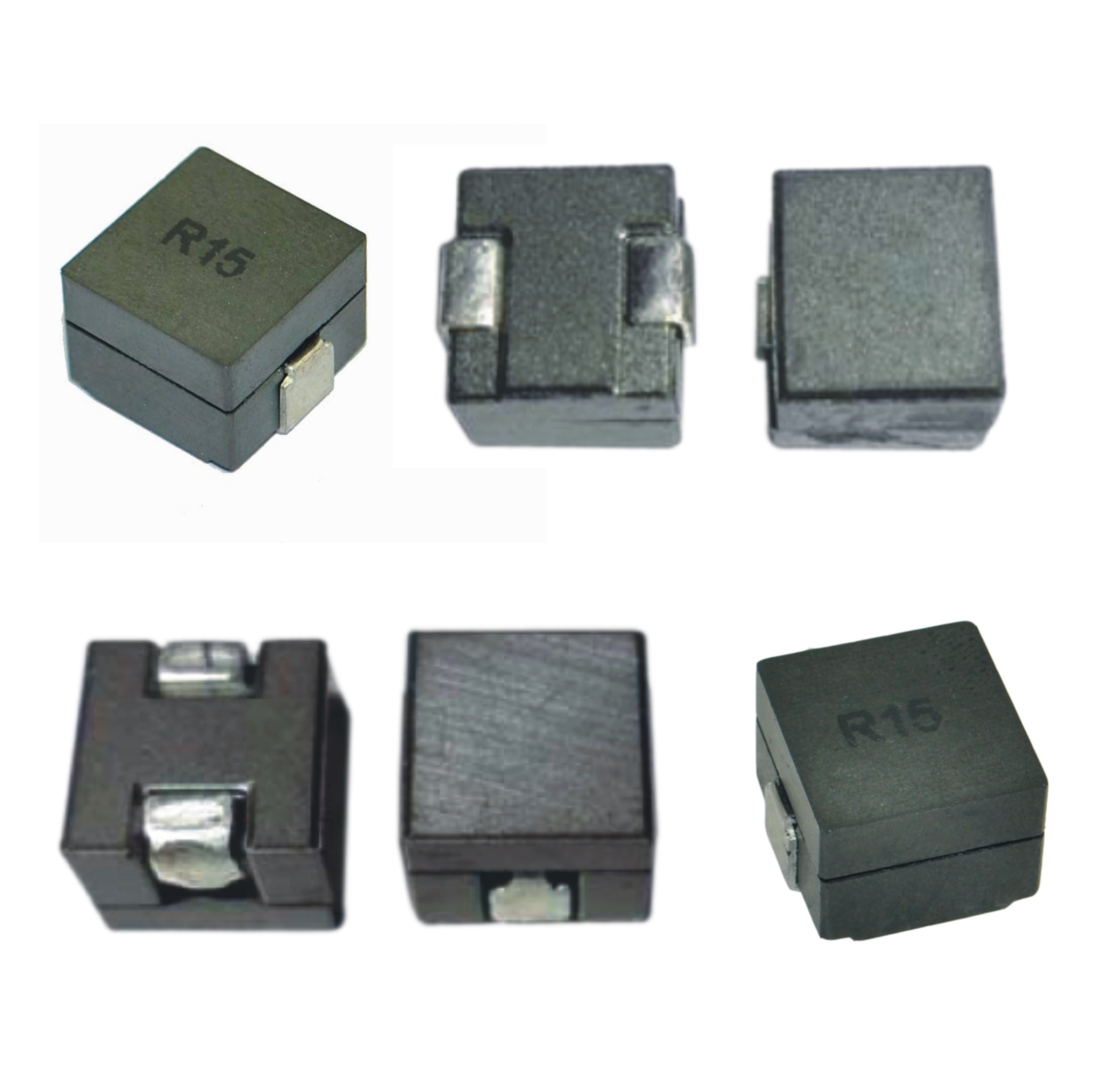

Power Bead Inductor HCB

Product Description

The Power Bead Inductor HCB series delivers exceptional performance in power management systems. Engineered for high-current applications, these inductors feature ultra-low core losses (tested at 100kHz) and robust ferrite materials. With inductance ranging from 22nH to 680nH and current handling up to 110A, they optimize energy transfer in modern electronics. Ideal as a Power Inductor for voltage regulation, their shielded design minimizes EMI interference in sensitive circuits.

Key Features

• High Current Capacity: Supports DC currents up to 110A (Isat) with Irms ratings for 40°C temperature rise

• Low Core Loss: Ferrite material ensures minimal energy dissipation at high frequencies

• Broad Inductance Range: 22nH–680nH (±10%–15% tolerance) for versatile circuit design

• Compact SMD Package: Shielded construction (4.0×4.0mm to 14.5×13.3mm) saves PCB space

• EMC Filter Compatibility: Reduces electromagnetic noise in power networks

• Temperature Resilience: Operates at -40°C to +125°C (incl. self-heating)

Applications

• Power Converters: VRM modules for CPUs/GPUs and multi-phase regulators

• RF Inductor Systems: High-frequency circuits in servers/workstations

• Sensor-Integrated Devices: Battery management and portable electronics

• Transformers: Paired with energy conversion systems in data storage

• EMC Filter Networks: Noise suppression in graphics cards/ASICs

• Industrial Power Supplies: Notebook regulators and telecom infrastructure

Electrical Specifications

• Inductance: 22nH–680nH (±10%–20% @100kHz/0.1V)

• Saturation Current: 13A–110A (20% rolloff @25°C)

• DC Resistance: 0.125mΩ–0.55mΩ (low-DCR variants available)

• Test Frequency: 100kHz standard (1MHz for 22nH models)

• Thermal Performance: 40°C rise @ Irms DC load

Packaging & Compliance

• Standard Packaging: Tape & Reel (J-STD-020D compliant)

• Reflow Profile: Supports SnPb/Pb-free soldering (260°C peak)

• Environmental: RoHS-compliant, moisture-resistant
