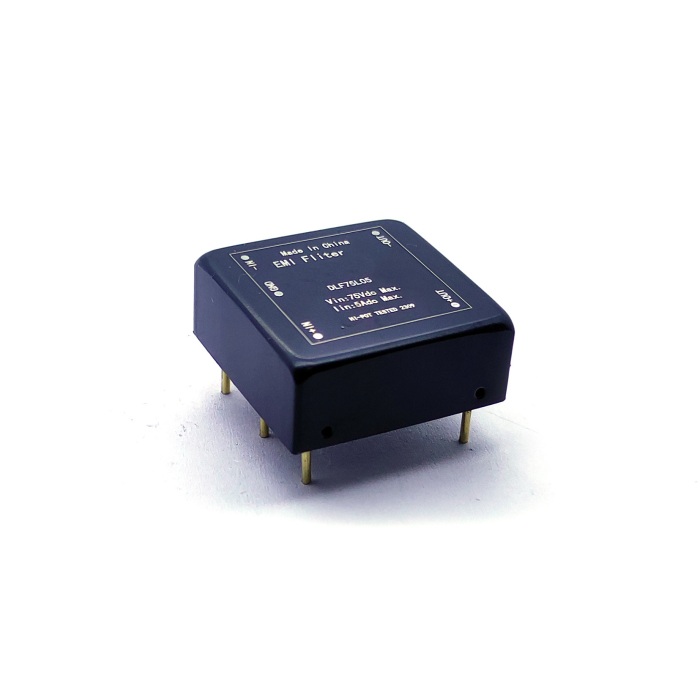

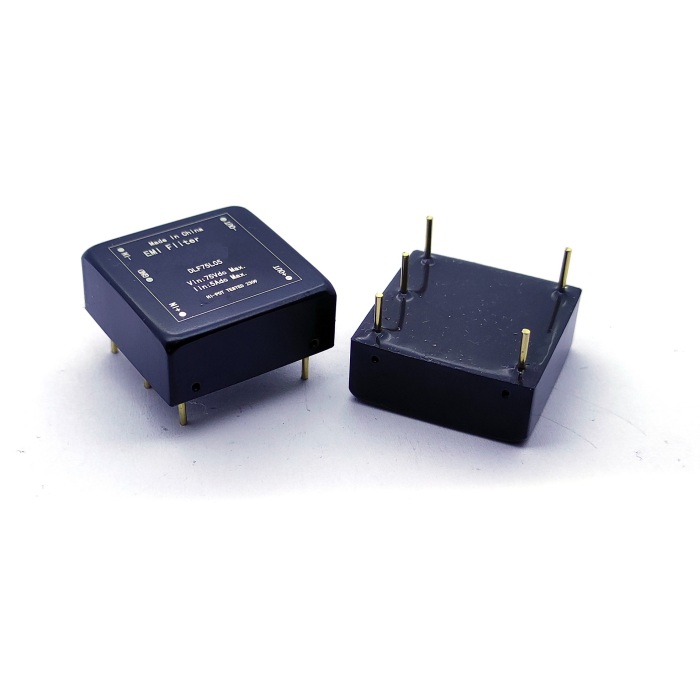

PCB Mount DC Line EMI Filter

The Ferrtx DLF75L05 PCB Mount Power Line Filter is engineered for DC applications requiring compact size, stable EMI suppression, and reliable power-line noise reduction. As an enhanced PCB Mount Power Line Filters solution, it delivers exceptional common-mode and differential-mode attenuation, making it ideal for sensitive electronic systems, consumer devices, industrial controllers, and communication modules.

Designed with a low-profile package and optimized internal structure, the DLF75L05 ensures compatibility with a wide range of EMI Filter PCB mount requirements while maintaining long-term electrical stability under continuous DC operation.

Key Features

• Compact PCB Mount Design
  Easy to integrate into small power modules and high-density PCBs.

• Excellent EMI Suppression
  Effective noise attenuation from 0.1 MHz to 100 MHz, improving system EMC performance.

• Low DC Resistance
  Reduces power loss and prevents overheating during continuous current loading.

• Stable Capacitance and Inductance Values
  Ensures reliable filtering capability in DC circuits.

• RoHS-Compliant Construction
  Safe and environmentally friendly materials.

Applications

The DLF75L05 PCB MOUNT EMI Filter is suitable for:

• DC power modules and converters

• Communication equipment

• Portable electronics

• Signal-control circuits

• Consumer devices requiring noise isolation

It also works seamlessly with other Ferrtx passive components such as Power Line Common Mode Choke and SMD Inductor in multi-stage EMI suppression designs.

Electrical Specifications (DLF75L05)

Insertion Loss Characteristics

Why Choose FERRTX PCB Mount EMI Filters?

Ferrtx provides stable and high-performance emi filter pcb mount solutions designed for today’s compact electronic systems. Our DLF75L05 offers:

• Long-term stability under continuous load

• High filtering efficiency in compact circuits

• Compatibility with DC modules and integrated power designs

• Excellent value for cost-sensitive applications

As part of our broader Emi Filter and power-line conditioning series, the DLF75L05 integrates easily with downstream circuitry and works well alongside reactors, inductors, and other magnetic components.

Need Custom Specifications?

FERRTX offers tailored filtering solutions according to voltage, current, PCB layout, and attenuation requirements.
