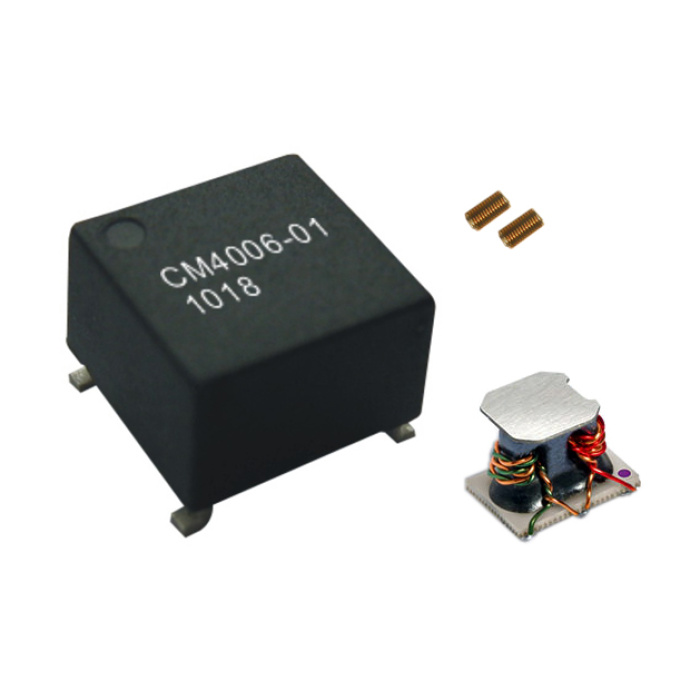

    RF Wideband Transformers

    wideband rf transformers for Signal Integrity

    As critical ‌Transformers‌ in RF systems, ‌wideband RF transformers‌ enable impedance matching and energy transfer across multi-octave frequencies.

    rf wideband transformers

    These ‌RF Transformers‌ leverage advanced winding architectures to maintain stable insertion loss – a key requirement when deploying ‌wideband RF transformers‌ in phased array radars.

    Core Capabilities

    -Transformers‌-grade impedance ratio stability (1:1 to 9:1 configurations)
    -‌RF Transformer‌-optimized isolation for 5G beamforming networks
    -‌Wideband RF transformers‌ compatible with microstrip/coaxial interfaces

    Multi-Band Performance
    Engineered as ultra-wideband ‌Transformers‌, our solutions achieve:

    -Consistent coupling efficiency in ‌RF Transformer‌ chains
    -Minimal phase distortion for ‌wideband RF transformers‌ in SATCOM
    -Customizable port configurations for ‌Transformers‌ in IoT gateways
    Product families

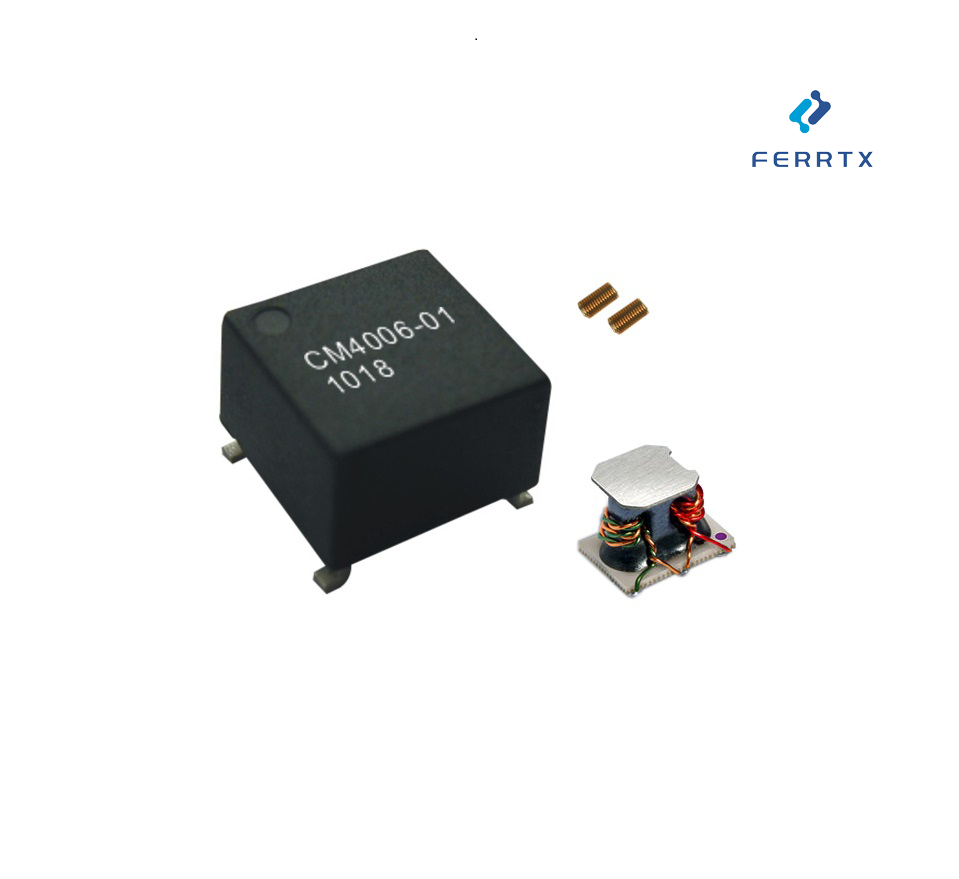

    CM4006 UWB UWB0603-R30

    Ferrites is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in ourRF Wideband Transformers products.
