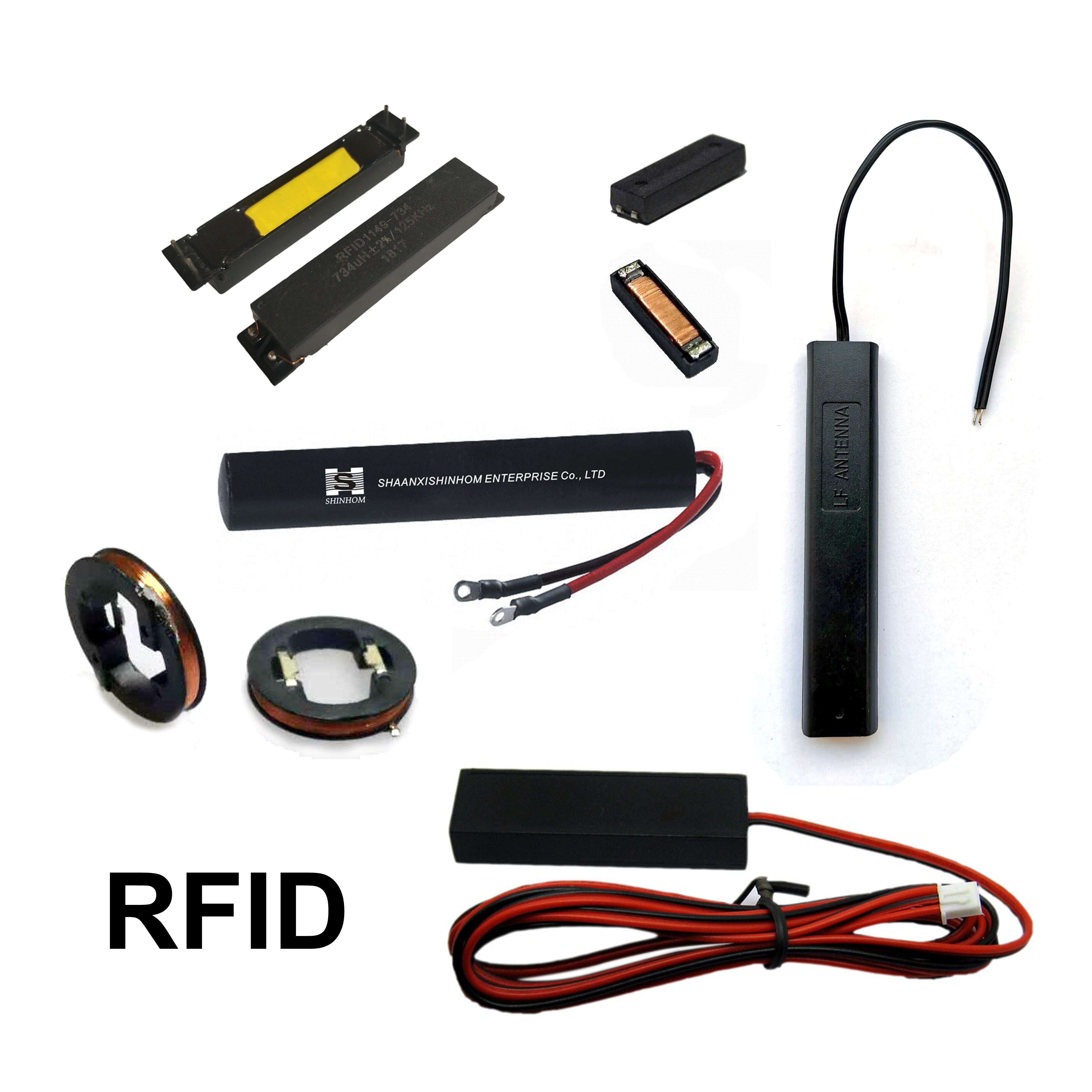

Low-frequency Receiving Antenna
When deploying nfc transponder coil solutions in automotive environments (windshield surface/instrument panel/trunk), avoid metal-surfaced areas to maintain High Frequency Inductor-grade signal integrity. The RFID&NFC Transponder Coil sensing distance depends on:
・Vehicle shielding effectiveness (nfc transponder coil EMI resistance)
・Non-metallic cavity dimensions (High Frequency Inductor spatial requirements)
・Temperature-compensated RFID&NFC Transponder Coil positioning
Resonant Stability
・125KHz±1.5%@25℃ (RFID&NFC Transponder Coil baseline)
・134.2KHz±3%@-40℃ (nfc transponder coil cold-start performance)
Power Handling
・2.8A Max @30% duty cycle (High Frequency Inductor current rating)
Environmental Compliance
・-40℃ to +85℃ operation (RFID&NFC Transponder Coil automotive validation)
・-40℃ to +105℃ storage (nfc transponder coil material endurance)
Series in this family
| Product Series | Inductance(mH) | Q | Impedance(Ω) | Capacitance(nF) |
| RFID0803C | 1.0-18.52 | 30-35 | - | - |
| RFID1103 | 1.97-10.0 | 15-17 | 34-145 | - |
| RFID1103C | 1.97-10.0 | 15-17 | 34-145 | - |
| RFID113528 | 1.0-7.2 | 30 | - | - |
| RFID1149 | 0.16-0.5 | 125 | - | - |
| RFID13020A | 0.16-0.5 | 125 | - | 3.3-10.0 |
| RFID0716A | 0.16-0.5 | 125 | - | 3.3-10.0 |
| RFID8213 | 0.16-0.5 | 125 | - | 3.3-10.0 |
| RFID8516A | 0.16-0.5 | 125 | - | 3.3-10.0 |
| EFID9514A | 0.16-0.5 | 125 | - | 3.3-10.0 |
| RFID1244 | 1.0-7.2 | 12.9-15.3 | 52-333 | - |
| RFID1724 | 2.38-2.6 | 18 | 80-88 | - |
