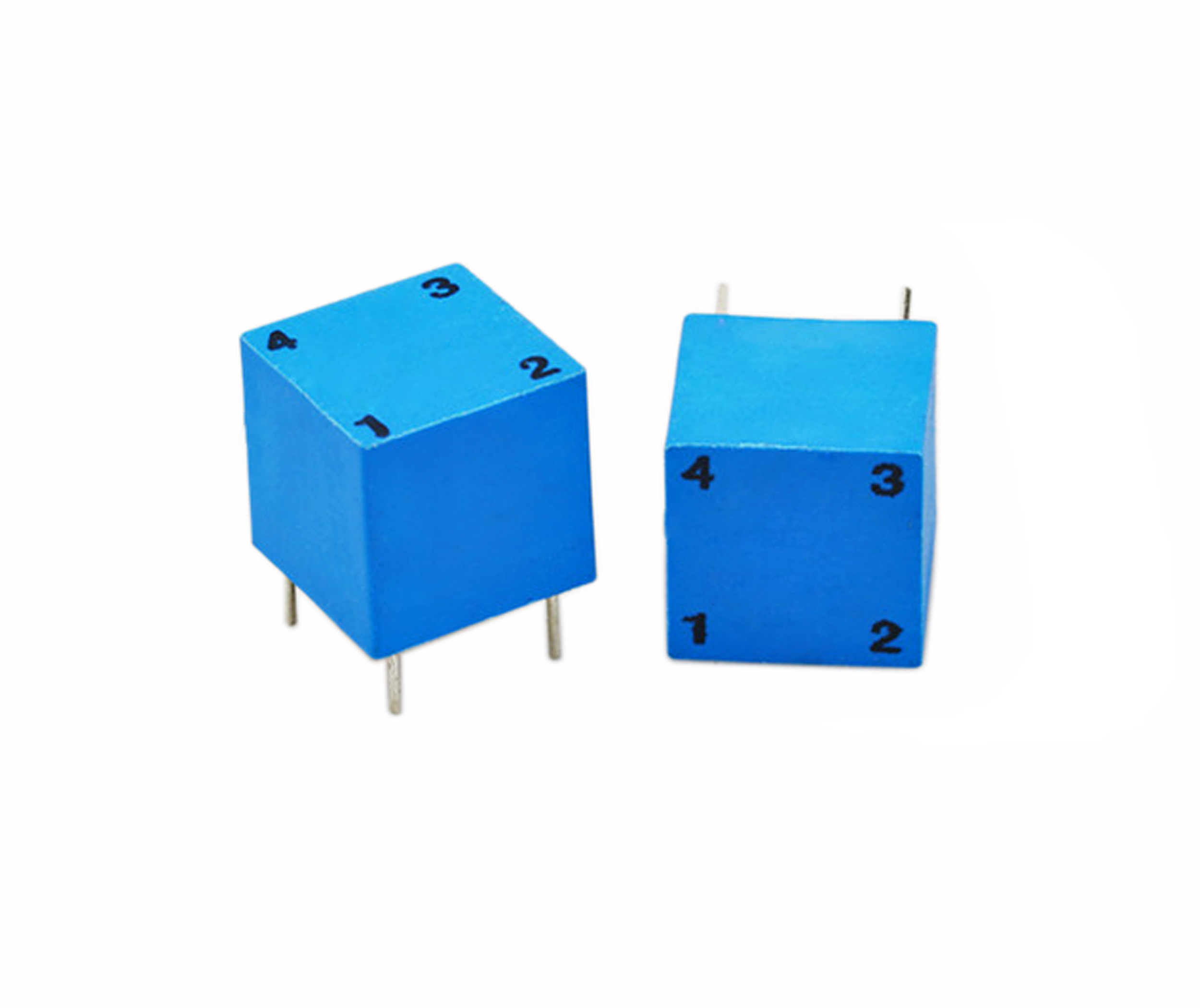

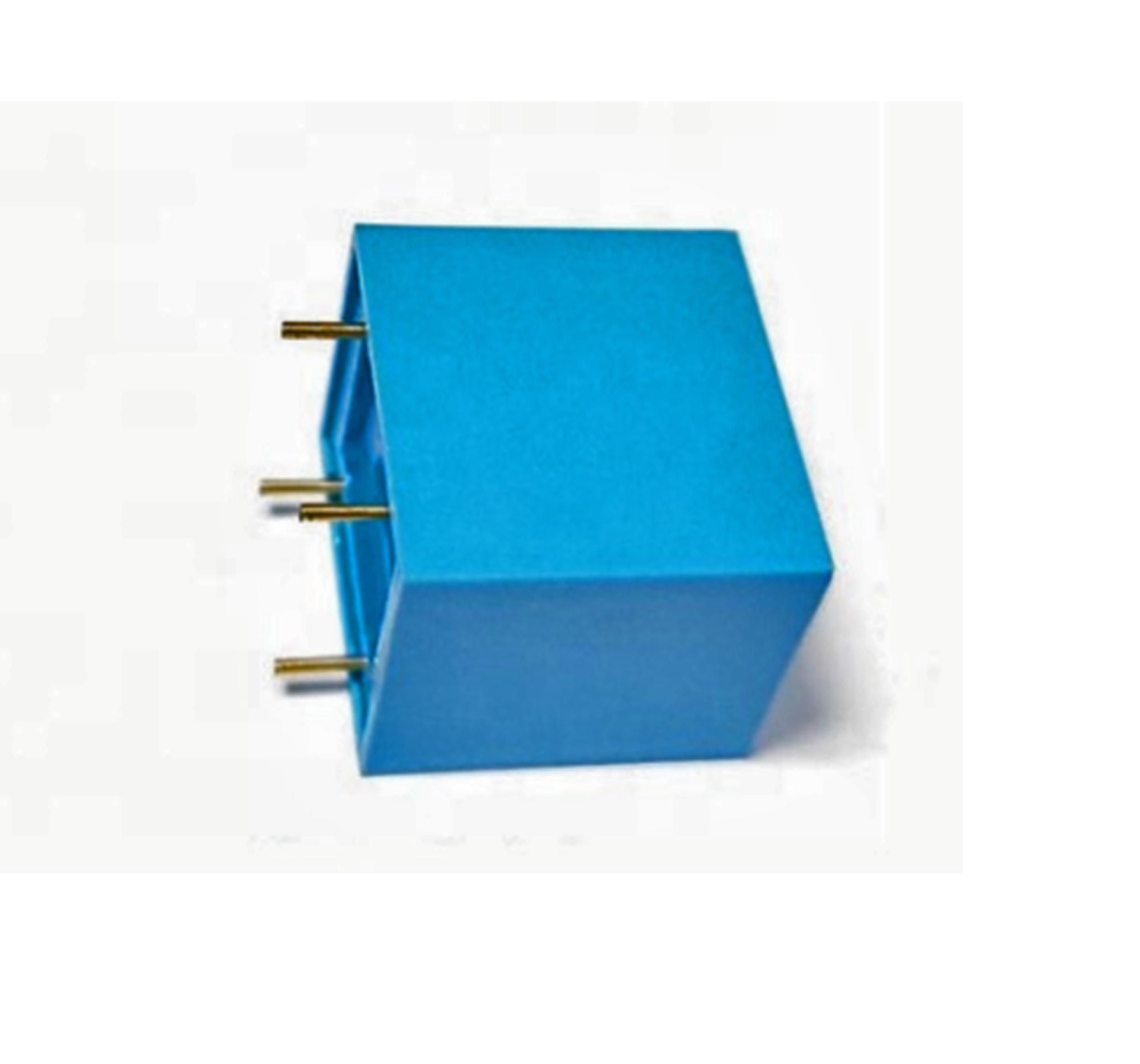

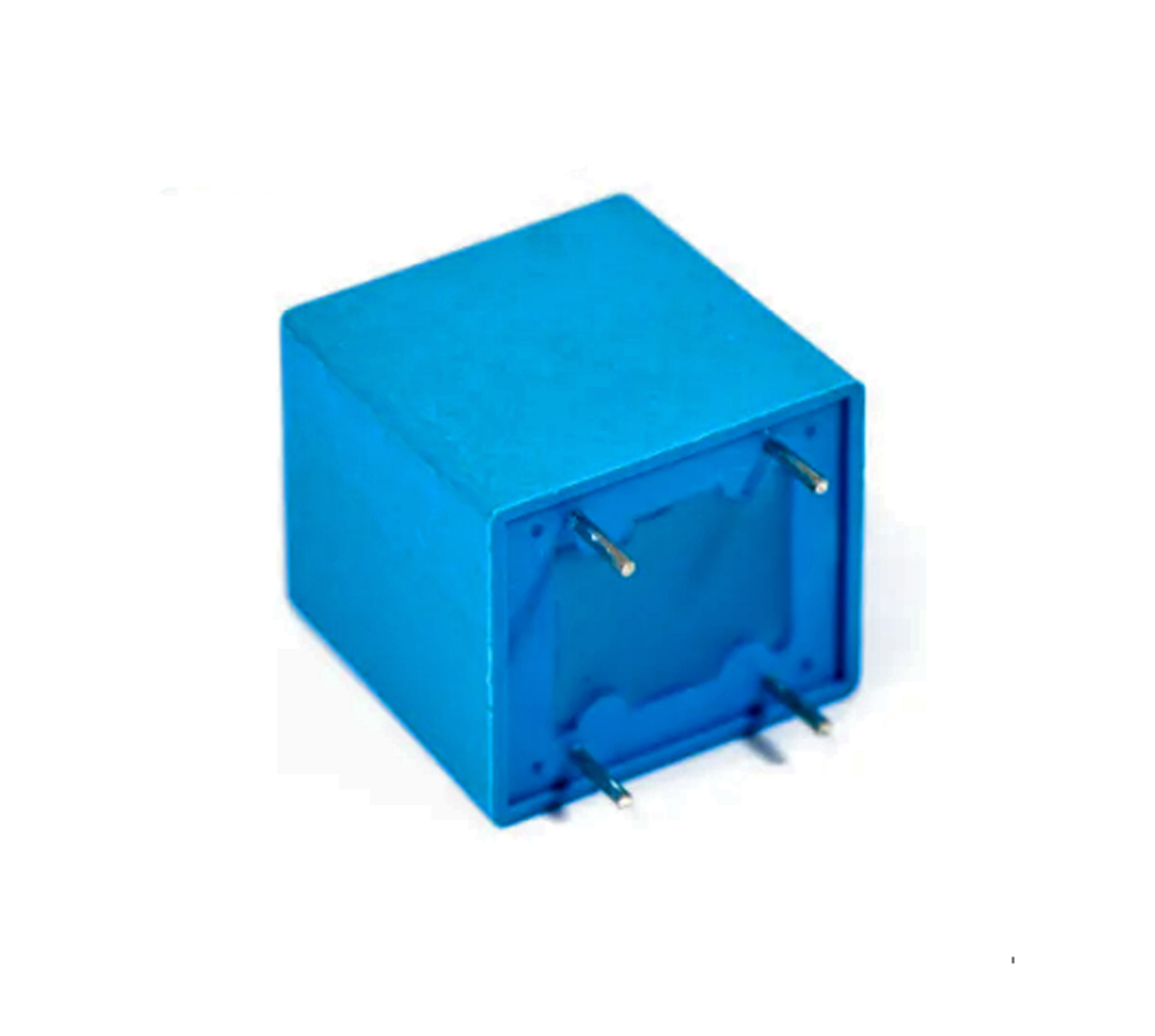

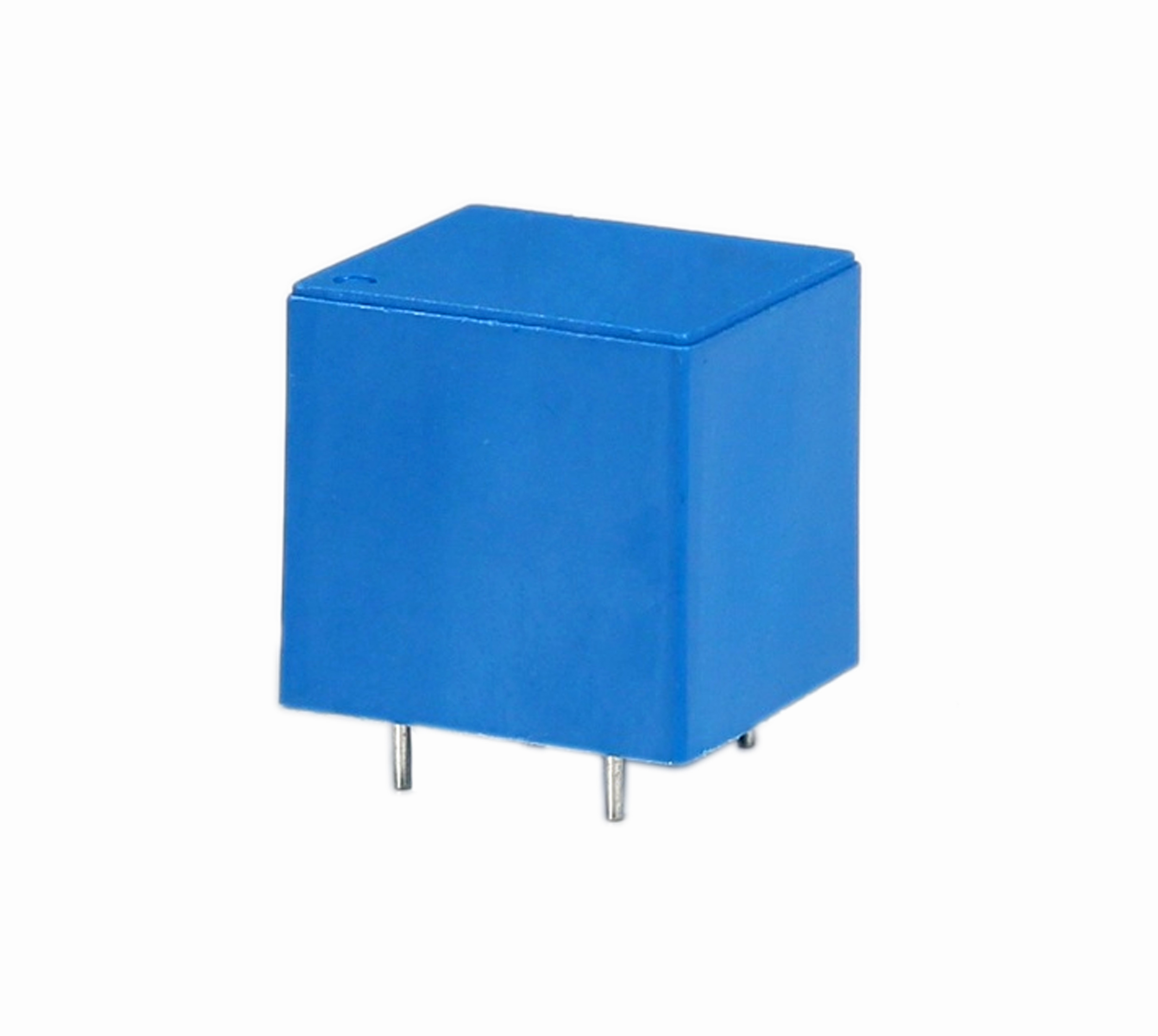

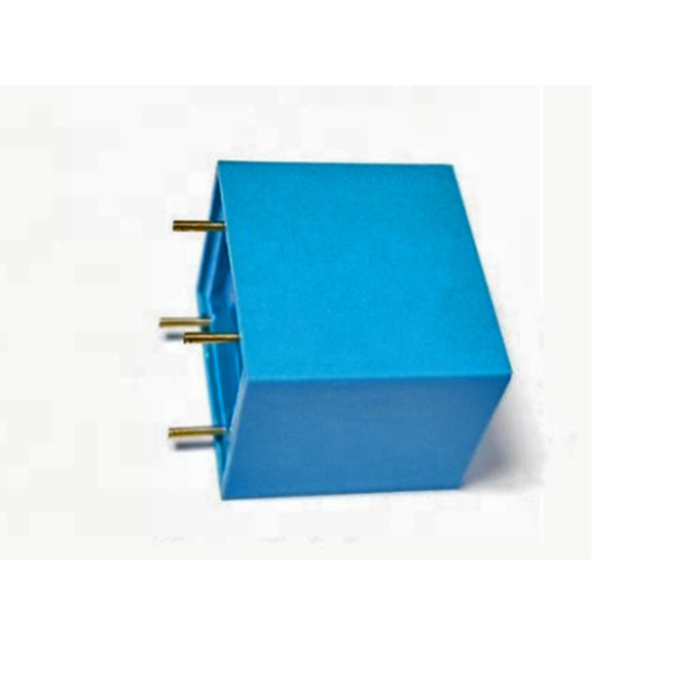

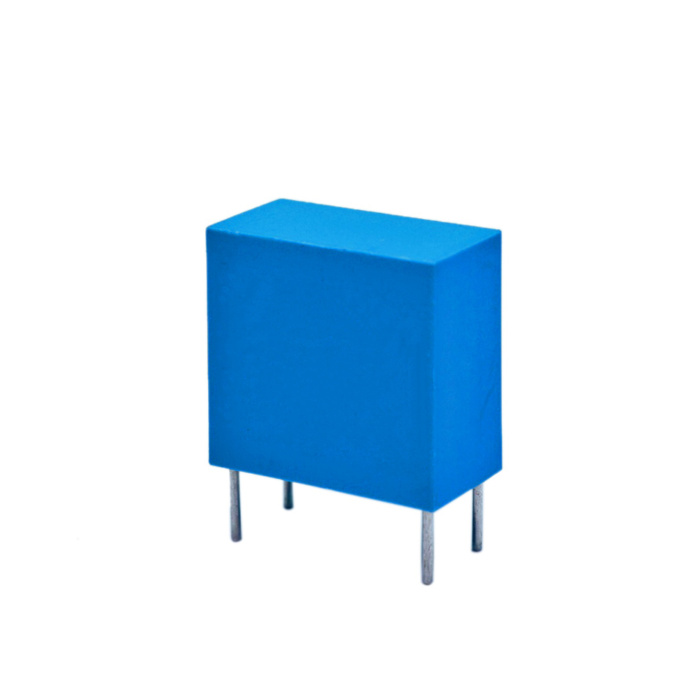

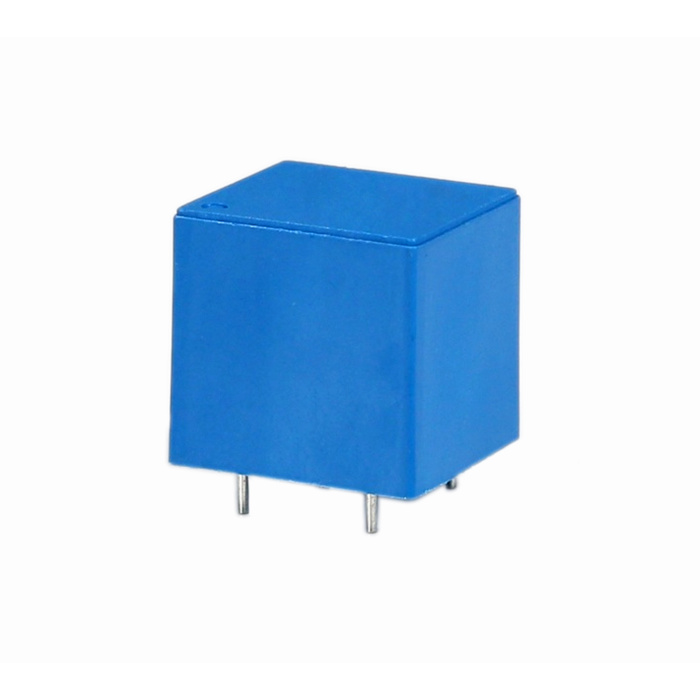

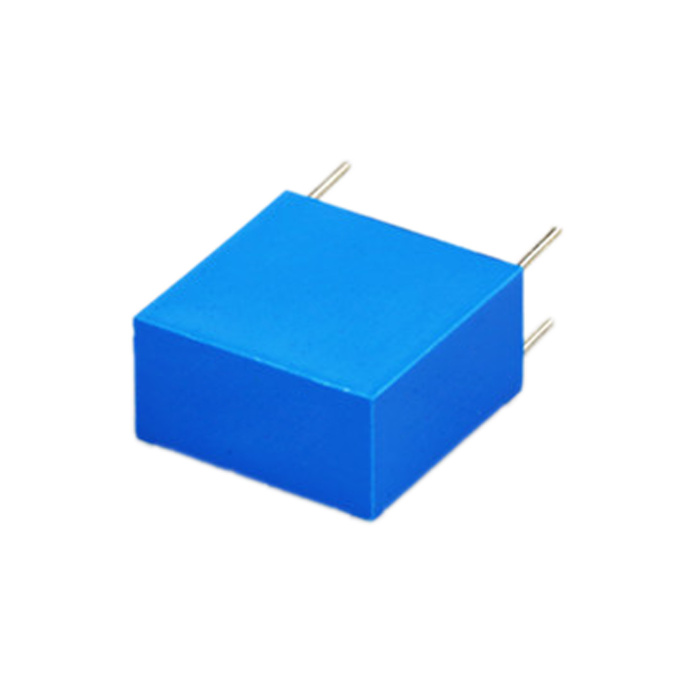

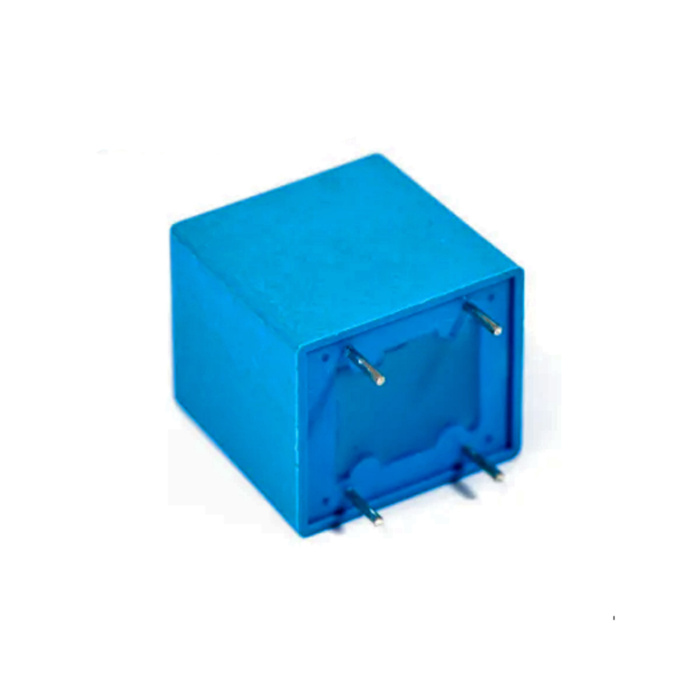

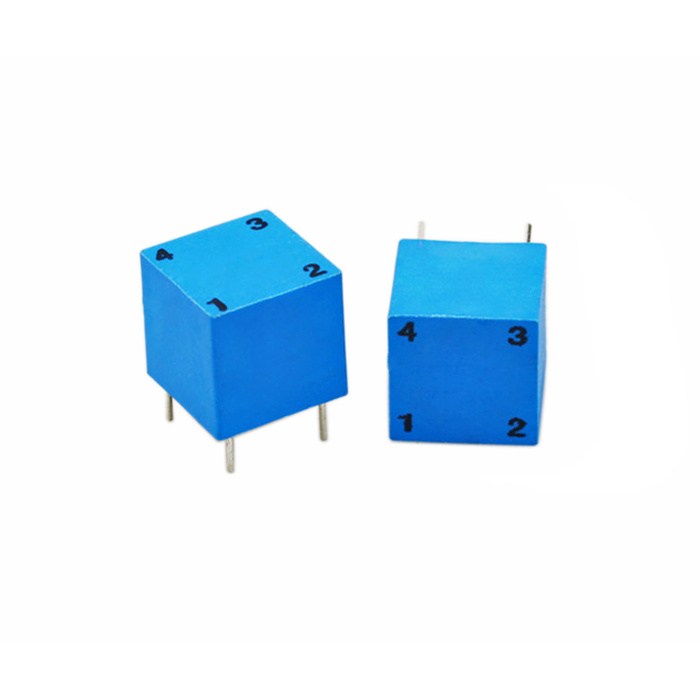

PCB Mount Potential Voltage Transformers

FERRTX TV3XXX Series｜PCB Mount Voltage Transformer for Precision Signal Isolation

*2500VAC Isolation & IEC 60044-2 Compliance in Harsh Environments*

Microprocessor-Grade Voltage Transformation

The FERRTX TV3XXX PCB Mount Potential Voltage Transformer redefines accuracy for industrial control systems. Engineered to transform primary AC voltages (50-400Hz) into isolated secondary signals (0.10V-7.07V), it achieves <0.1° phase shift – outperforming standard AC Voltage Transducers in PLC/DCS interfaces. With epoxy-encapsulated cores and asymmetrical PTH mounting, it withstands -40°C to +85°C extremes where conventional Isolated Voltage Transmitters fail.

Core Engineering Innovations

• Asymmetrical Footprint
  Enables 30% denser PCB layouts vs. symmetrical pcb mount power Transformers

• Dual-Core Material Technology
  Silicon steel (cost-optimized) or Nickel Alloy (±0.05% accuracy)

• Triple-Layer Insulation
  ABS/PBT housing + epoxy encapsulation + 1000MΩ dielectric resistance

• Transient Protection
  5000V surge withstand – 3× higher than basic DC Voltage Transducers

Critical Performance Parameters

▸ Frequency Range: 50–400Hz (covers wind/solar inverter harmonics)
▸ Output Voltage: 0.10V–7.07V @ rated current (programmable)
▸ Isolation Strength: 2500VAC/1min (reinforced per IEC 60664-1)
▸ Accuracy Class: IEC 60044-2 Class 0.2
▸ Dielectric Resistance: 1000MΩ @500VDC
▸ Construction: Military-grade epoxy + UL94 V-0 resin

Target Applications

Industrial Automation
・PLC analog input modules
・Motor drive voltage feedback
・DCS system fieldbus isolation

Energy Infrastructure
・Smart meter voltage sampling
・PV combiner box monitoring
・Wind turbine SCADA systems

Critical Power Systems
・UPS output voltage sensing
・Medical equipment power isolation
・Railway signaling circuits

Building Management
・HVAC power quality monitoring
・Elevator control boards
・Data center PDU metering

Competitive Advantages

✅ Space Optimization
Asymmetrical design saves 30% PCB area vs. lem split core Current Sensor solutions
✅ Extended Thermal Range
-40°C operation ensures arctic renewable plant reliability
✅ No Calibration Required
Maintains Class 0.2 accuracy for 100,000 hours
✅ Vibration Immunity
Withstands 5G mechanical stress (ideal for Split Core Current Sensors retrofit)
