Wire Wound Chip Inductor AISM

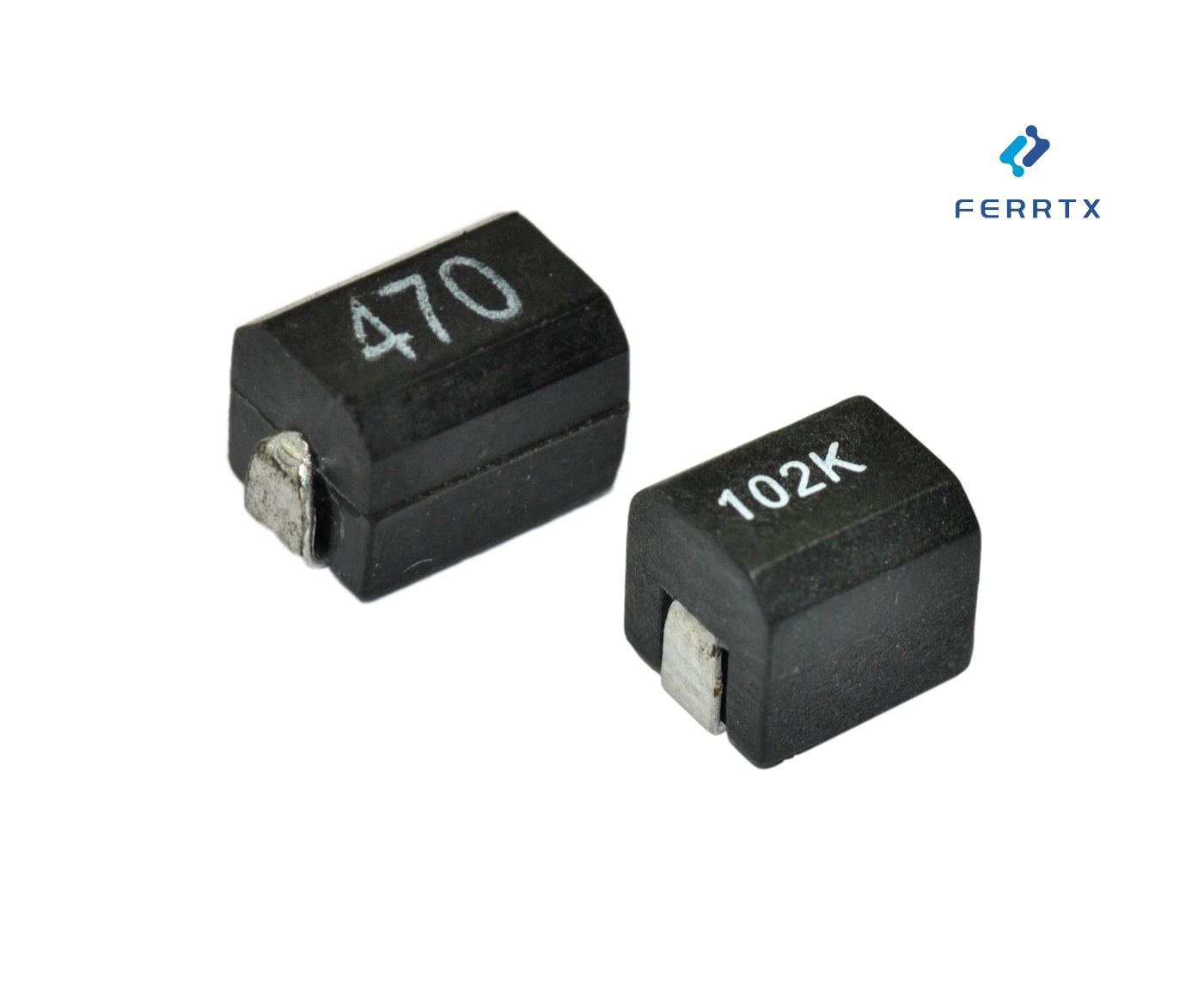

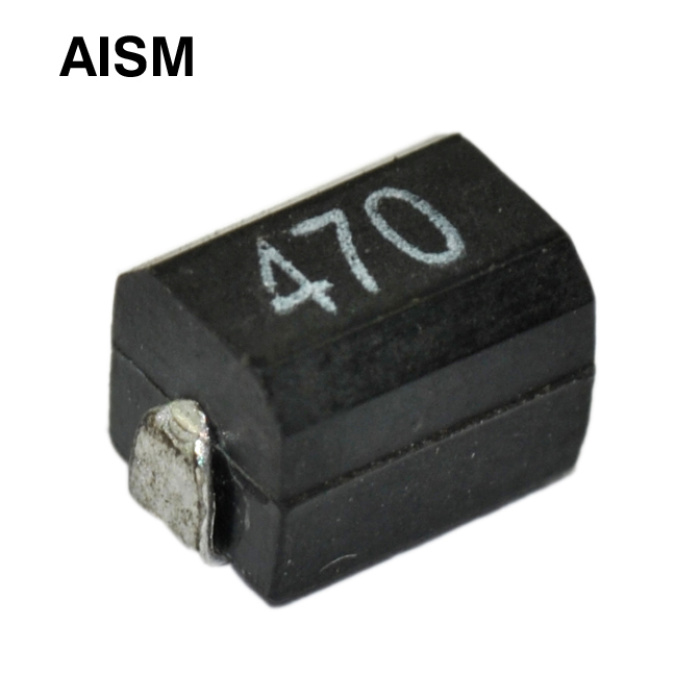

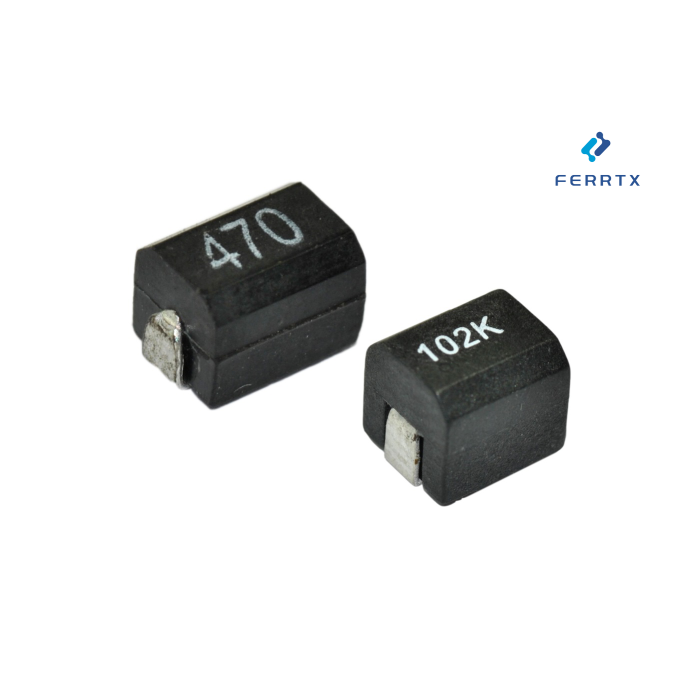

High Current Surface Mount Wound Molded Chip Inductors‌

The ‌Fixed Inductor‌ series combines the precision of ‌Wire Wound Chip Inductor‌ technology with rugged ‌edge wound inductor‌ construction, ideal for high-reliability applications. Designed for compatibility with ‌wire wound resistor inductance‌ standards, these inductors excel in automotive, telecom, and industrial systems.

‌FEATURES‌

• ‌Low Profile‌: Optimized for ‌Wire Wound Chip Inductor‌ integration in compact designs.
• ‌High Reliability‌: Built for ‌Fixed Inductor‌ stability in harsh environments.
• ‌Molded Construction‌: Enhances durability for ‌edge wound inductor‌ and ‌Wire Wound Chip Inductor‌ components.
• ‌Heat Resistant Resin‌: Protects ‌wire wound resistor inductance‌ integrity under thermal stress.
• ‌RoHS Compliant‌: Suitable for ‌Fixed Inductor‌ deployments in eco-sensitive applications.
• ‌Standard Sizes‌: 1008, 1210, 1812, 2220 – compatible with ‌edge wound inductor‌ requirements.

‌APPLICATIONS‌

• ‌Automotive Systems‌: Combines ‌Fixed Inductor‌ robustness with ‌Wire Wound Chip Inductor‌ precision.
• ‌Network Systems‌: ‌Edge wound inductor‌ solutions for high-frequency noise suppression.
• ‌LCD/PDP TVs‌: Compact ‌Wire Wound Chip Inductor‌ integration for space-constrained layouts.
• ‌Hard Disk Drives‌: Balances ‌wire wound resistor inductance‌ stability and ‌edge wound inductor‌ mechanical strength.

‌TECHNICAL INFORMATION‌

• ‌Testing‌: Inductance (HP4285A), RDC (QuadTech 1880), Q (HP4342A), SRF (HP4291A) – validated for ‌wire wound resistor inductance‌ accuracy.
• ‌IDC Max‌: 10% DC current reduction threshold (critical for ‌Fixed Inductor‌ thermal management).
• ‌Solder Methods‌: Wave, vapor phase, infrared – supports ‌Wire Wound Chip Inductor‌ assembly.
• ‌Heat Resistance‌: 260℃ for 10s (ensures ‌edge wound inductor‌ structural integrity).
• ‌Operating/Storage Temp‌: -40℃ to +105℃ (suits ‌Fixed Inductor‌ and ‌Wire Wound Chip Inductor‌ use cases).

Series in this family

Ferrites is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Wire Wound Chip Inductor AISM products.
