Brand: FERRTX
| Selling Units: | Piece/Pieces |
|---|---|
| Download: |
|
Transportation: Ocean,Air,Land,Express
Place of Origin: China
Supply Ability: 2~8weeks
Certificate: RoHS/ISO/UL/CE/IATF16949/CNAS
Port: Xi'an,Shanghai
Payment Type: L/C,T/T

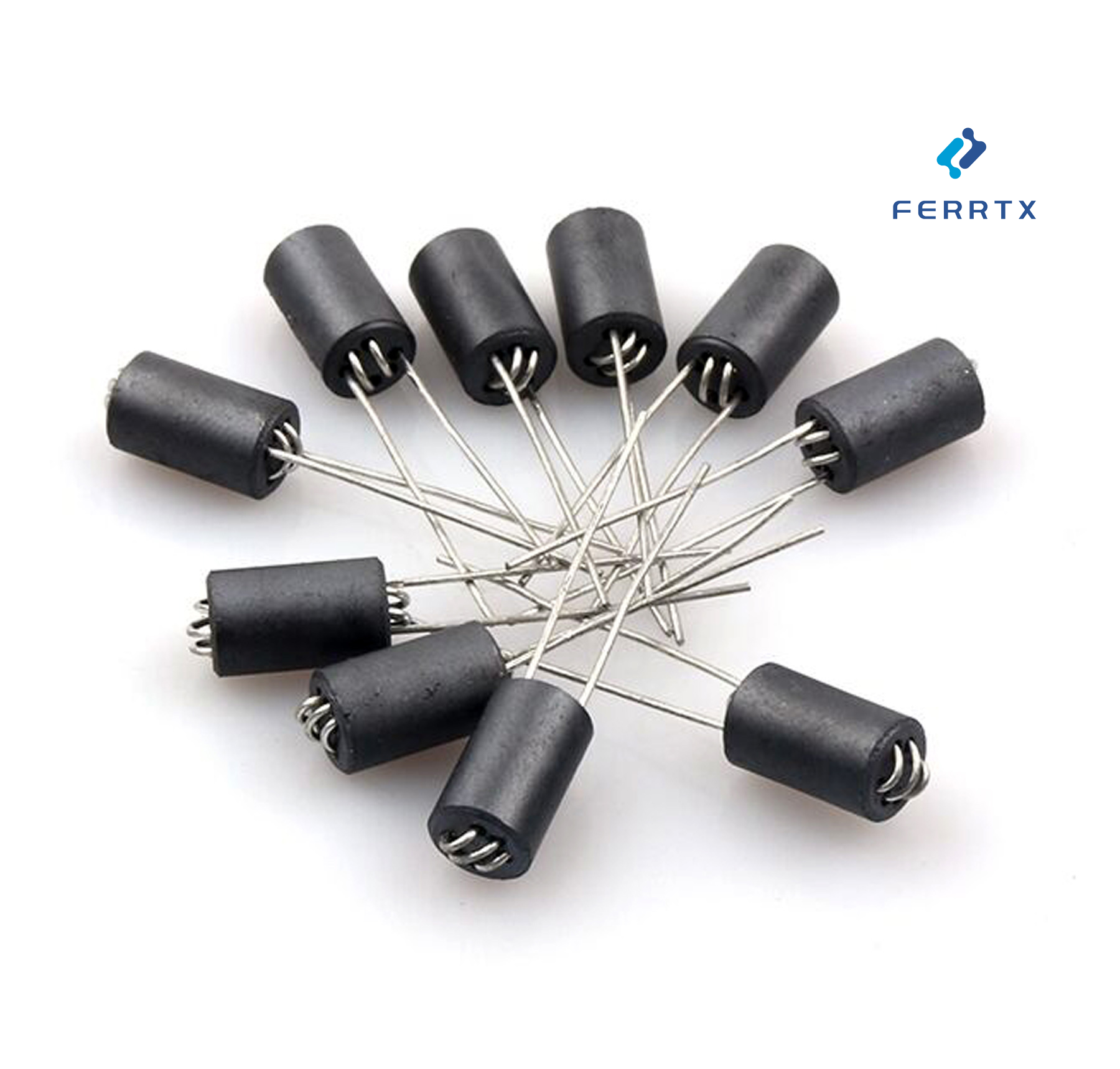

These beads are widely used as Ferrite Beads R6H in AC/DC converters, power line filters, and electronic devices requiring compact, high-performance solutions.
Low DCR Design: Ensures minimal voltage drop while maintaining high EMI suppression.
Compact & Durable: Wirewound construction for robust performance in confined PCB spaces.
High EMI Suppression: Reduces electromagnetic interference across a wide frequency range.
Safety Compliant: UL94-V0 insulation ensures safe operation under standard electrical conditions.
Versatile Applications: Suitable for DC-DC power modules, communication devices, and industrial electronics.
Our R6H beads integrate efficiently with Wirewound Ferrite Bead, Power Bead Inductor, and EMI Filter systems for enhanced circuit performance.
| Model | Rated Current (A) | Impedance (Ω) | DC Resistance (Ω) | Frequency (MHz) |
|---|---|---|---|---|
| R6H-300 | 3.0 | 80 | 0.03 | 5–80 |
| R6H-050 | 0.5 | 200 | 0.08 | 20–150 |
| R6H-150 | 1.5 | 120 | 0.05 | 10–100 |
| R6H-200 | 2.0 | 100 | 0.04 | 8–100 |
| R6H-100 | 1.0 | 150 | 0.06 | 15–120 |
Power Line & Signal Noise Suppression: Improves performance in AC-DC Converters, DC-DC Power Modules, and sensitive electronic circuits.
Communication Systems: Ensures clean signal transmission in RF Components and other high-frequency devices.
Industrial Electronics: Protects sensors, Transformers, and other devices from EMI-induced malfunctions.
These R6H Wirewound Ferrite Beads are compatible with toroidal choke, ferrite bead inductor, and Emi Filter setups for optimal noise suppression.
Low DCR Performance: Minimizes power loss while maintaining high EMI attenuation.
Reliable & Durable: Prevents circuit failures even in high-current environments.
Wide Application Range: Suitable for converters, transformers, and Sensor circuits.
Easy Integration: Wirewound design allows simple installation on PCB or wire setups.
R6H Wirewound Ferrite Beads are available in multiple current ratings and impedance levels to fit various electronic designs. For datasheets, custom solutions, or technical support, contact our sales team.
Enhance your circuits with R6H Wirewound Ferrite Beads – the optimal solution for WireWound Ferrite Beads low DCR and reliable Ferrite Beads R6H performance.
