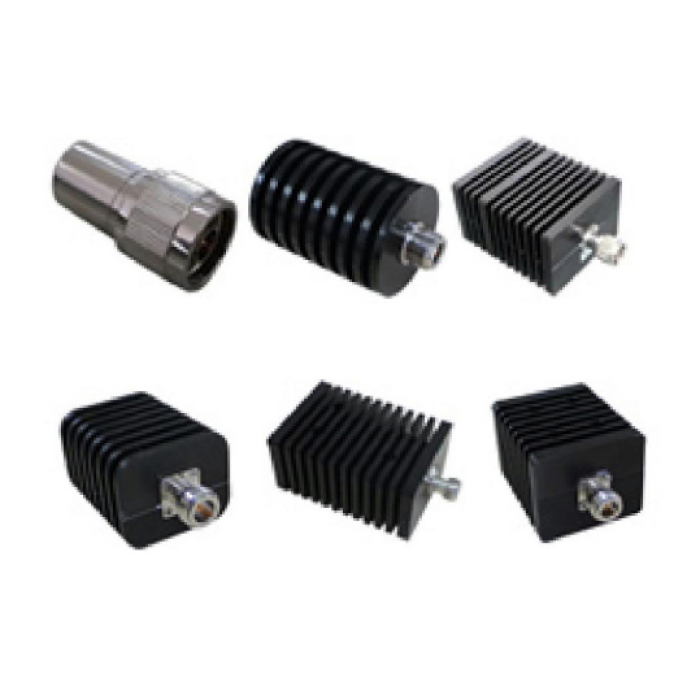

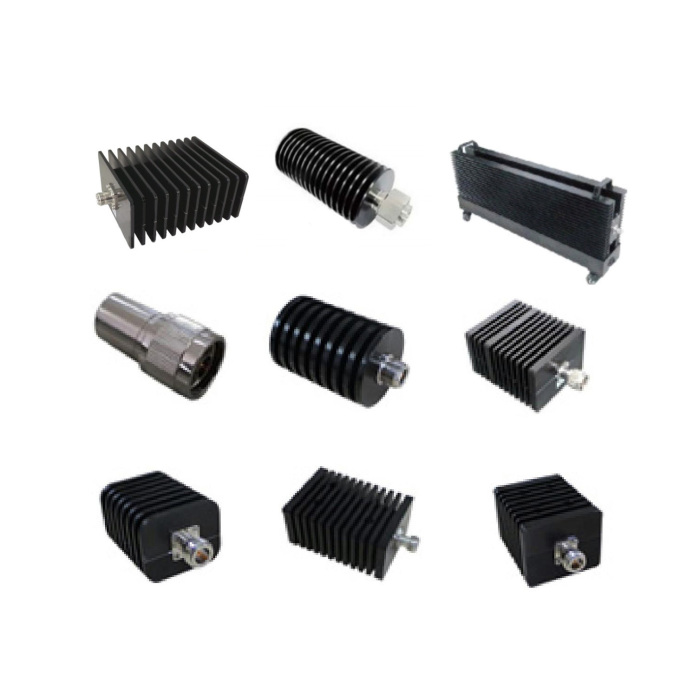

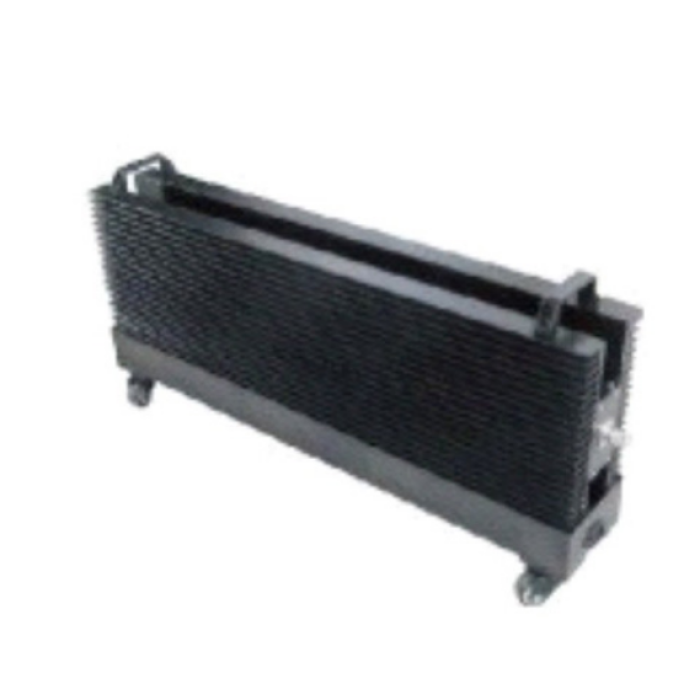

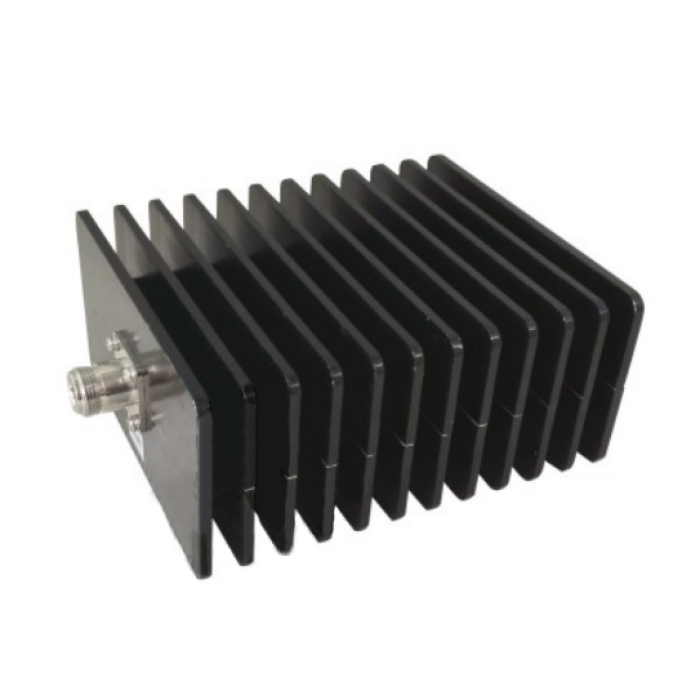

Coaxial Termination

Key Features

• ‌Wide Power Range‌: Available in power ratings from 2W to 10kW, making it suitable for various RF systems.
• ‌Broad Frequency Range‌: Supports frequencies ranging from DC to 40GHz, accommodating a wide array of microwave applications.
• ‌Excellent VSWR‌: Features low voltage standing wave ratios, minimizing reflections and ensuring signal integrity.
• ‌Versatile Connectors‌: Compatible with various connector types, including N, SMA, and TNC, facilitating easy integration into existing systems.
• ‌Customizable Solutions‌: Offers ‌Customized Coaxial Termination‌ options to meet specific application requirements.

Applications

The ‌Coaxial Termination‌ is essential for:

• ‌RF Testing‌: Used in testing equipment to terminate coaxial cables, ensuring accurate measurements.
• ‌Antenna Systems‌: Helps in preventing signal reflections at the ends of coaxial cables connected to antennas.
• ‌Microwave Communications‌: Ensures efficient signal termination in microwave communication systems.
• ‌Broadcasting‌: Utilized in broadcasting equipment to maintain signal quality.

Benefits of Using Our Coaxial Terminations

• ‌Enhanced Signal Integrity‌: Minimizes reflections, improving signal quality and system performance.
• ‌Reliability‌: Constructed from high-quality materials, ensuring long-term reliability and durability.
• ‌Flexibility‌: Versatile connector options allow easy integration into various systems.
• ‌Cost-Effective‌: Offers a wide range of standard and customized solutions at competitive prices.

Integration with Other RF Microwave Components

Our ‌Coaxial Terminations‌ seamlessly integrate with our comprehensive range of ‌rf microwave Components‌, including ‌Coaxial Components‌, ‌Power Inductors‌, ‌RF Inductors‌, ‌Transformers‌, ‌EMC Filters - EMI/RFI‌, and ‌Sensors‌. This enables the creation of customized solutions tailored to specific application needs.



Ferrtx is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Coaxial Termination products.
