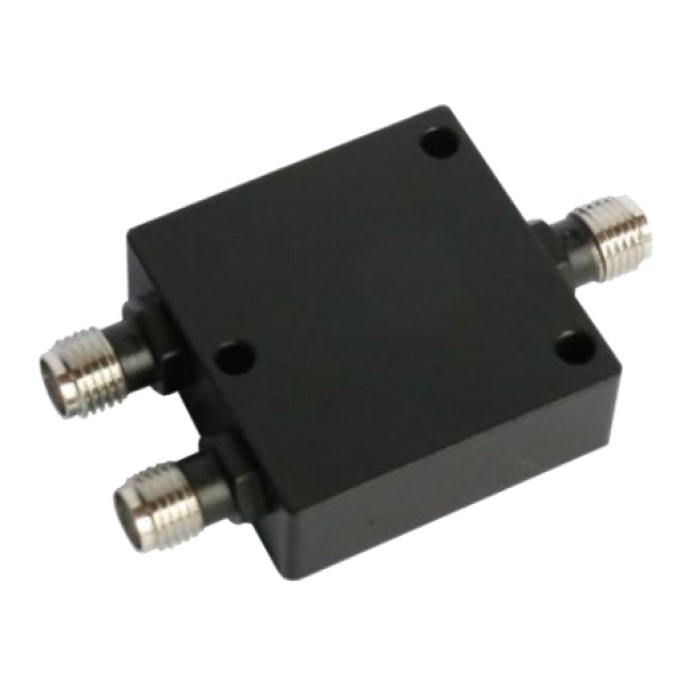

Coaxial Power Splitter

Coaxial Cable Power Splitters are essential RF Components designed to evenly divide or combine RF signals across multiple output ports while maintaining impedance matching and low insertion loss.
Our RF Power Splitters and Coaxial Power Splitters are engineered for stable performance from VHF to microwave frequency bands, making them ideal for communication systems, test equipment, and microwave signal distribution networks.

Manufactured with precision coaxial structures and high-quality conductive materials, these splitters ensure excellent amplitude balance, phase consistency, and long-term reliability in demanding RF environments.

Product Overview

Ferrtx Coaxial Power Splitters are designed to meet modern RF and microwave system requirements where signal integrity and low loss are critical. Compared with PCB-based solutions, coaxial designs offer superior power handling and shielding performance, making them suitable for both indoor and outdoor installations.

As part of our RF Microwave Components portfolio, these power splitters can be easily integrated with other Coaxial Components such as attenuators, couplers, and isolators to build complete RF signal chains.

Key Features

• Wide Frequency Coverage
  Supports broadband RF and microwave frequency ranges for diverse applications.

• Low Insertion Loss
  Optimized internal structure minimizes signal attenuation.

• Excellent Amplitude & Phase Balance
  Ensures consistent signal distribution across all output ports.

• High Power Handling Capability
  Suitable for transmission systems and high-power RF networks.

• Standard Impedance Matching
  Typically designed for 50Ω systems to reduce reflections.

• Robust Coaxial Construction
  Provides effective shielding against external EMI and noise.

Typical Configurations

Our Coaxial Power Splitters are available in multiple configurations, including:

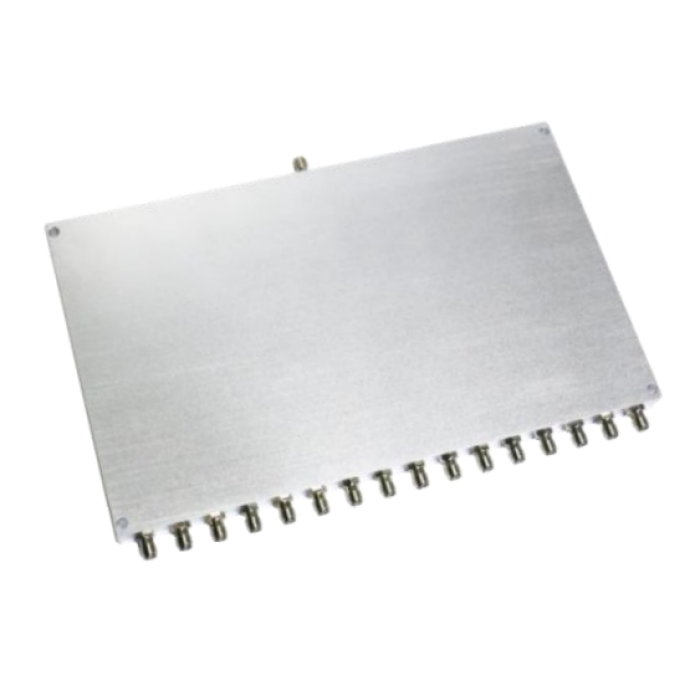

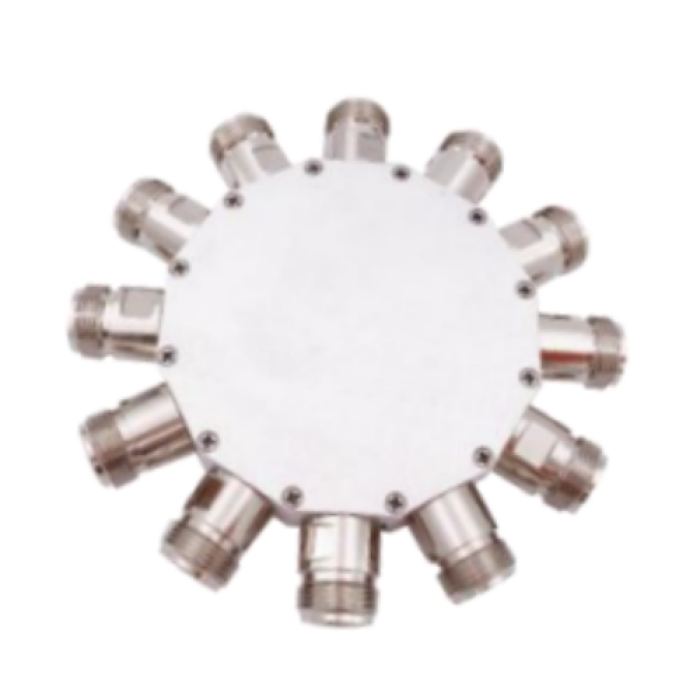

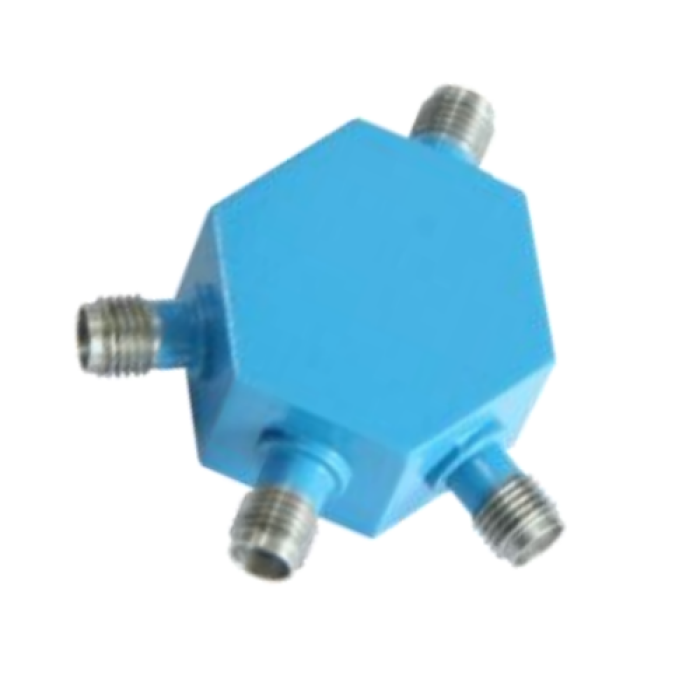

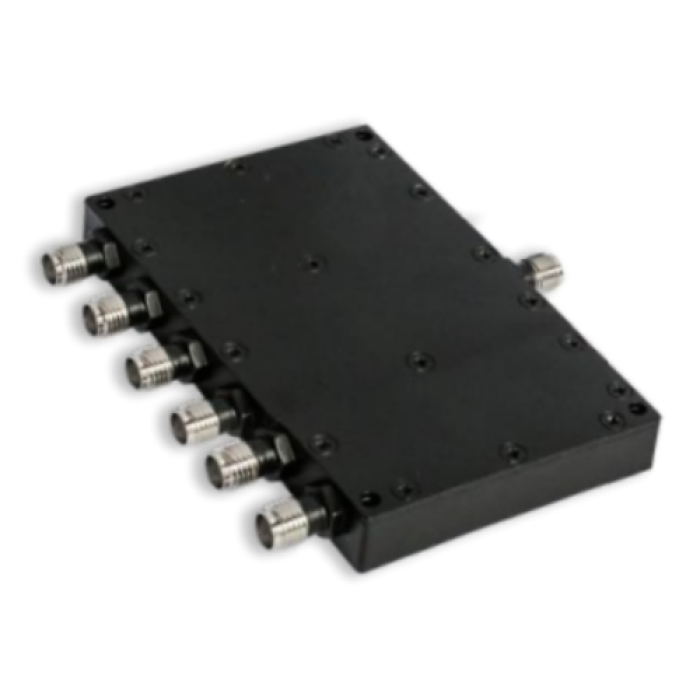

• 2-way, 3-way, and multi-way splitters

• Equal and unequal power division

• Different connector options (SMA, N-type, etc.)

• Custom mechanical designs upon request

Applications

Coaxial Cable Power Splitters are widely used in:

• Wireless Communication Systems
  Signal distribution in base stations and RF front-end modules.

• Test & Measurement Equipment
  RF signal routing for analyzers, signal generators, and calibration setups.

• Broadcast & Microwave Systems
  Reliable signal splitting for RF transmission and monitoring.

• Industrial RF Systems
  High-stability signal distribution in harsh environments.

• Integrated RF Networks
  Used alongside RF Inductor, Coupler, and other RF components to form complete RF solutions.

Electrical & Mechanical Characteristics

Customization Capability

We support customized RF Power Splitters based on customer requirements, including:

• Frequency band optimization

• Power handling upgrades

• Connector and housing customization

• Integration with other Coaxial Components

Our engineering team can provide design support for specialized RF systems.

Quality & Reliability

All Coaxial Power Splitters are manufactured under strict quality control standards to ensure stable RF performance, mechanical durability, and long service life. Each product is tested for electrical consistency and mechanical integrity before delivery.

Related RF Solutions

To build a complete RF and microwave system, our Coaxial Power Splitters can be combined with:

• RF Inductor for impedance control and filtering

• Coupler for signal sampling and monitoring

• rf microwave Components for full system integration

Conclusion

Ferrtx Coaxial Cable Power Splitters provide a reliable and efficient solution for RF signal distribution across a wide range of communication and microwave applications. With robust coaxial construction, low loss performance, and flexible customization options, our RF Power Splitters are an ideal choice for engineers and system integrators seeking high-performance RF solutions.
