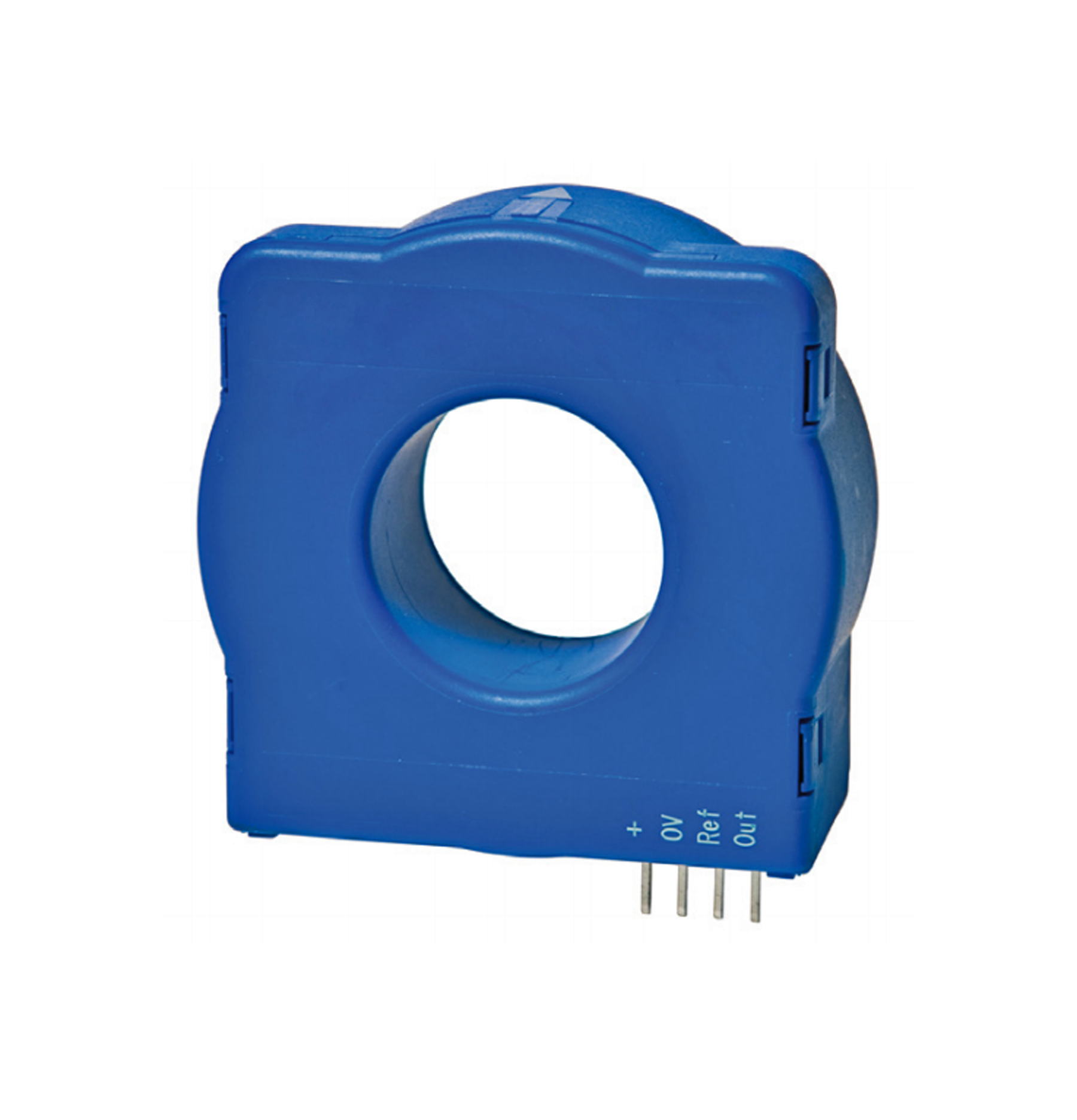

Closed Loop Hall Effect Current Sensor HCB

5kV Isolation & <1μs Response for Critical Power Systems

Ultra-Precise Non-Invasive Sensing

The FERRTX Closed Loop Hall Current Sensor revolutionizes current monitoring with 0.1% linearity and DC-100kHz bandwidth, outperforming traditional DC Current Sensors in accuracy. Utilizing magnetic compensation technology, it achieves <1μs response time – 5× faster than Rogowski Current Sensors for overcurrent protection. With reinforced 5kV isolation and -40°C to +125°C operation, it replaces bulky lem split core current sensor solutions in space-critical designs.

Breakthrough Engineering

• Zero Insertion Loss
  Eliminates power dissipation vs. shunt-based AC Current Sensors

• Zero Magnetic Hysteresis
  Removes calibration drift inherent in hall split core current sensor

• CMOS/TTL Compatibility
  4.5-24V wide voltage range with ratiometric output

• EMC Immunity
  Withstands 200V/ns dv/dt noise in motor drives

Critical Specifications

▸ Bandwidth: DC–100kHz (captures 150th harmonic)
▸ Accuracy: ±0.2% to ±1% (selectable ranges)
▸ Response Time: <1μs
▸ Isolation: 5kV RMS/60s (IEC 62368-1)
▸ Linearity: 0.1% FS
▸ Current Ranges: 10A–1000A
