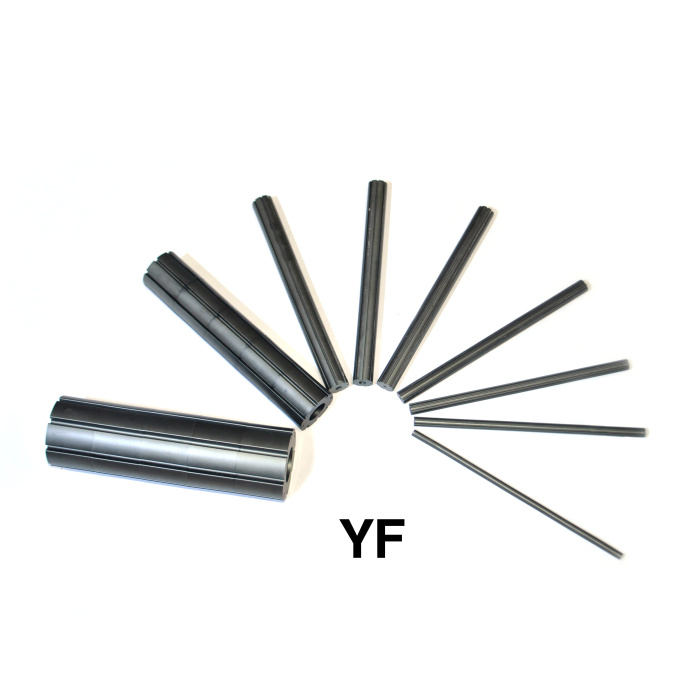

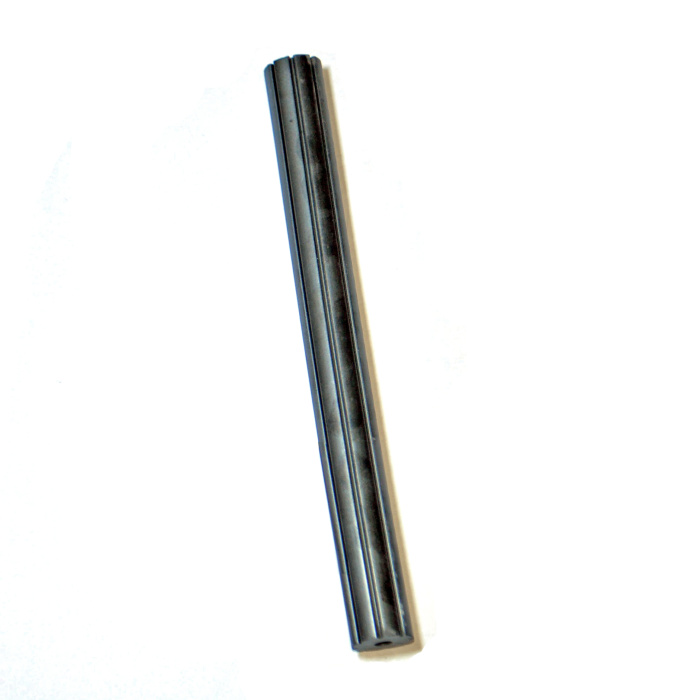

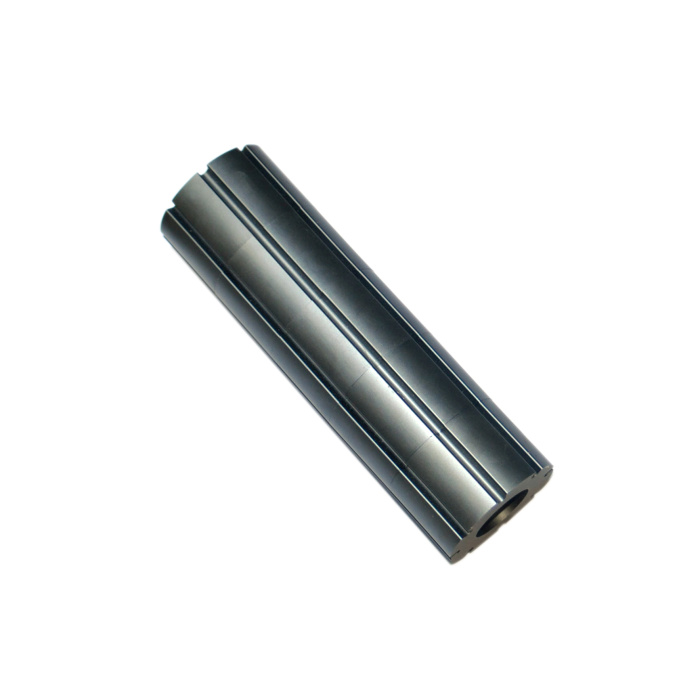

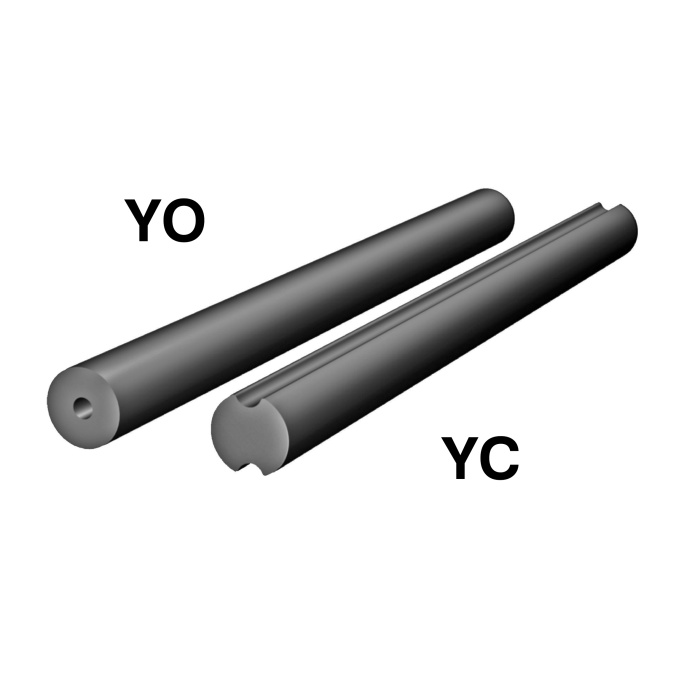

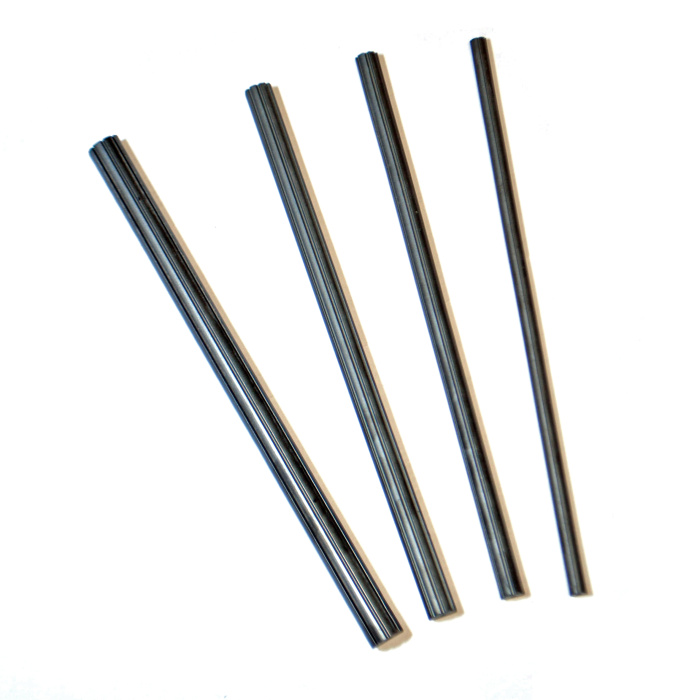

Impeder Cores

What Makes FERRTX Impeder Cores Ideal for High-Frequency Welding?

FERRTX develops impeder cores for high frequency welding using advanced ferrite formulations and tight dimensional control to deliver:

✔ Low Reluctance for High Magnetic Efficiency

The key to a high-performance impeder is magnetic permeability.
Our low reluctance Impeder Cores maximize the return path of magnetic flux, resulting in:

• Improved welding penetration

• Reduced energy consumption

• More concentrated heating

• Cleaner weld bead formation

✔ Excellent High-Frequency Stability

Designed for 100–500 kHz welding ranges with minimal loss across temperature variations.

✔ High Mechanical Strength

Withstands coolant flow, vibration, and thermal shock in HF welding lines.

✔ Corrosion & Coolant Resistant Coating

Surface finishing extends lifetime in demanding industrial environments.

Performance Advantages

• Enhanced impedance control for pipe and tube welding

• Reduced weld bead deformation

• Higher power transfer efficiency

• Lower operational temperatures

• Consistent long-term magnetic properties

• Suitable for air-cooled or water-cooled impeder structures

Application Areas

Our Impeder Cores are widely used in:

• High-frequency pipe welding lines

• Tube and profile HF welding systems

• Industrial RF heating systems

• Magnetic field shaping and impedance control assemblies

• High-frequency coupling devices

• Compact High Frequency Transformer auxiliary structures

FERRTX also supports customized shapes, OD/ID tolerance control, epoxy coating, and segmented assembly formats.

Material Options & Engineering Flexibility

Beyond traditional ferrite, FERRTX also provides material alternatives such as Alloy Powder Cores for engineering teams that require:

• Higher saturation levels

• Different permeability curves

• Alternative magnetic flux control profiles

This ensures compatibility across multiple HF welding equipment platforms.

Why Choose FERRTX Impeder Cores?

✔ Custom Grades for HF Welding

Formulated for minimal loss in the 100–500 kHz range.

✔ Dimensional Accuracy

Critical for precise alignment inside the impeder rod.

✔ Long Lifespan

Optimized for coolant exposure and harsh production conditions.

✔ Global OEM Supply

FERRTX provides consistent, reliable material support for large-scale welding system integrators.

Related Categories for Magnetic & HF Welding Designs

For engineers needing additional solutions for high-frequency equipment, FERRTX also offers:

• Ferrite Core for EMI suppression and magnetic components

• High Frequency Transformer Solutions for HF power stages

• Alloy Powder Cores for inductors and alternative flux control materials

These related categories help strengthen internal SEO structure and allow users to quickly explore compatible components.

Conclusion

FERRTX Impeder Core products deliver superior magnetic stability, low reluctance, and high-frequency efficiency—making them the ideal choice for impeder cores for high frequency welding. Our advanced material engineering ensures improved weld quality, reduced energy loss, and long-term operational reliability.

Whether you need standard ferrite grades or customized low reluctance Impeder Cores, FERRTX provides comprehensive solutions tailored to modern HF welding requirements.
