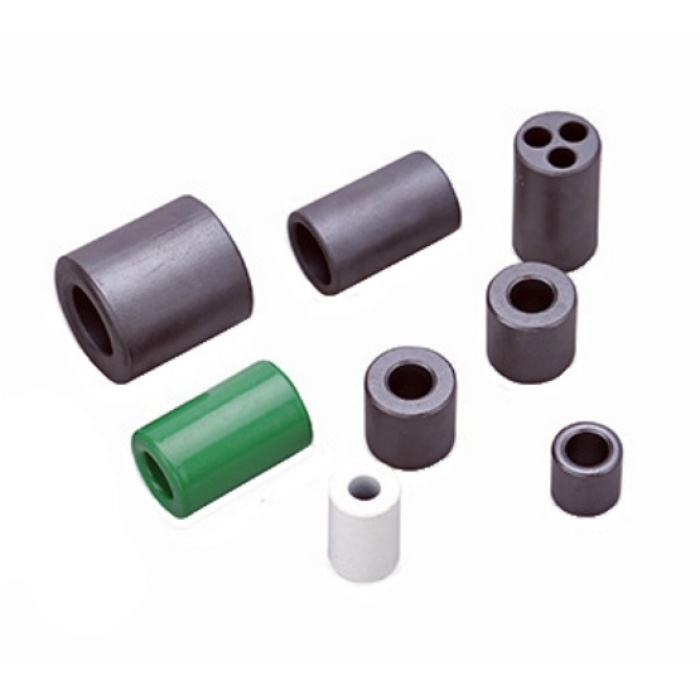

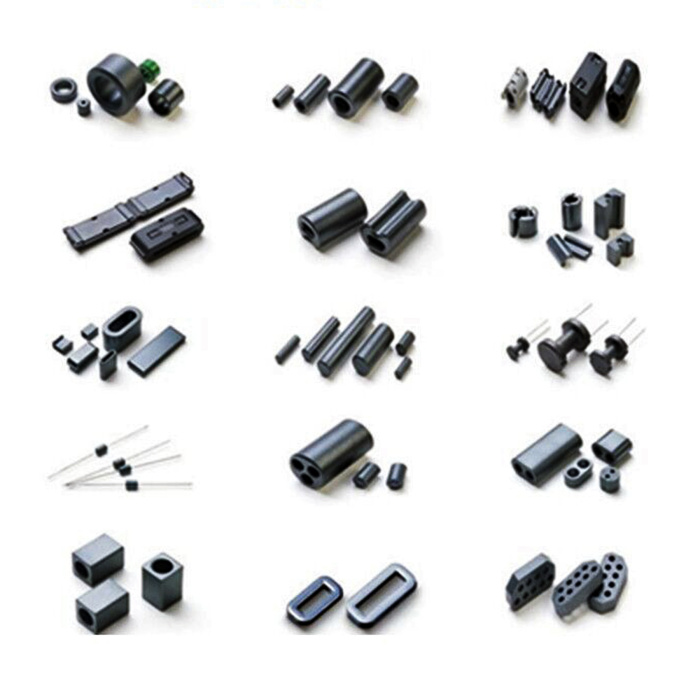

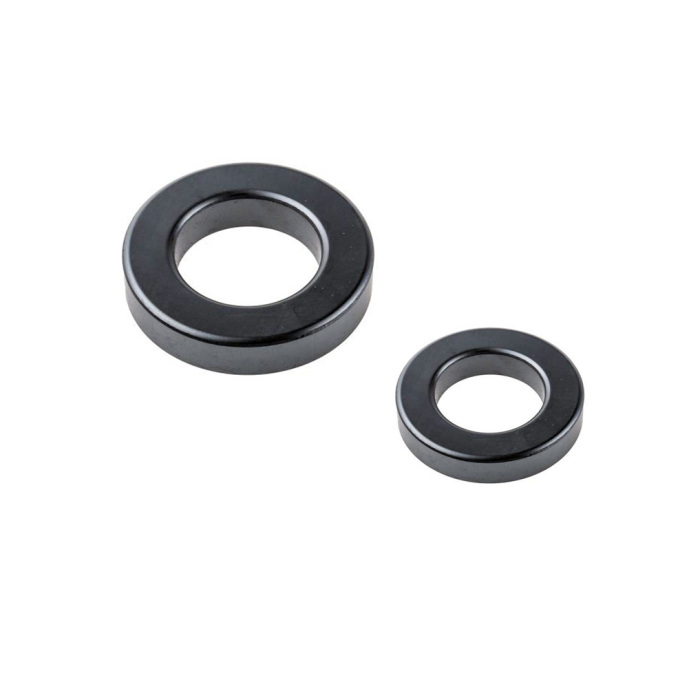

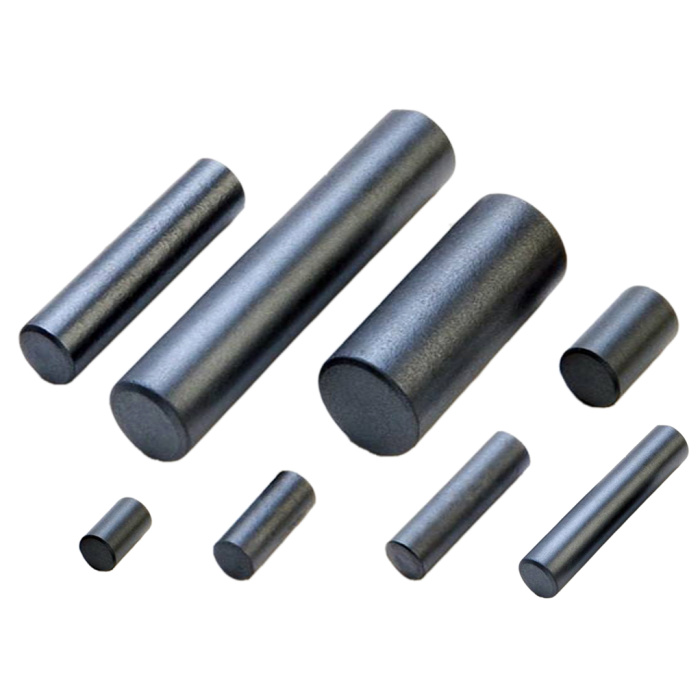

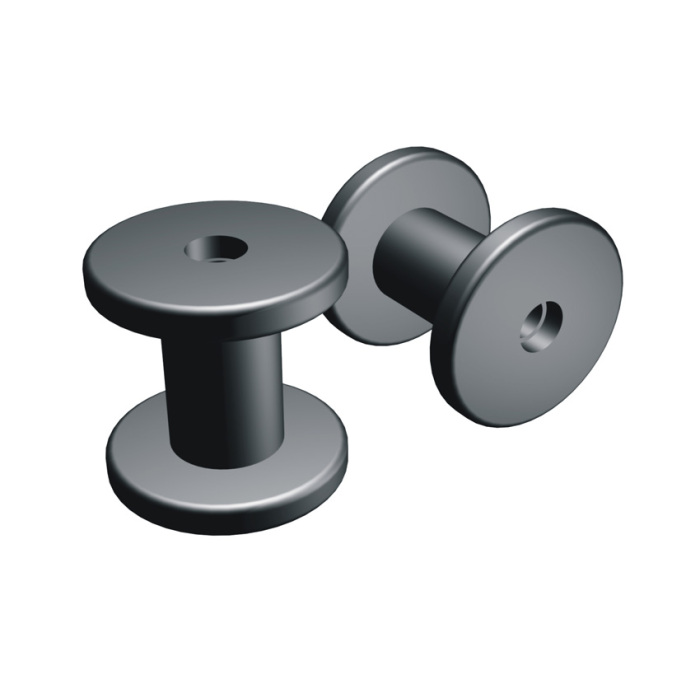

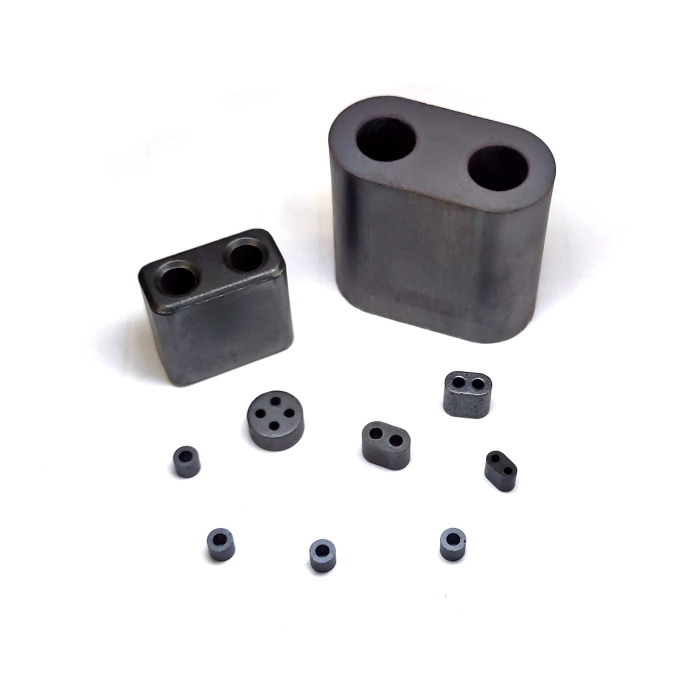

NiZn Ferrite Core

What is NiZn Ferrite Core? Understanding High-Frequency Magnetic Solutions

NiZn ferrite core is a specialized magnetic material engineered for high-frequency applications, offering superior performance compared to traditional MnZn ferrites in the range of 1 MHz to 300 MHz. Known for its fine-grained microstructure, low permeability (μ), and exceptional resistivity up to 10⁸ Ω·m, this advanced ceramic compound minimizes eddy current losses while maintaining efficient energy transfer across broadband frequencies. Its unique composition—primarily nickel and zinc oxides—enables excellent thermal stability, making it ideal for demanding environments such as switching power supplies, RF filters, and compact inductors.

Key Features

• High-Frequency Efficiency – Optimized for EMI suppression and RF signal integrity with minimal dielectric loss at GHz-levels.
• Thermal Resilience – Maintains consistent magnetic properties even under elevated temperatures, ensuring long-term reliability in power electronics.
• Miniaturization Friendly – Enables smaller, lightweight magnetic components critical for modern consumer devices like smartphones, IoT sensors, and portable chargers.

Commonly found in surface-mount EMI filters, baluns, antennas, and RF choke coils, NiZn ferrite cores are now standard in industries seeking miniaturized yet powerful magnetic solutions. Engineers leverage their ability to suppress noise in digital circuits, improve signal transmission in high-speed data lines, and reduce interference in sensitive instrumentation. Whether deployed in industrial automation, medical imaging equipment, or next-gen telecommunications infrastructure, these cores provide unmatched versatility and performance in challenging electromagnetic environments.

Customers consistently report improved system stability, reduced component size, and better heat dissipation when using NiZn-based Magnetic Cores in place of conventional alternatives. These benefits have made it a preferred choice among designers working on anything from wearable tech to renewable energy inverters.
