Model No.: HCB
Brand: FERRTX
| Selling Units: | Piece/Pieces |
|---|---|
| Download: |
|
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 2~8weeks
Certificate: RoHS/ISO/UL/CE/IATF16949/CNAS
Port: Xi'an,Shanghai
Payment Type: L/C,T/T

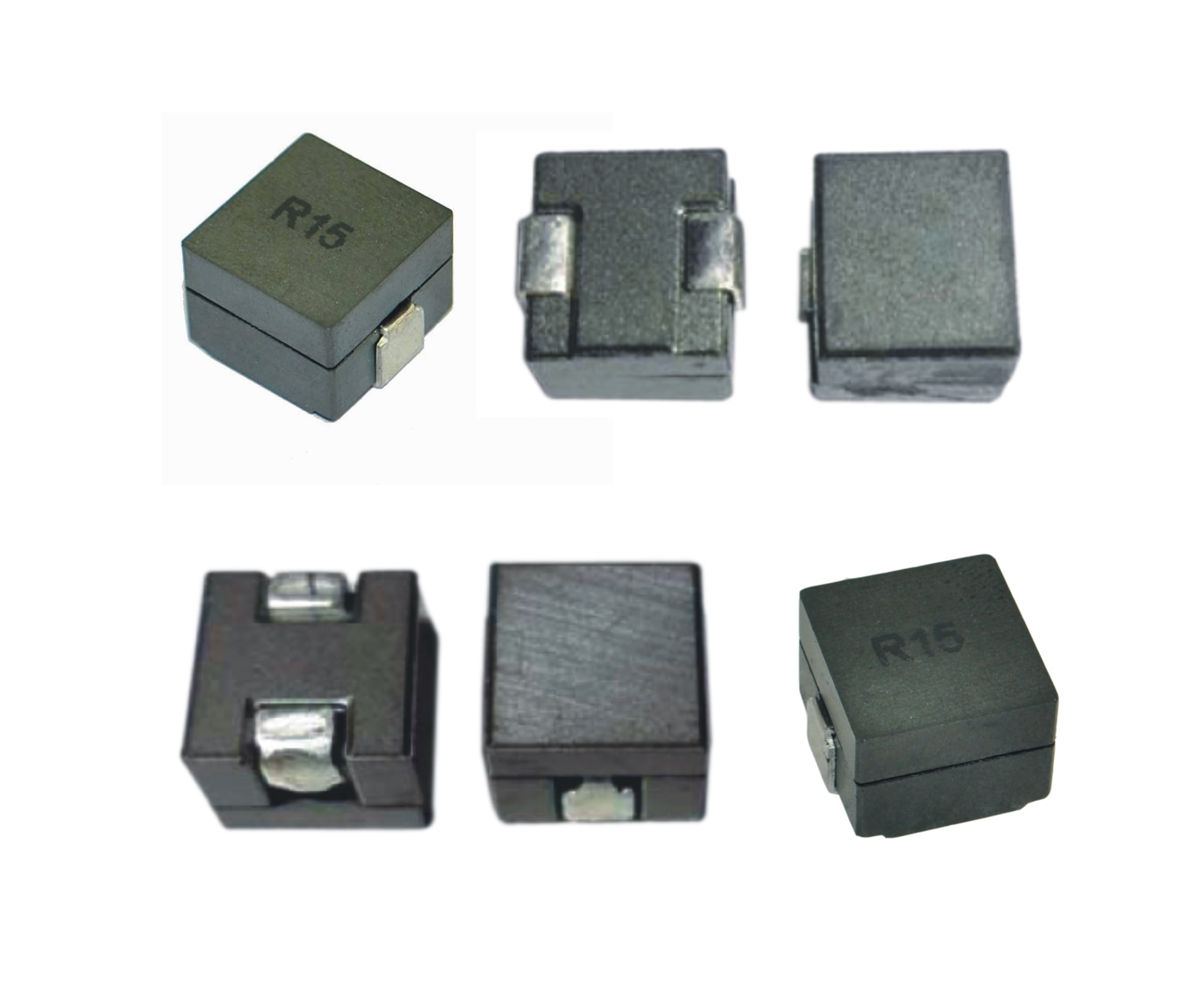

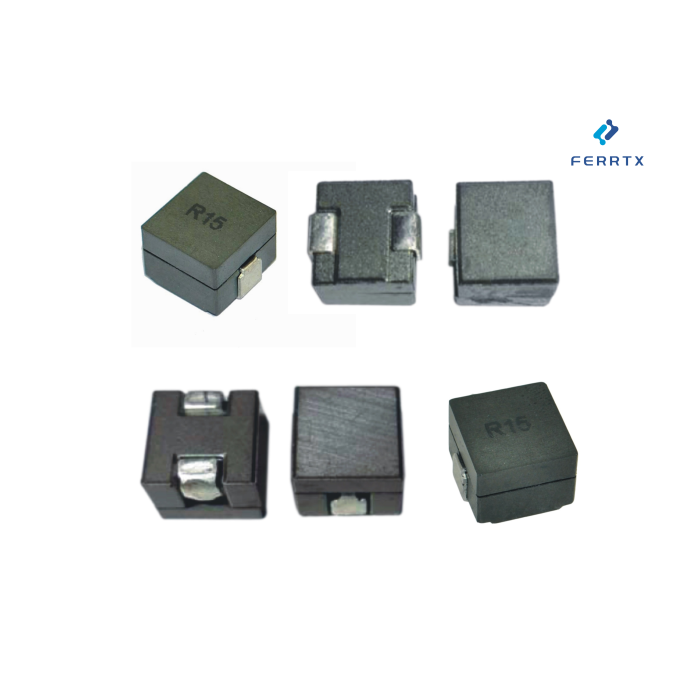

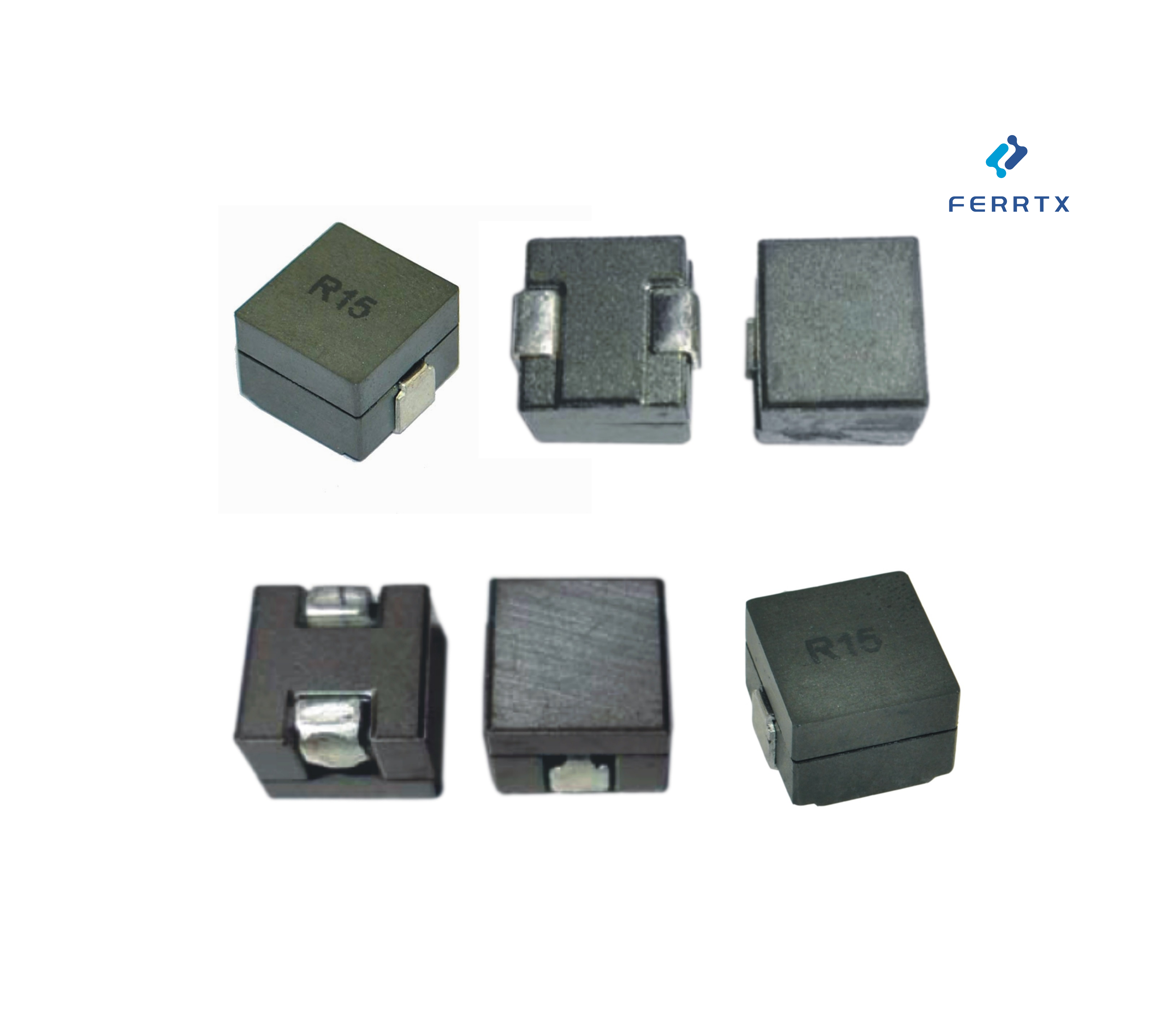

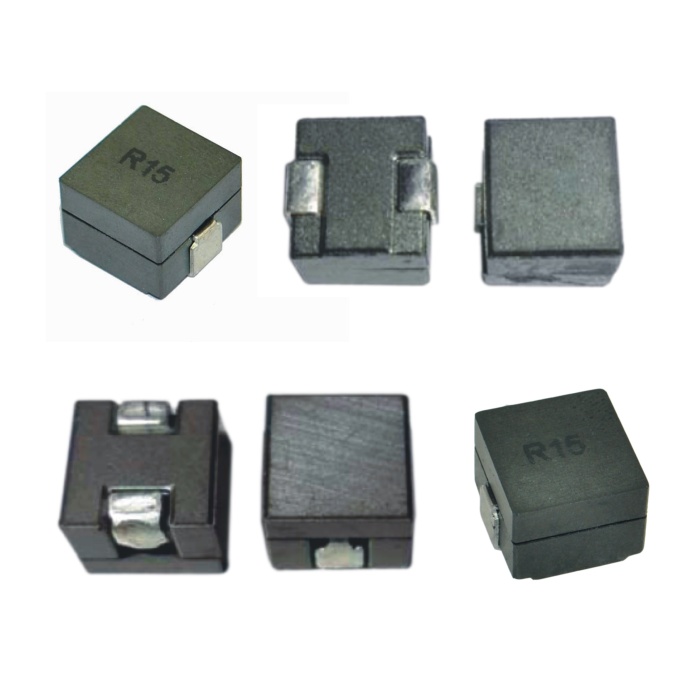

Our HCB series high voltage coupled inductor is specially developed for modern high-voltage power electronics that require compact size, stable coupling performance, and excellent insulation reliability.
Compared with conventional inductors, this high voltage SMD Inductor integrates a coupled winding structure that enhances energy transfer efficiency while maintaining low leakage inductance and controlled EMI behavior.
Designed for surface-mount assembly, the HCB series supports automated production and space-saving PCB layouts, making it an ideal solution for high-density Power Converter applications.
High Voltage Capability
Optimized insulation structure and winding spacing support stable operation in high-voltage environments.
Coupled Inductor Design
Precisely matched windings improve magnetic coupling, reducing losses and improving system efficiency.
SMD Package for Automated Assembly
Compatible with reflow soldering, enabling easy integration into modern SMD Inductor designs.
Low Leakage & Stable Performance
Controlled leakage inductance helps minimize voltage spikes in switching circuits.
Compact & Lightweight Structure
Ideal for applications where board space and weight are critical.
Traditional inductors often struggle in high-voltage circuits due to insulation limits and inconsistent coupling behavior.
The HCB innovative High Voltage Inductor series is engineered to address these challenges by combining:
Reinforced dielectric materials
Optimized Ferrite Core geometry
Precision winding technology
This makes the HCB series especially suitable for high-frequency and high-voltage conversion topologies.
HCB series high voltage coupled inductors are widely used in:
Isolated and non-isolated power converter designs
High-voltage DC-DC converters
Industrial power supplies
Automotive and energy storage systems
Communication and control power modules
| Product Series | Inductance(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) |
| HCB0404 0505 | 22-100 | 19-30 | 4.0-5.0 | 4.0-5.0 | 3.0-4.8 |
| HCB0703 | 80-150 | 13-27 | 7.35 | 6.6 | 3.1 |
| HCB0705 | 72-226 | 16-43 | 7.0 | 7.0 | 4.95 |
| HCB0805 | 32-200 | 16-65 | 7.62 | 7.62 | 4.96 |
| HCB0906 | 100-300 | 27.5-51 | 9.6 | 6.4 | 8.0 |
| HCB1005 | 80-220 | 26-53 | 10.2 | 7.0 | 4.95 |
| HCB1007 | 115-470 | 19-61 | 10.5 | 8.0 | 7.0 |
| HCB1008 | 120-220 | 47-68 | 10.2 | 8.0 | 8.0 |
| HCB1107 | 120-510 | 14.5-55 | 11.2 | 7.2 | 7.2-7.5 |
| HCB1208 | 150-250 | 44-50 | 11.8 | 8.1 | 8.0 |
| HCB1211 | 230-540 | 26-40 | 11.7 | 11.5 | 9.2 |
| HCB1313 | 220-500 | 28-40 | 13.46-13.5 | 13.0-13.2 | 5.3-8.0 |
| HCB1413 | 300-680 | 24-45 | 14.5 | 13.3 | 9.5 |
| HCB040404R32 | 55-100 | 17-19 | 4.0 | 4.0 | 4.0 |
| HCB070705R32 | 100-180 | 28-50 | 7.0 | 6.8 | 4.0 |
| HCB100612R125 | 70-330 | 40-77 | 12.0 | 10.0 | 6.0 |
| HCB100709R18 | 100-400 | 30-70 | 10.0 | 7.0 | 9.0 |
| HCB100808AR18 | 120-400 | 26-70 | 10.0 | 8.0 | 8.0 |
| HCB100808R18 | 100-320 | 45-74 | 10.6 | 8.0 | 8.0-8.2 |
| HCB100875R29 | 100-370 | 30-56 | 10.2 | 8.0 | 7.5 |
| HCB121109R30 | 150-500 | 32-55 | 11.5 | 11.0 | 9.0 |
As a professional manufacturer of High Voltage Inductor solutions, we provide:
Electrical parameter customization
Core material and insulation optimization
Pinout and package design support
Samples for evaluation and prototyping
Our engineering team works closely with customers to ensure optimal performance in real-world operating conditions.
If your application requires additional magnetic solutions, you may also be interested in:
High Voltage Inductor for extreme insulation requirements
SMD Inductor for compact surface-mount designs
Magnetic components for Power Converter systems
Looking for a high voltage SMD inductor tailored to your application?
Contact us today to discuss your specifications, drawings, or sample requirements.
