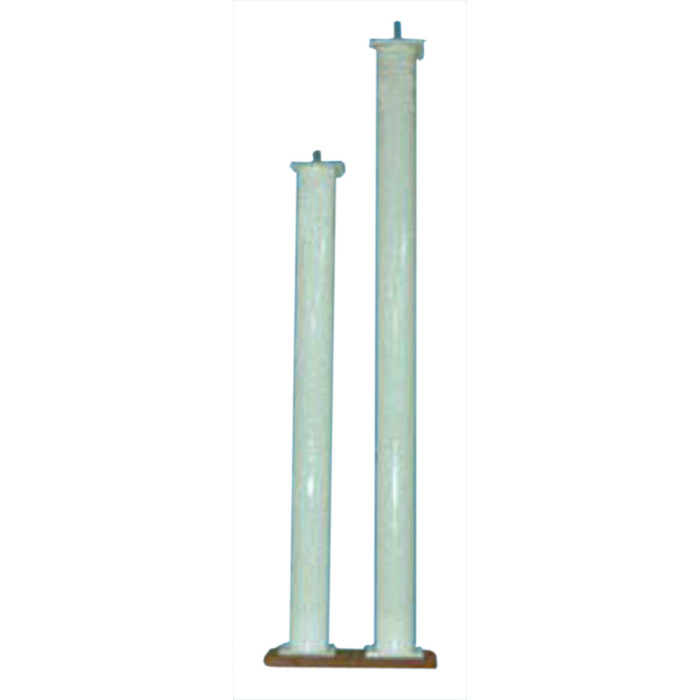

MMDS Transmitting Antenna

Our MMDS Transmitting Antennas deliver robust microwave signal propagation with industry-leading gain and radiation efficiency. Designed for broadband fixed wireless access (BFWA) systems, these Microwave Antennas operate across 2.5–2.7 GHz with exceptional VSWR stability (<1.5). Their lightweight aluminum construction and integrated lightning protection ensure reliable performance in outdoor deployments, making them ideal RF Microwave Components for telecom infrastructure integrating EMC Filter - EMI/RFI subsystems.

Key Features & Benefits

1. High Gain & Beam Control: Configurable gain from 10–16 dB with selectable azimuth patterns (360° omnidirectional or 180° sectoral), enabling precise microwave antenna alignment for point-to-multipoint networks.

2. Low-Loss Transmission: VSWR ≤1.5 minimizes reflected power, protecting connected RF Inductor stages and amplifier modules from damage.

3. Weather-Resistant Design: IP67-rated sealing and corrosion-resistant housing withstand harsh environments, complementing outdoor Transformers and Sensor node installations.

4. High-Power Handling: Supports 300W CW operation – ideal for high-density MMDS Transmitting Antennas arrays requiring coordination with Power Inductor systems.

5. Polarization Flexibility: Horizontal or vertical polarization options (HOA/VOA/HCA/VCA models) for interference mitigation near Linear Polarization Horn Antenna systems.

Technical Specifications

• Frequency Range: 2.5 – 2.7 GHz

• VSWR: ≤1.5 (Max)

• Gain Options: 10 dB, 12 dB, 13 dB, 15 dB, 16 dB

• Beam Width:

  • Omnidirectional: 360° Azimuth / 4°–6° Elevation

  • Sectoral: 180° Azimuth / 4°–6° Elevation

• Polarization: Horizontal or Vertical

• Power Handling: 300W CW

• Connector: N-Female

• Operating Temperature: -40°C to +85°C

• Material: Aerospace-grade Aluminum

Applications

• Wireless Cable TV: MMDS/ITFS video distribution

• 5G Backhaul: Supplemental fixed wireless links

• Smart Grids: Sensor data aggregation hubs

• Public Safety Networks: Emergency communication towers

• Industrial IoT: rf microwave Components for remote monitoring

• Military Comms: Co-site interference reduction with EMC Filter - EMI/RFI
