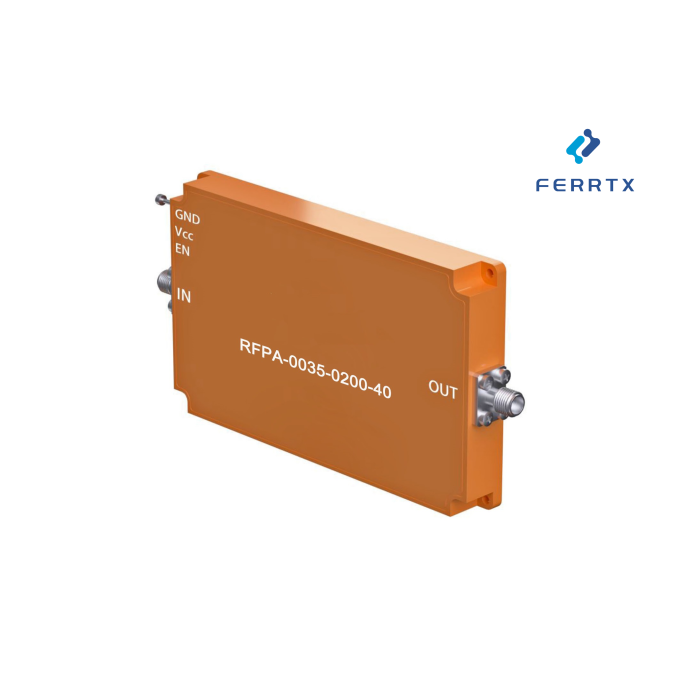

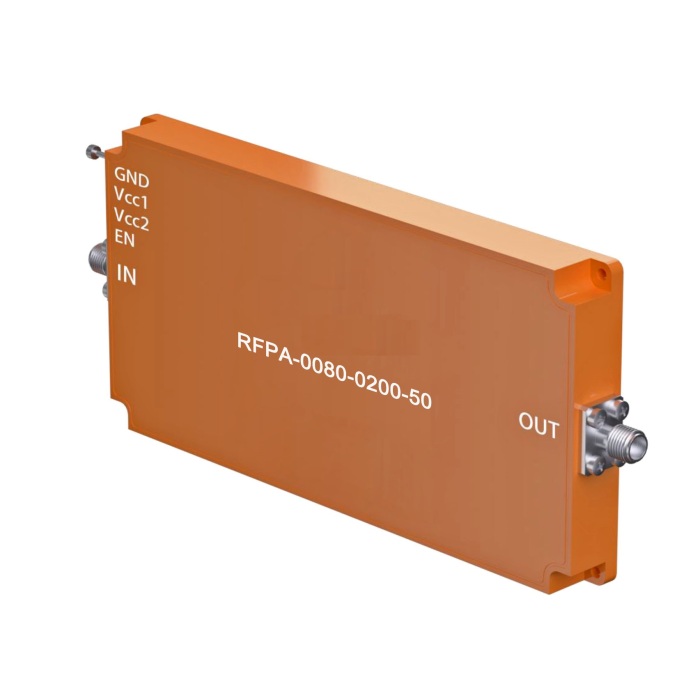

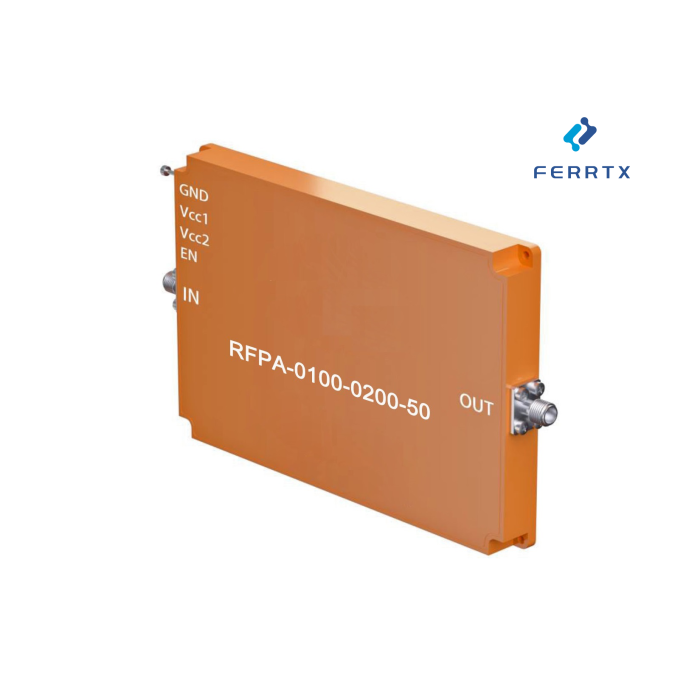

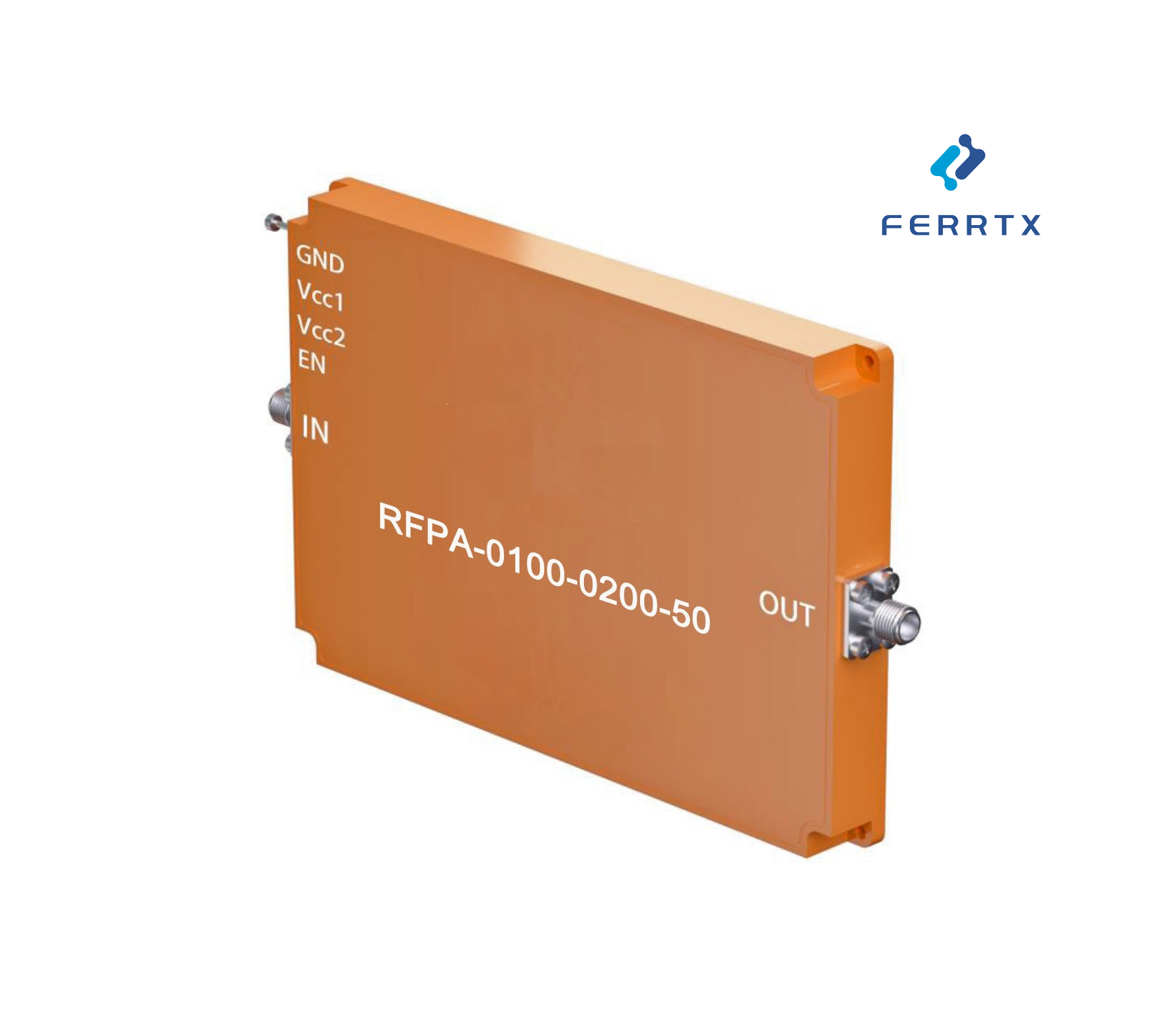

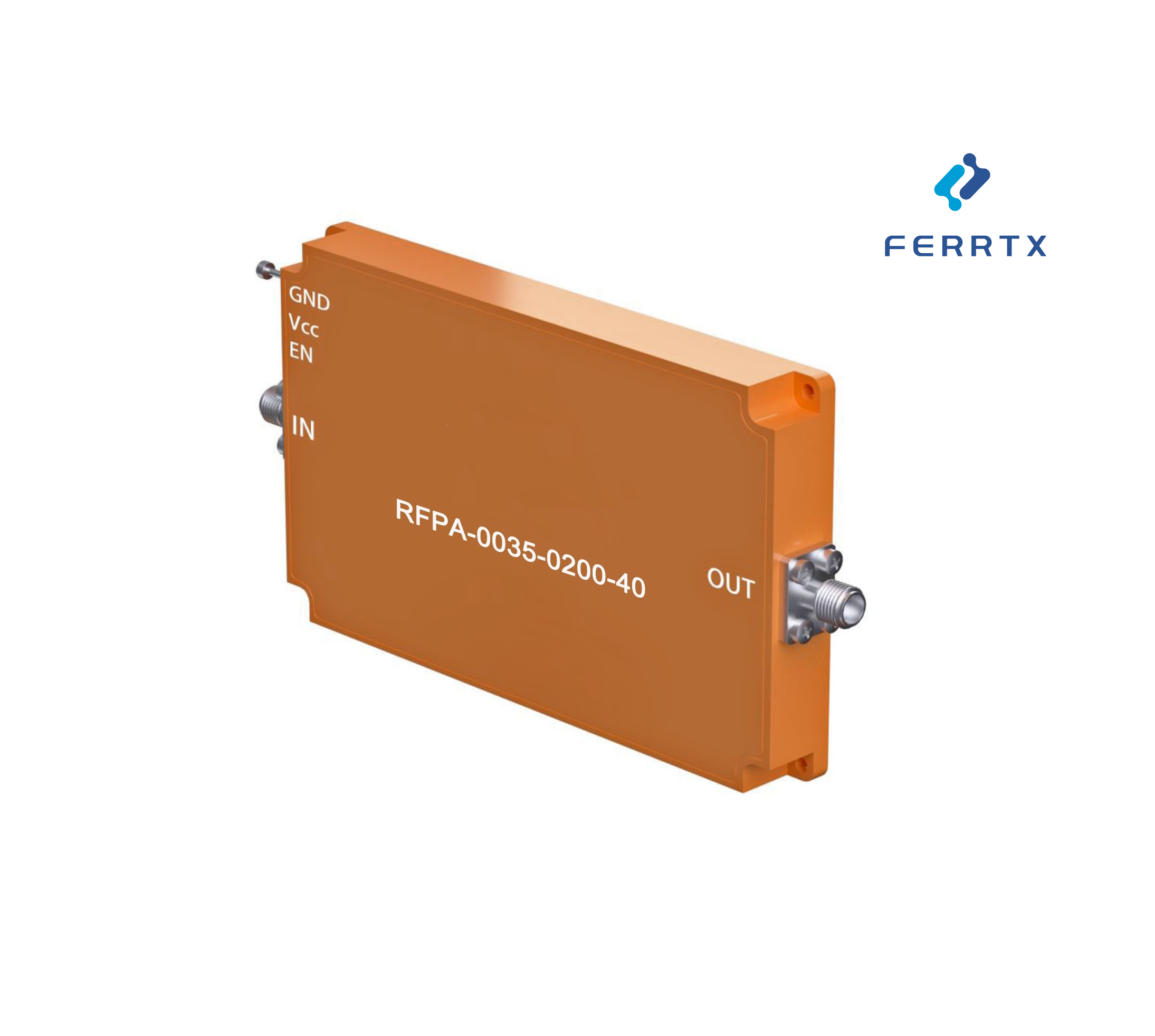

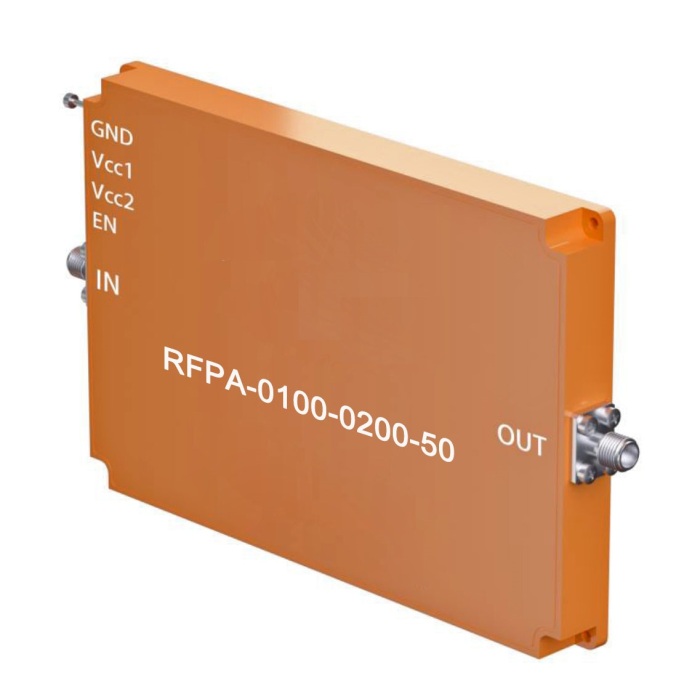

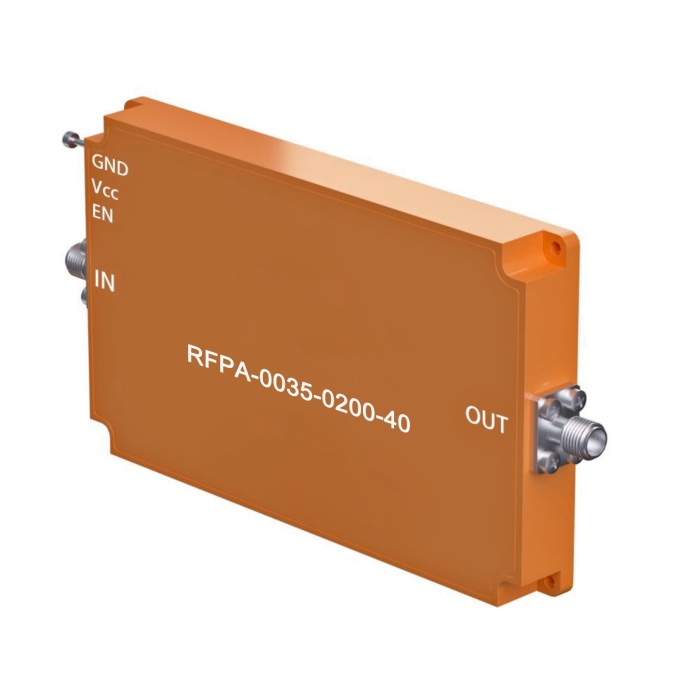

Broadband High Power Amplifier

FERRITES’ ‌HPA solutions‌ are engineered to redefine performance in ‌RF Components‌ and ‌Microwave Antennas‌ applications.

These connectorized modules deliver uncompromised signal integrity across RF, microwave, and millimeter-wave spectrums, making them ideal for ‌high power microwave antenna‌ systems requiring multioctave bandwidth and robust linearity.

Key Specifications‌

‌Broadband Frequency Coverage‌: Supports DC to 40 GHz, tailored for ‌RF Components‌ in telecom, radar, and aerospace systems.
‌High Power Output‌: Up to 120W for driving ‌Microwave Antennas‌ in mission-critical environments.
‌Optimized Efficiency‌: Minimized power consumption and enhanced thermal stability for ‌high power microwave antenna‌ deployments.

Applications‌

‌Telecommunication & Radar Systems‌: Power amplifiers for ‌high power microwave antenna‌ arrays in 5G base stations and commercial radar.
‌Aerospace & Navigation‌: Reliable amplification for ‌Microwave Antennas‌ in satellite communication and avionics.
‌Testing & Measurement‌: Precision signal generation for ‌RF Components‌ in lab-grade instruments.
Series in this family

Product Series	Freq Start (GHz)	Freq Stop (GHz)	Pout (dBm)	Gain (dB)	Power Supply (V)	Current (A)
C BAND	4-6.4	5-7.2	39-50	39-44	28	1-13
L BAND	1	2	50-51	40-42	28	12-13
S BAND	2	3	50	40	32	11
ULTRA-WIDEBAND	0.03-31	0.3-37	40-50	38-44	20-32	1-14
X & KU BAND	8-9.5	8.5-10.5	47-48	40	28	9-13

Ferrites is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Coaxial Power Splitter products.
