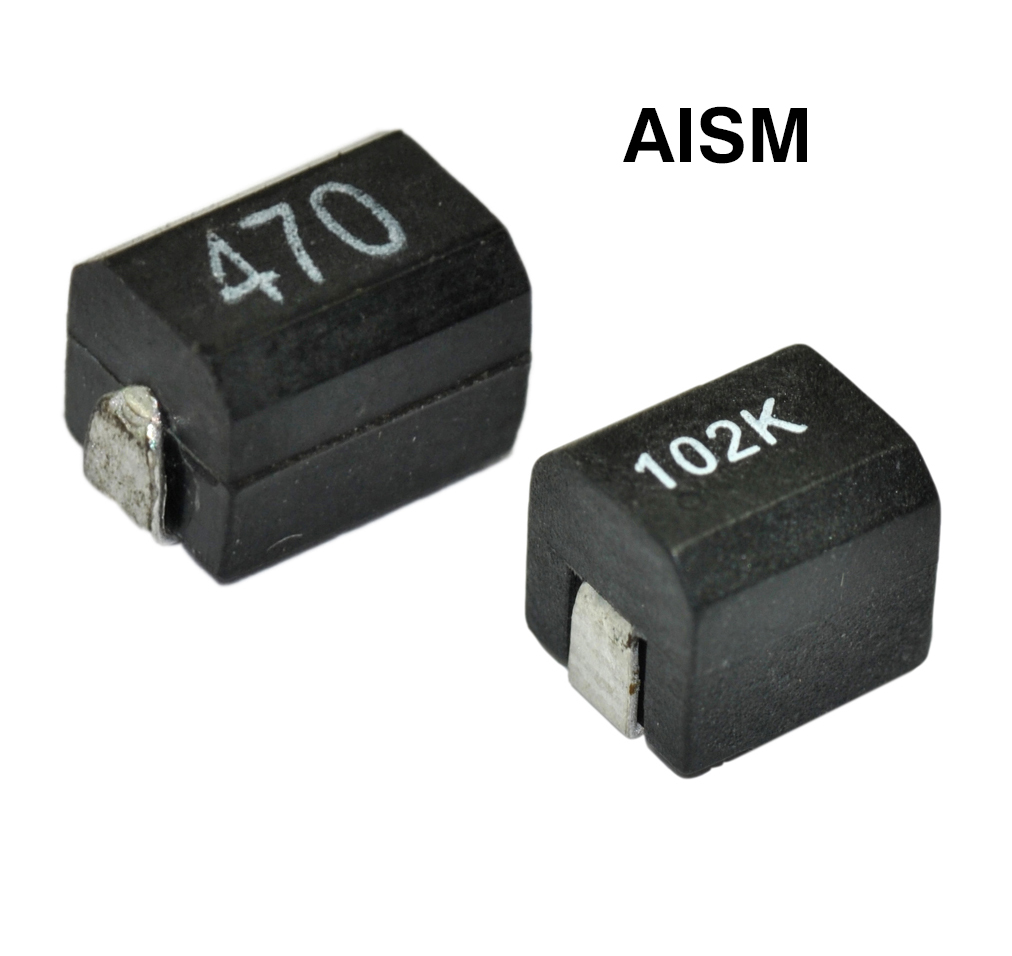

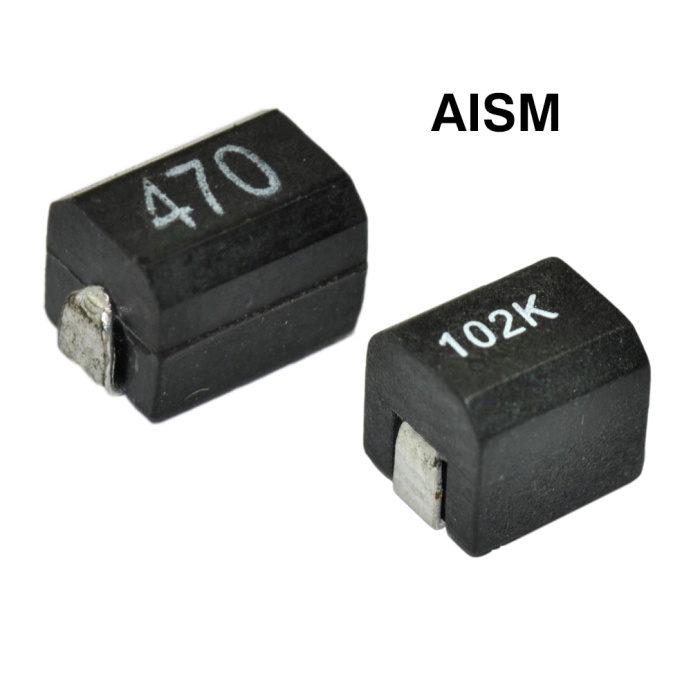

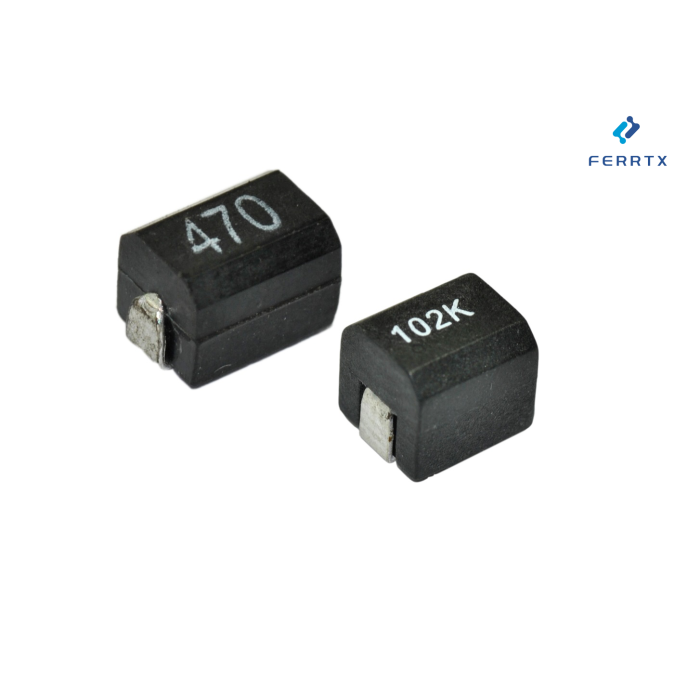

Molded Inductors AISM

High Current Surface Mount Wound Molded Chip Inductors‌

‌molded inductors AISM‌ deliver precision-engineered performance with ‌smd inductor dimensions‌ (1008/1210/1812/2220) and RoHS-compliant design.

Combining the rugged durability of ‌Fixed Inductor‌ applications with the compact efficiency of ‌SMD Inductor‌ technology, this series ensures exceptional thermal stability and mechanical strength for automotive, telecom, and industrial systems.

FEATURES

• ‌Low Profile‌: Optimized for ‌SMD Inductor‌ integration in high-density layouts.
• ‌High Reliability‌: Ideal for ‌Fixed Inductor‌ demands in harsh environments.
• ‌Molded Construction‌: Reinforces structural integrity across all ‌smd inductor dimensions‌.
• ‌Heat Resistant Resin‌: Protects ‌SMD Inductor‌ components under extreme thermal stress.
• ‌RoHS Compliant‌: Safe for automotive and telecom ‌Fixed Inductor‌ deployments.
• ‌Standard smd inductor dimensions‌: 1008, 1210, 1812, 2220.

APPLICATIONS‌

• ‌Automotive Systems‌: Robust ‌Fixed Inductor‌ stability for power management.
• ‌Network Systems‌: High-frequency ‌SMD Inductor‌ solutions with precise ‌smd inductor dimensions‌.
• ‌LCD/PDP TVs & Hard Drives‌: Compact ‌SMD Inductor‌ integration for space-sensitive designs.
• ‌Computer Peripherals‌: Combines ‌Fixed Inductor‌ durability with ‌smd inductor dimensions‌ flexibility.

TECHNICAL INFORMATION‌

• ‌Testing‌: Inductance (HP4285A), RDC (QuadTech 1880), Q (HP4342A), SRF (HP4291A) – validated for ‌SMD Inductor‌ batches.
• ‌IDC Max‌: Defined by 10% DC current reduction (critical for ‌Fixed Inductor‌ thermal limits).
• ‌Solder Methods‌: Wave, vapor phase, infrared – compatible with ‌smd inductor dimensions‌.
• ‌Resistance to Heat‌: 260℃ for 10s (ensures ‌Fixed Inductor‌ integrity).
• ‌Operating/Storage Temp‌: -40℃ to +105℃ (supports ‌SMD Inductor‌ longevity)

Series in this family

Ferrtx is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in ourMolded Inductors AISM products.
