Product Description

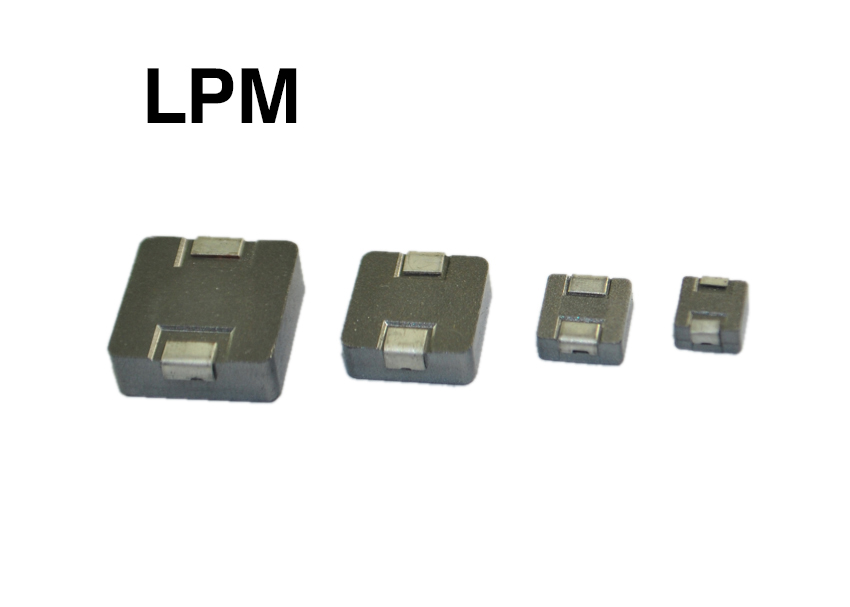

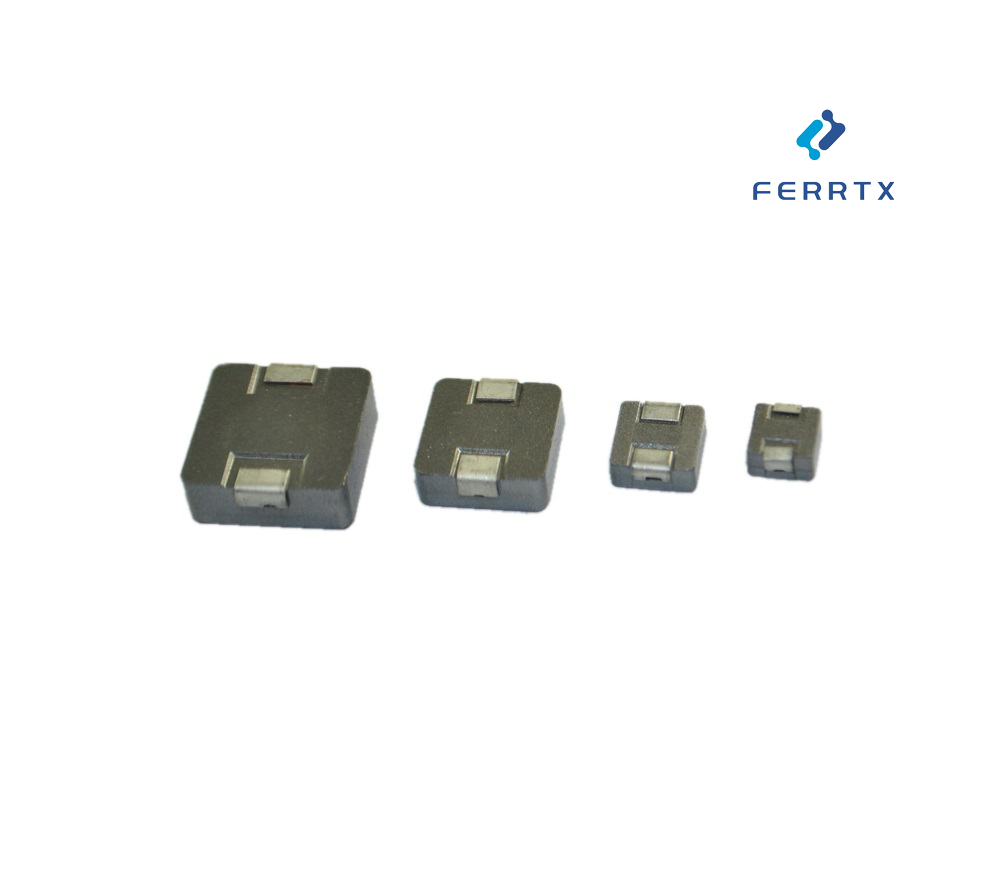

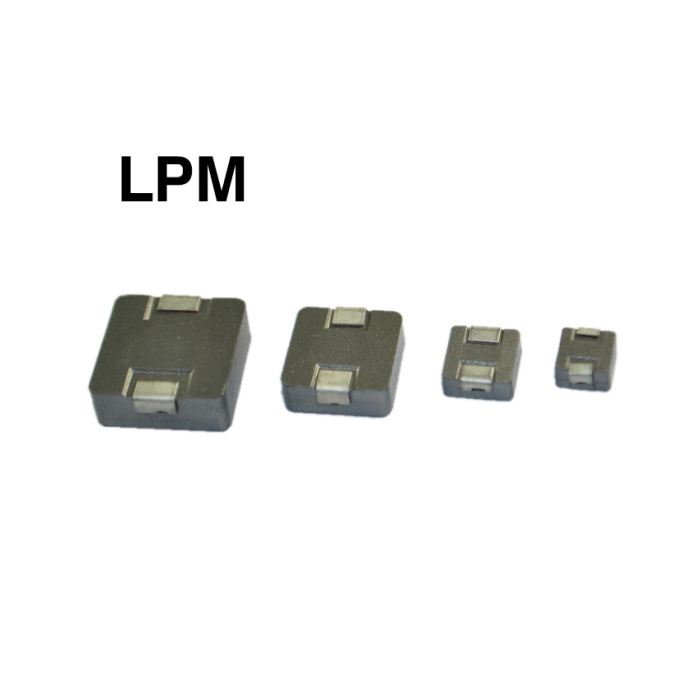

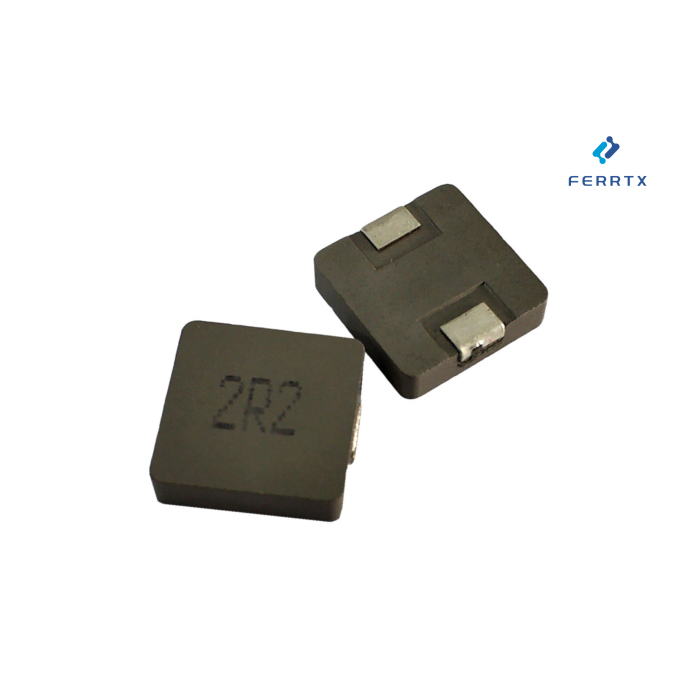

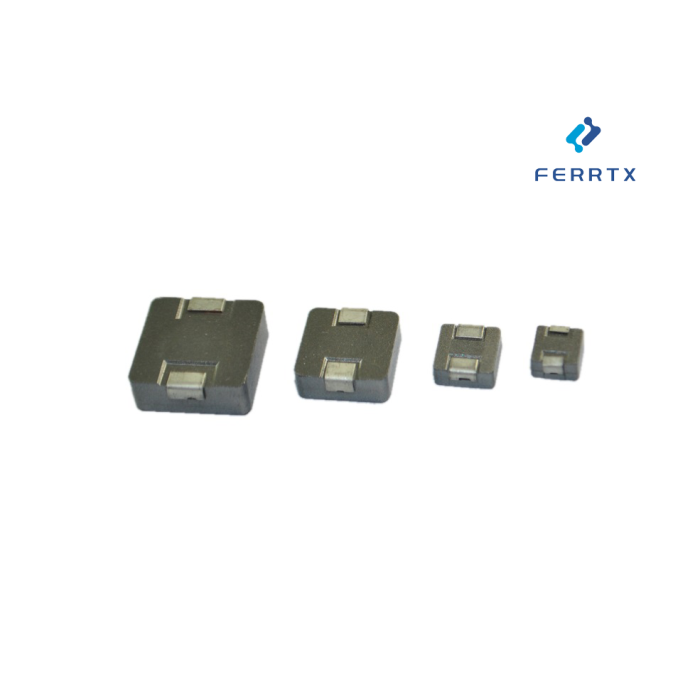

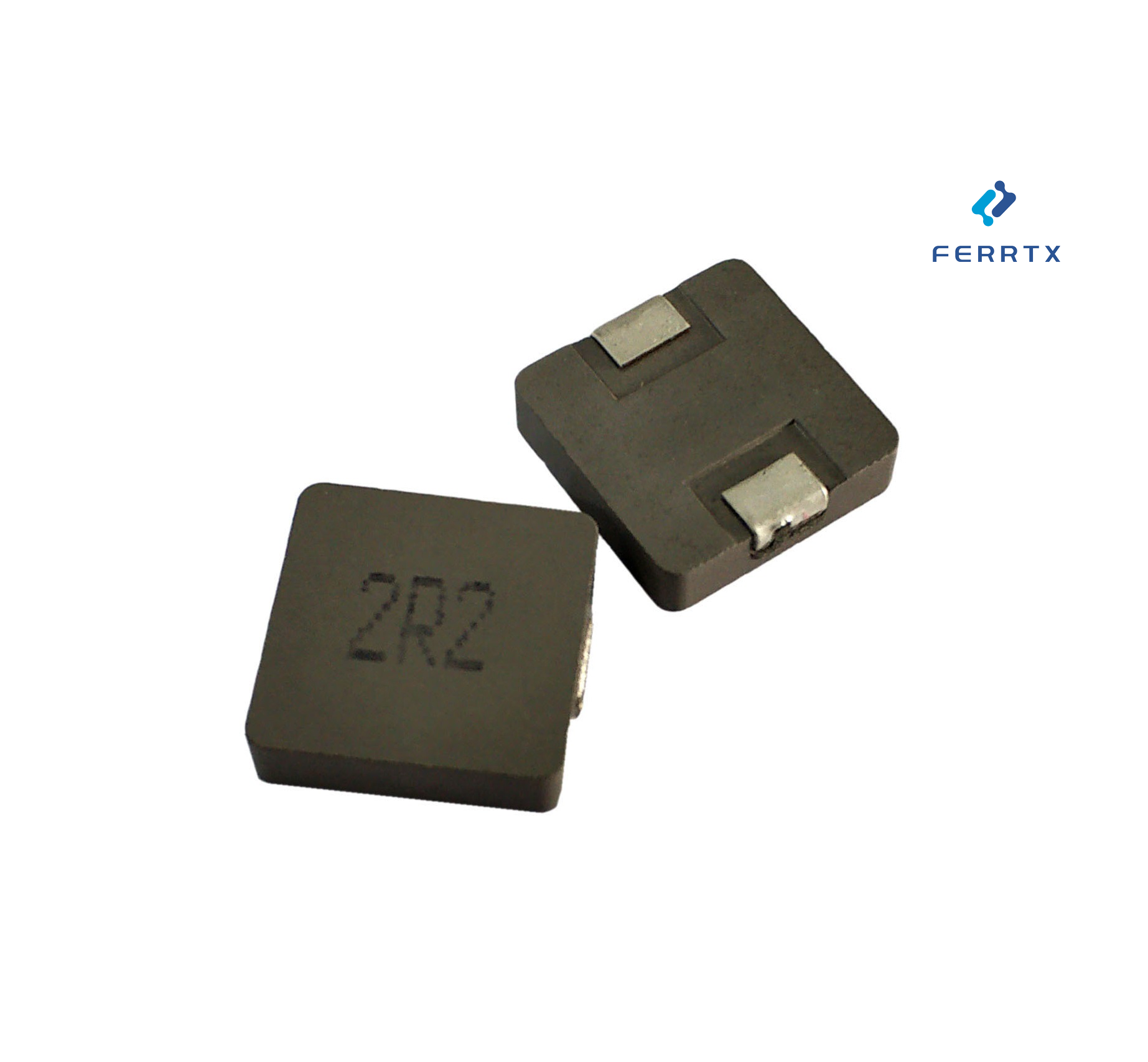

SMD shielded power inductor ,SMD High Reliability Coils Chokes

FEATURES: LPM

Magnetically shield Power Inductor Shielded SMD power chip inductor

For high current up to 50A and very low DCR Reflow and hand soldering

are available Good solder fillets and character prevents damage during soldering reflow

APPLICATIONS:

Notebook computer

Battery power equipment

DC/DC converter

Digital camera and scannerCD-ROM/DVD and PDA

·Operating Temperature Range -55℃ to +125℃

Series in this family

Product Series	Inductance(µH)	IDC(A)	Length (mm)	Width (mm)	Height (mm)
LPM Series	0.047-100	2.75-45	4.06-13.8	4.45-12.8	2.0-8.0
LPM13 Series	0.1-47	2.5-60	14.2	13	4.0-6.2
LPM15XX Series	4.7-33	13-31	17.5	16.5	9.7-12.7
LPM0110	0.22-10	0.32-1.7	1.2	1.0	0.8
LPM0420C	0.1-10	1.8-18	4.5	4.5	2.0
LPM0515C	0.15-10	2.3-16	5.5	5.5	1.5
LPM0518C	0.22-4.7	3.5-16	5.5	5.5	1.8
LPM0520C	0.1-10	2.0-20	5.5	5.5	2.0
LPM0530C	0.1-33	2.0-23	5.5	5.5	3.0
LPM0620C	0.1-10	3.0-21	7.4	7.4	2.0
LPM0624C	0.1-15	3.5-30	7.4	7.4	2.4
LPM0630C	1.0-22	4.0-40	7.4	7.4	4.0
LPM0640C	0.15-12	4.0-40	7.4	7.4	4.0
LPM0650C	0.47-47	2.5-22	7.6	7.6	5.0
LPM0830C	0.22-33	3.0-30	9.2	9.2	3.0
LPM0840C	0.22-47	3.0-32	9.2	9.2	4.0
LPM0850C	0.15-22	5.0-45	9.2	9.2	5.0
LPM1020C	0.33-2.2	8-29	10.5	10.5	2.0
LPM1030C	0.36-6.8	7.0-25	10.5	10.5	3.0
LPM1040C	0.19-47	3.6-40	10.5	10.5	4.0
LPM1050C	0.36-22	6.0-33	10.5	10.5	5.0
LPM1050D	3.3-22	2.5-7.0	10.2	10.2	5.0
LPM1060C	1.0-4.7	14-26.5	11.3	10.0	6.0
LPM1080D	8.2-22	4.0-6.0	11.2	11.2	8.0
LPM1090D	1.0-47	2.3-17	10.2	10.2	9.0
LPM1213D	8.2-22	5.5-10	13.8	13.8	13
LPM1235C	0.1-10.0	7.0-48	13.2	13.2	3.5
LPM1250C	0.1-22	7.0-50	13.2	13.2	5.0
LPM1260C	0.33-10.0	11-45	13.2	13.2	6.0
LPM1265C	0.15-68	5.0-60	13.2	13.2	6.5
LPM1280C	1.0-2.2	26-35	13.2	13.2	8.0
LPM1770C	1.0-350	3.0-50	18	18	7.0
LPM2010C	0.24-2.2	1.6-6.3	2.0	1.6	1.0
LPM2213C	0.47-400	4.0-80	22.5	22.5	13
LPM2510C	1.0-4.7	1.5-3.5	2.5	2.0	1.0
LPM2512C	0.22-4.7	1.8-8.0	2.5	2.0	1.2
LPM3210C	1.0	4.0	3.2	2.5	1.0
LPM3212C	4.7	2.0	3.2	2.5	1.2
LPM3215C	0.22	11	3.2	2.5	1.5
LPM3220C	1.0-4.7	2.8-5.4	3.2	2.5	2.0
LPM4010C	1.0-10.0	1.5-3.5	4.0	4.0	1.0
LPM4012C	0.25-10.0	1.8-8.0	4.0	4.0	1.2
LPM4015C	0.47-2.2	6.0-9.2	4.0	4.0	1.5
LPM4020C	0.33-22	1.7-13	4.0	4.0	2.0
LPM4030C	0.15-10.0	3.1-24	4.0	4.0	3.0
LPM4040C	0.15-10.0	2.8-21	4.0	4.0	4.0
LPM5020C	0.15-6.8	4.5-27	5.4	5.2	2.0
LPM5030C	0.15-10.0	4.5-30	5.4	5.2	3.0
LPM6030C	0.15-10.0	7.0-35	6.6	6.4	3.0
LPM6060C	0.22-15	7.4-29	6.6	6.4	6.0
LPM10100C	1.0-15	13.8-43.5	11.3	8.0	10.0
LPM1707	0.22-22.0	11-80	17.15	17.15	7.0

Ferrtx is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our molded inductors LPM products.
