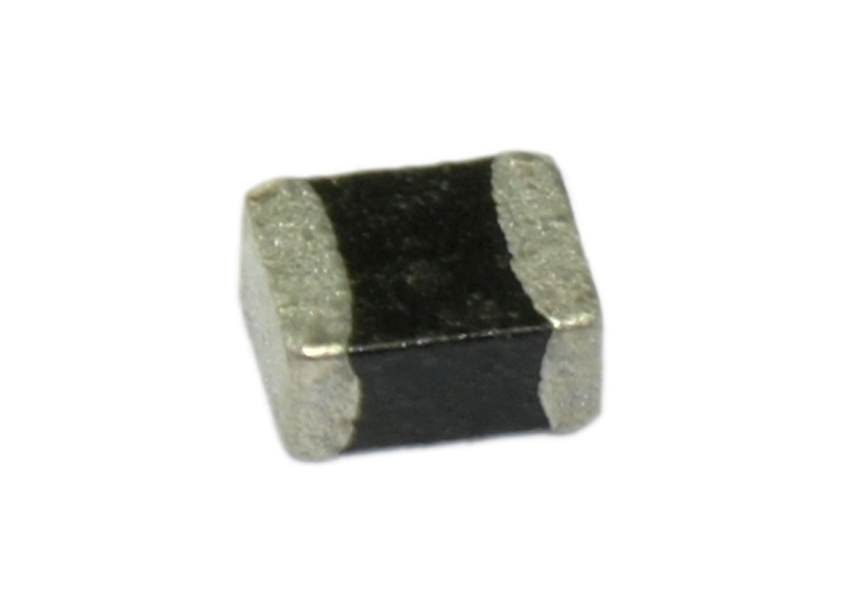

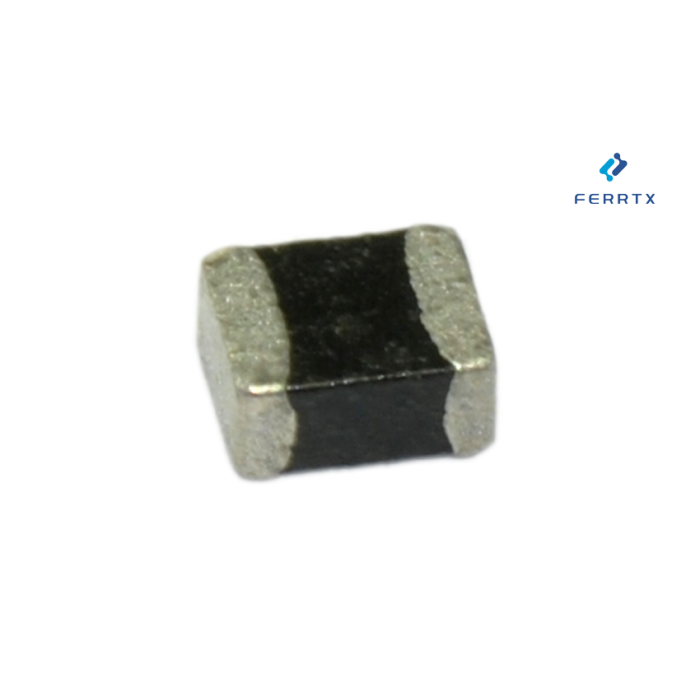

Multilayer Chip Beads SBL-W

Multilayer Chip Beads and inductors are essential passive components used to suppress high-frequency noise and stabilize signal integrity in compact electronic designs. With the rapid shift toward smaller, faster, and more integrated devices, engineers rely on high-performance multilayer chip beads to ensure EMC compliance and dependable operation.

Our multilayer series combines ferrite materials with optimized internal electrode structures, offering stable impedance characteristics across wide frequency ranges. Compared with conventional single-layer beads, these multi-layer chip Ferrite Beads deliver stronger attenuation in MHz–GHz applications while keeping DC resistance low.

Why Choose Our Multilayer Chip Beads & Inductors?

1. High-Efficiency Noise Filtering

The multilayer construction provides superior suppression of common high-frequency interference, making these components ideal for signal lines, power rails, and communication modules.

2. Small Footprint, High Performance

Designed for SMD Inductor assembly processes, the components support automated pick-and-place and fit easily into dense PCB layouts without affecting overall system size.

3. Low DCR & Stable Impedance

By adopting advanced ferrite formulations, our components maintain consistent impedance characteristics under varying load conditions, ensuring reliable filtering effects even in portable electronics.

4. Multiple Size & Specification Options

The series includes a wide range of values to match diverse design requirements—from ultra-compact mobile devices to industrial controllers.
For applications requiring additional filtering at system level, our solutions can be paired with Power Line Filters for enhanced EMC performance.

5. Customizable for Specialized Designs

If your project requires unique impedance curves, temperature characteristics, or mechanical dimensions, we offer custom Multilayer Chip Inductors and beads tailored to your technical needs.

Typical Applications

• High-speed data lines (USB, HDMI, MIPI, LVDS)

• Consumer electronics

• Communication modules & RF circuits

• DC power supply lines

• Industrial control boards

• Medical handheld equipment

Our multilayer chip beads integrate seamlessly with toroidal choke and other magnetic components in systems requiring multi-stage EMI suppression.

Performance Features at a Glance

• Excellent high-frequency noise attenuation

• Low DC resistance for improved power efficiency

• Wide variety of impedance options

• Robust structure for reflow soldering

• Tight tolerance options available

• High reliability for automotive and industrial use

Table (Ready to Insert Once You Provide It)

You mentioned wanting to keep the original numeric table but reorder the columns.
Please paste the table content here, and我 will reorder it according to your new-page format and integrate it smoothly into the content.

Why Our Multilayer Chip Beads Stand Out

We combine advanced ferrite materials, precision multilayer stacking, and strict quality control to deliver consistent performance across full production batches. Whether you are optimizing a sensitive RF front-end or designing compact consumer electronics, our multilayer chip solutions offer the EMI suppression and stability your system needs.
