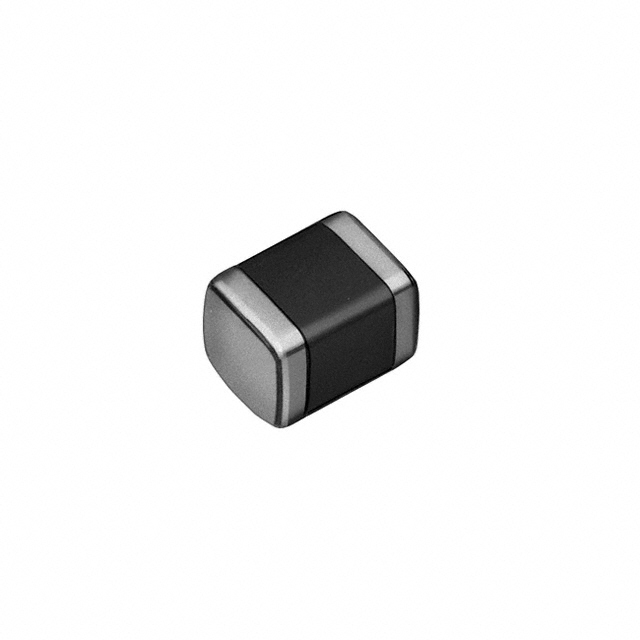

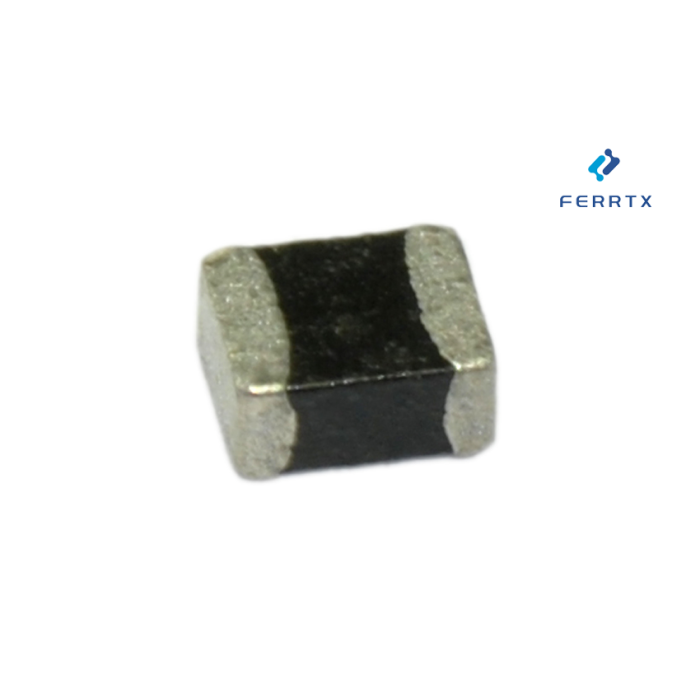

Multilayer Chip Beads SBL-Y

Multilayer Chip Sharp Beads

‌Structure of Multilayer Chip Beads‌
The electrodes in each layer of ‌Multilayer Ferrite Chip Beads‌ are metallic (e.g., nickel, silver), while ceramic materials act as dielectrics – a configuration shared with ‌Multilayer Chip Beads‌ to support both energy storage and ‌EMI Filter‌ noise suppression.‌

‌Multilayer Chip Bead Features

High Impedance Efficiency ‌
The multilayer design enables ‌Multilayer Ferrite Chip Beads‌ to achieve superior high-frequency attenuation, a critical feature for ‌Emi Filter‌ systems requiring precise noise control in compact volumes.

‌Low ESR & ESL‌
With minimized Equivalent Series Resistance (ESR) and Inductance (ESL), ‌Multilayer Chip Beads‌ (including ‌Multilayer Ferrite Chip Beads‌) optimize signal integrity, directly enhancing ‌Emi Filter‌ performance in high-speed circuits.

‌Temperature Stability‌
Selectable dielectric materials (e.g., X7R, X5R) ensure stable operation of ‌Multilayer Ferrite Chip Beads‌ across thermal ranges, maintaining ‌Emi Filter‌ effectiveness in extreme environments.

FEATURES:

-Multilayer monolithic construction yields high reliability

-Has sharp impedance characteristics at desirable frequency

-Substantial EMI suppression over a wide frequency range

-Does not affect the signal frequency

APPLICATIONS:

-Computers and peripherals

-Digital cameras, TV set

-Communication equipment

Ferrite is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Multilayer Chip Beads SBL-Y products.
