How Do 15A Toroidal Choke Coils Suppress EMI?

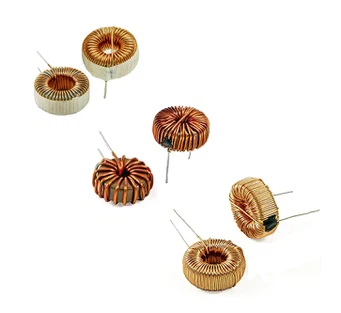

Electromagnetic interference (EMI) poses a critical challenge in modern electronics, disrupting signal integrity, causing device malfunctions, and leading to non-compliance with global EMC regulations. Among the most effective solutions for EMI suppression—especially in high-current applications like power supplies, inverters, and industrial systems—is the toroidal choke coil. These compact, ring-shaped components excel at filtering unwanted high-frequency noise without compromising circuit performance. But how exactly does a high-capacity toroidal choke coil, such as a 15A model, achieve this?

Core Mechanism: Targeting Common-Mode Noise

The toroidal choke coil (also called a toroidal common-mode choke) primarily suppresses common-mode noise—unwanted signals that flow in the same direction across power or signal lines relative to the ground. This noise typically originates from high-frequency switching events in components like MOSFETs or diodes.

Here’s how it works:

• Magnetic Field Interference: When common-mode current flows through the coil’s symmetrically wound wires, magnetic fields in the toroidal core add constructively, creating high impedance (resistance) against noise frequencies.

• Signal Preservation: In contrast, differential signals (intentional currents) generate opposing magnetic fields that cancel each other out, allowing normal currents to pass with minimal loss.

• Frequency Targeting: The choke’s impedance peaks at EMI-prone frequencies (e.g., 150 kHz–30 MHz), attenuating noise before it propagates through cables or radiates externally.

Design Insight: Ferrite cores—selected for high saturation tolerance and frequency stability—enable 15A toroidal choke coils to handle significant power without magnetic saturation, a critical factor in high-current applications like server PSUs or EV chargers.

Why 15A Models Excel in Demanding Applications

High-current toroidal choke coils face unique thermal and magnetic challenges. Here’s how robust designs overcome them:

1. Low DC Resistance (DCR): Minimizes heat buildup under heavy loads. For example, advanced coils achieve DCR as low as 104 mΩ, reducing power losses.

2. Full Shielding: Encapsulated cores prevent magnetic flux leakage, eliminating cross-interference in dense PCB layouts.

3. High Saturation Materials: Ferrite alloys optimized for 15A+ loads maintain inductance stability even near peak currents .

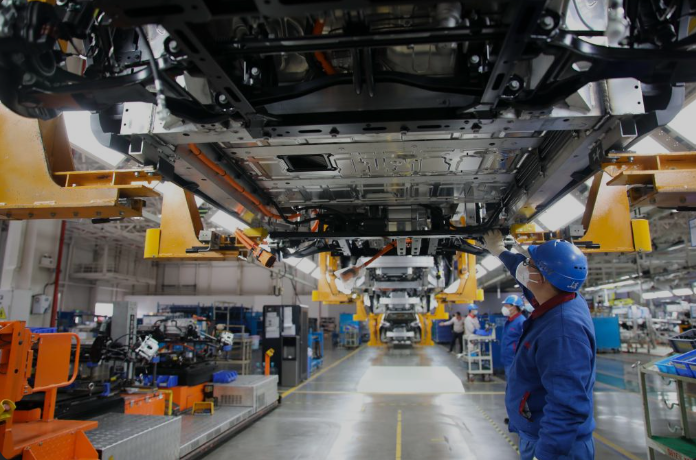

These features ensure the coil suppresses EMI without derating or overheating—critical for automotive and industrial systems where reliability is non-negotiable.

Practical Applications & Integration Tips

Toroidal choke coils shine in circuits where EMI compromises safety or performance:

• Power Supplies: Inserted at input stages to block grid-bound noise from SMPS switching.

• Motor Drives: Mitigate RF noise from PWM-controlled inverters.

• Data Lines: Filter common-mode noise in USB/HDMI cables to prevent signal corruption.

Designers Should:

• Place the choke close to noise sources (e.g., near switching MOSFETs).

• Pair with Y-capacitors to shunt absorbed noise to ground.

• Avoid routing input/output traces parallelly to prevent capacitive coupling.

Conclusion

The 15A toroidal choke coil remains indispensable for taming EMI in high-power electronics. By leveraging magnetic field superposition, optimized materials, and compact shielding, it delivers unmatched noise suppression without sacrificing power integrity. As switching frequencies rise in green energy and 5G systems, this component’s role will only grow more critical.
