How Does a Current Transformer Work? A Complete Guide to CT Working Principle

Introduction

In our previous article, we introduced what a current transformer (CT) is, including its basic structure, common types, and typical applications.

However, for equipment engineers, power system integrators, and procurement professionals, understanding only the definition of a current Transformer is not enough.

The key factors that influence product selection and system design are how a current transformer works and how it achieves safe and accurate current measurement.

A current transformer does not directly change the current flowing through the primary circuit. Instead, it uses the principle of electromagnetic induction to generate an induced current in the secondary winding that is proportional to the primary current.

This allows electrical systems to achieve accurate current measurement while maintaining electrical isolation between the high-current circuit and measuring equipment.

In this article, we will explain the current transformer working principle, the function of each component, and the key factors that affect CT measurement accuracy.

1. Why Can a Current Transformer Measure High Current?

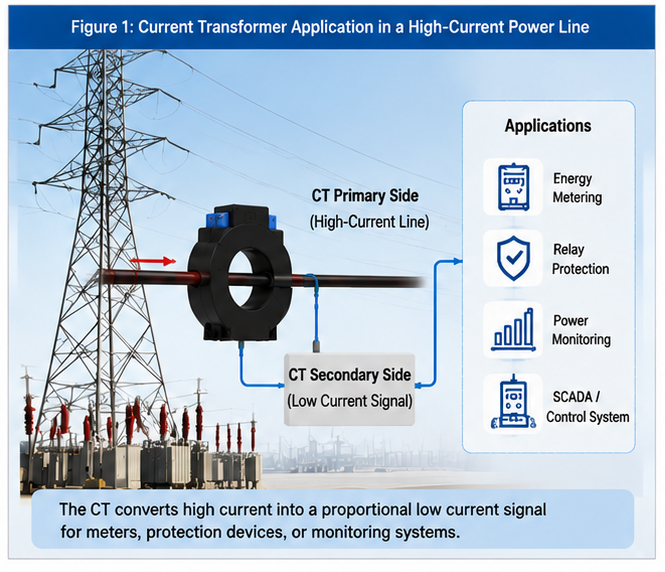

Conventional measuring instruments cannot directly measure hundreds or thousands of amperes in high-current electrical systems.

Connecting measurement equipment directly to a high-current circuit may damage the instrument and create safety risks for operators.

A current transformer is designed to solve this problem.

It uses a magnetic field as the medium for energy transfer, allowing the primary circuit and measurement circuit to remain electrically isolated while accurately reflecting changes in the primary current.

Therefore, CTs not only improve measurement safety but also play an essential role in modern power monitoring systems.

2. Basic Structure of a Current Transformer

A typical Current Transformer consists of several key components:

• Primary conductor
• Magnetic core
• Secondary winding
• Housing and insulation structure

The primary conductor is usually the cable or conductor being measured.

When AC current flows through the primary conductor, it generates a changing magnetic field inside the magnetic core.

The secondary winding is placed around the magnetic core. As the magnetic field changes, an induced current is generated in the secondary winding based on the principle of electromagnetic induction.

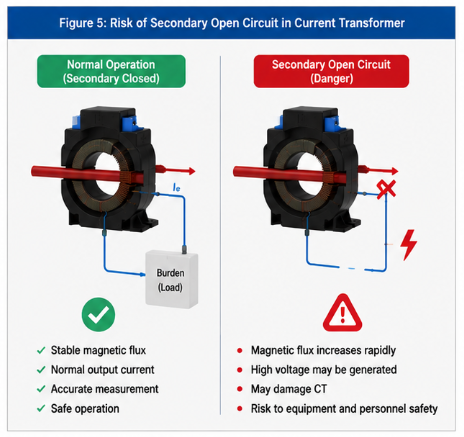

The secondary output provides a proportional current signal that can be used by meters, monitoring systems, or control equipment.

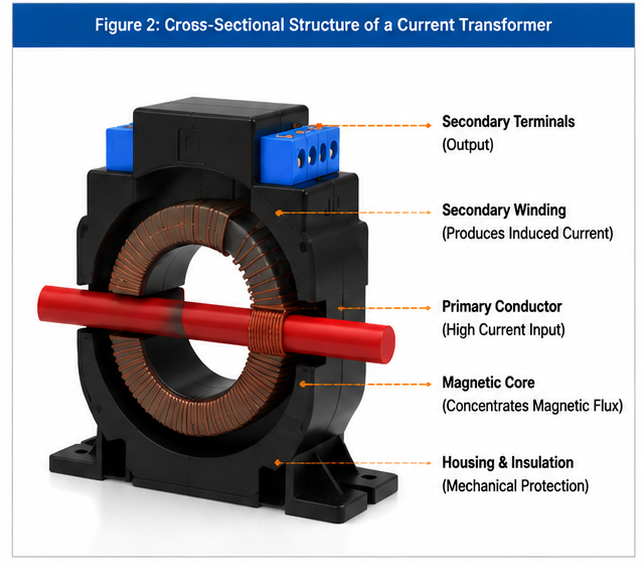

Image 2: Cross-sectional structure of a Current Transformer

3. Current Transformer Working Principle

The working principle of a current transformer is based on Faraday's Law of Electromagnetic Induction.

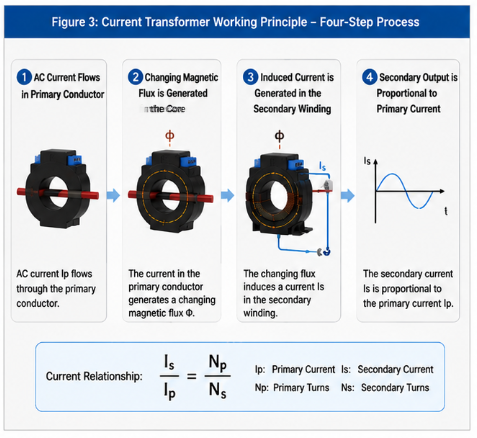

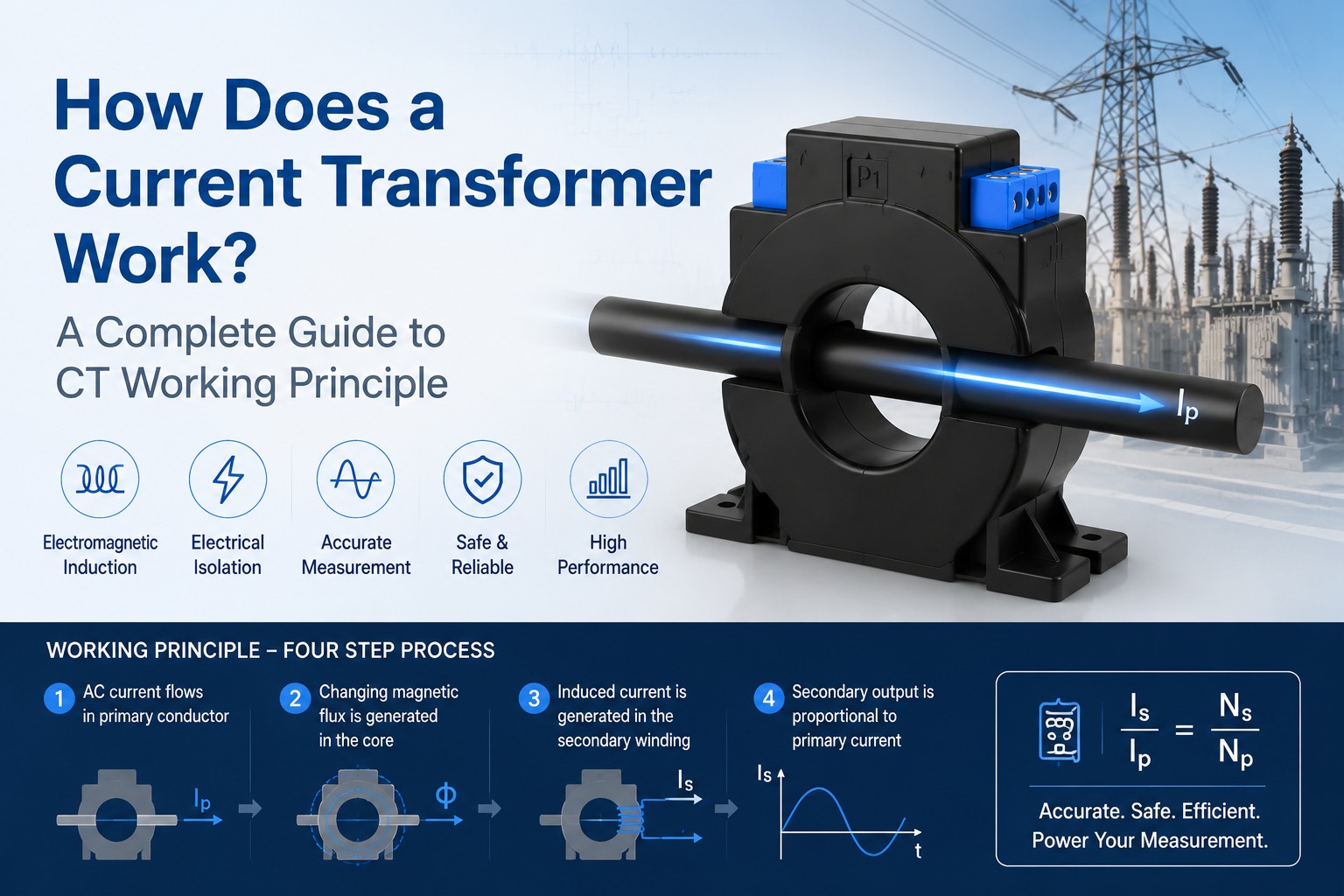

The operation process can be understood in four simple steps:

Step 1

AC current flows through the primary conductor.

↓

Step 2

The current generates a changing magnetic flux inside the magnetic core.

↓

Step 3

The changing magnetic flux induces current in the secondary winding.

↓

Step 4

The secondary side outputs a current signal proportional to the primary current.

Throughout this process:

• The primary and secondary circuits are not directly electrically connected.
• Energy is transferred through the magnetic field.

This is why current Transformers provide reliable electrical isolation between high-current circuits and measuring equipment.

4. Why Does the Turns Ratio Determine the Output Current?

The key factor that enables proportional current measurement is the turns ratio of the windings.

Based on transformer principles, the ratio between the primary winding turns and secondary winding turns determines the output current ratio.

For example:

100A / 5A Current Transformer

This means:

• Primary current rating: 100A
• Secondary output current: 5A

When the primary current reaches 100A, the secondary side outputs approximately 5A.

Therefore, when selecting a Current Transformer, engineers need to choose the correct transformation ratio according to the rated current of the application.

5. Why Can Current Transformers Usually Only Measure AC Current?

This is a common question for engineers who are new to CT technology.

A current transformer relies on a changing magnetic field to generate an induced current.

Because AC current continuously changes direction and magnitude, it creates a continuously changing magnetic flux inside the magnetic core.

However, DC current produces a constant magnetic field after reaching a stable state. Since there is no continuous change in magnetic flux, a traditional current transformer cannot measure DC current.

For DC current measurement, engineers usually use alternative technologies such as:

• Hall Effect Current Sensors
• Fluxgate Sensors
• Rogowski Coils (for specific applications)
