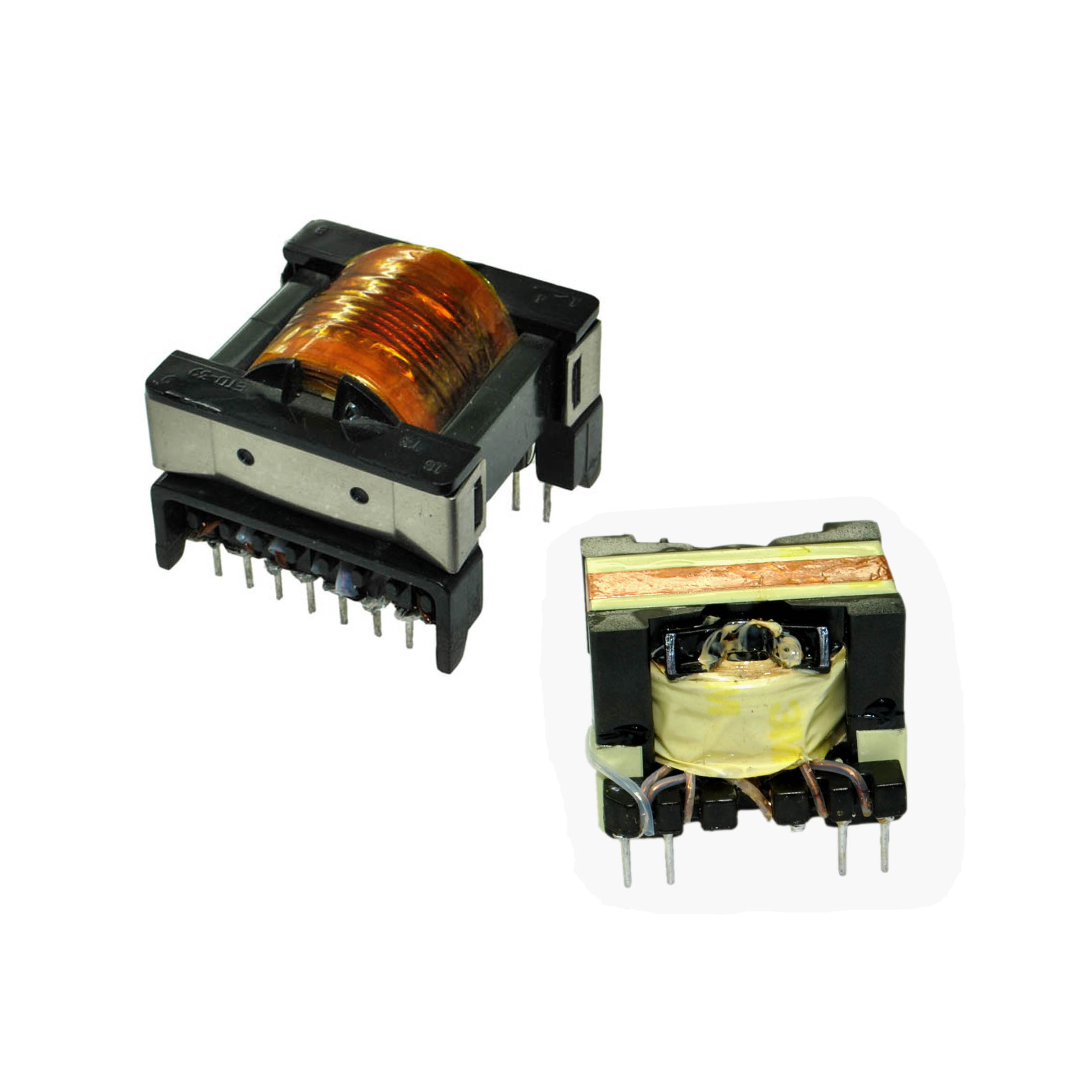

PCB Mount Transformers: Why Vacuum Potting Matters

The Hidden Enemy: Air Pockets

Traditional potting methods trap air bubbles, causing:

• Partial discharges degrading insulation over time

• Hotspots reducing lifespan by 40–60%

• Crack propagation in thermal cycling

Vacuum potting eliminates these voids by:

1. Evacuating air at ≤5 mbar pressure

2. Injectting UL94V-0 epoxy under controlled viscosity

3. Curing in moisture-free environments

Real-world impact: Medical device transformers potted at 0.1 atm passed 50,000-hour accelerated aging tests (IEC 60068-2-14). Non-vacuum units failed at 18,000 hours.

Thermal + Mechanical Stress Survival

PCB mount transformers face brutal conditions:

Industrial case: Robotic arm servo drivers using vacuum-potted EI-core PCB mount transformers saw field failures drop from 12% to 0.7% annually.

Critical Applications Demanding Vacuum Potting

Not all transformers need this—but these do:

• Patient-connected medical devices (defibrillators, ventilators)

• Aerospace avionics where altitude changes cause gas expansion

• Offshore wind converters facing salt fog + thermal cycling

• EV charging stations with liquid cooling thermal stress

Validation tip: Cut open a sample Transformer. Voids >0.5mm disqualify high-reliability use.

How to Verify Potting Quality

Don’t trust datasheet claims. Demand:

1. X-ray scans showing void distribution

2. Cross-section reports with bubble size measurements

3. Thermal shock tests (-55°C ↔ +150°C, 500 cycles)

4. Partial discharge tests <5 pC at 2x operating voltage

Manufacturers skipping these steps risk field recalls—like a solar inverter brand facing $2M in warranty claims from resin delamination.

The Cost of Cutting Corners

While vacuum potting adds 15–20% to unit cost, it prevents:

• 10x higher warranty repairs

• Regulatory re-certification fees (e.g., UL/CE mark loss)

• Brand reputation damage from safety incidents

Demand proven reliability. Request vacuum potting validation reports for your project: sales@ferrtx.com
