PCB Mount CT: 4000V Insulation Enough?

In industrial electronics, PCB mount Power Transformers (CTs) are critical for energy monitoring, motor control, and fault protection. A recurring question among engineers is: "Is 4000V insulation sufficient for my application?" Let’s dissect why this specification matters and where it fits in real-world safety.

Why Insulation Voltage is Non-Negotiable

Current transformers isolate high-voltage circuits from measurement systems. A failure here risks:

Catastrophic arcing in 480V+ industrial systems
Signal distortion in precision equipment
Safety breaches in medical/avionics applications

The 4000V Hi-Pot (high-potential) test—standard in quality PCB mount Power Transformers—simulates 10x overload scenarios. For context:

230V systems require ≥2000V insulation (per EN 60601)
4000V covers industrial 690V systems and adds safety margin

Beyond the Number: How 4000V Protection Works

True safety isn’t just about voltage ratings. It’s layered:

Material Science: UL94V-0 epoxy resin resists ignition
Structural Design: Split bobbins prevent arc tracking
Manufacturing Rigor: Vacuum potting eliminates air gaps

Consider a medical ventilator’s CT. At 4000V insulation:

Withstands defibrillator surges (IEC 60601-2-27)
Survives 100°C sterilization cycles
Outlasts 50k+ operational hours

When 4000V Isn’t Enough (and Solutions)

While 4000V covers 90% of use cases, extreme environments demand more:

Scenario	Risk	Mitigation
Offshore wind turbines	Salt corrosion + 1000V spikes	Conformal coating + 6000V isolation
Electric vehicle chargers	DC arcing	Reinforced creepage distance
Nuclear plant sensors	Radiation degradation	Ceramic encapsulation

Spec sheets aren’t enough. Validate with:

Hi-Pot testing: Apply 4000V AC for 60s (leakage <1mA)
Thermal cycling: -40°C to +130°C (3 cycles minimum)
Humidity bias: 85°C/85% RH for 168 hours

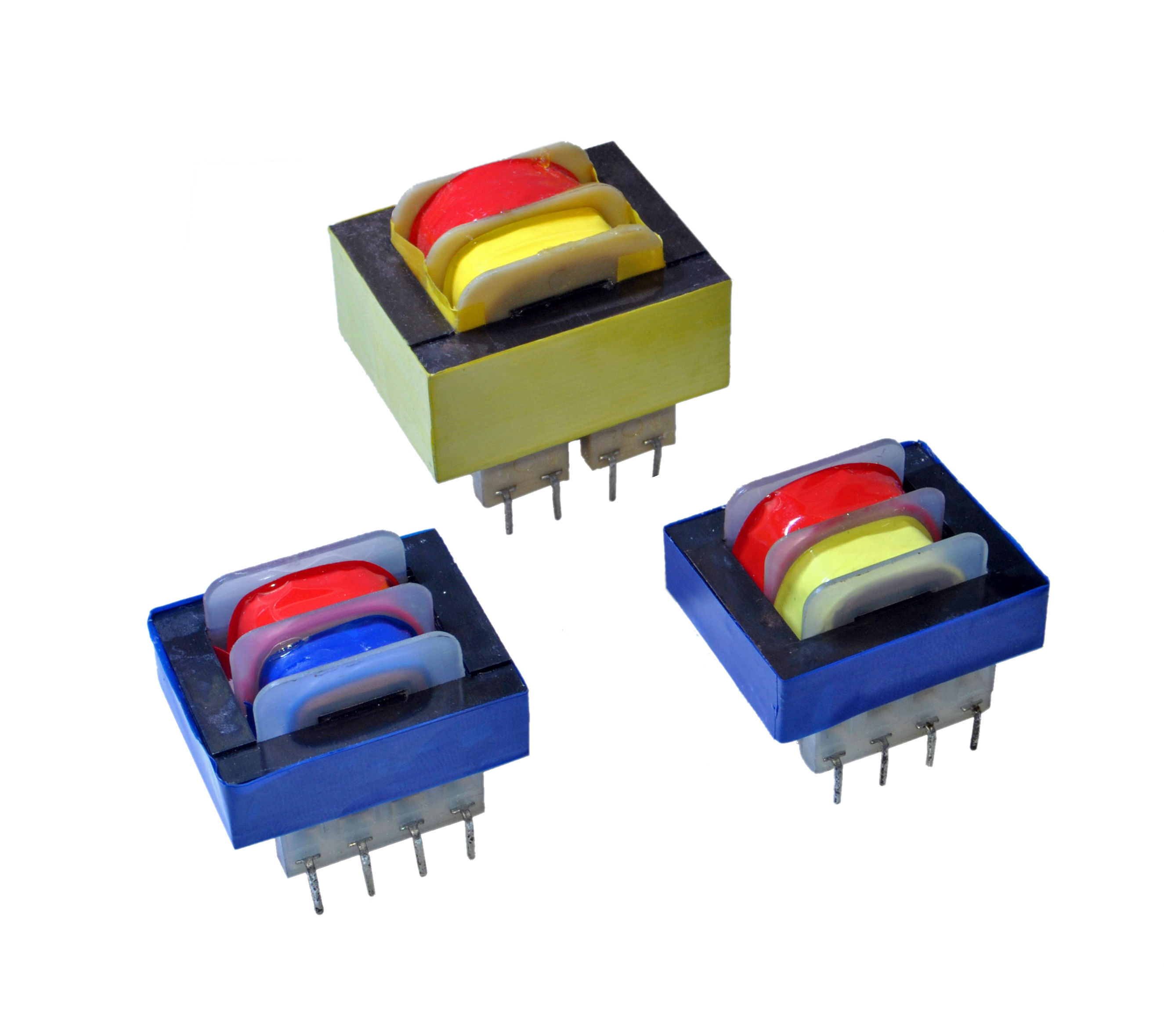

Case in point: A 22W EI-core PCB mount Power Transformers failed at 3000V after humidity exposure. The culprit? Incomplete vacuum potting.

Conclusion: Balancing Safety and Practicality

For most industrial, medical, and telecom applications—where voltages stay under 600V—4000V insulation is scientifically sound. However, pair it with:

Certified UL/IEC/EN compliance
Vendor-supplied test reports
Environmental stress validation

Demand transparency. If a supplier hesitates to share third-party certification data, reconsider.

Ready to specify fail-safe CTs? Request test reports for our 4000V-insulated transformers: sales@ferrtx.com
