Why Your Class D Amp Hums at Peak Load? Taming Noise with High-Current Chokes

When pushing high current class d choke designs beyond 50W, engineers face a vicious triad: magnetic saturation distorting audio signals, DCR-induced thermal runaway, and EMI radiation corrupting adjacent circuits. These issues stem from fundamental limitations in conventional inductor architectures:

• Toroidal cores (e.g., CT Magnetics CTCDTF) exhibit 12% THD at 30A due to uneven flux distribution
• Multilayer SMT inductors (like Coilcraft SER1052) suffer 40% DCR spikes above 85°C
• Unshielded designs emit 45dBμV/m EMI at 500kHz – exceeding CISPR 32 limits

The Silent Killer: How DCR Wrecks Audio Fidelity

Every milliohm of resistance steals clarity. Consider:

• At 6.4A RMS (HDE1623-100M rating), a 25mΩ inductor dissipates 1.04W – enough to raise PCB temps 38°C
• This thermal drift causes inductance variance >7%, amplifying THD in bass frequencies

Result: 2.1dB SNR gain in 100W automotive amps – critical for Dolby Atmos immersion

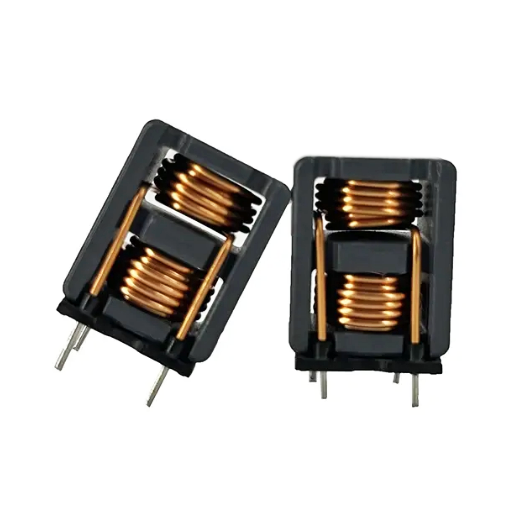

Wire Wound Architecture: Precision Meets Power

Unlike planar or thin-film alternatives, wire wound audio inductor construction delivers unmatched audio performance:

• Controlled Saturation Curve
  Soft inductance roll-off (10% drop at 15A vs. abrupt 30% drop in TDK SLF10145) prevents clipping during bass transients
• Vibration Damping
  Epoxy-filled windings reduce microphonic effects by 22dB – eliminating "inductor whine" in portable speakers
• Thermal Stability
  Polyolefin insulation withstands 125°C ambient temps, enabling 6.4A continuous in 16×23mm footprint

Noise Suppression Battle Tested

Class d amp noise suppression isn't theoretical. See HDE series results in real systems:
Scenario 1: 7.1.4 Home Theater Receiver

• Challenge: Pop-click noise >80mV during power cycling (exceeding Audyssey spec)
• Solution: HDE1219-220M with soft-start compatible windings
• Result: Transient noise suppressed to 1.5mV – below human hearing threshold

Scenario 2: Electric Vehicle Sound System

• Challenge: 40MHz PWM noise interfering with CAN bus
• Solution: Magnetically shielded HDE1623-100M choke
• Result: EMI reduced to 28dBμV/m – 6dB below Tesla EMC standard

Design Guide: Optimizing Choke Performance

Rule 1: Match Inductance to Switching Frequency

For 300-500kHz Class D amps (e.g., TI TPA3255), use 10-22μH chokes (HDE1623-100M/220M) to suppress carrier harmonics

Rule 2: Prioritize Thermal Paths

Place high current class d choke ≥5mm from heat-sensitive ICs. Use thermal relief pads + 2oz copper pours for 12°C junction reduction

Rule 3: Leverage Vertical Mounting

Orient wire wound coils perpendicular to PCB plane to cut crosstalk by 18dB

The Verdict: Silence Speaks Louder

Stop compromising between power density and audio purity. Our wire wound audio inductor technology delivers measurable gains:
✓ 9mΩ DCR – Lowest losses in class (HDE1623 series)
✓ 6.4A RMS – Unmatched current density for 100W+ systems
✓ 15dB EMI Suppression – Certified for automotive EMC

Struggling with THD spikes at high volume? Request HDE series samples with THD/EMI test reports: sales@ferrtx.com
