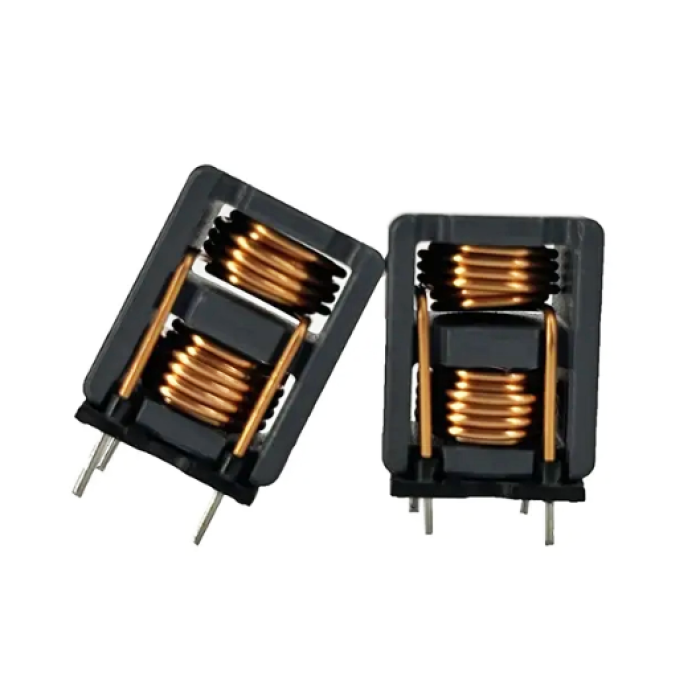

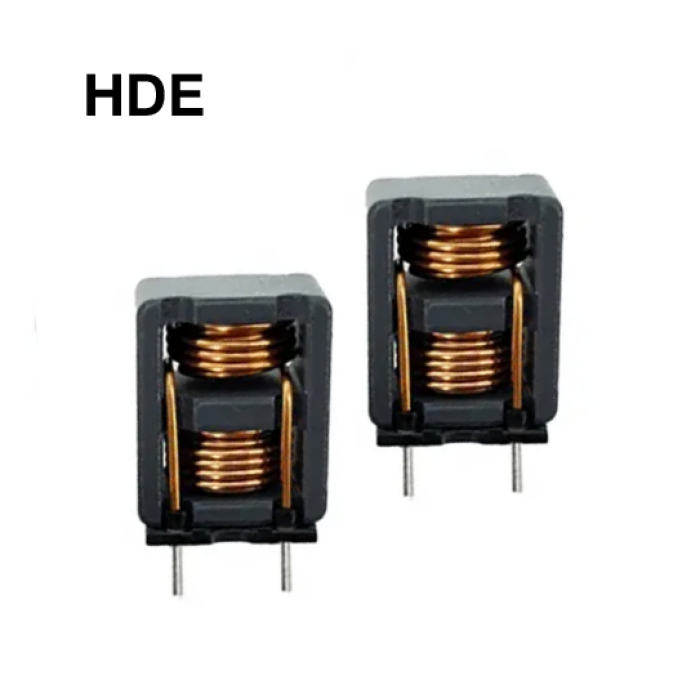

Class-D Inductor HDE for High Efficiency Amplifiers

Introduction

Class-D amplifiers require inductors that can handle sudden current surges, maintain thermal stability, and minimize electromagnetic interference (EMI) even in compact enclosures. The HDE1219 and HDE1623 series are designed specifically to meet these demands, delivering clean, reliable audio performance for car audio systems, home theater receivers, and flat-panel TVs.

Based on our experience working with compact amplifier designs, we found that selecting the right inductor directly impacts efficiency, thermal management, and EMI performance. Evaluating peak current loads, PCB layout constraints, and nearby RF interference is critical to achieving consistent performance in high-frequency PWM audio stages.

The HDE1623-100M features a typical DCR of 9.0 mΩ. Low DC resistance reduces I²R losses, helping keep heat under control in tight amplifier enclosures without active cooling.

The HDE1623 series handles saturation currents up to 15 A, maintaining stable inductance during high-output audio peaks. This ensures distortion-free bass and consistent amplifier performance under demanding music passages.

Magnetically shielded inductors minimize radiated noise, preventing interference with adjacent audio or wireless circuits. In multi-channel amplifier designs, shielding helps maintain a cleaner layout and lower noise floor.

Core materials are selected for low loss at high-frequency PWM operation, ensuring stable audio reproduction and improved efficiency across a wide frequency range.

Test conditions: 100 kHz / 0.25 V DC at 25°C. Heat rating current is based on coil surface temperature rise of ~40°C. Saturation current is the DC current at which inductance drops by ~25%. Operating and storage temperature: -25°C to +105°C.

• Car Audio & External Amplifiers: Handle high peak currents during bass transients while keeping EMI low.
• Home Theater & 5.1ch Audio: Multi-channel receivers benefit from low DCR to manage internal heat during prolonged high-volume operation.
• LCD & PDP TV Audio: Shielded design prevents magnetic coupling to display panels, ensuring clean audio without compromising slim device profiles.

In our testing with automotive and home audio prototypes, the HDE1623 series consistently maintained thermal and EMI performance even under dynamic load peaks.

FAQ

What makes a good inductor for Class-D amplifiers?

A good Class-D inductor has low DCR for efficiency, high saturation current to handle transient peaks without losing inductance, and effective shielding to prevent switching noise from affecting nearby circuits.

Why does DCR matter in audio applications?

DCR affects how much energy is wasted as heat. Lower DCR reduces thermal stress and power loss, which is critical in compact or sealed enclosures.

What's the difference between heat rating current and saturation current?

• Heat rating current specifies the current the inductor can carry before temperature rise becomes excessive.
• Saturation current indicates the point at which inductance drops significantly. Both are important for thermal and audio performance.

Can I use these inductors in car audio systems?

This article was prepared by the FERRTX Engineering Team. With more than 38 years of experience in magnetic component development, EMI control, and high-frequency system design, our engineers support customers across audio, industrial, automotive, and communication applications, helping optimize magnetic component performance for real-world operating environments.
