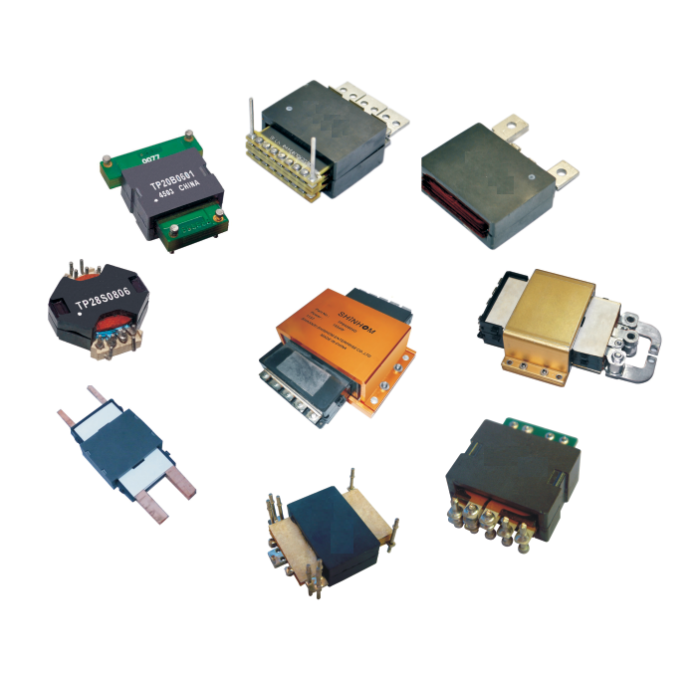

Planar Transformer

Key Advantages

1. ‌Compact & Efficient‌:
   Ideal for space-constrained ‌High Frequency Transformer‌ applications, planar designs reduce noise and heat generation.
2. ‌High Current Capacity‌:
   Supports up to 73A, making it suitable for ‌High Frequency Current Transformer‌ roles in industrial control and heavy machinery.
3. ‌Thermal Resilience‌:
   Operates reliably from -40°C to +130°C, a hallmark of robust ‌High Frequency Power Transformer‌ systems.
4. ‌Flexible Integration‌:
   Customizable inductances enable seamless adaptation for ‌High Frequency Transformer‌ needs in LED lighting and consumer electronics.

‌Technical Specifications‌

• ‌Footprint‌: 23.50mm x 19.50mm (retained from original).
• ‌Profile‌: Ultra-low 7.4mm height for integration into slim ‌High Frequency Power Transformer‌ modules.
• ‌Compliance‌: Meets industrial standards for ‌High Frequency current transformer‌ safety and performance.

Applications‌

• ‌Telecommunications‌:
  ‌High Frequency Transformers‌ ensure stable signal isolation in 5G infrastructure and data centers.
• ‌Automotive Systems‌:
  ‌High Frequency Power Transformers‌ optimize energy conversion in EV charging and onboard power supplies.
• ‌Industrial IoT‌:
  ‌High Frequency Current Transformers‌ monitor and regulate currents in smart grid and robotics applications.
• ‌Consumer Electronics‌:
  Planar ‌Transformers‌ enable compact, high-efficiency adapters and fast-charging solutions.
