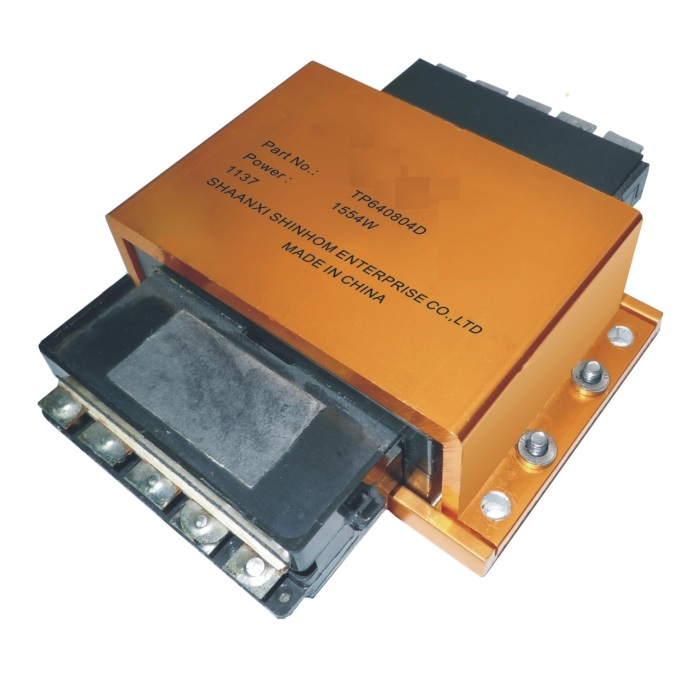

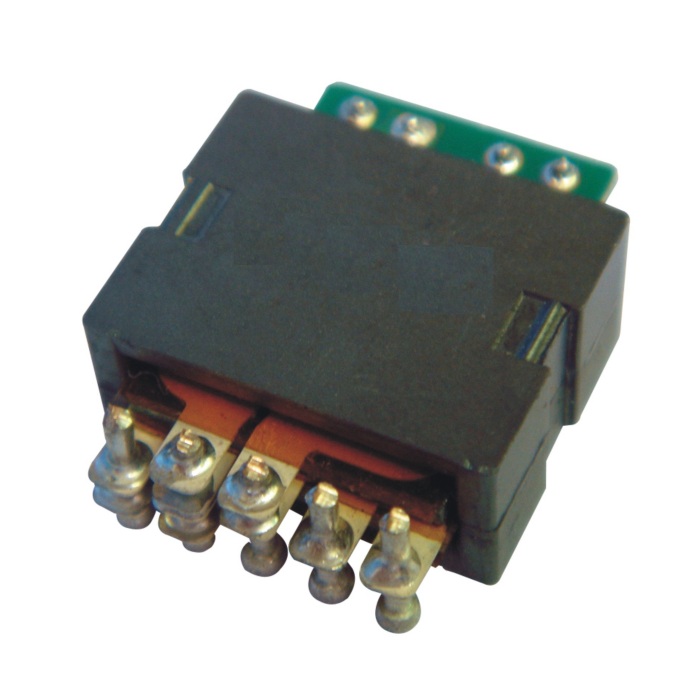

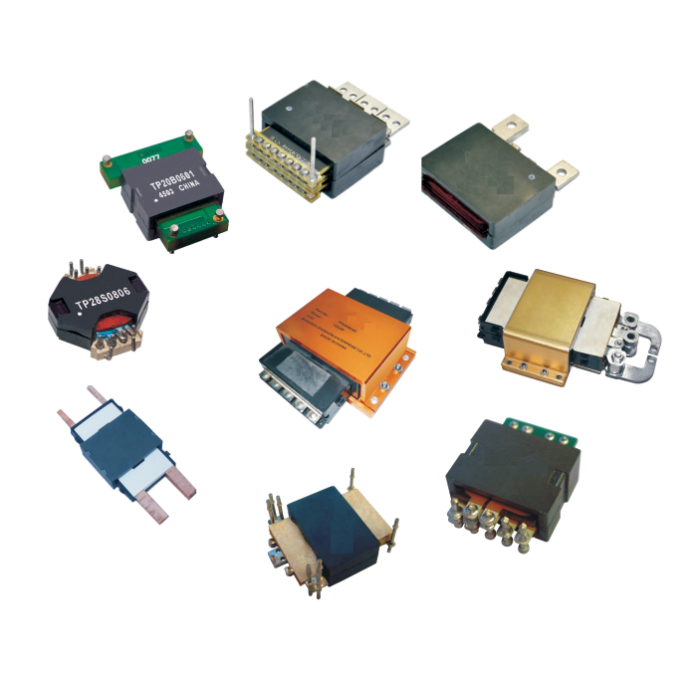

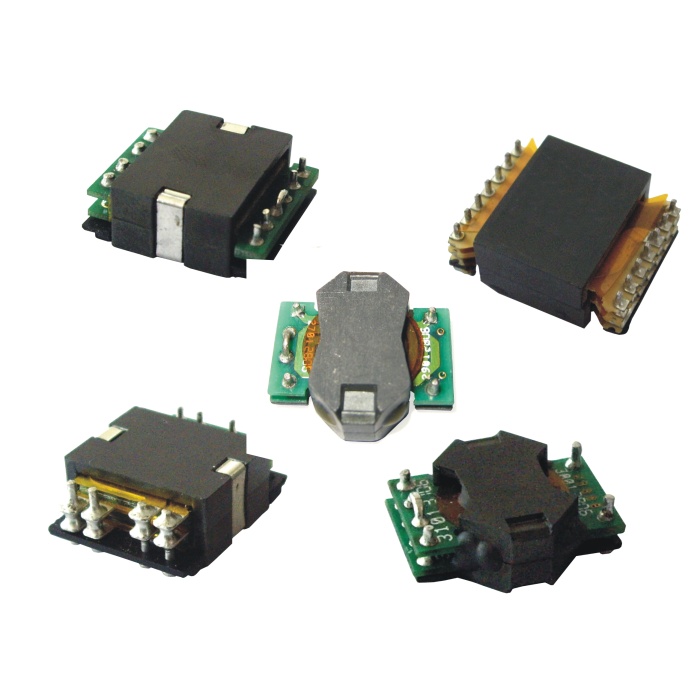

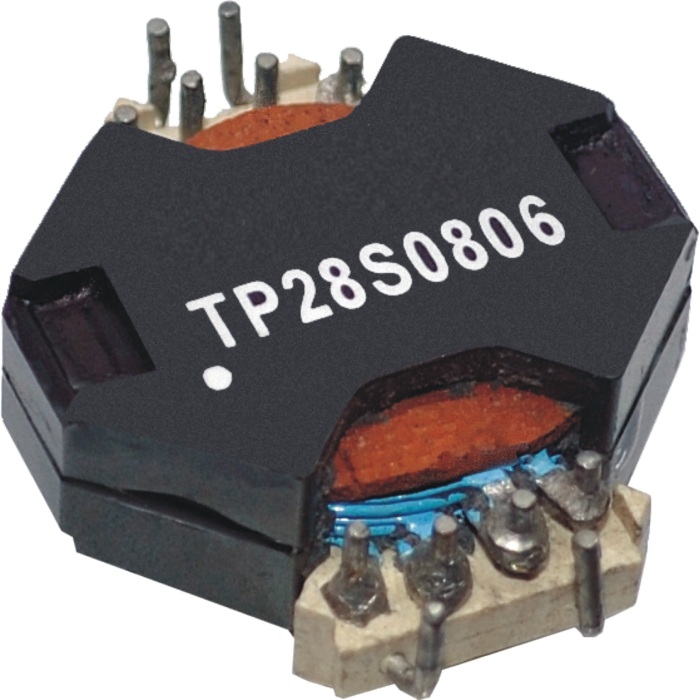

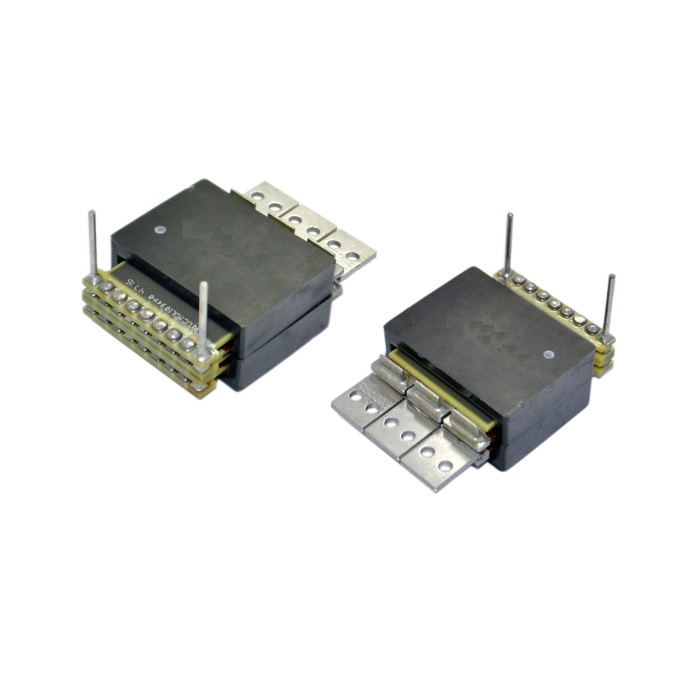

High Power Planar Transformer

A Planar Transformer is a modern type of power Transformer designed for high power density, low profile, and high efficiency applications. Unlike conventional wound Transformers, Planar Transformers use flat copper conductors and multilayer PCB windings, enabling superior thermal performance and repeatable electrical characteristics.

Ferrtx planar transformers are engineered for compact power systems where efficiency, reliability, and manufacturability are critical, making them ideal for advanced power electronics and high-frequency power conversion designs.

What Is a Planar Transformer?

What is a planar transformer?
A planar transformer integrates copper windings into PCB layers or flat copper sheets instead of traditional round wire windings. This structure significantly reduces leakage inductance, improves heat dissipation, and allows precise control of electrical parameters.

Compared with traditional Transformer designs, planar transformers offer:

• Lower profile and higher power density

• Improved thermal management

• Better consistency in mass production

• Optimized performance at high switching frequencies

Because of these advantages, planar transformers are widely adopted in modern Power Converter architectures.

Key Features of Ferrtx Planar Transformers

• High Power Density Design
  Flat winding structure supports compact layouts and reduced transformer height.

• Excellent Thermal Performance
  Large copper surface area improves heat dissipation under high load conditions.

• Low Leakage Inductance
  Enables higher efficiency and reduced switching losses in high-frequency circuits.

• Stable Electrical Characteristics
  Tight tolerance control ensures repeatable performance across production batches.

• Suitable for Automated Assembly
  Ideal for large-scale manufacturing and high-reliability applications.

Ferrtx planar transformers are commonly used as a High Frequency Transformer solution in advanced power systems.

Typical Applications

Ferrtx Planar Transformer products are widely used in:

• AC-DC power supplies

• DC-DC converters

• Server and data center power systems

• Industrial power modules

• Renewable energy inverters

• Telecom and communication power units

They are especially effective in compact Power Converter designs that require high efficiency and low thermal resistance.

Design Advantages Over Traditional Power Transformers

Compared with conventional power transformer solutions, Ferrtx planar transformers provide:

• Reduced copper and core losses

• Improved EMI control at high frequencies

• Lower mechanical vibration and acoustic noise

• Easier integration with planar magnetic components

These advantages make planar transformers a preferred choice for next-generation high-efficiency power electronics.

Custom Planar Transformer Solutions

Ferrtx offers flexible customization services for Planar Transformer designs, including:

• Power rating and frequency optimization

• Turns ratio and insulation customization

• PCB-based or copper-sheet winding structures

• Core material and thermal performance tuning

Our engineering team supports custom designs for demanding applications where standard transformers cannot meet performance targets.

Why Choose FERRTX Planar Transformers?

• Dedicated Planar Transformer product line

• Optimized for high-frequency and high-power applications

• Proven reliability in industrial and commercial systems

• Strong engineering support from concept to mass production

FERRTX planar transformers deliver efficient, compact, and scalable solutions for modern power transformer applications.
