Brand: FERRTX
| Selling Units: | Piece/Pieces |
|---|---|
| Download: |
|

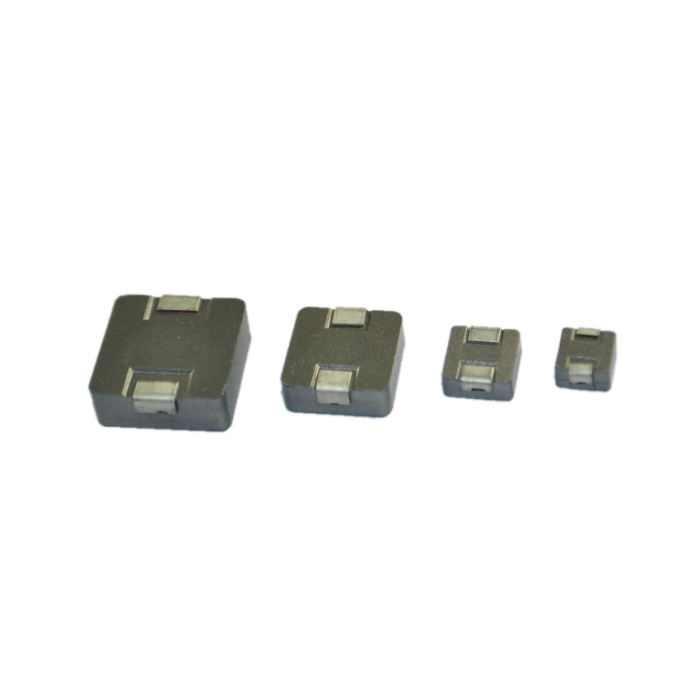

SMD shielded power inductor ,SMD High Reliability Coils Chokes
Magnetically shield Power Inductor Shielded SMD power chip inductor
For high current up to 50A and very low DCR Reflow and hand soldering
are available Good solder fillets and character prevents damage during soldering reflow
APPLICATIONS:
Notebook computer
Battery power equipment
DC/DC converter
Digital camera and scannerCD-ROM/DVD and PDA
Operating Temperature Range -55℃ to +125℃
Series in this family
| Product Series | Inductance(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) | |
| LPM Series | 0.047-4.7 | 2.75-45 | 4.06-13.8 |
| 2.0-8.0 | |
| LPM13 Series | 0.1-47 | 2.5-60 | 14.2 | 13 | 4.0-6.2 | |
| LPM15XX Series | 4.7-33 | 13-31 | 17.5 | 16.5 | 9.7-12.7 | |
| LPM0110 | 0.22-10 | 0.32-1.7 | 1.2 | 1.0 | 0.8 | |
| LPM0420C | 0.1-10 | 1.8-18 | 4.5 | 4.5 | 2.0 | |
| LPM0515C | 0.15-10 | 2.3-16 | 5.5 | 5.5 | 1.5 | |
| LPM0518C | 0.22-4.7 | 3.5-16 | 5.5 | 5.5 | 1.8 | |
| LPM0520C | 0.1-10 | 2.0-20 | 5.5 | 5.5 | 2.0 | |
| LPM0530C | 0.1-33 | 2.0-23 | 5.5 | 5.5 | 3.0 | |
| LPM0620C | 0.1-10 | 3.0-21 | 7.4 | 7.4 | 2.0 | |
| LPM0624C | 0.1-15 | 3.5-30 | 7.4 | 7.4 | 2.4 | |
| LPM0630C | 1.0-22 | 4.0-40 | 7.4 | 7.4 | 4.0 | |
| LPM0640C | 0.15-12 | 4.0-40 | 7.4 | 7.4 | 4.0 | |
| LPM0650C | 0.47-47 | 2.5-22 | 7.6 | 7.6 | 5.0 | |
| LPM0830C | 0.22-33 | 3.0-30 | 9.2 | 9.2 | 3.0 | |
| LPM0840C | 0.22-47 | 3.0-32 | 9.2 | 9.2 | 4.0 | |
| LPM0850C | 0.15-22 | 5.0-45 | 9.2 | 9.2 | 5.0 | |
| LPM1020C | 0.33-2.2 | 8-29 | 10.5 | 10.5 | 2.0 | |
| LPM1030C | 0.36-6.8 | 7.0-25 | 10.5 | 10.5 | 3.0 | |
| LPM1040C | 0.19-47 | 3.6-40 | 10.5 | 10.5 | 4.0 | |
| LPM1050C | 0.36-22 | 6.0-33 | 10.5 | 10.5 | 5.0 | |
| LPM1050D | 3.3-22 | 2.5-7.0 | 10.2 | 10.2 | 5.0 | |
| LPM1060C | 1.0-4.7 | 14-26.5 | 11.3 | 10.0 | 6.0 | |
| LPM1080D | 8.2-22 | 4.0-6.0 | 11.2 | 11.2 | 8.0 | |
| LPM1090D | 1.0-47 | 2.3-17 | 10.2 | 10.2 | 9.0 | |
| LPM1213D | 8.2-22 | 5.5-10 | 13.8 | 13.8 | 13 | |
| LPM1235C | 0.1-10.0 | 7.0-48 | 13.2 | 13.2 | 3.5 | |
| LPM1250C | 0.1-22 | 7.0-50 | 13.2 | 13.2 | 5.0 | |
| LPM1260C | 0.33-10.0 | 11-45 | 13.2 | 13.2 | 6.0 | |
| LPM1265C | 0.15-68 | 5.0-60 | 13.2 | 13.2 | 6.5 | |
| LPM1280C | 1.0-2.2 | 26-35 | 13.2 | 13.2 | 8.0 | |
| LPM1770C | 1.0-350 | 3.0-50 | 18 | 18 | 7.0 | |
| LPM2010C | 0.24-2.2 | 1.6-6.3 | 2.0 | 1.6 | 1.0 | |
| LPM2213C | 0.47-400 | 4.0-80 | 22.5 | 22.5 | 13 | |
| LPM2510C | 1.0-4.7 | 1.5-3.5 | 2.5 | 2.0 | 1.0 | |
| LPM2512C | 0.22-4.7 | 1.8-8.0 | 2.5 | 2.0 | 1.2 | |
| LPM3210C | 1.0 | 4.0 | 3.2 | 2.5 | 1.0 | |
| LPM3212C | 4.7 | 2.0 | 3.2 | 2.5 | 1.2 | |
| LPM3215C | 0.22 | 11 | 3.2 | 2.5 | 1.5 | |
| LPM3220C | 1.0-4.7 | 2.8-5.4 | 3.2 | 2.5 | 2.0 | |
| LPM4010C | 1.0-10.0 | 1.5-3.5 | 4.0 | 4.0 | 1.0 | |
| LPM4012C | 0.25-10.0 | 1.8-8.0 | 4.0 | 4.0 | 1.2 | |
| LPM4015C | 0.47-2.2 | 6.0-9.2 | 4.0 | 4.0 | 1.5 | |
| LPM4020C | 0.33-22 | 1.7-13 | 4.0 | 4.0 | 2.0 | |
| LPM4030C | 0.15-10.0 | 3.1-24 | 4.0 | 4.0 | 3.0 | |
| LPM4040C | 0.15-10.0 | 2.8-21 | 4.0 | 4.0 | 4.0 | |
| LPM5020C | 0.15-6.8 | 4.5-27 | 5.4 | 5.2 | 2.0 | |
| LPM5030C | 0.15-10.0 | 4.5-30 | 5.4 | 5.2 | 3.0 | |
| LPM6030C | 0.15-10.0 | 7.0-35 | 6.6 | 6.4 | 3.0 | |
| LPM6060C | 0.22-15 | 7.4-29 | 6.6 | 6.4 | 6.0 | |
| LPM10100C | 1.0-15 | 13.8-43.5 | 11.3 | 8.0 | 10.0 | |
| LPM1707 | 0.22-22.0 | 11-80 | 17.15 | 17.15 | 7.0 |
