Brand: FERRTX
| Selling Units: | Piece/Pieces |
|---|---|
| Download: |
|
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 2~8weeks
Certificate: RoHS/ISO/UL/CE/IATF16949/CNAS
Port: Xi'an,Shanghai
Payment Type: L/C,T/T

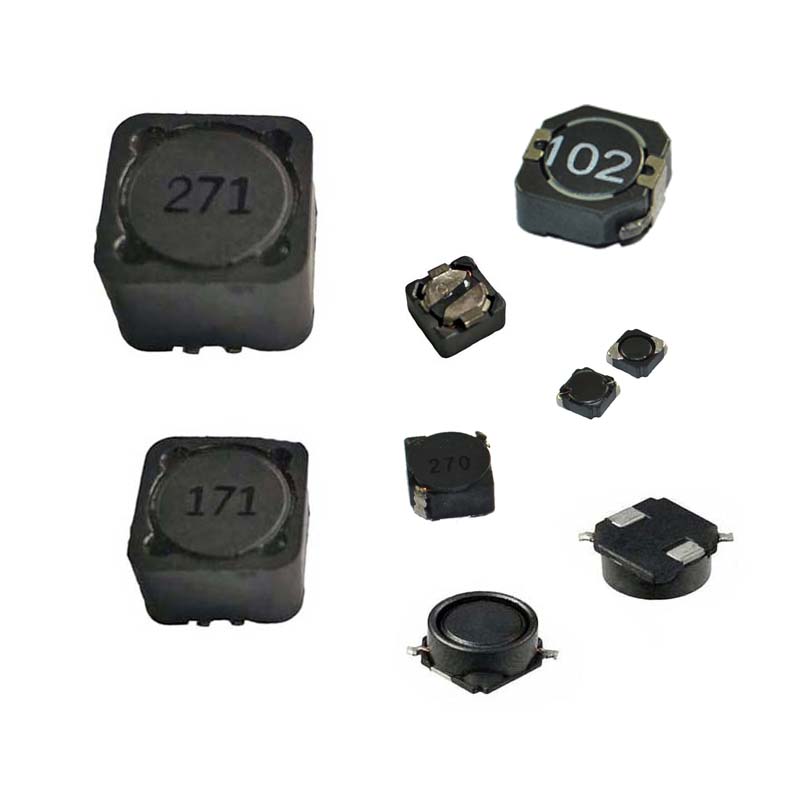

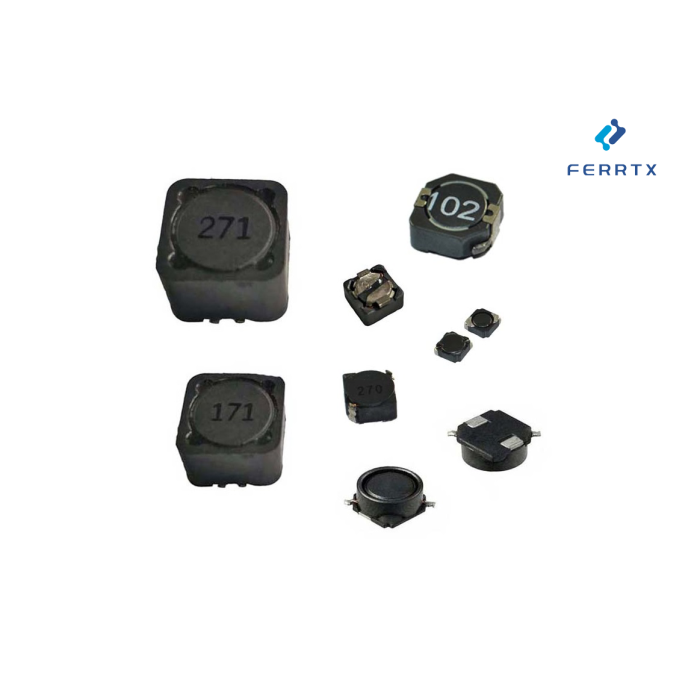

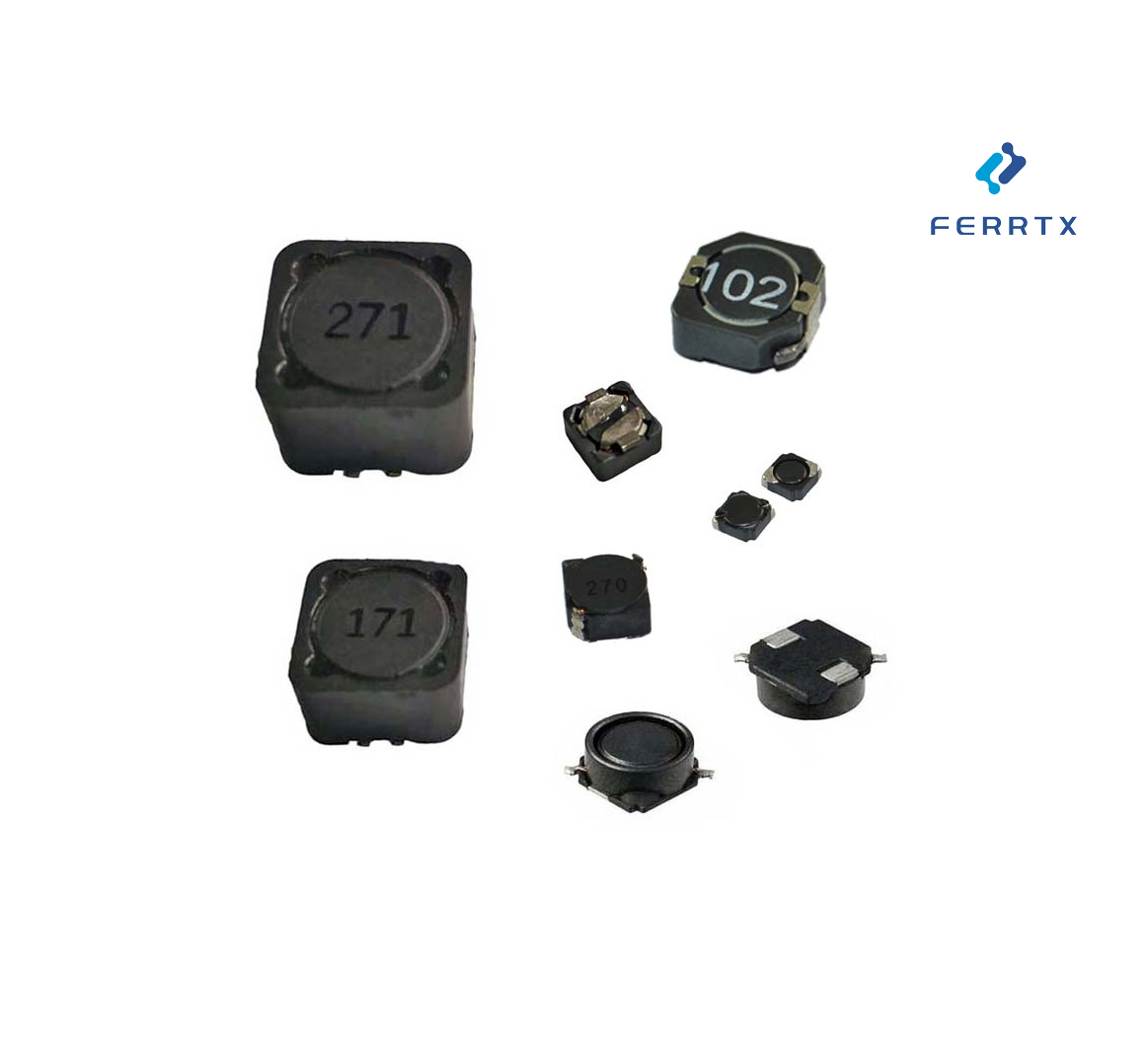

SMD Power Inductors , Shield Power Choke Coil
The SDRH Series Power Inductor combines robust mechanical strength and thermal stability to withstand temperature fluctuations during reflow soldering and external stress. Its compact smd inductor dimensions make it ideal for space-constrained applications like PDAs and DC/DC converters, outperforming traditional Fixed Inductor designs in energy storage and resistance efficiency. Unlike bulkier Fixed Inductor solutions, this SMD Inductor excels in high-current environments while maintaining ultra-low losses, rivaling even specialized smd air core inductor modules in thermal performance. Engineered for reliability, its miniaturized form factor aligns with standardized smd inductor dimensions, ensuring seamless integration into automated assembly lines for automotive power supplies and network systems.
Series in this family
| Product Series | L(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) |
| SDRH0603 | 3.5-1000 | 0.08-3.0 | 6.5 | 6.5 | 3.0 |
| SDRH0605 | 10-1000 | 0.14-1.35 | 6.5 | 6.5 | 5.0 |
| SDRH0703 | 10-1000 | 0.16-1.68 | 7.5 | 7.5 | 3.4 |
| SDRH0704 | 10-1000 | 0.18-1.84 | 7.5 | 7.5 | 4.5 |
| SDRH10145 | 3.3-1500 | 0.22-3.7 | 10.4 | 10.4 | 4.8 |
| SDRH103 | 10-150 | 0.7-2.7 | 10.4 | 10.4 | 3.0 |
| SDRH104 | 1.3-330 | 0.7-10.0 | 10.4 | 10.4 | 4.0 |
| SDRH105 | 10-1000 | 0.35-3.45 | 10.4 | 10.4 | 5.0 |
| SDRH12 | 1.3-1000 | 0.006-11.6 | 12 | 12 | 4.5-8.0 |
| SDRH1204 | 10-330 | 0.5-4.5 | 12.3 | 12.3 | 4.5 |
| SDRH1205 | 10-1000 | 0.4-4.0 | 12.3 | 12.3 | 6.0 |
| SDRH1207 | 1.2-1000 | 0.55-9.8 | 12.3 | 12.3 | 8.0 |
| SDRH1209 | 1.0-1000 | 0.70-11 | 12.5 | 12.5 | 10.0 |
| SDRH12555 | 6.0-1500 | 0.29-3.6 | 12.8 | 12.8 | 5.8 |
| SDRH12565 | 2.2-330 | 0.95-6.2 | 12.8 | 12.8 | 6.8 |
| SDRH12575 | 1.2-330 | 1.0-8.2 | 12.8 | 12.8 | 7.8 |
| SDRH1508 | 10-6800 | 0.038-5.5 | 14.8 | 14.8 | 8.0 |
| SDRH1510 | 4.7-150 | 2.5-8.5 | 15.3 | 11.8 | 10.8 |
| SDRH2D11 | 1.5-22 | 0.25-0.90 | 3.2 | 3.2 | 1.2 |
| SDRH2D18 | 2.2-47 | 0.20-0.85 | 3.2 | 3.2 | 2.0 |
| SDRH3818 | 1.0-150 | 0.12-1.8 | 3.85 | 3.85 | 1.8 |
| SDRH3D16 | 1.0-47 | 0.26-1.89 | 4.0 | 4.0 | 1.9 |
| SDRH4D18 | 1.0-390 | 0.11-1.72 | 5.0 | 5.0 | 2.0 |
| SDRH4D28 | 1.0-180 | 0.22-2.56 | 5.0 | 5.0 | 3.1 |
| SDRH5018 | 1.2-47 | 0.33-1.8 | 5.2 | 5.2 | 1.8 |
| SDRH5020 | 1.2-470 | 0.18-2.18 | 5.2 | 5.2 | 2.0 |
| SDRH5028 | 1.0-220 | 0.2-4.0 | 5.2 | 5.2 | 2.8 |
| SDRH5D18 | 1.0-100 | 0.36-3.86 | 6.0 | 6.0 | 2.2 |
| SDRH5D28 | 2.5-100 | 0.42-2.6 | 6.0 | 6.0 | 3.2 |
| SDRH6025 | 1.0-100 | 0.33-2.7 | 6.3 | 6.3 | 2.8 |
| SDRH6028 | 4.7-100 | 0.42-1.6 | 6.3 | 6.3 | 3.1 |
| SDRH6D28 | 3.0-100 | 0.54-3.0 | 7.0 | 7.0 | 3.2 |
| SDRH6D38 | 3.3-100 | 0.58-3.2 | 7.0 | 7.0 | 4.2 |
| SDRH7028 | 3.3-47 | 0.54-1.6 | 7.3 | 7.3 | 3.2 |
| SDRH7030 | 3.3-100 | 0.35-1.8 | 7.3 | 7.3 | 3.4 |
| SDRH7032 | 3.3-1000 | 0.13-1.9 | 7.3 | 7.3 | 3.8 |
| SDRH7045 | 3.3-470 | 0.31-2.2 | 7.3 | 7.3 | 4.8 |
| SDRH8D28 | 2.5-680 | 0.78-5.4 | 8.3 | 8.3 | 3.0 |
| SDRH8D43 | 2.0-100 | 0.9-6.4 | 8.3 | 8.3 | 4.5 |
