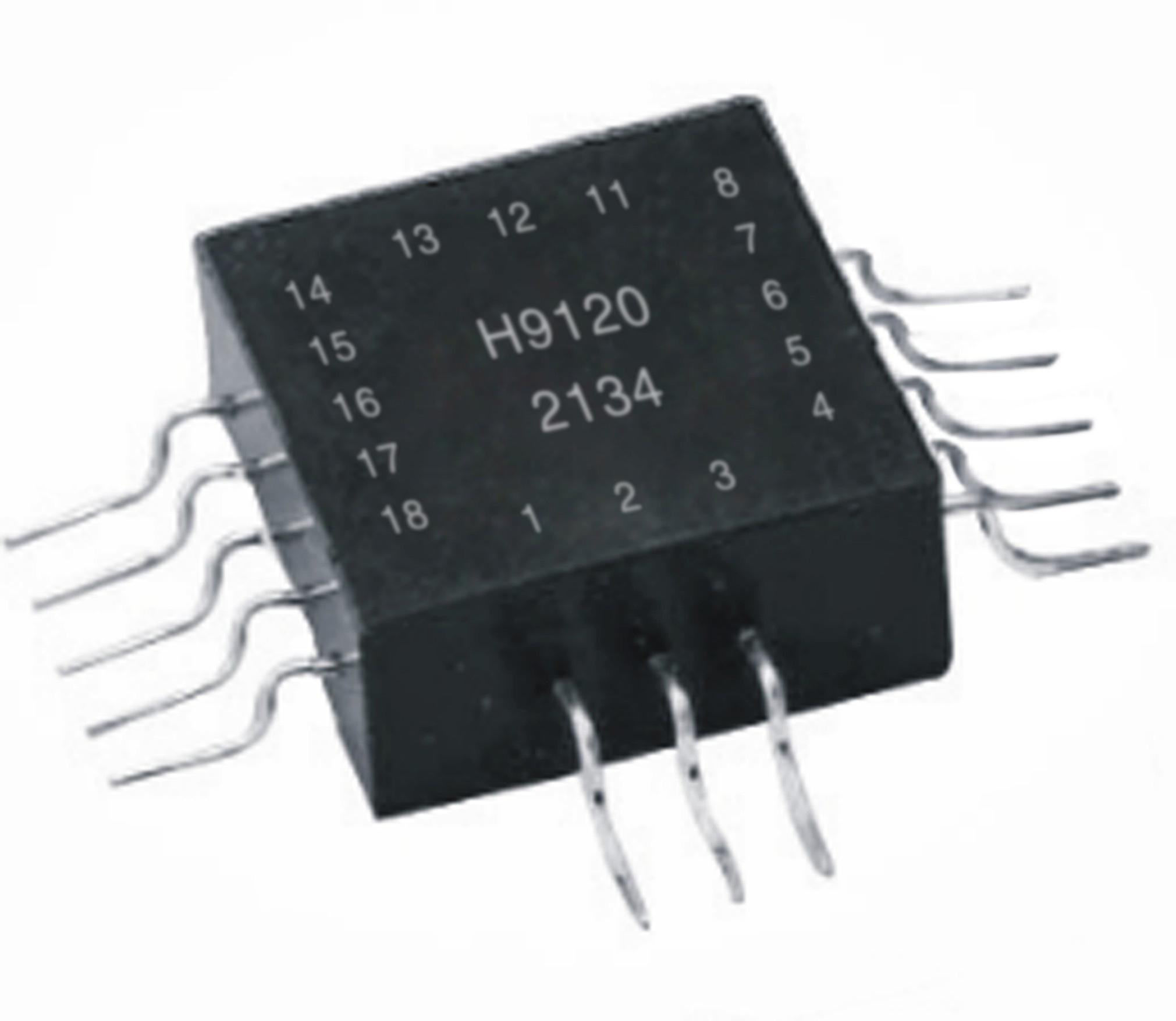

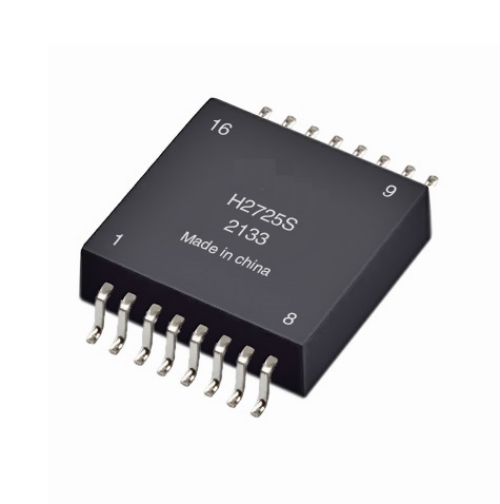

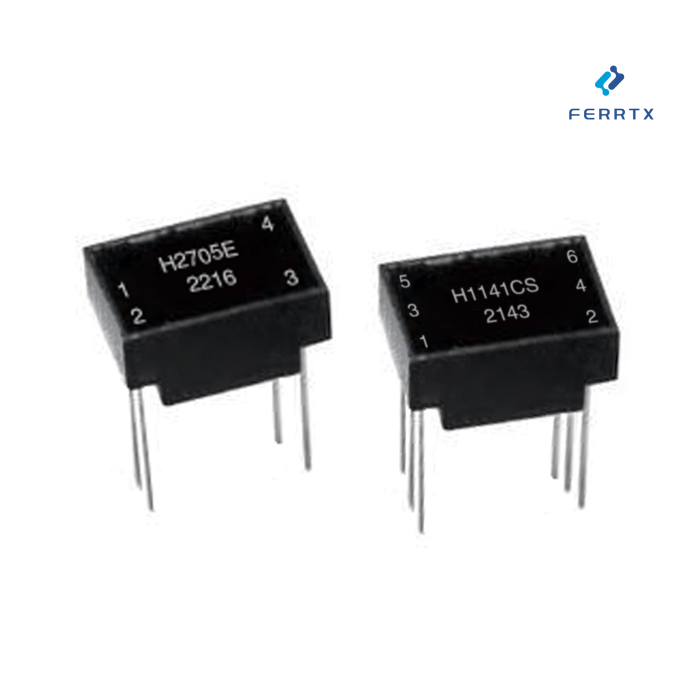

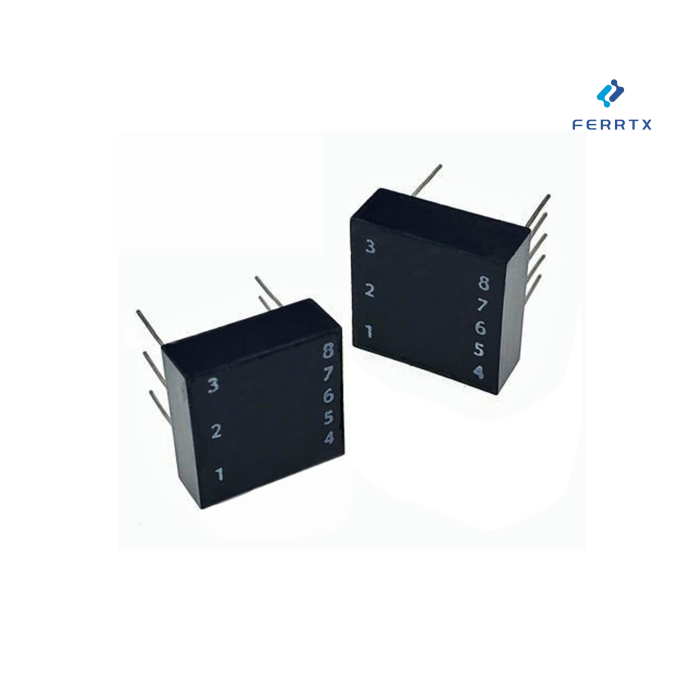

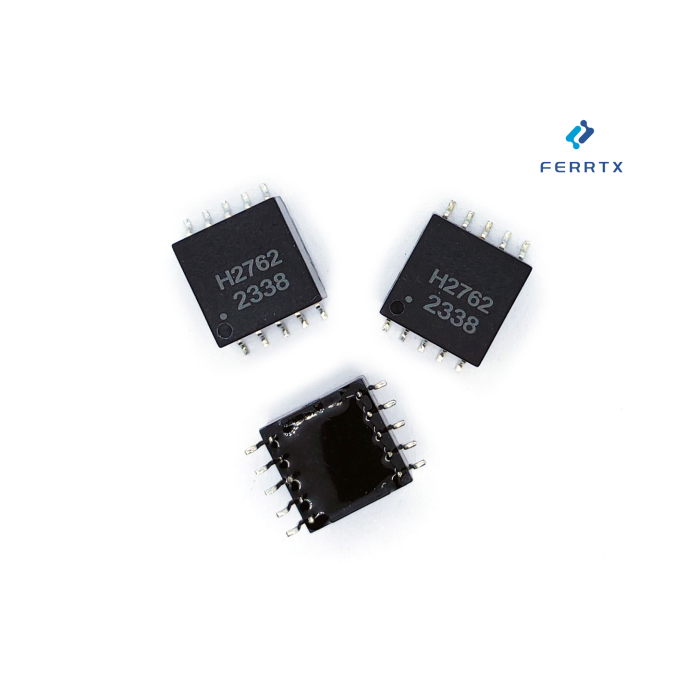

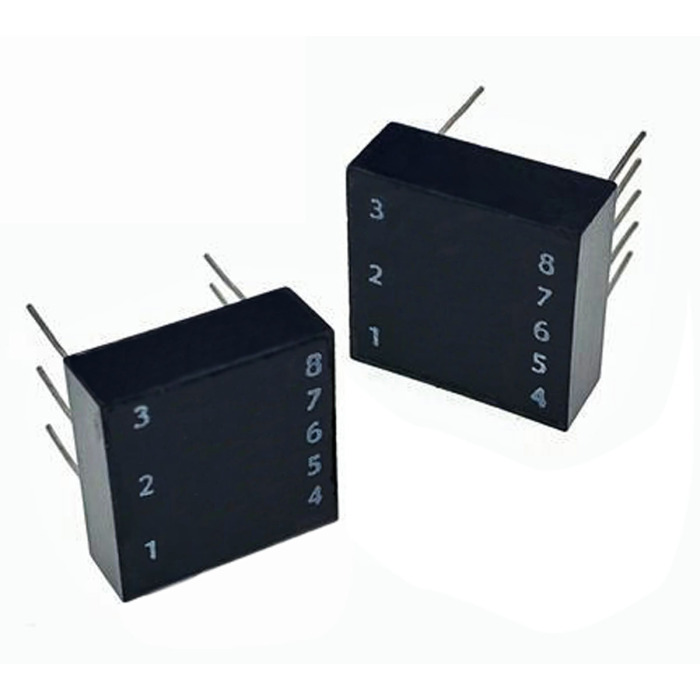

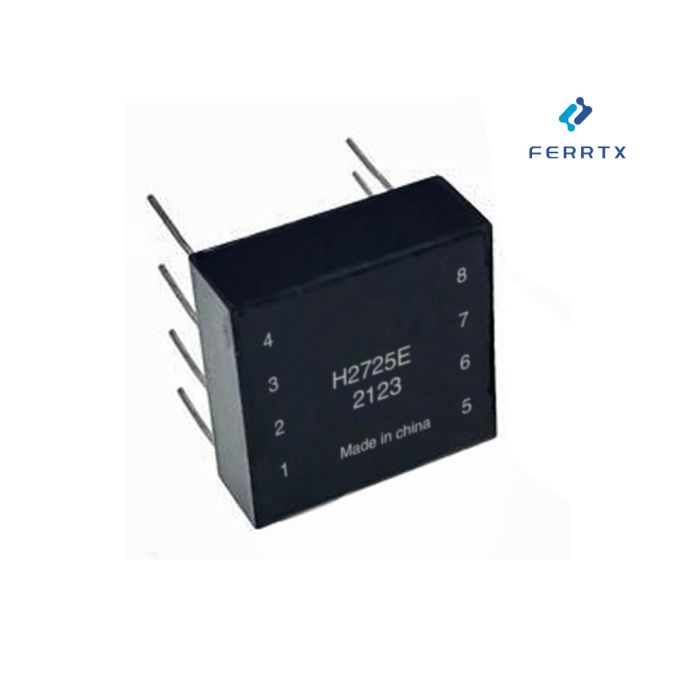

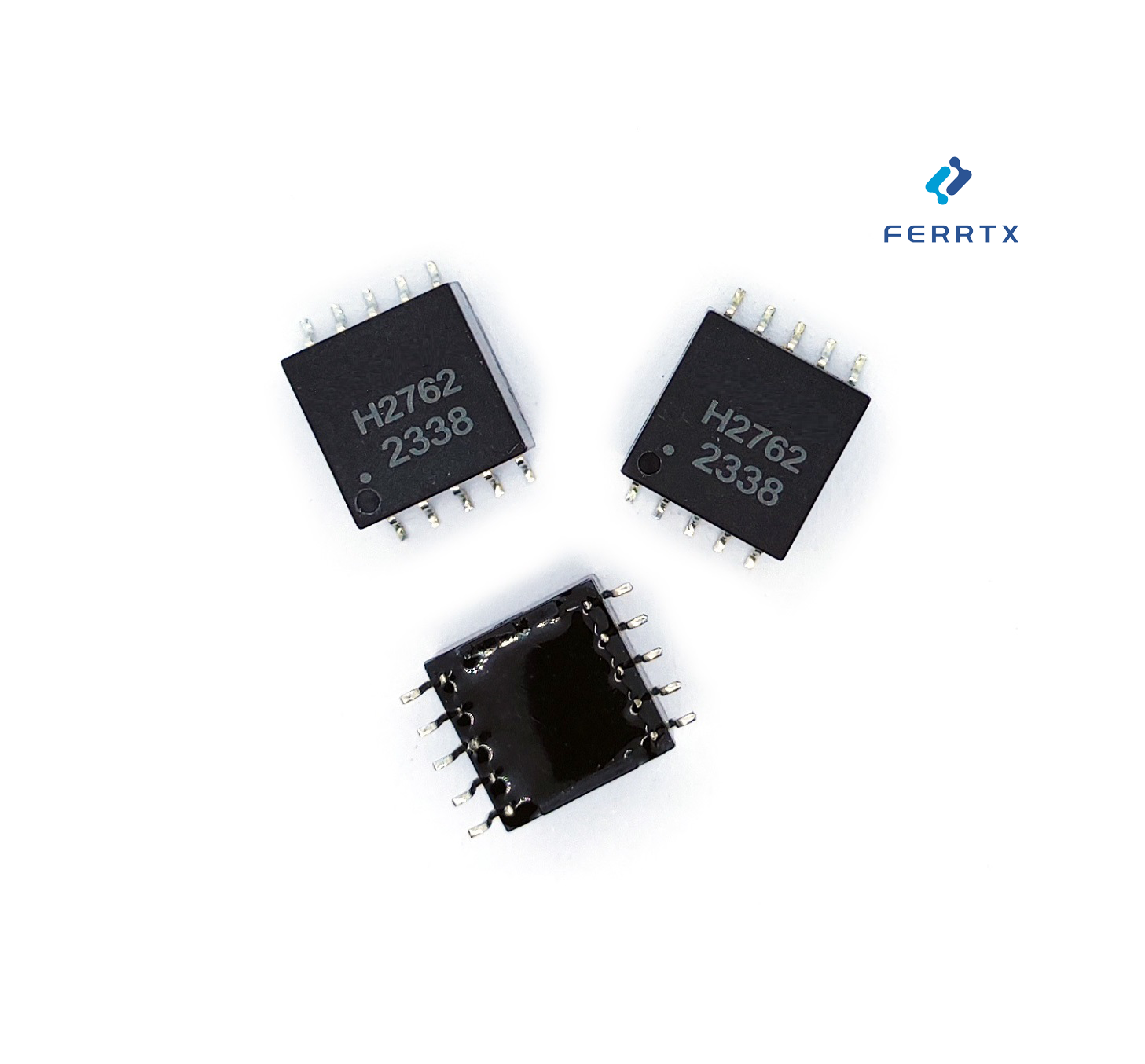

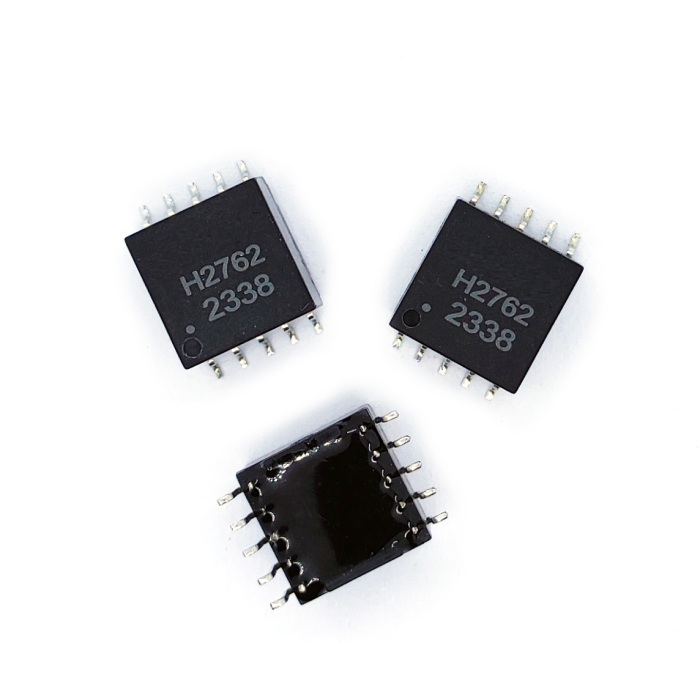

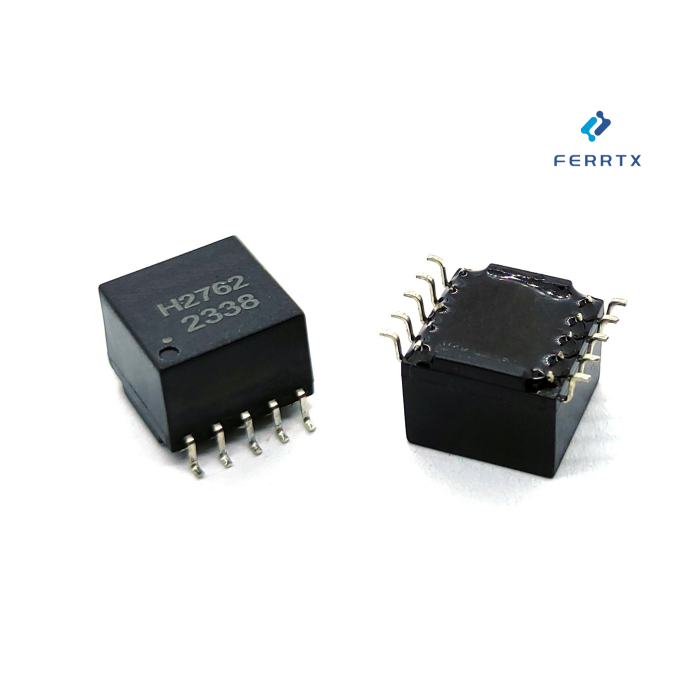

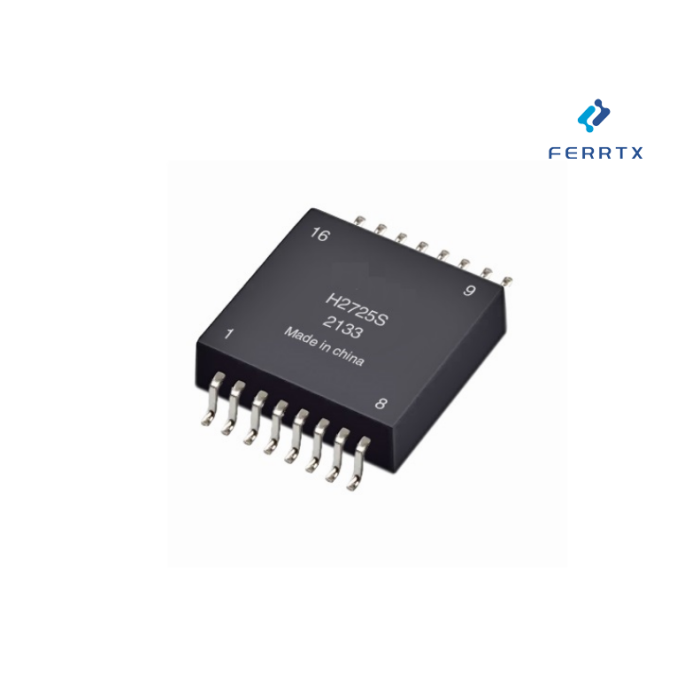

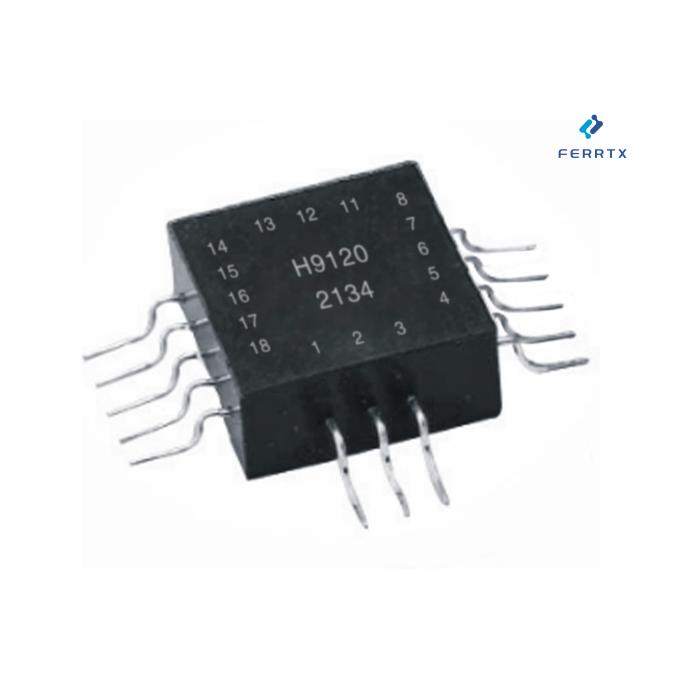

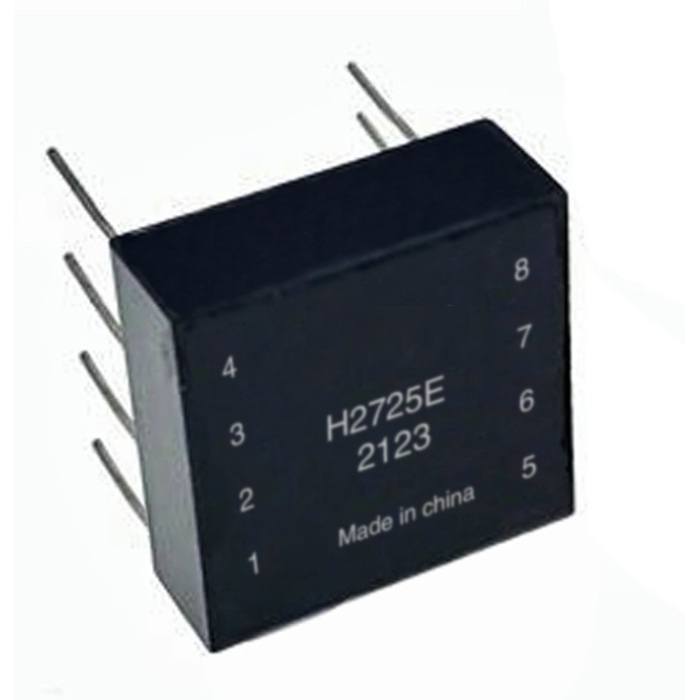

1553 Data Bus Transformers

Ferrtx 1553 Bus Couplers are precision-engineered components designed for reliable signal coupling in MIL-STD-1553 and 1553B data bus networks.
As high-performance Data Bus Coupling Transformers, they ensure stable signal integrity, controlled impedance, and reinforced isolation in mission-critical communication systems.

These products are widely used in avionics, military electronics, and aerospace platforms where robustness and compliance are essential.

What Is a 1553 Bus Coupler?

A 1553 Bus Coupler is a passive coupling device used to connect terminals (RT, BC, or MT) to the main MIL-STD-1553 data bus without disturbing overall bus impedance.

Ferrtx 1553B Data Bus Couplers integrate precisely matched coupling transformers and resistive networks to:

• Isolate terminals from the main bus

• Maintain standard 70–85Ω bus impedance

• Protect the bus from terminal faults

• Preserve signal integrity under harsh environments

Data Bus Coupling Transformers – Core Functionality

At the heart of every 1553 bus coupler is a Data Bus Coupling Transformer.
These transformers are designed to:

• Provide galvanic isolation between terminal and bus

• Ensure balanced signal coupling

• Minimize reflections and insertion loss

• Withstand high transient voltages

Ferrtx coupling transformers are manufactured with controlled winding symmetry and high-reliability Magnetic Cores to meet aerospace and defense requirements.

Key Features of Ferrtx 1553B Data Bus Couplers

• Fully compliant with MIL-STD-1553 / 1553B standards

• Excellent signal balance and low phase distortion

• High isolation voltage for enhanced system safety

• Stable performance across wide temperature ranges

• Compact construction suitable for embedded systems

As a specialized Communication Transformer solution, these couplers support long-term system reliability.

Electrical Performance Highlights

Ferrtx 1553 bus couplers deliver consistent electrical performance including:

• Controlled coupling ratio

• Low insertion loss across data frequencies

• High common-mode rejection

• Robust insulation characteristics

They are commonly deployed alongside Isolation Transformer components to enhance system-level electrical protection.

Typical Applications of 1553 Bus Couplers

Ferrtx 1553B Data Bus Couplers are widely used in:

• Military avionics systems

• Aerospace communication networks

• Flight control and navigation units

• Radar and mission systems

• Ground support and test equipment

In complex architectures, they often interface with RF Transformer elements for signal conditioning and isolation.

1553 Bus Coupler vs Direct Bus Connection

Compared with direct wiring to the main bus, a transformer-coupled solution provides:

• Enhanced fault isolation

• Improved bus stability

• Reduced risk of signal distortion

• Higher system reliability

This makes Data Bus Coupling Transformers an essential part of compliant 1553 networks.

Custom 1553 Bus Coupler Solutions

Ferrtx offers customized 1553 Bus Coupler designs to meet specific project needs, including:

• Customized coupling ratios

• Special isolation requirements

• Mechanical form factor optimization

• Extended environmental specifications

Custom solutions are available for aerospace, defense, and industrial communication systems.

Why Choose FERRTX 1553B Data Bus Couplers?

• Proven performance in mission-critical systems

• Stable and repeatable electrical characteristics

• Compliance-focused design philosophy

• Flexible customization capability

FERRTX 1553B Data Bus Couplers provide dependable signal coupling for high-reliability data bus architectures.
