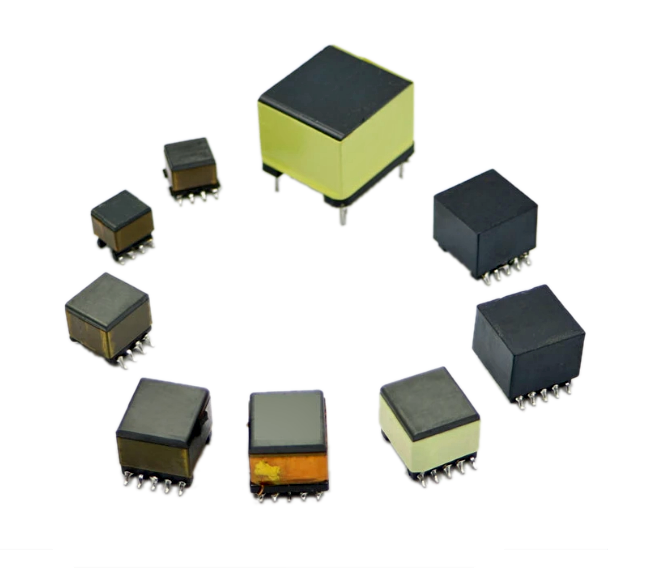

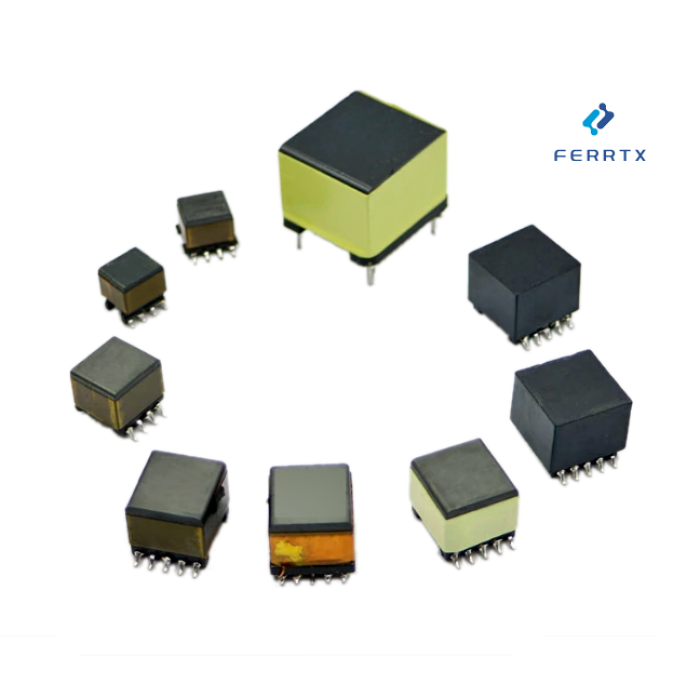

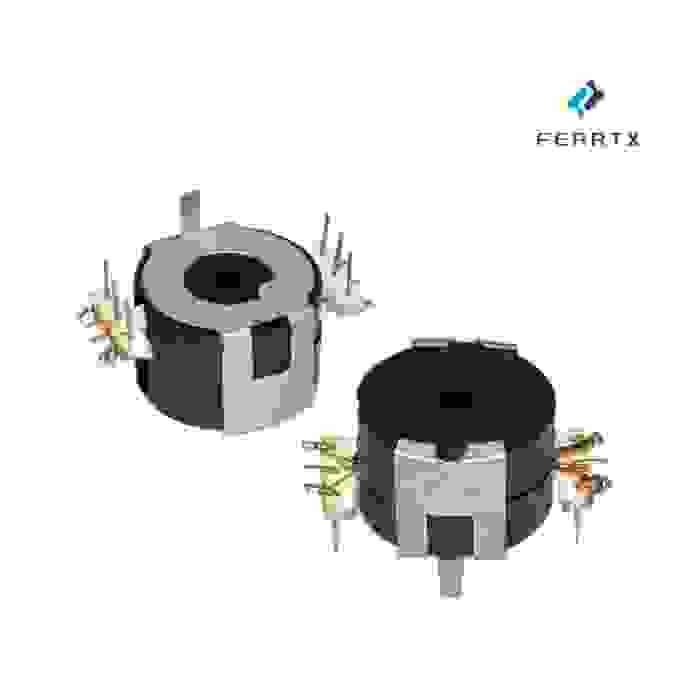

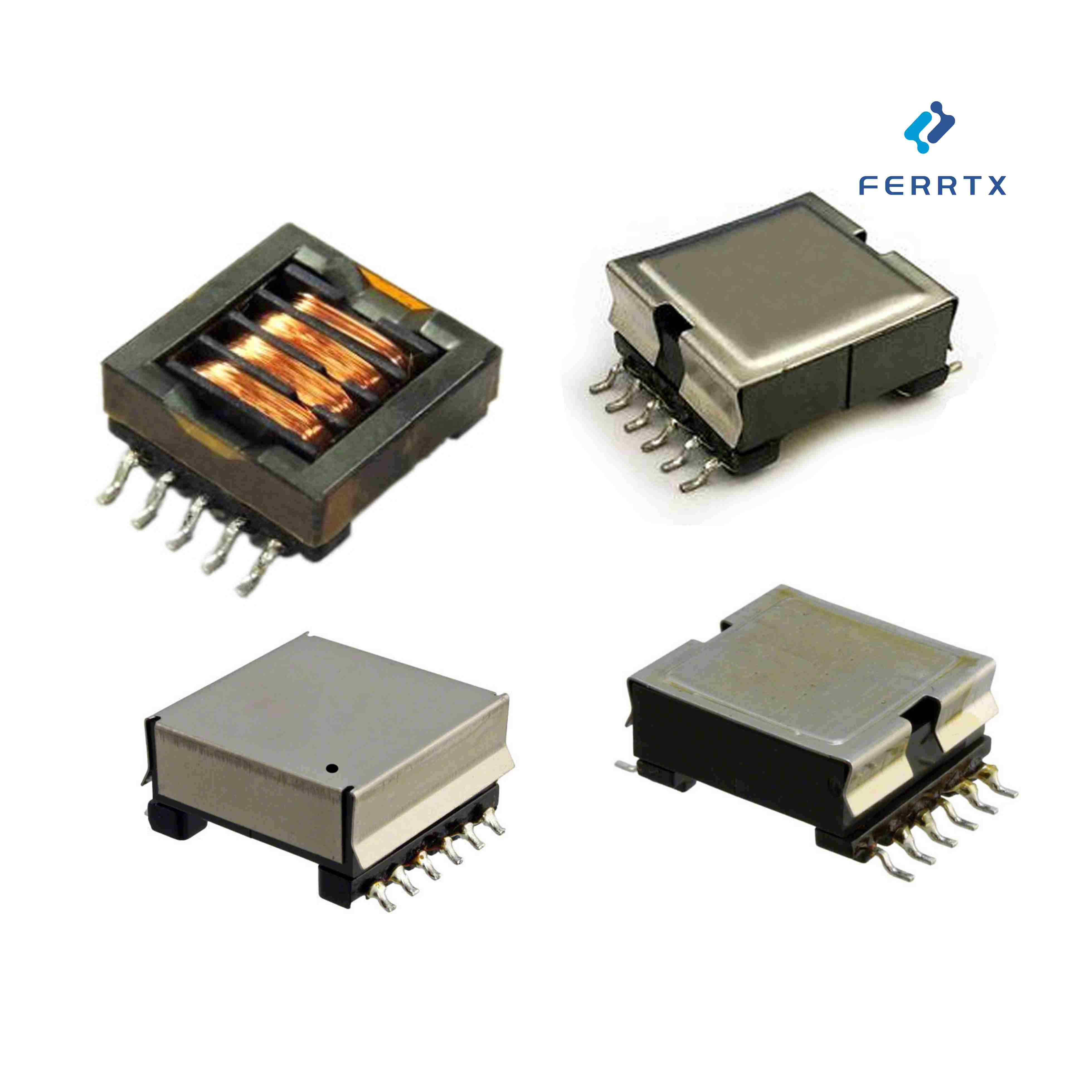

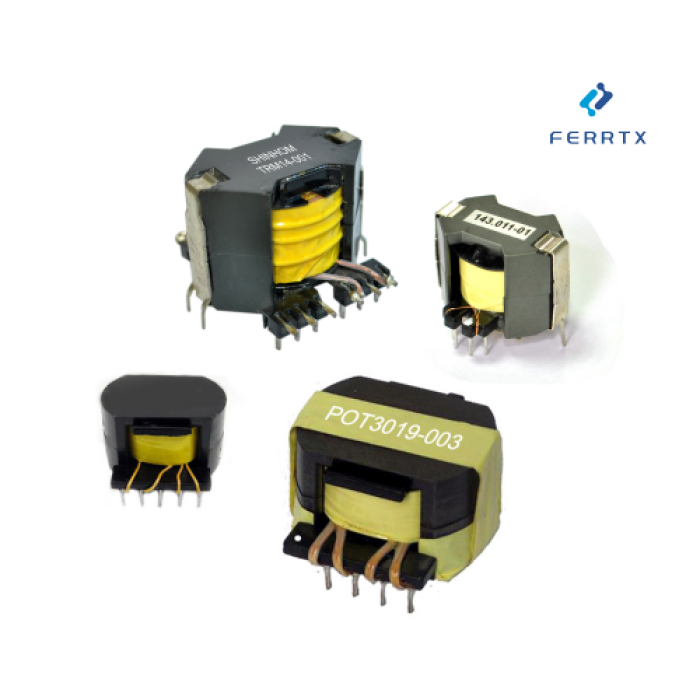

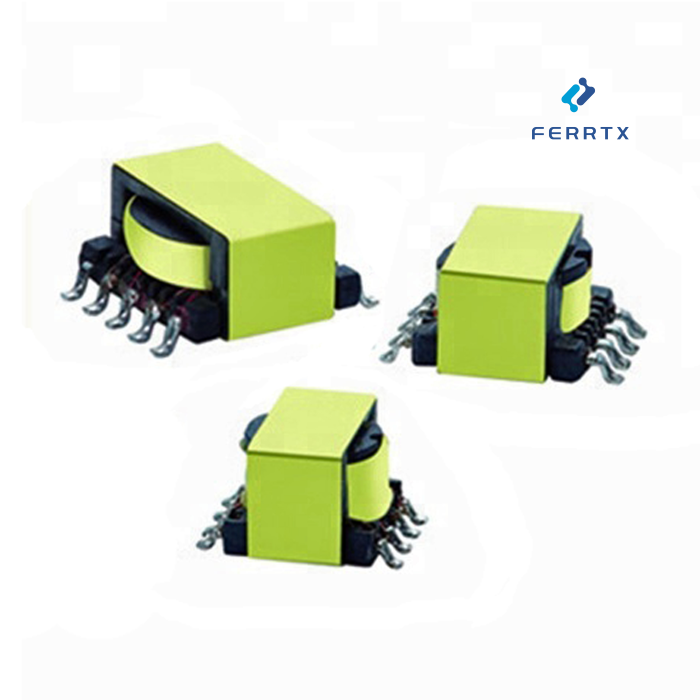

Telecom Transformers

FERRTX Telecom Transformers｜High Bandwidth Isolation for 5G Infrastructure

*UL/CSA/VDE Certified with 10mH Inductance & SMD Compatibility*

Signal Integrity Redefined

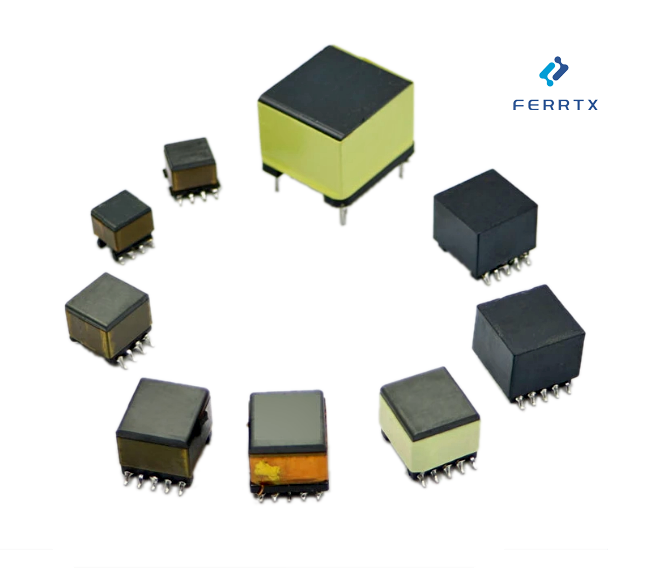

FERRTX Customized Telecom Transformers deliver breakthrough performance in modern communication systems. Engineered for >100MHz bandwidth and <1pF interwinding capacitance, they eliminate ground loop noise better than standard Communication Transformers. With surface-mount design and ultra-low leakage inductance (<2% typ.), they enable 50% denser PCB layouts in 5G base stations versus bulky lander transformers.

Core Engineering Advantages

• Triple-Shielded Isolation
  4kV dielectric strength prevents signal degradation in Broadband Internet backhauls

• Wide Frequency Response
  Supports xDSL/ISDN/PoE++ protocols (DC-150MHz)

• Global Safety Compliance
  Single solution for UL, CSA, VDE, BABT certifications

• EMI Suppression
  Reduces common-mode noise by 30dB vs. microphone splitter transformer

Critical Performance Parameters

▸ Inductance: 10mH @ 10kHz
▸ Leakage Inductance: <0.5μH
▸ Interwinding Capacitance: 0.8-1.2pF
▸ Isolation Voltage: 3kV AC/min
▸ Operating Temp: -40°C to +105°C

Target Applications

5G & Broadband Infrastructure
・Massive MIMO antenna interfaces
・FTTH ONT signal isolation
・DOCSIS 4.0 cable modems

Enterprise Communication
・PABX system line cards

Industrial IoT
・Modbus RTU/RS-485 isolators
・PLC Broadband Transformer replacements
・Smart grid RTU communications

Power Conversion
・AC-DC flyback converters
・DC-DC POL isolation
・UPS communication modules

Competitive Advantages

✅ Zero Signal Degradation
Maintains 0.1dB insertion loss @ 100MHz
✅ 40% Size Reduction
5×5mm SMD package vs. through-hole Broadband PLC Transformers
✅ Vibration Immunity
Withstands 10G mechanical stress (EN 60068-2-6)
✅ Custom Tuning

Design Insight: For 25GbE switches, pair with our EMI filters to achieve Class B EMC compliance.

FERRTX is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Telecom Transformers products.
