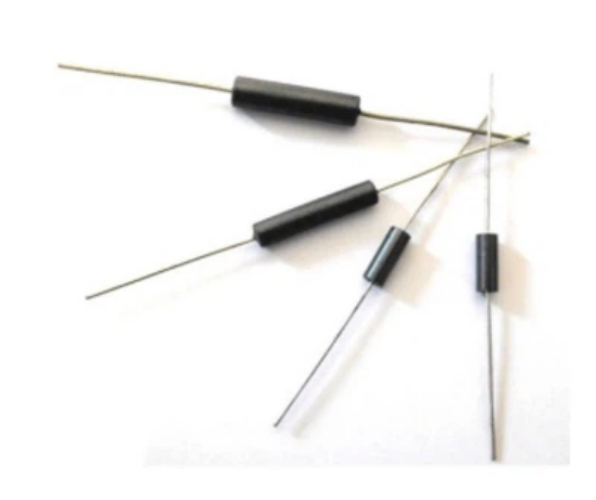

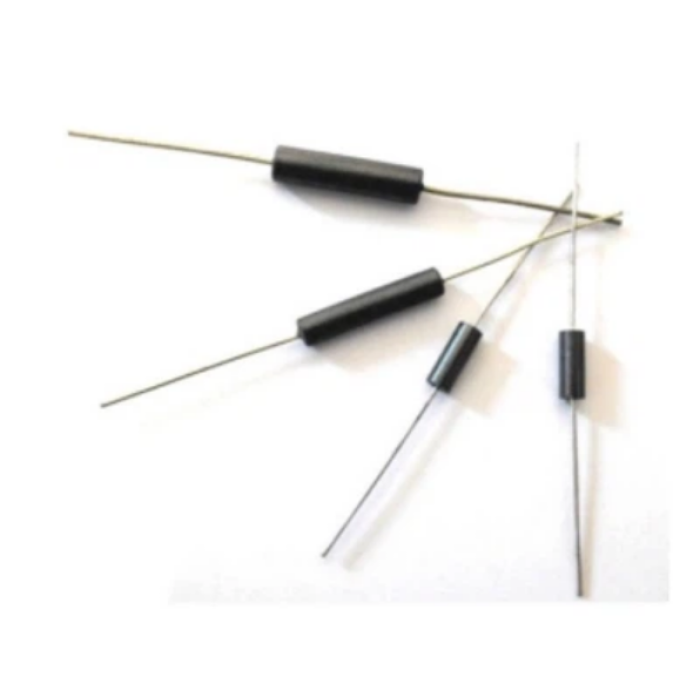

Through Hole EMI Filter Beads RWW

Ferrtx Through Hole EMI Filter Beads are designed to provide effective suppression of high-frequency electromagnetic interference in power and signal lines. Using optimized Emi Filter Ferrite materials, these beads offer stable impedance characteristics across a wide frequency range, making them ideal for industrial and electronic equipment requiring robust EMI control.

This page focuses specifically on the RWW series, which has been separated from the legacy product structure to meet targeted application and performance requirements.

EMI Filter Ferrite Beads – How They Work

An EMI filter ferrite bead functions by converting high-frequency noise energy into heat through magnetic losses, while allowing low-frequency signals and DC current to pass with minimal attenuation.

Compared with traditional ferrite bead inductor solutions, through hole ferrite bead filters provide:

• Higher current handling capability

• Improved mechanical stability

• Reliable performance in harsh environments

These characteristics make them suitable for both signal and power line noise suppression.

Key Features of RWW Series Ferrite Bead Filters

• Effective EMI Noise Suppression
  Optimized ferrite material ensures high impedance at noise frequencies.

• Through Hole Structure
  Provides strong mechanical strength and stable solder joints.

• Wide Frequency Coverage
  Suitable for broadband EMI filtering applications.

• Low DC Resistance
  Minimizes power loss while maintaining excellent filtering performance.

• Customizable Design
  Available as Customized EMI Filter Beads for specific impedance and current requirements.

The RWW series complements other EMI Filter components in complex EMC design environments.

Typical Applications

Ferrtx Ferrite Bead Filter solutions are widely used in:

• Power supply input and output filtering

• Industrial control systems

• Consumer electronics

• Communication equipment

• Automotive electronic modules

• DC-DC power modules

They are often used together with Power Line Common Mode Choke components to achieve multi-stage EMI suppression.

Advantages Over Conventional Ferrite Beads

Compared with SMD solutions, Through Hole EMI Filter Beads provide:

• Higher reliability under vibration and thermal cycling

• Better heat dissipation for high-current applications

• Easier integration in high-power or industrial PCBs

They are often selected as an alternative to SMD Common Mode Chokes when mechanical robustness is required.

Customized EMI Filter Beads Support

FERRTX offers full customization services for Customized EMI Filter Beads, including:

• Impedance vs. frequency optimization

• Current rating and ferrite material selection

• Lead spacing and mechanical dimensions

• Application-specific EMI compliance targets

Our engineering team works closely with customers to deliver optimized EMI solutions for demanding environments.

Why Choose FERRTX Ferrite Bead Filters?

• Dedicated Through Hole EMI Filter Beads product line

• Stable supply and consistent quality

• Flexible customization capability

• Proven EMI performance in industrial applications

FERRTX Ferrite Bead Filter solutions help designers achieve reliable electromagnetic compatibility with confidence.
