Brand: FERRITES
| Selling Units: | Piece/Pieces |
|---|---|
| Download: |
|
Suppression of High-Order Harmonic Interference
Magnetic beads are widely used in EMI Filter designs to suppress high-order harmonics in clock signals. The output of an active crystal oscillator, being a square wave with rich harmonics, can be effectively filtered by integrating Emi Ferrite Beads into the power supply's low-pass configuration.
Application in DC-DC Power Circuits

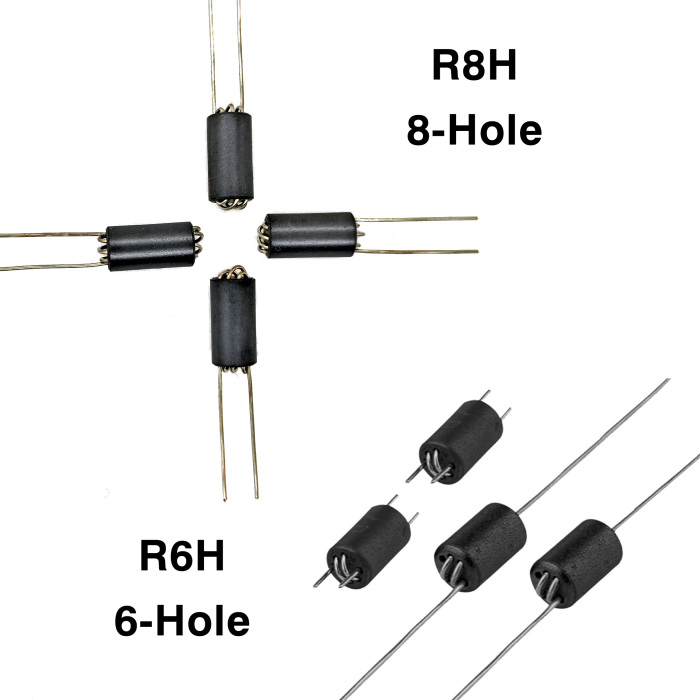

In DC-DC power systems, Through Hole EMI Filter Beads excel at suppressing high-frequency current noise. Since radiation emissions depend on noise current magnitude and loop area, strategic placement of Emi Ferrite Beads in high-frequency current paths during EMC debugging becomes critical.
Noise Isolation Between Module Circuits
For power line noise isolation between shared modules, Through Hole EMI Filter Beads provide decoupling without grounding constraints. Their implementation between circuit modules prevents noise coupling while maintaining EMI filter integrity across the system.
Series in this family
