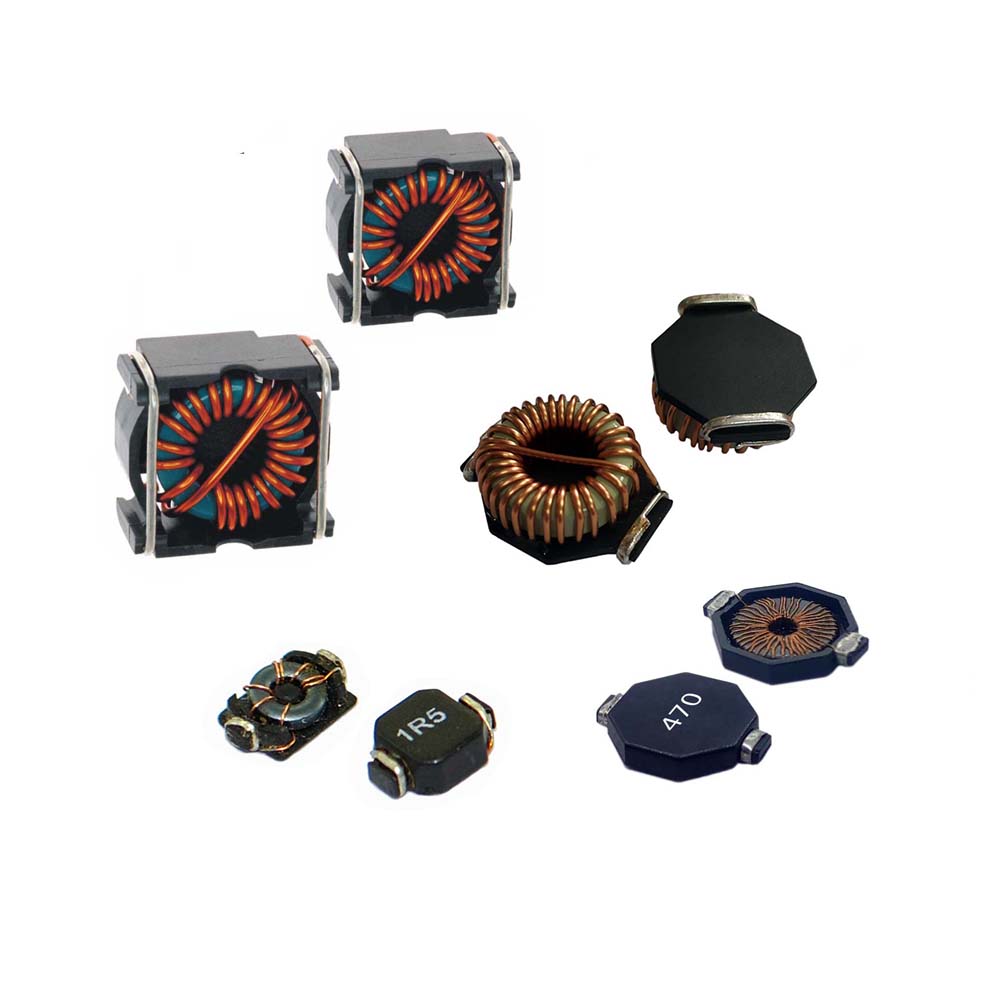

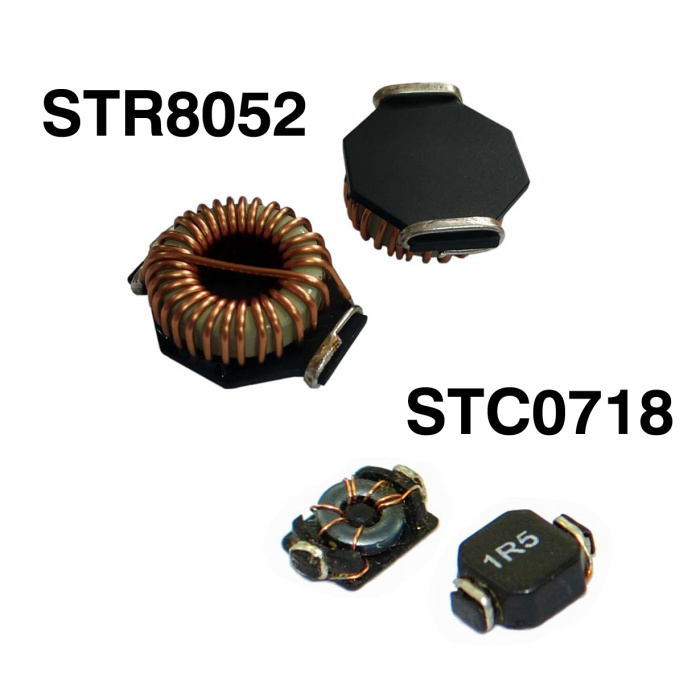

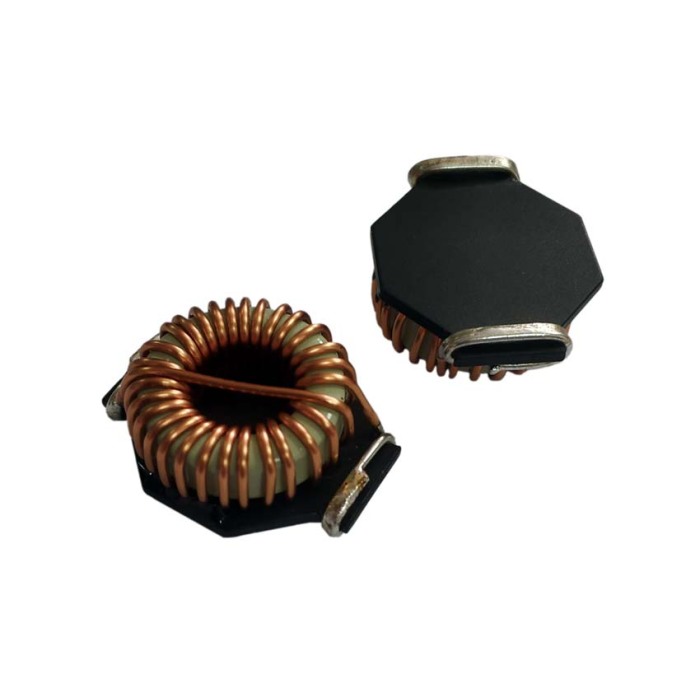

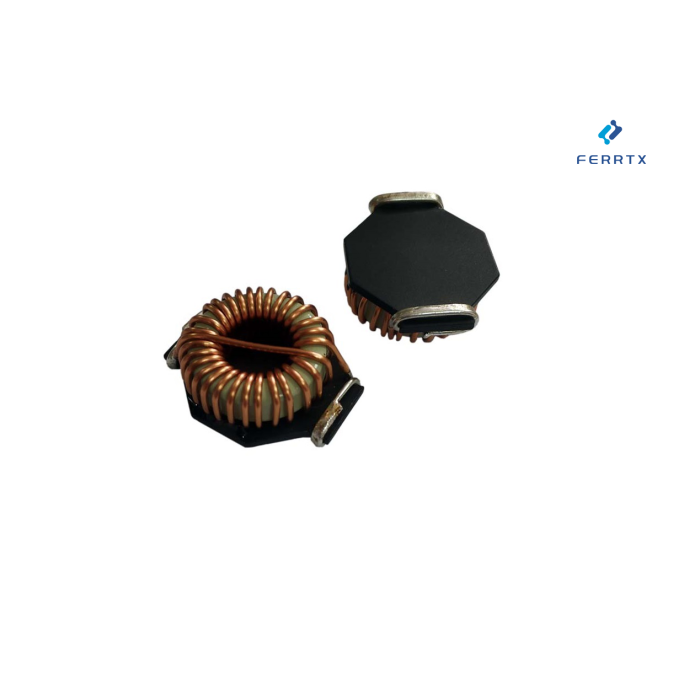

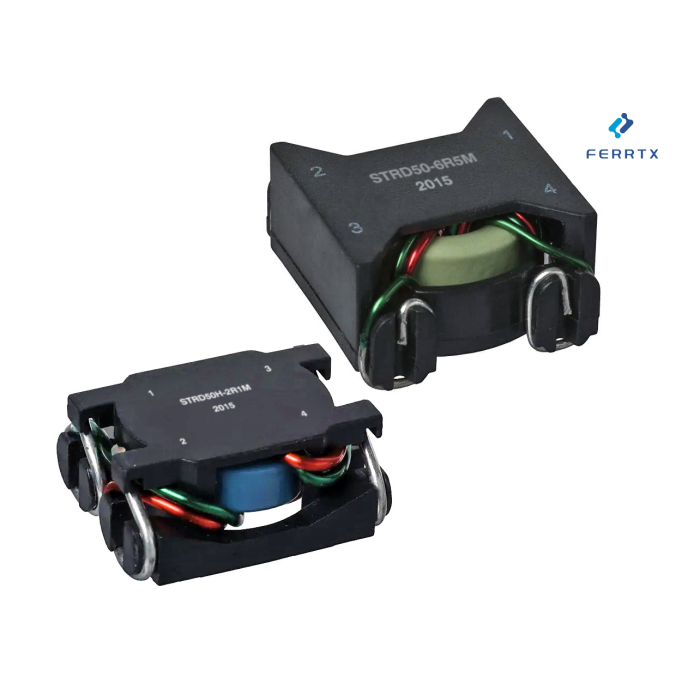

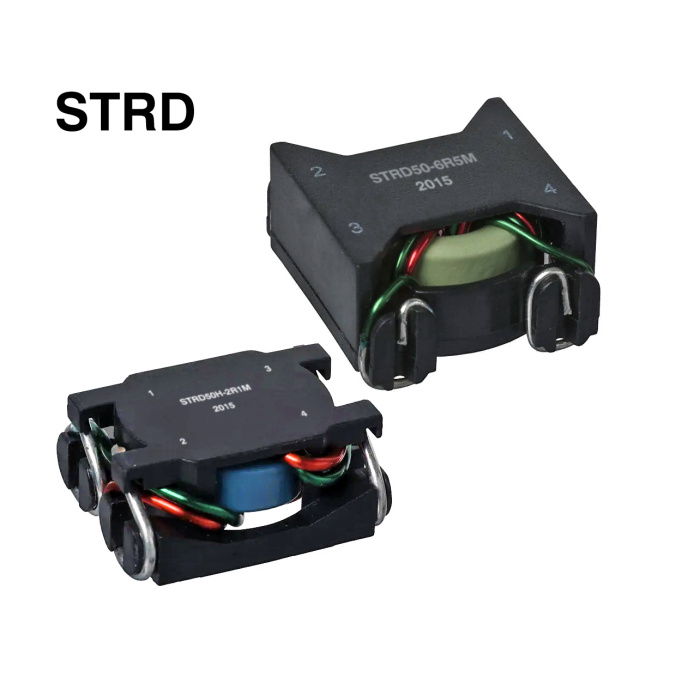

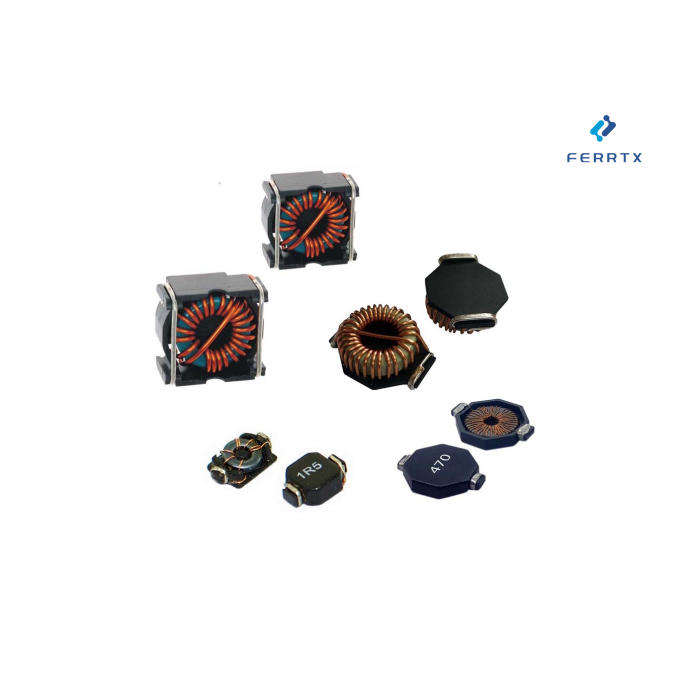

Toroidal Choke-SMD Toroidal Inductor

FERRTX SMD toroidal inductors are designed to deliver stable inductance and low magnetic leakage in space-constrained electronic systems.
By combining toroidal core geometry with surface-mount construction, these components provide reliable electrical performance while supporting automated PCB assembly.

This page focuses specifically on toroidal choke SMD designs, separated from traditional through-hole toroidal products to better serve modern SMT-based power architectures.

Toroidal Inductor Structure and Performance Benefits

A toroidal inductor uses a closed-loop magnetic core that confines the magnetic flux within the core material.
This structure offers several performance advantages:

• Reduced electromagnetic interference (EMI)

• Low external magnetic leakage

• High inductance stability

• Improved efficiency under load

Ferrtx toroidal designs are optimized for consistent performance across a wide operating range.

Toroidal Choke SMD for Surface-Mount Designs

Toroidal Choke SMD components combine the electrical advantages of toroidal geometry with the manufacturing efficiency of surface-mount technology.

Key benefits include:

• Compact footprint for high-density PCB layouts

• Mechanical stability during reflow soldering

• Consistent inductance after assembly

• Compatibility with automated pick-and-place processes

As part of our SMD Inductor portfolio, these products are well suited for modern power and signal conditioning circuits.

Electrical Characteristics of SMD Toroidal Inductors

FERRTX smd toroidal inductors are engineered to maintain electrical integrity in demanding applications.

Typical characteristics include:

• Wide inductance range

• Low DC resistance for reduced power loss

• High current handling capability

• Stable magnetic performance over temperature

In certain filtering or noise suppression designs, these inductors can complement or replace a Power Bead Inductor depending on system requirements.

Design Flexibility and Custom Options

To meet diverse application needs, Ferrtx provides both standard and customized SMD toroidal inductor solutions.

Customization options include:

• Inductance value and tolerance

• Rated current and saturation level

• Core material selection

• Package size and termination design

This flexibility allows designers to optimize performance without compromising board layout or assembly efficiency.

Typical Applications

FERRTX SMD toroidal inductors are widely used in:

• DC-DC converters

• Power management modules

• EMI suppression circuits

• Automotive and industrial electronics

• Communication and control systems

Their compact size and stable performance make them suitable for high-reliability SMT environments.

Why Choose FERRTX SMD Toroidal Inductors

With strong expertise in magnetic component engineering, Ferrtx delivers toroidal inductor solutions that balance electrical performance, manufacturability, and long-term reliability.
Our SMD toroidal products help engineers achieve efficient power conversion and clean signal integrity in compact electronic designs.
