Brand: FERRITES
| Selling Units: | Piece/Pieces |
|---|---|
| Download: |
|

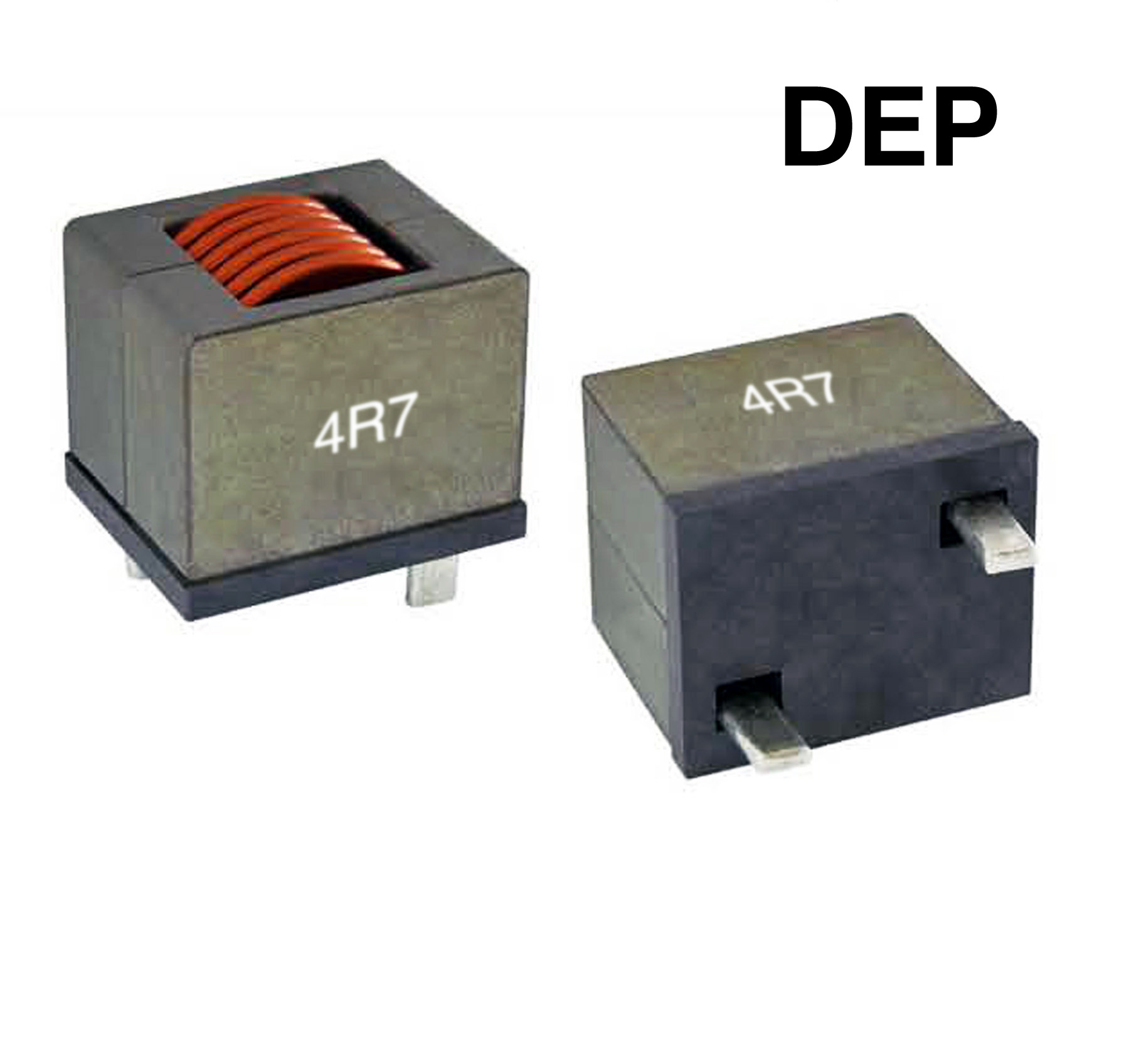

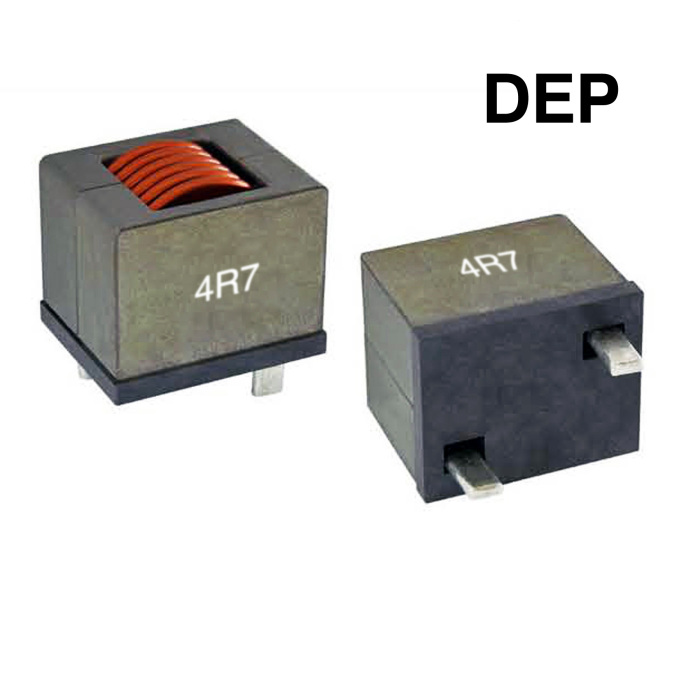

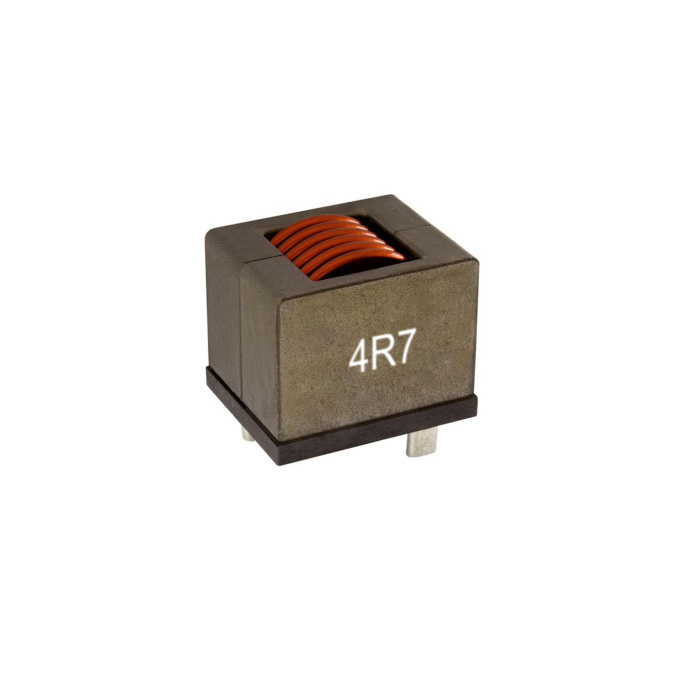

Class-D Power Inductors offer a wide selection of dual inductors and toroidal Power Inductor filters for Class D Inductor applications in amplifiers.
These class d amp inductor solutions extend battery life in DC-powered audio systems, such as automotive sound setups. Designed for low distortion and high sound quality, the dual inductors and toroidal filters optimize class d output inductor LC filters while saving board space with shielded packaging. AEC-Q200 Grade 1 qualified, RoHS/REACH compliant.
Series in this family
| Product Series | Inductance(µH)±20% | DCR(mΩ) | SRF(MHz) | Heat rating current Irms(A) | Saturation current Isat 1(A) | Saturation current Isat 2(A) |
| DEP2520 | 1.2-10 | 0.3-2.0 | 8-90 | 30-80 | 30-110 | 45-150 |
| DEP3231 | 6.2-30 | 0.55-2.45 | - | 30-68 | 47-100 | - |
| DEPM4233 | 3.3-470 | 0.75-11.55 | 3.6-27.7 | 17.5-44 | 3-92 | 3.6-95 |
