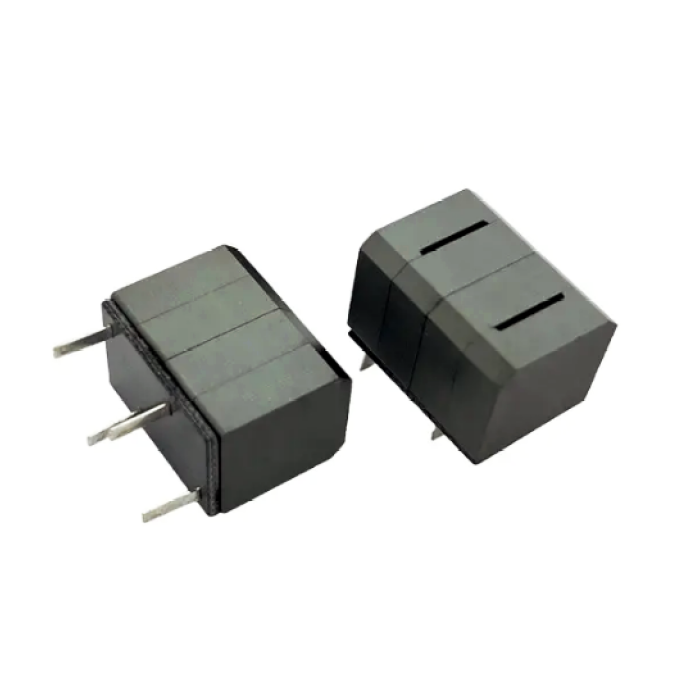

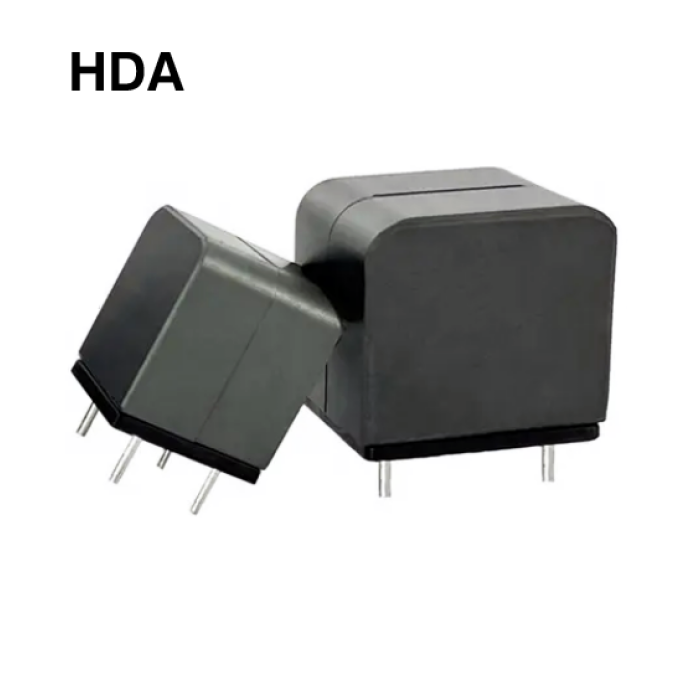

High Efficiency Class D Audio Inductor HDA
High Efficiency Class D Audio Inductor HDA

High Efficiency Class D Audio Inductor HDA

Get Latest Price
    Share:
    Features:
    • Min. Order: 1 Piece/Pieces
    Description
    Product Attributes

    BrandFERRTX

    Packaging & Delivery
    Selling Units: Piece/Pieces
    Download:
    Product Description
    Power Inductor For Digital Amplifier‌

    The ‌High Quality Class-D Inductor HDA‌ is a premium ‌Power Inductor‌ engineered for high-performance audio systems. Utilizing advanced ‌Class D Inductor‌ technology, it combines magnetically shielded construction (for ultra-low radiation noise) with super-high current handling and minimal resistance to deliver pristine sound quality.

    inductor for class d amplifier

    Optimized for ‌class d amp inductor‌ applications like digital amplifiers and car audio systems, this ‌Power Inductor‌ operates reliably across -40℃ to +130℃ and complies with RoHS standards.

    Key Features‌

    • ‌Low Noise & High Efficiency‌:
      • The ‌Class D Inductor HDA‌’s shielded design reduces radiation noise, while its ‌Power Inductor‌ architecture supports super-high current (e.g., car audio amplifiers).
    • ‌Thermal Resilience‌:
      • Stable performance from -40℃ to +130℃, ideal for ‌Servo class d output inductor‌ applications in industrial audio equipment.
    • ‌Broad Compatibility‌:
      • Works seamlessly as a ‌Class D Amp Inductor‌ in home theaters, digital amps, and automotive sound systems.

    Applications‌

    • ‌Car Audio Systems‌:
      • ‌Class D Inductors‌ minimize distortion in high-power car amplifiers.
    • ‌Home Theater & TVs‌:
      • ‌Servo Class D Output Inductors‌ enhance clarity in 5.1ch surround sound and LCD/PDP TV audio modules.
    • ‌Industrial Audio Equipment‌:
      • ‌Power Inductors‌ ensure reliable current handling in rugged environments.
    • ‌Digital Amplifiers‌:
      • ‌Class D Amp Inductors‌ optimize efficiency and thermal management.

    Series in this family

    Product Series Inductance(µH)±20% DCR Max(mΩ) Isat Max(A) Irms Max(A) D(mm)
    HDA1010 10-15 18-23 4.3-7.5 4.0-5.5 0.4-1.2
    HDA1010AG 10-33 20.5 2.0-7.5 4.5 0.6
    HDA1315B 10-33 5.6-16 3.8-7.0 5.5-8.5 0.33-0.5
    HDA1315E 10-33 10-12 3.5-11.0 7.0-7.5 -
    HDA1416A 10-33 15-28 5.5-11.5 5.0-7.0 0.65-0.8
    HDA1416B 10-47 6.5-20 6.0-9.0 5.0-8.0 1.8
    HDA1416C 10-27 12-20 9.0-15.0 5.0-7.0 1.8
    HDA1416D 10-33 15-28 5.5-11.5 5.0-7.0 0.65-0.8
    HDA1516 10-33 11-22 5.5-11.0 4.5-7.0 0.6-0.8
    HDA1521A 10-33 11-33 8.5-14.0 5.0-7.7 0.7-0.9
    HDA1719 10-47 7.0-34 8.0-22.0 5.0-12.0 -
    HDA1931A 10-33 4.0-8.2 25.0-50.0 10.0-18.0 -
    HDA2023A 10-33 8.0 12-36 10-12 -
    HDA2023B 10-33 8.3-12.0 11.0-31.5 8.0-9.1 1.1-1.2
    HDA3718H 10-33 - - - 1.8-2.4
    HDAS0910 10-22 22-52 3.2-5.0 2.5-3.9 -
    HDAS1010 10-22 18-38 4.3-7.1 3.5-4.2 -
    FERRTX is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Class-D Inductor HDA products.
