How to Choose the Right 40A Power Inductor for Your Smartwatch Design?

This article delves into the importance of these specialized components, guiding you through their selection criteria to optimize your smartwatch designs for performance and reliability.

The Critical Role of Power Inductors in Smartwatches

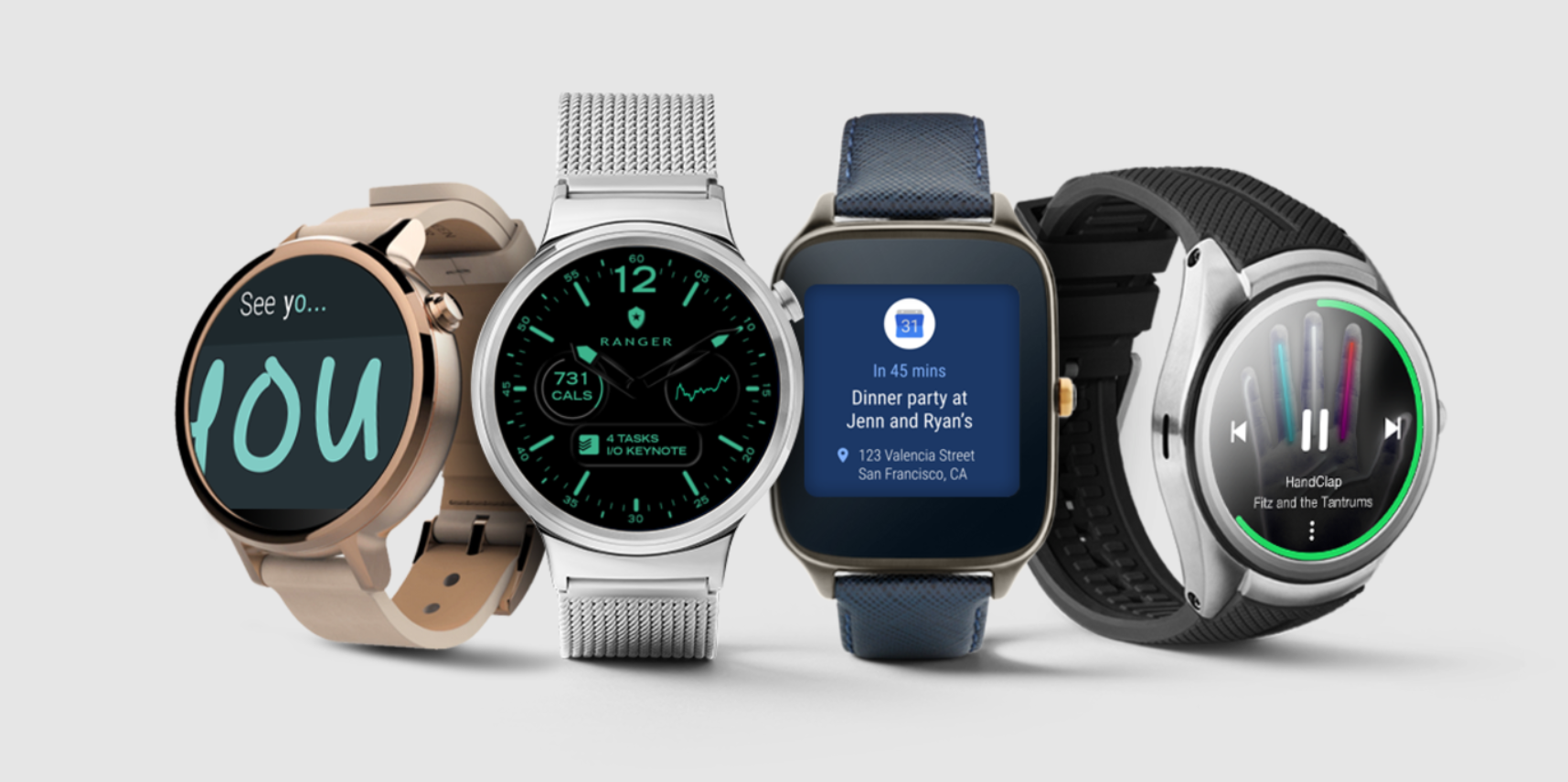

Modern smartwatches are expected to deliver a multitude of features—from health monitoring and GPS tracking to always-on displays and notification syncing—all while maintaining extended battery life. The power management unit (PMU) is at the heart of this endeavor, and inductors are vital components within these circuits. They function primarily in DC-DC converters, helping to step up or step down voltages efficiently to power different subsystems of the device.

However, not all inductors are created equal. The choice of inductor directly influences:

• Power Conversion Efficiency: Affecting how long the battery lasts between charges.
• Thermal Performance: Impacting user comfort and component longevity.
• Overall Device Size and Thickness: Determining the watch's aesthetics and wearability.

Key Specifications for Smartwatch Power Inductors: The 40A/1.0mm Advantage

When selecting a power inductor for a space-constrained application like a smartwatch, several electrical and physical parameters demand careful attention. Here’s why a 40A/1.0mm height inductor is often the ideal choice:

1. High Current Handling (40A)

The saturation current (Isat) rating, which indicates the current level at which the inductor's inductance drops by a specific percentage (typically 30%), is crucial. A 40A rating ensures the inductor can handle high transient currents without significant performance degradation. This is vital for moments when the smartwatch requires a sudden power surge, such as during a GPS lock or when activating a power-intensive Sensor.

2. Ultra-Low Profile (1.0mm Height)

With consumers demanding slimmer and more elegant smartwatches, every millimeter of Z-height inside the casing is precious. Inductors with a maximum height of 1.0mm are designed to fit into these incredibly tight spaces without compromising the device's sleek design.

3. Low DC Resistance (DCR)

Power loss in an inductor primarily occurs as heat due to its DC resistance (DCR). A lower DCR means higher efficiency and less heat generation. This is paramount in a device worn on the wrist, as excessive heat is undesirable for both user comfort and battery safety. It also contributes directly to improved battery life.

4. Magnetically Shielded Construction

shielded inductors, often using magnetic powder molding, contain their magnetic flux. This prevents electromagnetic interference (EMI) with other nearby components, such as sensors and wireless communication chips (Bluetooth, Wi-Fi). This shielding is essential for maintaining signal integrity and reliable device operation.

5. Stable Performance Across Temperatures

Smartwatches experience a range of temperatures, from a chilly morning run to being left in a hot car. Inductors must maintain stable electrical characteristics across this range to ensure consistent performance.

A Practical Guide to Selecting Your Inductor

Choosing the right inductor involves more than just matching current and size. Here’s a step-by-step approach:

1. Define Your Circuit Requirements: Start by determining the needs of your DC-DC converter—operating voltage, typical and peak current loads, switching frequency, and the required inductance value.
2. Prioritize Key Parameters: For smartwatches, size (height), saturation current (Isat), and DCR are often the most critical constraints. Ensure your selected part meets the minimum requirements for these.
3. Evaluate Trade-offs: Understand the trade-offs. For example, a higher inductance value might typically require a larger component or result in a higher DCR. The goal is to find the optimal balance for your specific application.
4. Consider Reliability and Compliance: Choose components from suppliers that ensure RoHS compliance and halogen-free materials. Consider the operating temperature range to guarantee reliability under all conditions.
5. Review Application Benchmarks: Look for components that have a proven track record in similar applications. For instance, inductors are successfully used in TWS headsets, smartwatches, and other wearable electronics, demonstrating their suitability for compact, battery-powered devices.

Why Choose Ferrtx Inc. as Your Power Inductor Supplier?

Selecting the right component is only half the battle; choosing the right OEM supplier is equally important. At Ferrtx Inc., we specialize in designing and manufacturing high-performance, ultra-compact power inductors tailored for the demanding wearable electronics market.

Our LPS series of SMD power inductors (e.g., LPS3010) exemplify our commitment to innovation:

• Magnetically Shielded: Utilizing magnetic powder molding for minimal EMI and superior EMC protection.
• Miniature Size: Offering options as low as 3.0x3.0mm with a height of just 1.0mm max.
• High Performance: Engineered for high efficiency, low DCR, and high current handling.
• Lead-Free and RoHS Compliant: Meeting global environmental standards.
• Automated Mounting Support: Supplied in tape and reel packaging for high-volume manufacturing efficiency.

Our components are integral to power management in a wide range of applications, including cellular phones, DVCs, DSCs, PDAs, LCD displays, HDDs, and, of course, smartwatches and other wearable devices.

Conclusion: Powering Smarter, Slimmer Wearables

The relentless pursuit of thinner form factors and longer battery life in smartwatches hinges on the advanced components within them. The 40A/1.0mm power inductor represents a significant enabler for designers, offering a blend of high current capacity, ultra-low profile, and efficient power conversion that is essential for next-generation wearable devices.

By carefully considering the specifications and trade-offs outlined in this article, you can make an informed decision that enhances the performance, reliability, and user experience of your smartwatch designs.

Ready to integrate high-quality, reliable power inductors into your smartwatch designs? Contact our team of experts today to discuss your specific requirements and request samples.Email: sales@ferrtx.com
