Why Are AEC-Q200 Shielded Inductors the Hidden Hero in Automotive Power Designs?

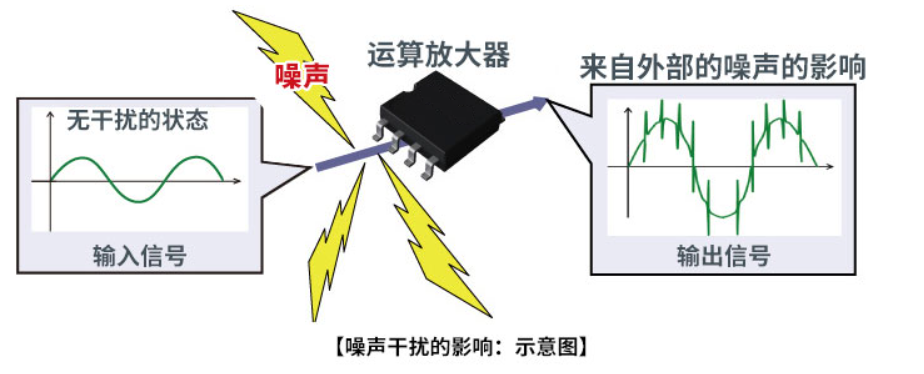

‌The Growing EMI Challenge in Modern Vehicles‌

Today's automobiles contain over 3,000 Electronic Components, from ADAS sensors to infotainment systems, all competing for space and power.

The shift to 48V architectures in EVs and hybrids has made electromagnetic interference (EMI) suppression more critical than ever.

‌Key Pain Points for Engineers:‌

• ‌EMI "noise pollution"‌ disrupting radar and LiDAR signals
• ‌Thermal stress‌ causing inductor performance drift
• ‌Space constraints‌ demanding smaller yet higher-power components

This is where ‌AEC-Q200 shielded inductors‌ like the ‌FERRTX LPM series‌ emerge as game-changers.

Breaking Down the Automotive-Grade Advantage
‌

‌1. AEC-Q200 Certification: More Than Just a Badge‌

The automotive qualification involves:

• ‌1,000-hour thermal cycling tests‌ (-55°C to +150°C)
• ‌Mechanical vibration resistance‌ (up to 20G acceleration)
• ‌Humidity exposure‌ (85°C/85% RH for 1,000 hours)

Real-world impact: A Tier 1 supplier reduced warranty claims by 42% after switching to AEC-Q200 inductors in ECU designs.

‌2. The Low DCR Revolution‌

FERRTX's ‌molded inductors with <10mΩ DCR‌ help:

• Improve efficiency in 48V-to-12V DC/DC converters
• Reduce heat generation in confined spaces like battery packs
• Extend component lifespan by lowering thermal stress

‌3. High Saturation Current in Action‌

Case study: An autonomous driving module required inductors handling ‌30A transient currents‌ during Sensor activation. The ‌FERRTX LPM series‌ prevented magnetic saturation that caused false alerts in competitor designs.

Why Shielding Matters More Than You Think‌

‌Comparative Data (Shielded vs. Unshielded):‌

Industry insight: Tesla's 2024 patent application highlights shielded inductors as key to minimizing EMI in their next-gen drive units.

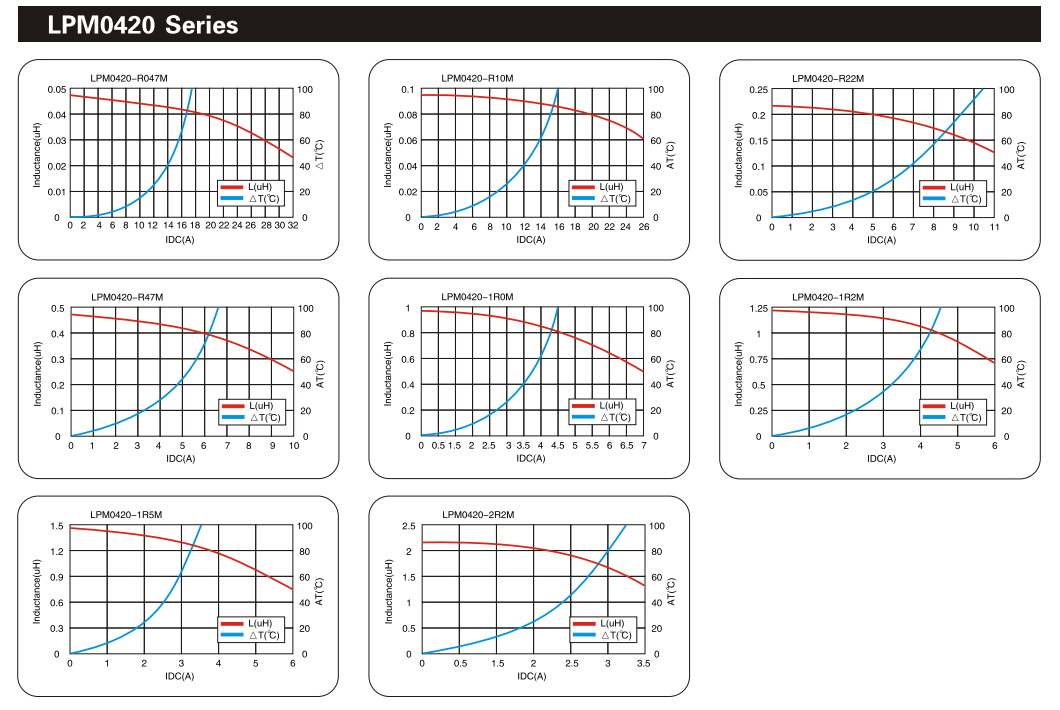

FERRTX LPM Series: Engineered for Automotive Excellence‌

‌Product Highlights:‌

• ‌AEC-Q200 compliant‌ for all automotive applications
• ‌Customizable shielding‌ (nickel-zinc or manganese-zinc options)
• ‌Integrated thermal management‌ pads for better heat dissipation

"We achieved 92% efficiency in our onboard charger using FERRTX inductors—2% higher than our target." — Lead Engineer, EV Startup

Your Turn to Solve Tomorrow's Challenges‌

Whether you're designing:

• ‌Wireless charging systems‌ needing ultra-low noise
• ‌Motor drives‌ requiring high surge current tolerance
• ‌Zone controllers‌ with space constraints

‌FERRTX delivers:‌
Pre-tested EMI performance reports‌
Bulk order discounts for Tier 1 suppliers‌
24-hour technical support‌

‌Email us today:‌ sales@ferrtx.com
Ask about our ‌free design-in assistance‌ for qualified projects
