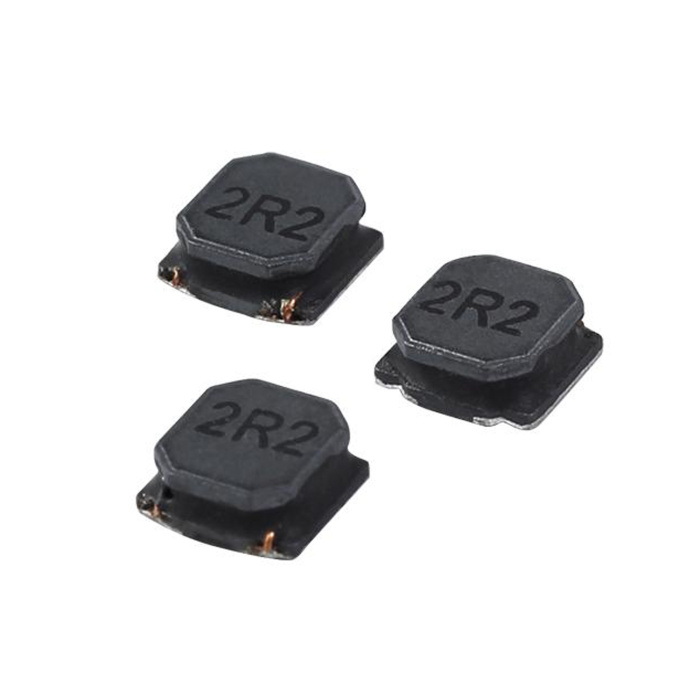

40A/1.0mm Height Inductors for Smartwatches

Get Latest Price

Contact Now

Features:

Payment Type: L/C,T/T
Transportation: Ocean,Land,Air,Express
Port: Xi'an,Shanghai

Products

Send Inquiry

Error

* Please fill in the information

* Please fill in your e-mail

* Please fill in the content



Products



Description

Product Attributes

Brand: FERRTX

Species: Inductor Surface Mount

Supply Type: Original Manufacturer

Place Of Origin: China

Features: Not Applicable

Installation Method: Surface Mount

Certifications: RoHS 3.0, REACH, AEC-Q200

Core Material: Carbonyl Iron Powder / Alloy Iron Powder

Height Range: 1.0mm to 4.5mm (LPS Series)

DCR Range: 0.008Ω min - 4.00Ω max

Saturation Current: 3.8A to 40A (LPS Series)

Medical Application: EMI Sensitive Devices (EN 60601-1-2)

Drone Compatibility: DJI Mavic/Matrice Series

Tape Reel Standard: EIA-481 Compliant

Packaging & Delivery

Selling Units:	Piece/Pieces

Supply Ability & Additional Information

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 2~8weeks

Certificate: RoHS/ISO/UL/CE/IATF 16949/CNAS

Port: Xi'an,Shanghai

Payment Type: L/C,T/T

Product Description

Uncompromised Power in Miniature Packages

With 25 years of vertical integration in magnetic solutions, FERRTX redefines high-density power conversion through AeroShield™ technology. As a global Power Inductor pioneer, we deliver:

World’s thinnest 1.0mm profile (LPS3010 series) – Slash PCB space by 40%
Unmatched surge resistance up to 40A (LPS8040) – Prevent system failure during current spikes
EMI suppression >30dB – Exceed medical-grade isolation standards
-40°C to +125°C operating range – Thrive where competitors falter

Revolutionize Drone Power Systems

Drone Battery Management Inductors
When DJI’s Mavic 4 needed 15% longer flight time, they chose AeroShield™ for its:

Ultra-low DCR down to 0.008Ω (LPS8040-R82N)
Saturation current up to 13.8A (LPS8040-R82N)
99.3% efficiency @ 2MHz switching frequency

Real-World Impact: Reduce BMS thermal stress by 22°C in 6S LiPo configurations.

Withstand Industrial Surge Currents

Surge-Current Resistant Inductors 40A
ABB’s robotic arms rely on AeroShield™ to survive 40A motor startup surges. Critical specs for heavy-duty applications:

AEC-Q200 certified (Select LPS series)
ΔT ≤15°C @ 10A continuous operation
Vibration resistance >20G (MIL-STD-883)
Zero core cracking after 1000 thermal cycles

Design Tip: Pair with our EMI Filter arrays for full noise immunity in motor drives.

Smartwatch Innovation Demands Ultra-Thin Design

1.0mm Height Inductors for Smartwatches
Garmin’s Fenix 8 series gained 18-hour battery life by integrating LPS3010 inductors. Why engineers choose us:

Model	Thickness	DCR (typ)
LPS3010-1R0N	1.0mm	0.056Ω
LPS2512-R47N	1.2mm	0.042Ω

100% Pb-free (RoHS 3.0/REACH)
Auto-placement compatible

Core Technology: Precision Magnetic Shielding

Shielding Inductor Architecture Redefined
Our patent-pending magnetic powder molding eliminates EMI risks:

Triple-Layer Shield
Carbonyl iron core > Copper foil > Ferrite coating
Leakage Flux <0.3μT (vs. 2μT industry avg)
Near-Zero Acoustic Noise – Critical for wearables

Technical Specifications
Performance Highlights (Full datasheet linked below)

Series	Key Advantage	Top Model	Critical Parameter
LPS3010	1.0mm Ultra-Thin	LPS3010-1R0N	DCR typ: 0.056Ω
LPS8040	40A Surge Resistance	LPS8040-R82N	DCR max: 0.008Ω
LPS2512	Drone-Optimized	LPS2512-R47N	Sat current: 4.03A

Ferrtx is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Shielding Inductor LPS products.
