How to Choose the Right Toroidal Inductor for Your DC-DC Converter and Reduce EMI

Are you struggling with electromagnetic interference (EMI) in your DC-DC converter designs? Do you find it challenging to select the right Power Inductor that balances low DCR, high saturation current, and minimal EMI radiation? If so, you’re not alone. EMI issues can cripple performance in applications like car audio systems, industrial electronics, and portable devices. The solution might lie in a component you’ve overlooked: the toroidal inductor.

Why Toroidal Inductors Are EMI Superstars

Toroidal inductors, like our surface mount toroid choke series, are renowned for their ability to minimize electromagnetic emissions. Unlike traditional inductors, their closed-loop design contains magnetic flux effectively, reducing stray radiation. This makes them ideal for low EMI power inductor applications where noise suppression is critical. For example, in DC-DC converters, where switching noise can interfere with sensitive circuits, toroidal inductors significantly attenuate both common-mode and differential-mode noise.

Key Considerations When Choosing a Toroidal Inductor

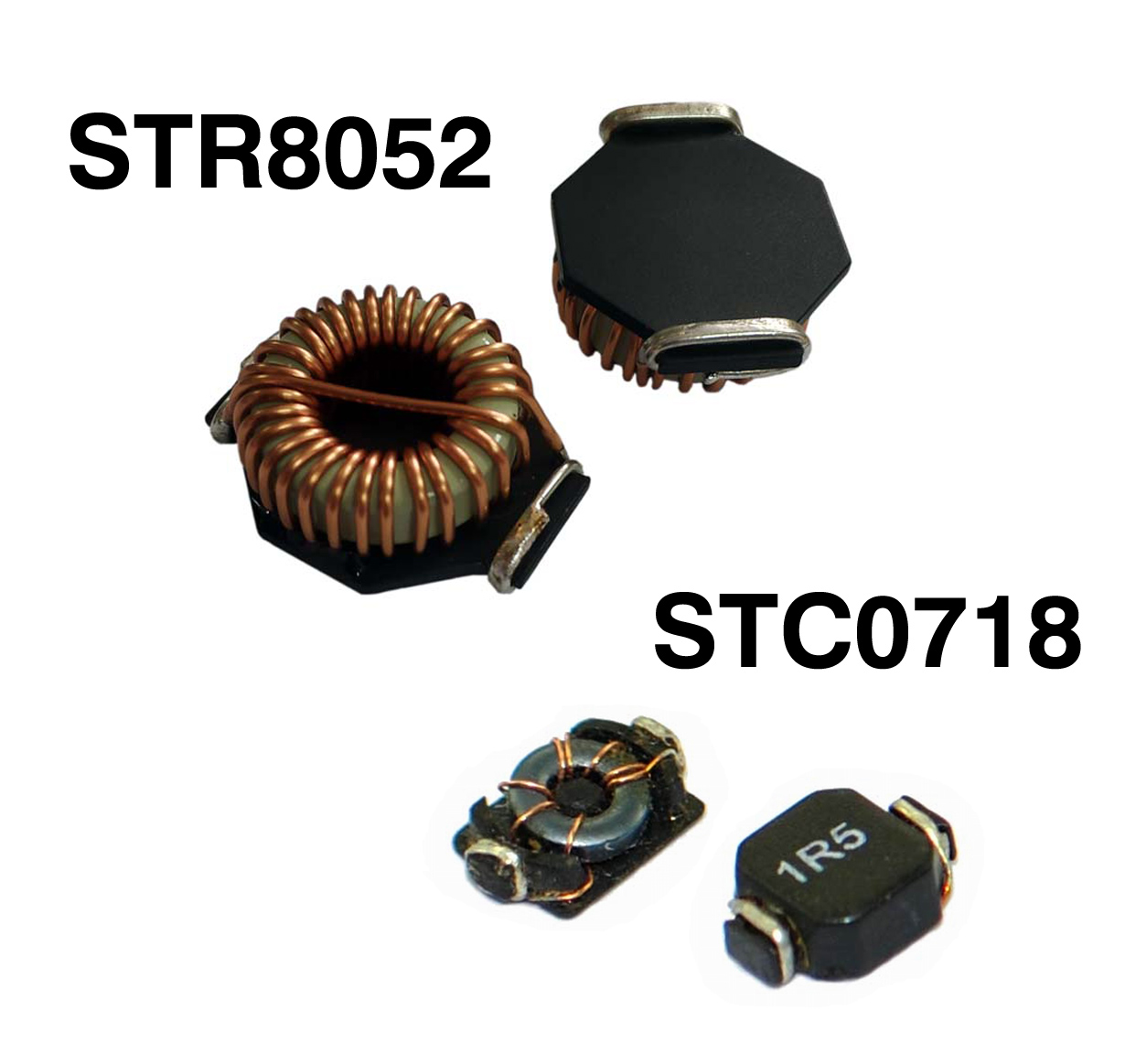

Low DCR Power Inductor: DC resistance (DCR) directly impacts efficiency. High DCR leads to power loss and heat generation. Our STR series inductors, such as the STR8052B, offer DCR as low as 2mΩ, ensuring minimal energy loss even at currents up to 22.7A.
High Saturation Current Inductor: Saturation current determines the inductor’s ability to handle peak loads without performance degradation. For instance, the STR44H series supports saturation currents up to 12.2A, making it suitable for high-power applications like car audio systems.
Low EMI Radiation Inductor: Toroidal cores inherently reduce EMI, but advanced designs (e.g., integrated windings) further enhance noise suppression. This is crucial for compliance with EMC standards in consumer electronics[CITATION:5].

Applications: Where Toroidal Inductors Shine

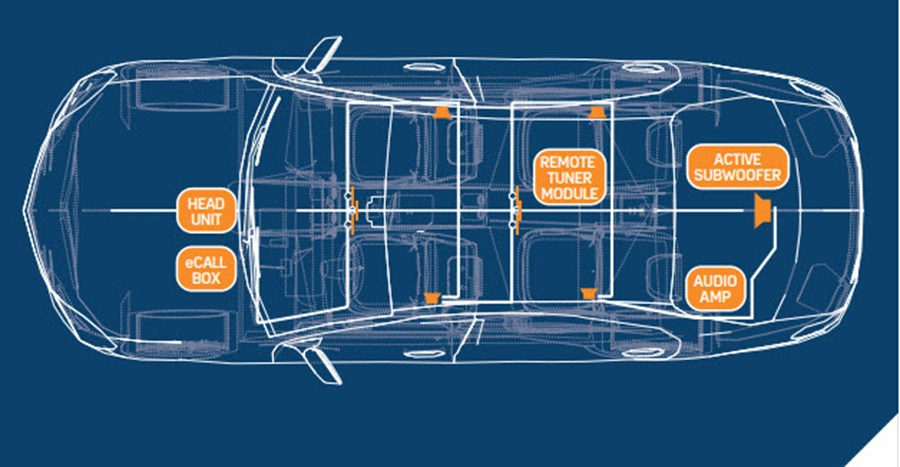

Car Audio Power Inductor: In automotive environments, space is limited, and noise sensitivity is high. Toroidal inductors provide clean power delivery to amplifiers, reducing audible noise and improving sound quality.
DC-DC Converters: Whether in handheld devices or industrial power supplies, toroidal inductors like the STC0718 series offer ultra-low profiles (1.8mm max height) and high current ratings (up to 3A), enabling compact yet efficient designs.

Practical Tips for Reducing EMI with Toroidal Inductors

PCB Layout: Place inductors close to switching nodes to minimize loop areas and reduce radiative noise.
Filtering: Combine toroidal inductors with ceramic capacitors to create π-filters that suppress high-frequency noise.
Material Selection: Powdered iron cores (used in our STR series) offer high saturation and low core losses, ideal for high-frequency applications.

The FerrTX Advantage

At FerrTX, we specialize in low EMI radiation inductor solutions that meet rigorous industry standards. Our products, such as the STR8052B and STC0718 series, are designed to deliver high performance in the most demanding environments. With custom inductance values available and RoHS compliance, we ensure your designs are both efficient and future-proof.

Conclusion

Choosing the right toroidal inductor isn’t just about specs—it’s about understanding your system’s noise landscape and selecting a component that tackles EMI at its source. Whether you’re designing a car audio power inductor system or a compact DC-DC converter, FerrTX’s toroidal inductors offer the perfect blend of low DCR, high saturation current, and EMI suppression.

Ready to silence EMI for good? Contact our team at sales@ferrtx.com to explore how our toroidal inductors can transform your next project.
