How to Choose a High Current Inductor for VRM?

Is Your Data Center Power Struggling? How to Choose the Right High Current Inductor for VRM and Boost Efficiency

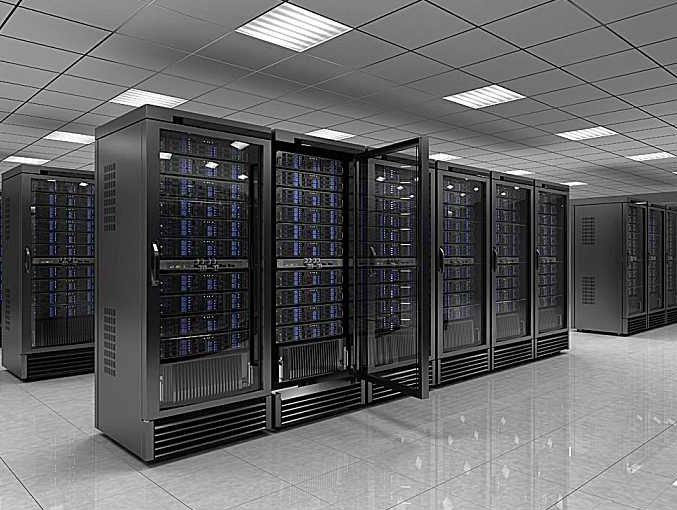

In the relentless pursuit of more computational power, data center infrastructure faces immense pressure. Power delivery, especially to advanced CPUs, GPUs, and ASICs in servers and AI accelerators, is a critical bottleneck. A cornerstone of this power delivery network (PDN) is the Voltage Regulator Module (VRM), and at the heart of an efficient VRM lies a critical component: the high current inductor. Selecting the wrong one can lead to inefficiency, thermal nightmares, and system instability. So, how do you choose a high current inductor for VRM applications that meets the rigorous demands of modern data center power systems?

The Heart of the Matter: Key Inductor Parameters for VRM Success

Choosing the optimal inductor isn't just about picking a value from a catalog. It requires a deep understanding of how key parameters impact real-world performance:

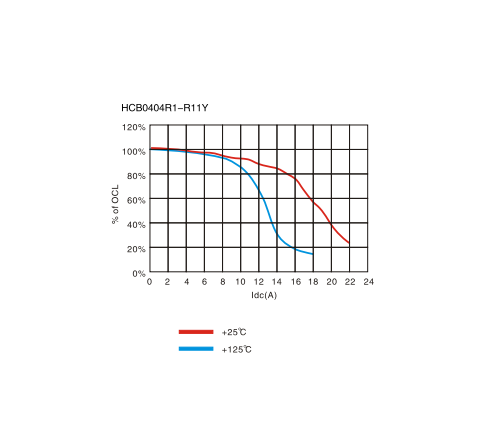

The Critical Role of Saturation Current (Isat): Imagine an inductor's magnetic core becoming so overwhelmed with magnetic flux that it can't store more energy—this is saturation. A high saturation current inductor is crucial because it maintains its inductance under heavy load, preventing catastrophic current spikes and ensuring stable voltage delivery during processor turbo events. Designers must consult saturation current graphs at both room and elevated temperatures (e.g., +125°C) to ensure consistent performance under worst-case scenarios.
The Efficiency Champion: Benefits of Low DCR in Power Inductors: The DC Resistance (DCR) of an inductor's windings is a primary source of power loss (I²R loss). The benefits of low DCR in power inductors are straightforward and vital: reduced conductive losses directly translate into higher efficiency, lower power consumption, less heat generation, and a reduced need for complex thermal management. This is paramount for achieving high efficiency in data center applications where every watt saved reduces operational costs and cooling demands. Ultimately, a lower DCR contributes significantly to creating a high efficiency Power Inductor.
Beyond DCR: Core Losses at High Frequency: While low DCR tackles conductive losses, today's multi-megahertz switch frequencies make core losses a major contributor to inefficiency. Ferrite Core materials, like those used in high-performance series, offer significantly lower core losses compared to alternative materials like powdered iron at these high frequencies. This combination of low DCR and low core loss is the hallmark of a true high efficiency power inductor.

The Application Imperative: Why VRMs and Data Centers Demand the Best

The shift towards higher currents, faster transient responses, and multi-phase architectures in server VRMs and AI accelerator cards places unprecedented demands on inductors2. A standard off-the-shelf component often won't suffice. This is where the value of a custom power inductor or selecting from a broad family of pre-optimized designs becomes apparent. Whether it's for a traditional multi-phase VRM or a more advanced Trans-Inductor Voltage Regulator (TLVR) topology6 designed for blistering transient response, the inductor must be meticulously matched to the IC, switching frequency, and thermal environment.

Finding the Perfect Match: HCB Series – Engineered for High-Performance Power

Navigating the trade-offs between size, saturation current, DCR, and cost requires not just components but solutions. This is where our expertise comes in.

Our HCB series of high current power inductors are specifically engineered to meet the severe challenges of modern data center power, VRM applications, and advanced computing. We offer a wide range of options to find your perfect fit:

Broad Selection: From compact HCB0404 (4.0x4.0mm) to powerful HCB1313 models, with inductance values from 22nH to 680nH and saturation currents (Isat) up to 110A.
Superior Performance: Featuring ferrite cores for low loss at high frequencies, shielded construction for low EMI, and ultra-low DCR values to minimize I²R losses and maximize efficiency.
Proven Reliability: Designed to operate reliably in demanding environments with an operating temperature range of -40°C to +125°C.

If you're designing the next generation of server boards, GPU platforms, or AI accelerator cards and are wrestling with power integrity, efficiency targets, or thermal management, a closer look at the inductor is your next step.

Ready to specify inductors that won't let you down? Discover how our HCB series can provide the performance and reliability your high-current VRM designs demand. Contact us today for detailed datasheets, application support, or to discuss custom power inductor solutions: sales@ferrtx.com

August 19, 2025
